Fermac Case 526 Skid Steer Parts Catalogue Manual 7-2680 – PDF DOWNLOAD

Description

Fermac Case 526 Skid Steer Parts Catalogue Manual 7-2680 – PDF DOWNLOAD

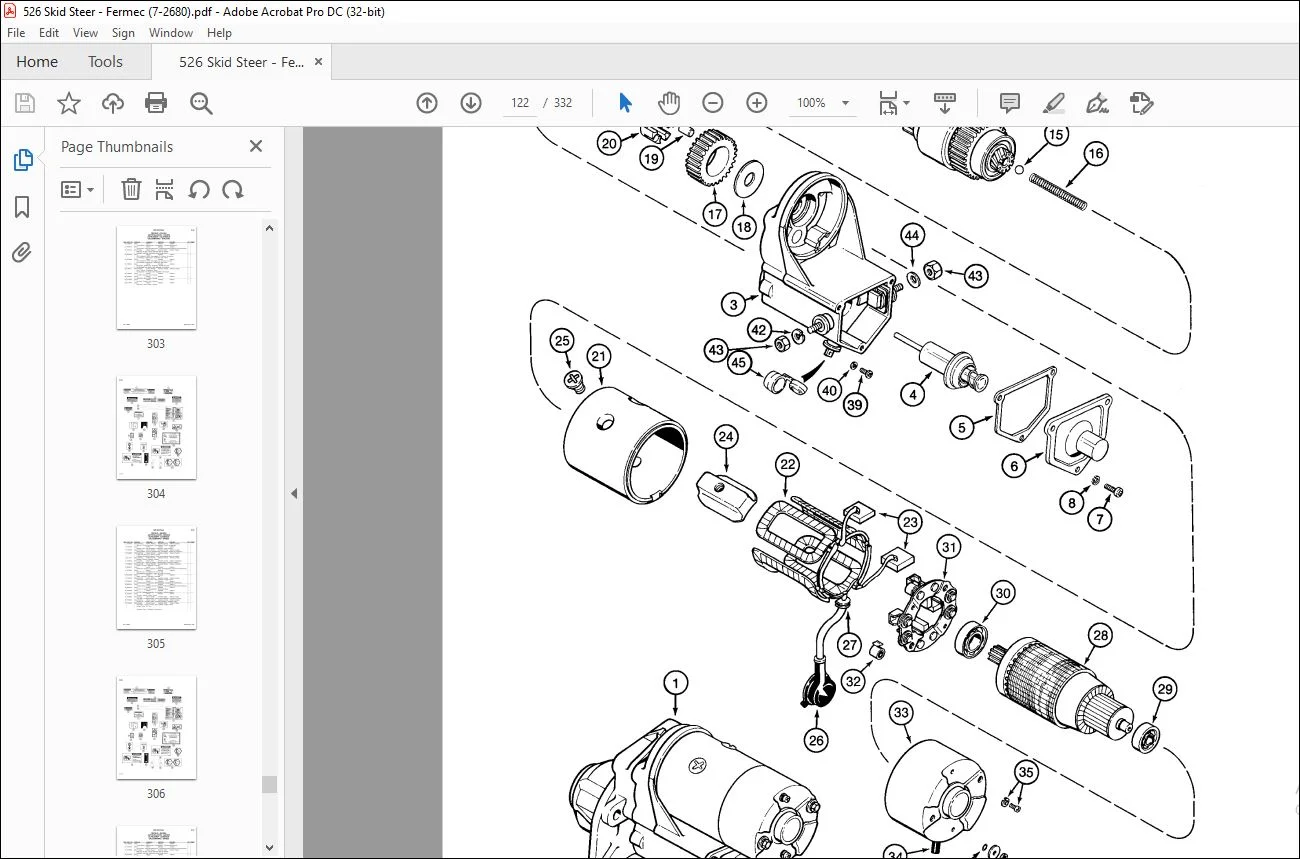

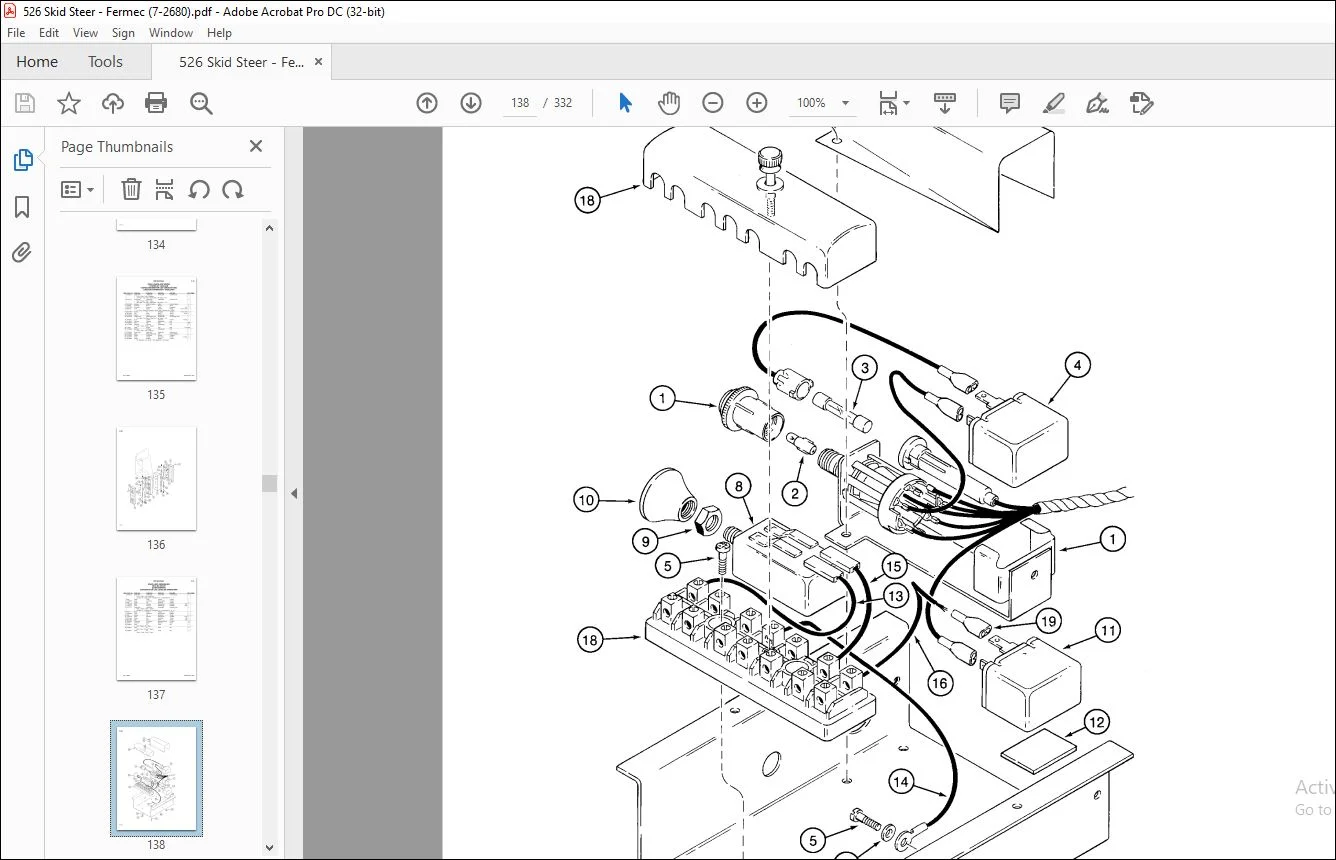

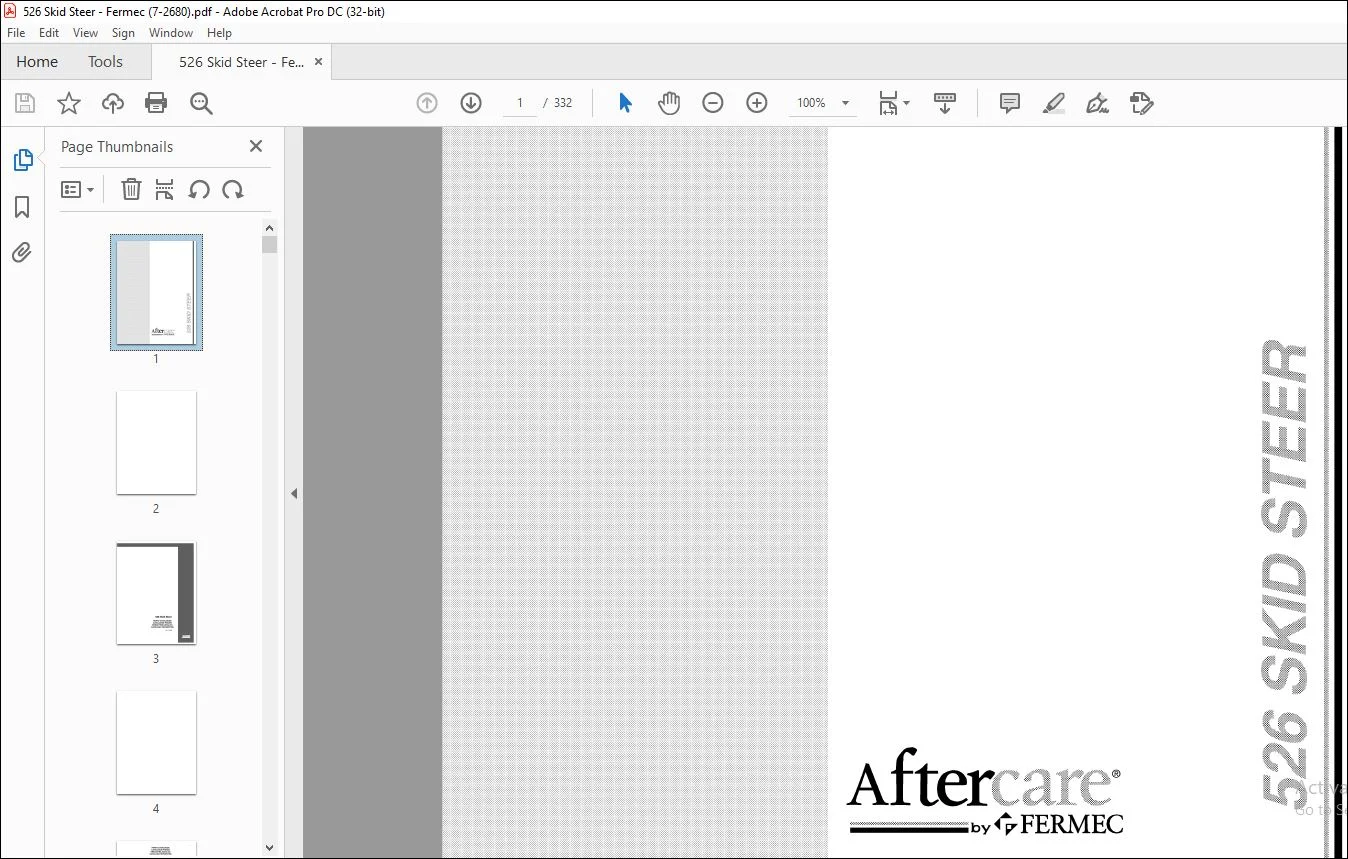

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Fermac Case 526 Skid Steer Parts Catalogue Manual 7-2680 – PDF DOWNLOAD

HOW TO USE YOUR PARTS CATALOGUE :
1. Model(s)
2. Page number
Gives section number and page number within section.
3. Illustration description and page title
4. Model and Serial Number or Product Identification Number (P.I.N.)
May be found in title and part number information lines.
-CGG012300 ………………………………………. All machines up to and including indicated number.
CGG012301-CGG012345 …………………….. All machines between, and including, indicated numbers.
CGG012346- ………………………………………. Machine number indicated and after.
5. Reference number
Reflects reference number on illustration page.
6. Part number
REF …………………………………………………… The part designated is identified on another page.
NSS .. .. . .. .. .. . .. .. . .. .. .. . .. .. . .. .. .. . .. .. . .. .. .. . .. .. . .. .. .. . The part is not sold separately; order the assembly or
subassembly.
7. Description
Nouns in various languages.
8. Dimension
1-3
Indicates size of part or other qualifying information. See page titled “Explanation of Dimension
Abbreviations”.
9. Quantity
Indicates number of parts per individual part, assembly, or subassembly.
NOTE: “X” in quantity column indicates “use as required”.
“#” in quantity column indicates a variation in quantity between models. See information line below
part row. The models affected will be shown with the quantity in parenthesis directly afterwards,
e.g. “#7210(1), 7220(2)”.
10. CARES code (Optional)
CARES code corresponding to the part reference number.
11. Additional information
See page 7-3 ……………………………………… The part illustrated is identified on another page.
Replaces 123456A 1 .. . .. .. .. . .. .. . .. .. .. . .. .. . .. .. .. . The part number was previously 123456A 1 (Use up any stock
you have).
Order 123456A1 …………………………………. Indicates the replacement part number you should order.
Order 22, 25, 26 .. .. . .. .. . .. .. .. . .. .. . .. .. .. . .. .. . .. .. .. . The part has been replaced by more than one item.
Cut from 3 x 1974883CX …………………….. Actual part length shown in size column but sold in multiples
of a specific length e.g. cut from 3 x 1974883CX (3 x 1 foot
length).
Cut from 234567A1 …………………………….. This is the bulk stock number from which the required length
should be cut.
Left, Right, Front, and Rear ………………… As seen by the operator when positioned at the machine
controls.
Consists of 1-5, 9, 13 ………………………….. The assembly or package consists of parts reference
numbers 1 through 5, 9 and 13.
Consists of 2-3, 2-7 – 2-11 …………………… The assembly consists of parts on pages 2-3 and 2-7 through
2-11.
Includes 3 ………………………………………….. The part includes reference number 3.
12. Catalogue reference number
13. Date of issue
14. Illustration reference
15. Arrow
The arrow indicates replacement part(s). An arrow may also be used to specify part location.

TABLE OF CONTENTS:

Fermac Case 526 Skid Steer Parts Catalogue Manual 7-2680 – PDF DOWNLOAD

GENERAL 1
ENGINE 2
FUEL SYSTEM 3
ELECTRICAL SYSTEM 4
POWER TRAIN 6
BRAKES 7
HYDRAULIC SYSTEM 8
CHASSIS 9
NUMERICAL INDEX 10
