Fiat Allis 16-B Crawler Tractor Hydraulics Service Manual
FILE DETAILS:
Fiat Allis 16-B Crawler Tractor Hydraulics Service Manual
Size : 81.0 MB
Format : PDF
Language : English
Brand: Fiat
Type of machine: Tractor-Dozer
Type of document: Service Manuals
Model: Fiat Allis 16-B Tractor-Dozer
DESCRIPTION:
Fiat Allis 16-B Crawler Tractor Hydraulics Service Manual
GENERAL INFORMATION:
- Study the Operation and Maintenance Instruction Manual before staring, operating, maintaining, fueling, or servicing machine. Read and heed all machine-mounted safety signs before starting, operating, maintaining, fueling or servicing machine. Machine-mounted safety signs have been color coded yellow with black border and lettering for WARNING and red with white border and lettering for DANGER points.
- Never attempt to operate the machine or its tools from any oosition other than seated in the operator’s seat. Keep head, body, limbs, hands and feet inside operator’s compartment at all times to reduce exposure to hazards outside the operator’s compartment. Do not allow unauthorized personnel to operate service or maintain this machine. Always check work area for dangerous features.
- The following are examples of dangerous work areas: slopes, over- hangs, timber, demolitions, fire, high walls, drop off. back fills, rough terrain, drtches. ridges, excavations, heavy traffic, crowded parking, crowded maintenance and dosed areas. Use extreme care when in areas such as these.
- An operator must know the machine’s capabilities. When working on slopes or near drop offs be alert to avoid loose or soft conditions that could cause sudden tipping or loss of control. Do not jump on or off machine.
- Keep two hands and one foot, or two feet and one hand, in contact with steps, grab rails and handles at all times. Do not use controls or hoses as handholds when dimbing on or off machine. Hoses and controls are movable and do not provide a solid support.
- Controls also may be inadvertently moved causing accidental machine or equipment movement. Keep operator’s compartment, stepping points, grab-rails and handles dear of foreign objects, oil. grease, mud or snow accumulation to minimize the danger of slipping or stumbling. Clean mud or grease from shoes before attempting to mount or operate the machine. Be careful of slippery conditions on stepping points, hand rails, and on the ground.
- Wear safety boots or shoes that have a high slip resistant sole material. For your personal protection, do not attempt to climb on or off machine while machine is in motion. Never leave the machine unattended with the engine running.
- Always lock up machine when leaving it unattended. Return keys to authorized security. Heed all shutdown procedures of the Operation and Maintenance Instruction Manual. Always set the parking brake when leaving the machine for any reason. Do not wear rings, wrist watches, jewelry, loose or hanging apparel, such as ties, torn clothing, scarves, unbuttoned or unzipped jackets that can catch on moving parts.
- Wear proper safety equipment as authorized for the job. Examples: hard hats, safety shoes, heavy gloves, ear protectors, safety glasses or goggles, reflector vests, or respirators. Consult your employer for specific safety equipment requirements.
- Do not carry loose objects in pockets that might faH unnoticed into open compartments. Do not use machine to carry loose objects by means ether than attachments for carrying such objects. DO NOT CARRY RDERS unless the machine is equipped for carrying people to reduce persona) exposure to being thrown off.
- Do not operate machinery in a condition of extreme fatigue or illness. Be especially careful towards the end of the shift. Roll Over Protective Structures are requires on wheel load- ers. dozer tractors, track type loaders, graders and scrapers by local or national requirements.
- DO NOT operate this machine without a Roll Over Protective Structure. Do not operate a machine without a falling object protective structure (FOPS). Do not operate this machine without a rear canopy screen when machine is equipped with rear mounted towing winch.
- Seat belts are required to be provided with roll over protective structures or roll protection cabs by local or national regulations. Keep the safety beit fastened around you during operation.
- Where noise exposure exceeds 90 dBA for 8 hours, wear authorized ear prolective equipment per local or national requirements that apply. Keep clutches and brakes on machine and attachments such as powor control units, winches and master clutches adjusted according to Operation and Maintenance Instruction Manuals of the manufacture’s at all times. DO NOT adjust machine with engine runnmc except as specified.
VIDEO PREVIEW OF THE MANUAL:

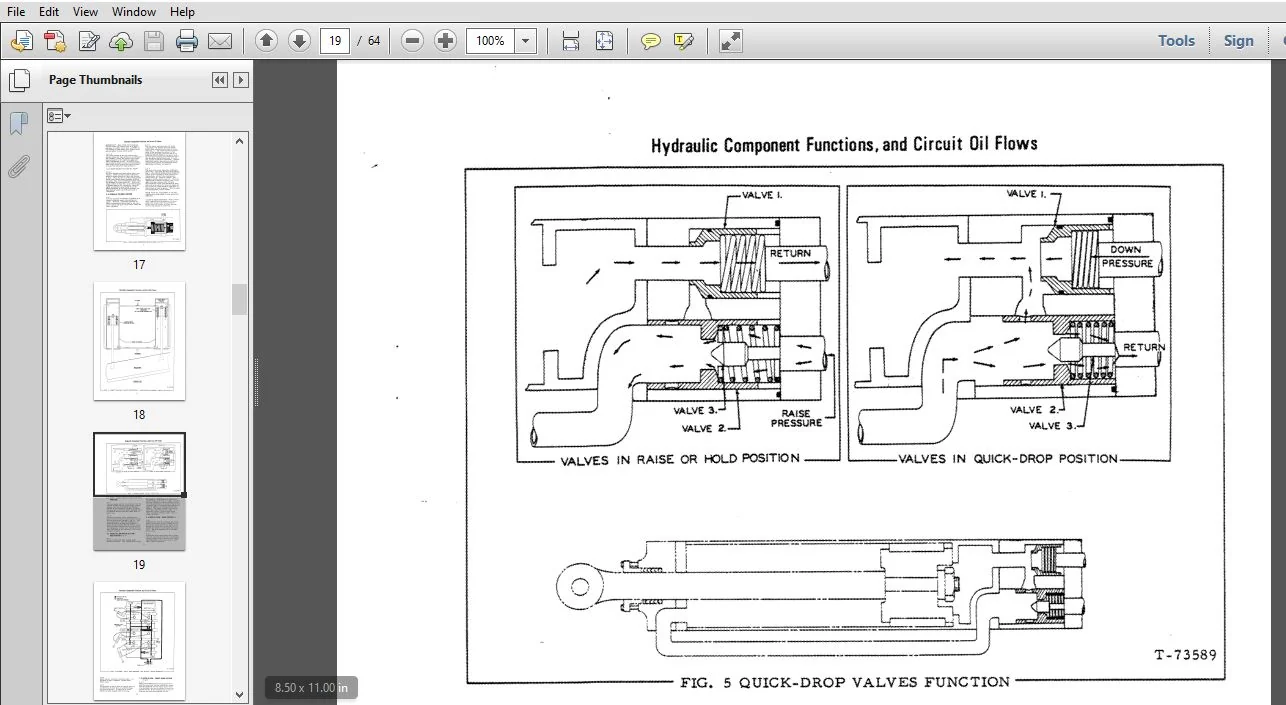

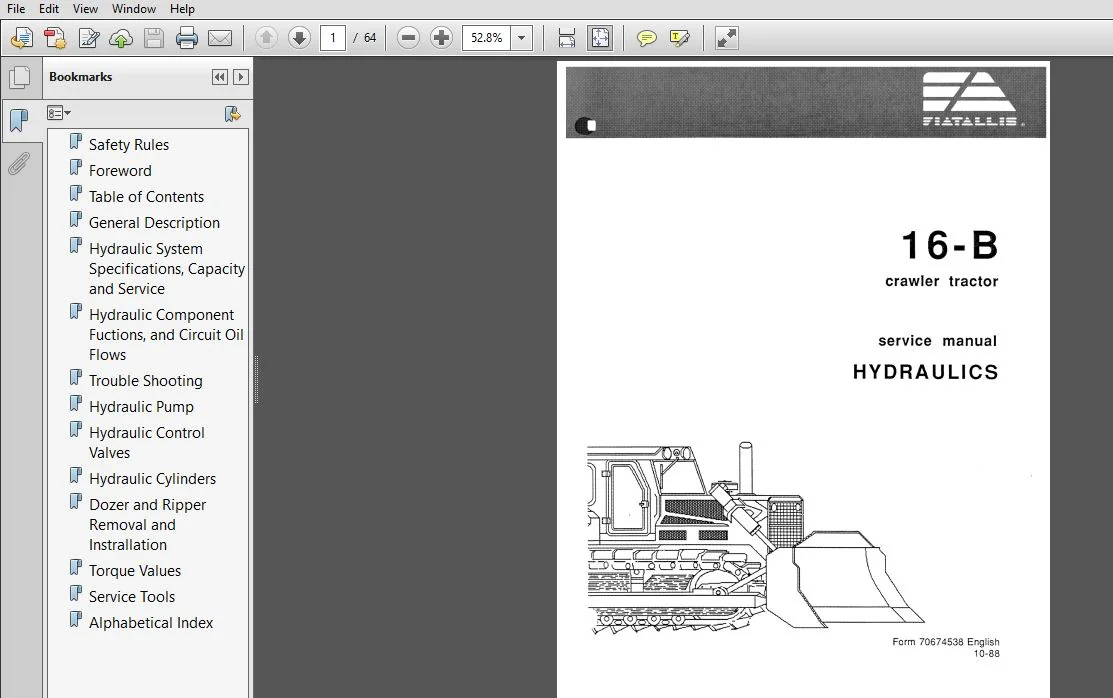

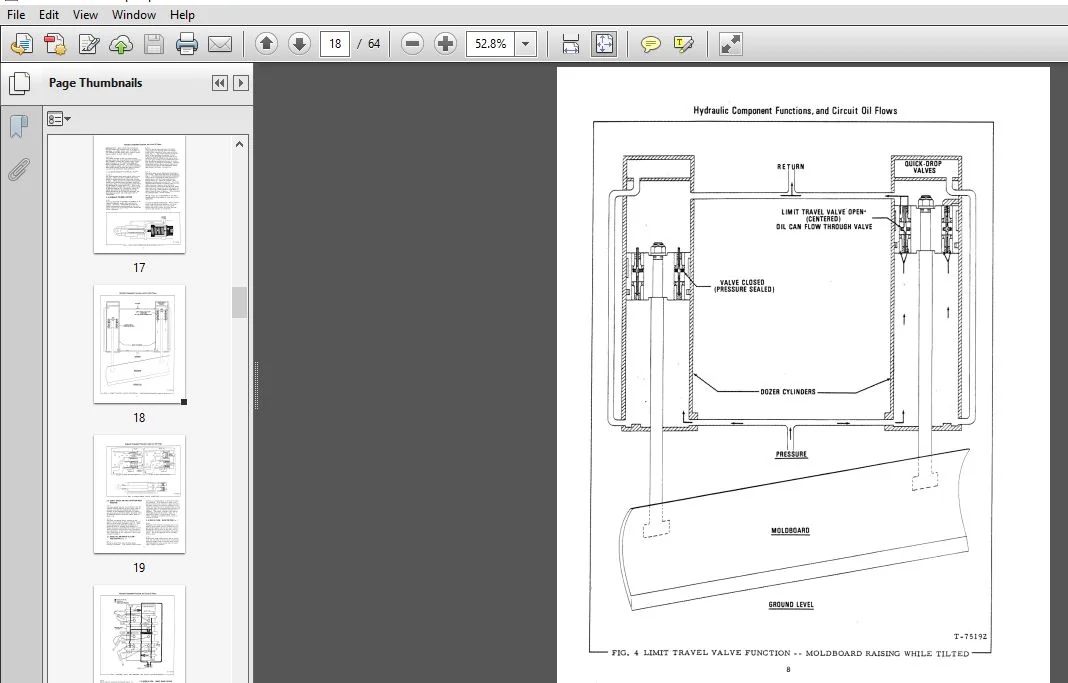

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
Fiat Allis 16-B Crawler Tractor Hydraulics Service Manual
Safety Rules 5
Foreword 11
Table of Contents 12
General Description 13
Hydraulic System Specifications, Capacity and Service 15
Hydraulic Component Fuctions, and Circuit Oil Flows 16
Trouble Shooting 28
Hydraulic Pump 38
Hydraulic Control Valves 41
Hydraulic Cylinders 46
Dozer and Ripper Removal and Instrallation 53
Torque Values 58
Service Tools 59
Alphabetical Index 60
