Fiat Allis 65 MOTOR GRADER MOLDBOARD DRAWBAR CIRCLE and SCARIFIER SERVICE MANUAL 70680007 – PDF DOWNLOAD

Description

Fiat Allis 65 MOTOR GRADER MOLDBOARD DRAWBAR CIRCLE and SCARIFIER SERVICE MANUAL

FILE DETAILS:

Fiat Allis 65 MOTOR GRADER MOLDBOARD DRAWBAR CIRCLE and SCARIFIER SERVICE MANUAL

Size : 2.83 MB
Format : PDF
Language : English
Brand: Fiat
Page: 25
Type of document: Service Manual
Model: Fiat Allis 65 motor grader

DESCRIPTION:

Fiat Allis 65 MOTOR GRADER MOLDBOARD DRAWBAR CIRCLE and SCARIFIER SERVICE MANUAL

GENERAL INFORMATION:

• Study the Operation and Maintenance Instruction Manual before starting, operating, maintaining, fueling, or servicing machine. Read and heed all machine-mounted safety signs before starting, operating, maintaining, fueling or servicing machine.
• Machine-mounted safety signs have been color coded yellow with black borders and lettering for warning and red with white borders and lettering for danger points. Do not allow unauthorized personnel to service or main- tain this machine. Do not perform any work on equipment that is not authorized. Follow the Maintenance and Service procedures. Study the Operation and Maintenance Instruction Manual before starting, operating, maintaining, fueling or servicing this machine.
• Always wear safety glasses with side shields. Do not wear rings, wrist watches, jewelry, or loose or hang- ing apparel, such as ties, tom clothing, scarves, unbuttoned, or unzipped jackets that can catch on moving parts. Wear proper safety equipment as authorized for the job. Examples: hard hats, safety shoes, heavy gloves, ear pro- tectors, safety glasses or goggles, reflector vests, or respirators.
• Consult your employer for specific safety equipment requirements. Do not use controls or hoses as handholds when climbing on or off machine. Hoses and controls are movable and do not provide a solid support.
• Controls may also be inadvert- ently moved causing accidental machine or equipment movement. Do not jump on or off machine. Keep two hands and one foot, or two feet and one hand, in contact with steps and grab-rails and handles at all times.
• Machine should not be serviced with anyone in the opera- tor’s seat unless they are qualified to operate the machine and are assisting in the servicing.Keep operator’s compartment, stepping points, grab-raiis and handles clean of foreign objects, oil, grease, mud or snow accumulation to minimize the danger of slipping or stumbling. Clean mud or grease from shoes before attempt- ing to mount or operate the machine.
• Never attempt to operate the machine or its tools from any other position than seated in the operator’s seat.
• Keep operator’s compartment clear of loose objects. If movement of an attachment by means of the machine’s hydraulic system is required for service or maintenance, do not raise or lower attachments from any position other than when seated in the operator’s seat. Before starting machine or moving attachment or tool, make sure to set brakes, sound horn and call for an all clear.
• Raise attachment slowly. Always block with external support any linkage or part on machine that requires work under the raised linkage, parts, or machine per OSHA requirements. Never allow anyone to walk under or be near unblocked raised equipment. Avoid working or walking under raised blocked equipment unless you are assured of your safety. Never place head, body, limbs, fingers, feet or hands into an exposed portion between uncontrolled or unguarded

FIAT ALLIS 65 MOTOR GRADER MOLDBOARD DRAWBAR CIRCLE AND SCARIFIER SERVICE MANUAL 70680007 – PDF DOWNLOAD:

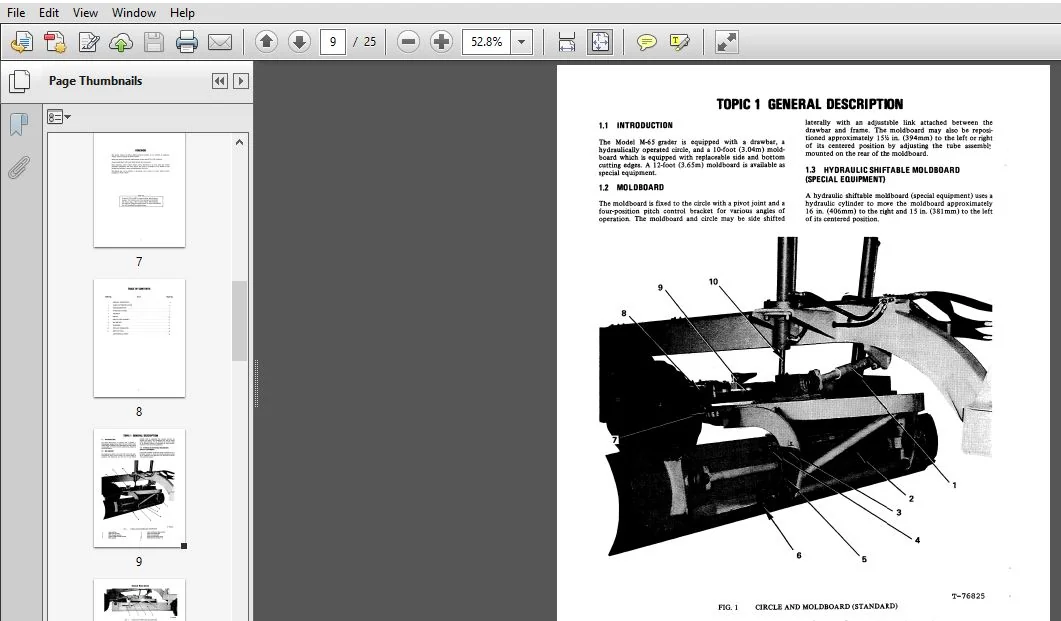

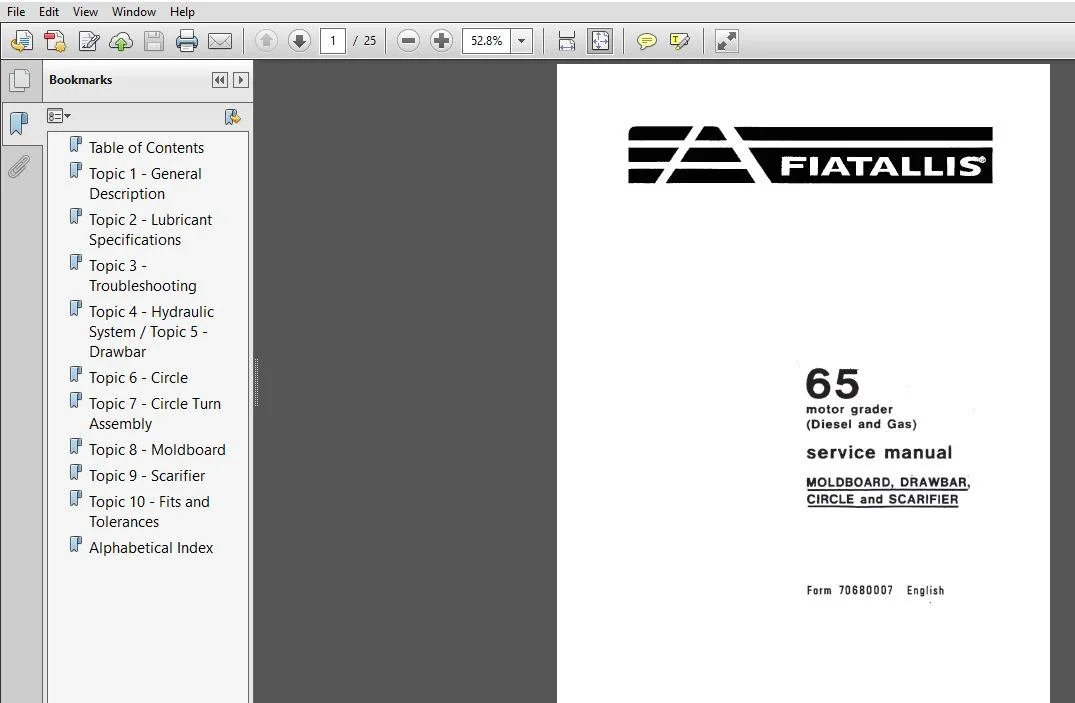

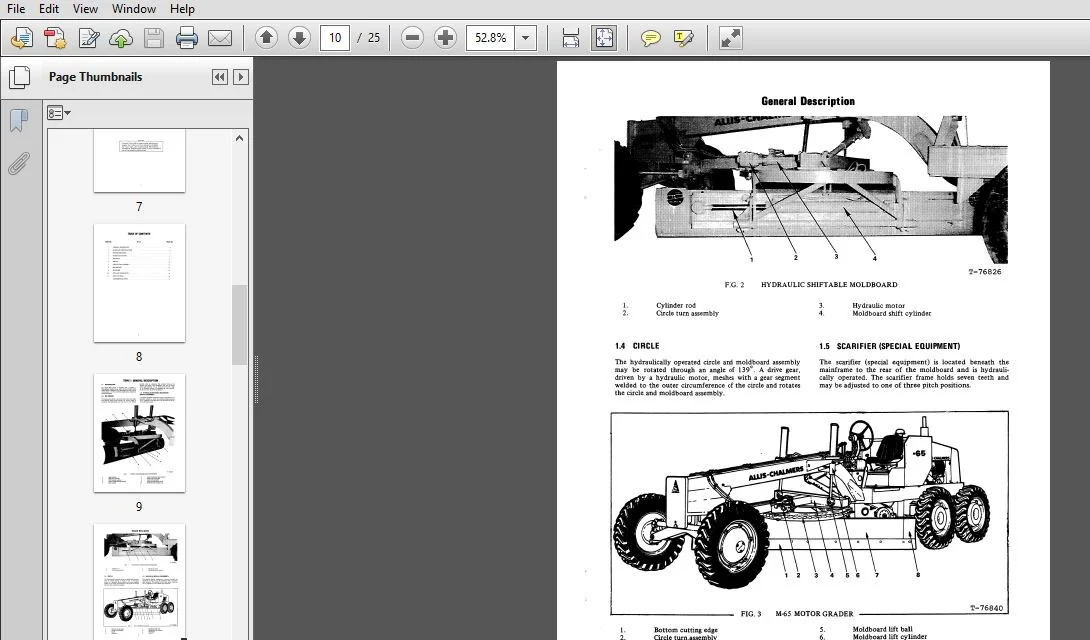

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Fiat Allis 65 MOTOR GRADER MOLDBOARD DRAWBAR CIRCLE and SCARIFIER SERVICE MANUAL

Table of Contents 8
Topic 1 – General Description 9
Topic 2 – Lubricant Specifications 11
Topic 3 – Troubleshooting 12
Topic 4 – Hydraulic System / Topic 5 – Drawbar 13
Topic 6 – Circle 15
Topic 7 – Circle Turn Assembly 17
Topic 8 – Moldboard 20
Topic 9 – Scarifier 22
Topic 10 – Fits and Tolerances 23
Alphabetical Index 24

 PLEASE NOTE:

⦁ This is the SAME MANUAL used by the dealerships to diagnose your vehicle
⦁ No waiting for couriers / posts as this is a PDF manual and you can download it within 2 minutes time once you make the payment.
⦁ Your payment is all safe and the delivery of the manual is INSTANT – You will be taken to the DOWNLOAD PAGE.
⦁ So have no hesitations whatsoever and write to us about any queries you may have : heydownloadss @gmail.com
