Fiat Allis FL10E Crawler Loader Service Manual
FILE DETAILS:
Fiat Allis FL10E Crawler Loader Service Manual
Size : 168 MB
Format : PDF
Language : English
Brand: Fiat
Type of machine: Loader
Type of document: Service Manual
Model: Fiat Allis FL10E Crawler Loader
Number of Pages: 728 pages
Set Form No.: 73156192
DESCRIPTION:
Fiat Allis FL10E Crawler Loader Service Manual
GENERAL INFORMATION:
- Sludy the Operation and Maintenance Instruction Manual be- lore starling, operating, maintaining, fueling, or servicing machine. * Read and heed all machine-mounted safety signs before starting, operating, maintaining, fueling or servicing machine. Machine-mounted safety signs have been color coded yellow with black border and lettering for WARNING and red wilh while border and lettering for DANGER points.
- Never attempt to operate the machine or its tools from any position other than seated in the operator’s seat. Keep head, body, limbs, hands and feet inside operator’s compartment at all times to reduce exposure to hazards outside the operator’s compartment. Do not allow unauthorized personnel to operate service or maintain this machine. Always check work area for dangerous features.
- The following are examples of dangerous work areas: slopes, over hangs, timber, demolitions, fire, high walls, drop off, back fills, rough terrain, ditches, ridges, excavations, heavy traffic, crowded parking, crowded maintenance and closed areas. Use extreme care when in areas such as these. An operator must know the machine’s capabilities. When working on stapes or near drop offs be alert to avoid loose or soft conditions that could cause sudden tipping or loss of control.
- Do not jump on or off machine. Keep two hands and one foot, or two feet and one hand, in contact with steps grab rails and handles at all times. Do not use controls or hoses as hand holds when climbing on or off machine. Hoses and controls are movable and do not provide a solid support.
- Controls also may be inadvertently moved causing accidental machine or equipment movement. Keep operator’s compartment, stepping points, grab-rails and handles clear of foreign objects, oil. grease, mud or snow accumulation to minimize the danger of slipping or stumbling. Clean mud or grease from shoes before attempting to mount or operate the machine.Be careful of slippery conditions on stepping points, hand rails, and on the ground.
- Wear safety boots or shoos that have a high slip resistant sole material. For your personal protection. Do not attempt to climb on or off machine while machine is in motion. Never leave the machine unattended with the engine running. Always lock up machine when leaving it unattended. Return keys to authorized security. Heed allshut down procedures of the Operation and Maintenance Inslruclion Manual.
- Always set the parking brake when leaving the machine for any reason.Do not wear rings, wrist watches, jewelry, loose or hanging apparel, such as ties, torn clothing, scarves, unbuttoned or unzipped jackets that can catch on moving parts. Wear proper safety equipment as authorized for the job. Examples: hard hats, safety shoes, heavy gloves, ear protectors, safety glasses or goggles, reflector vests, or respirators.
- Consult your employer for specific safety equipment requirements. Do not carry loose objects in pockets that might fall unnoticed into open compartments. Do not use machine to carry loose objects by means other than attachments for carrying such objects. DO NOT CARRY RIDERSur\\ess the machine is equpped for carrying people to reduce personal exposure to being thrown oH. Do not operate machinery in a condition of extreme fatigue or illnoss. Bo especially careful towards the end of the shift.
- Roll Over Protective Structures are required on wheel load- ers, dozer tractors, track type loaders, graders and scrapers by local or national requirements. DO NOT operate this machine without a Roll Over Protective Structure.
- Do not operate a machine without a falling object protective structure (FOPS). Do not operate this machine without a rear canopy screen when machine is equipped with rear mounted towing winch. Seat belts are required to be provided with roll over protective structures or roll protection cabs by local or national regula- tions. Keep the safety belt fastened around you during operation.
VIDEO PREVIEW OF THE MANUAL:

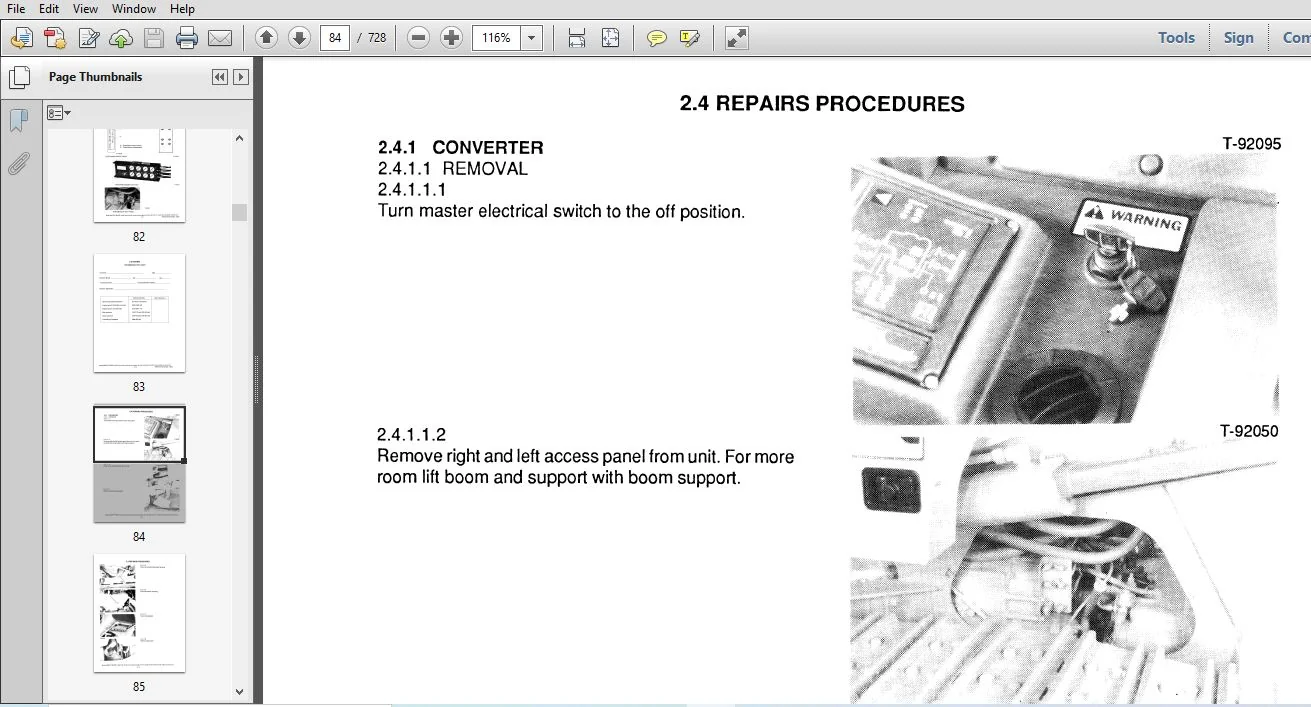

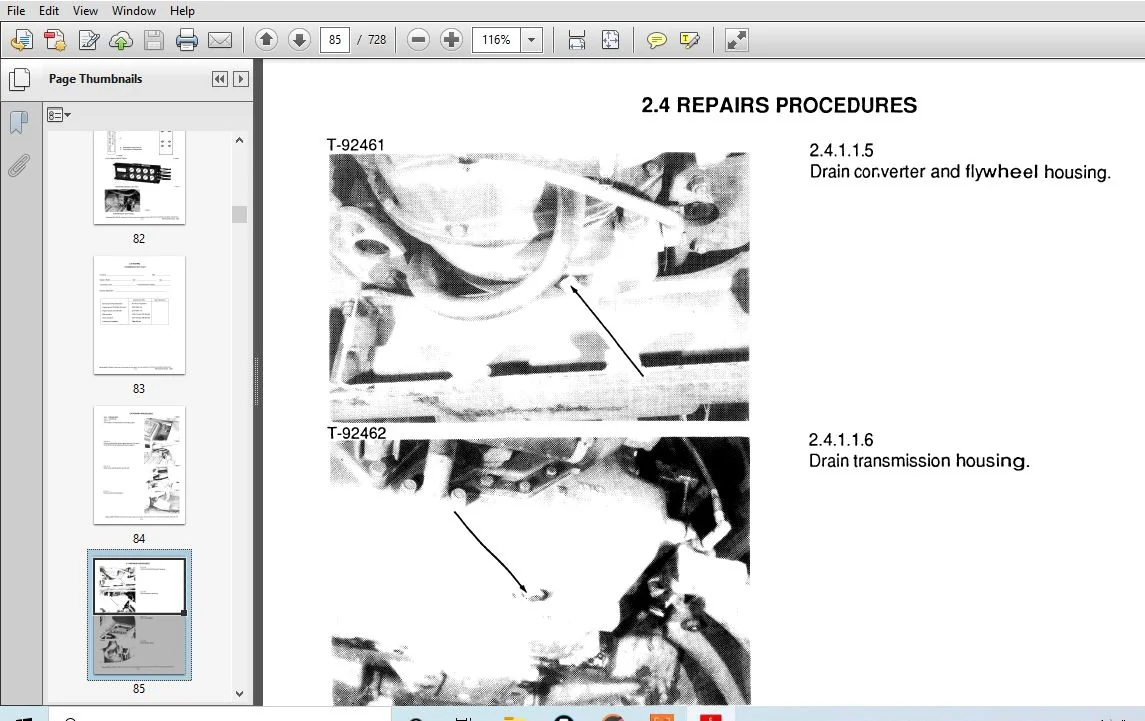

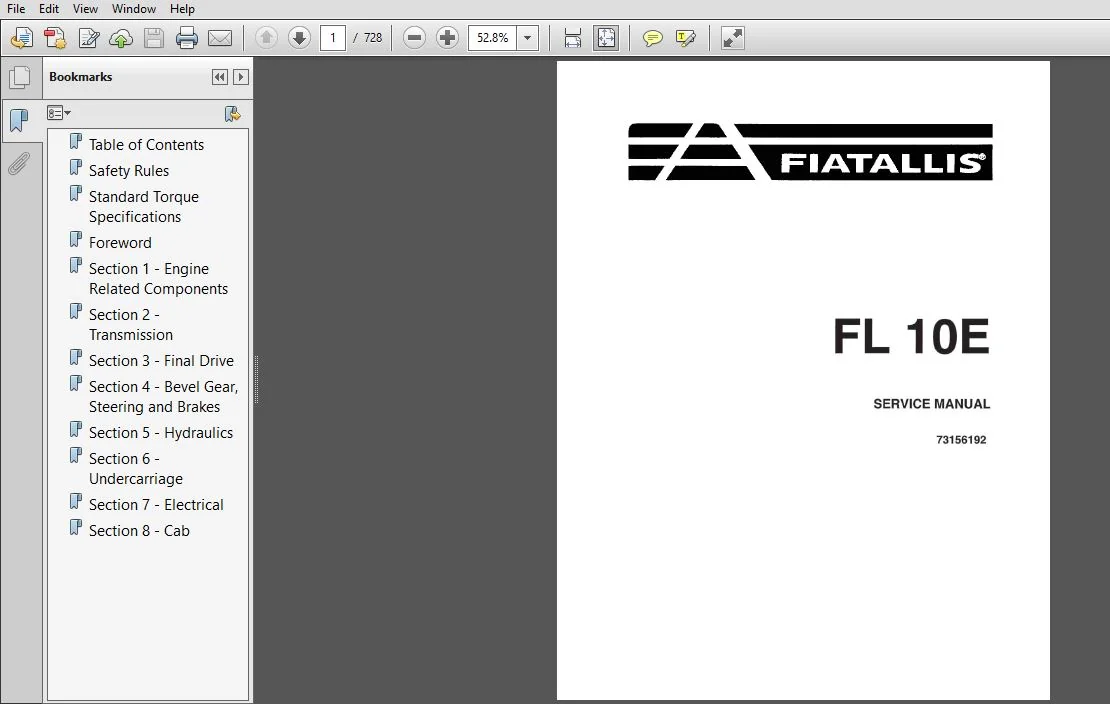

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
Fiat Allis FL10E Crawler Loader Service Manual
Table of Contents 4
Safety Rules 5
Standard Torque Specifications 12
Foreword 16
Section 1 – Engine Related Components 17
Section 2 – Transmission 71
Section 3 – Final Drive 187
Section 4 – Bevel Gear, Steering and Brakes 234
Section 5 – Hydraulics 342
Section 6 – Undercarriage 410
Section 7 – Electrical 471
Section 8 – Cab 682
PLEASE NOTE:
⦁ This is not a physical manual but a digital manual – meaning no physical copy will be couriered to you. The manual can be yours in the next 2 mins as once you make the payment, you will be directed to the download page IMMEDIATELY.
⦁ This is the same manual used by the dealers inorder to diagnose your vehicle of its faults.
⦁ Require some other service manual or have any queries: please WRITE to us at [email protected]
