Fiat Allis HD11 11B Crawler Tractors Final Drives Service Manual 70682019 – PDF DOWNLOAD

Description

Fiat Allis HD11 11B Crawler Tractors Final Drives Service Manual

FILE DETAILS:

Fiat Allis HD11 11B Crawler Tractors Final Drives Service Manual

Size: 3.93 MB
Format: PDF
Language: English
Brand: Fiat
Type of machine: Crawler Tractors
Type of document: Service Manual
Model: Fiat Allis HD11 11-B Crawler Tractors
Number of Pages: 40 pages
Re-Print No.: 70682019

DESCRIPTION:

Fiat Allis HD11 11B Crawler Tractors Final Drives Service Manual

FOREWORD:

Always furnish serial number it making an inquiry to dealerortactory about this machine. Many equipment owners employthe Dealer Service Department for all work other than routine lubrication and minor service. This practice is encouraged. as our Dealers are well iniomied and equipped to render efficient service by factory trained mechanics This manual may not be reprinted or reproduced. either in whole or in part. without written permission of Fiataiils ®. Illustrations show standard and optional items.

SAFETY RULES:

GENERAL :

Study the Operation and Maintenance Instruction Manual be- fore starting, operating, maintaining, fueling. or servicing machine. – Read and heed all machine-mounted safety signs before starting, operating, maintaining, fueling or servicing machine. Machine~mounted safety signs have been color coded yellow with black border and lettering for WARNING and red with white border and lettering for DANGER points. Never attempt to operate the machine or its tools from any position other than seated in the operator’s seat. Keep head, body, limbs, hands and feet inside operator’s compartment at alltirnes to reduce exposure to hazards outside the operator’s compartment.

• Do not allow unauthorized personnel to operate service or maintain this machine. Aiways check work area for dangerous features. The follow. ing are examples of dangerous work areas: slopes. over hangs, timber. demolitions. fire. high walls, drop off, back fills, rough terrain, ditches. ridges, excavations, heavy traffic, crowded parking, crowded maintenance and closed areas. Use extreme care when in areas such as these. An operator must know the machine‘s capabilities. When working on slopes or near drop offs be alert to avoid loose or soft conditions that could cause sudden tipping or loss of control.
• Do not jump on or off machine. Keep two hands and one foot, or two feet and one hand, in contact with steps grab rails and handles at all times. Do not use controls or hoses as hand holds when climbing on or off machine. Hoses and controls are movable and do not provide a send support. Controls also may be inadvertently moved causing accidental machine or equipment movement. Keep operator‘s compartment, stepping points, grab-rails and handles clear of foreign objects, oil. grease. mud or snow accumulation to minimize the danger of sliping or stumbling. Clean mud or grease from shoes before attempting to mount or operate the machine.

TABLE OF CONTENTS:

Fiat Allis HD11 11B Crawler Tractors Final Drives Service Manual

• GENERAL DESCRIPTION~
• TROUBLESHOOTING
• FINAL DRIVE DISASSEMBLY
• A. Track Sprocket and Shaft Removal
• B. Intermediate Shaft Removal
• C. Pinion Shaft Removal
• FINAL DRIVE ASSEMBLY
• A. Cleaning and Inspection
• 8. Intermediate Pinion and Gear Installation
• C. Pinion (Top Shaft) Installation
• D. Sprocket Shaft Bearings Adjustment
• E. Sprocket Shaft Seal Assembly
• F. Sprocket Shaft and Gear Installation
• G. Track Sprocket Installation
• H. Sprocket Shaft Outboard Bearing Installation
• I. Truck Frame and Track Installation
• FITS AND TOLERANCES
• A. Pinion Shaft Components
• B. Intermediate Shaft and Components
• C. Sprocket Shaft and Components
• SERVICE TOOLS
• CONVERSION TABLES

FIAT ALLIS HD11 11B CRAWLER TRACTORS FINAL DRIVES SERVICE MANUAL 70682019 – PDF DOWNLOAD:

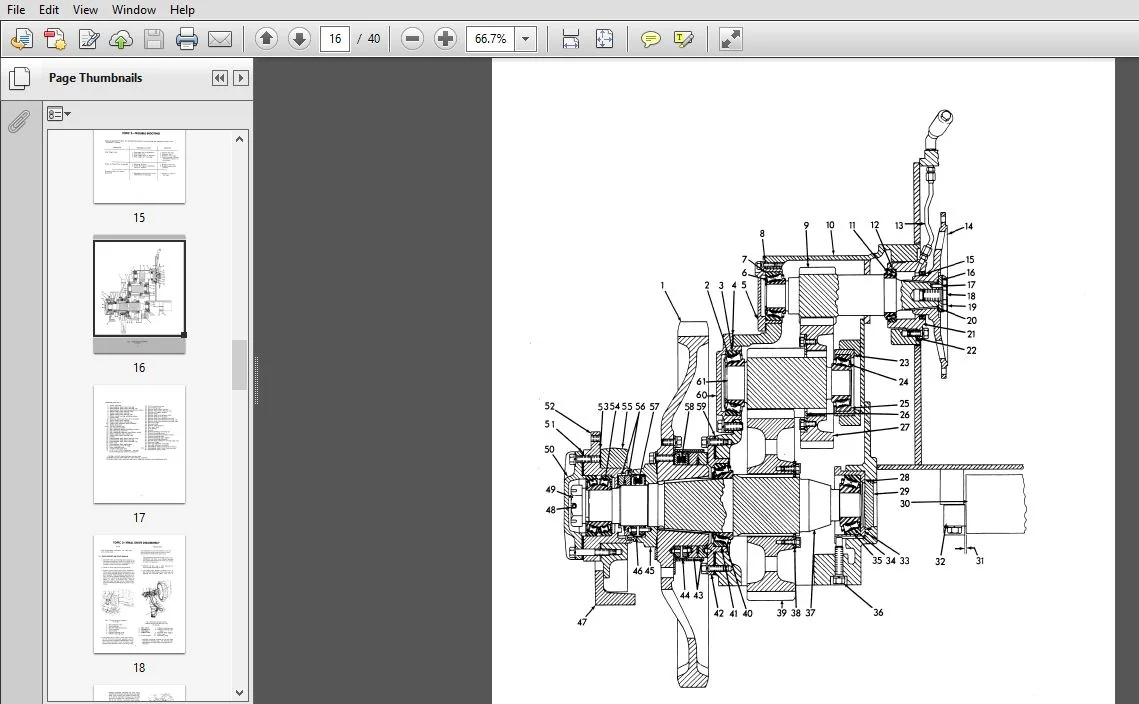

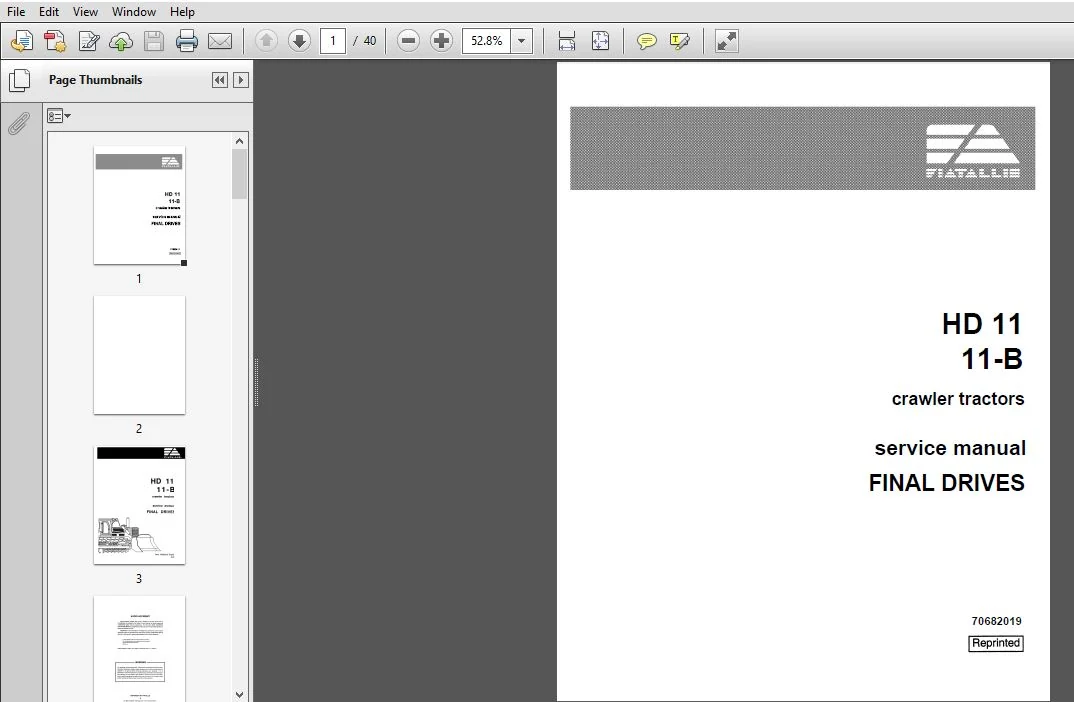

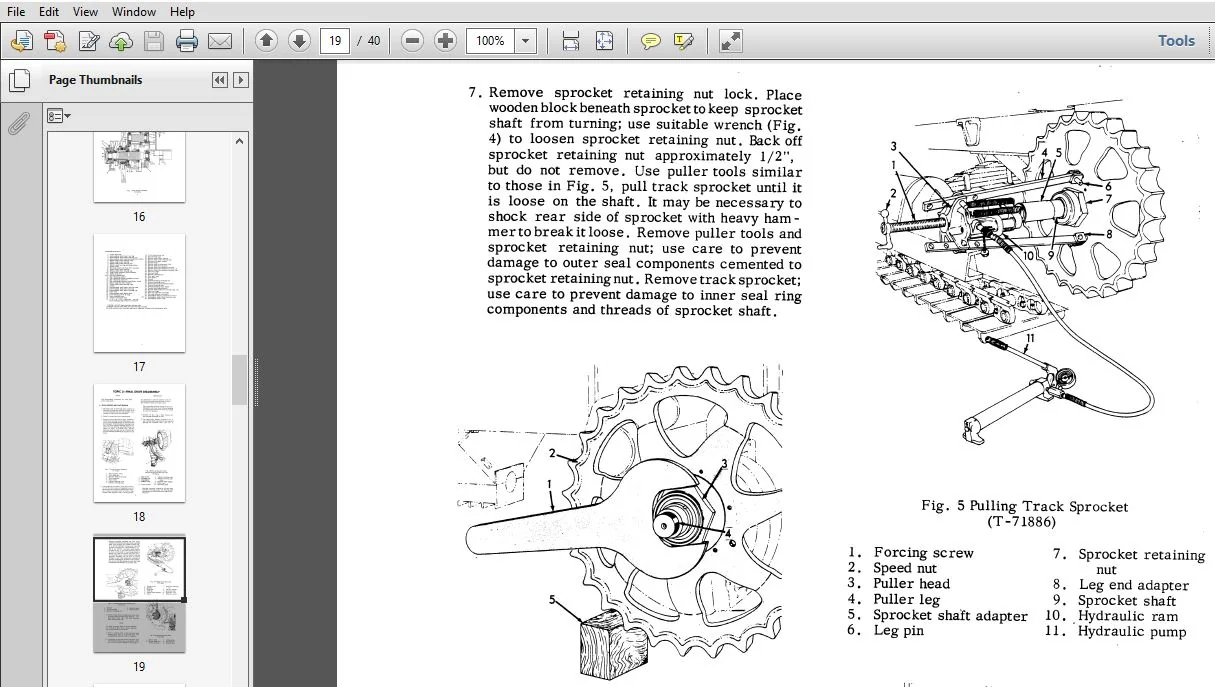

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]
