Fiat Bravo (182) Service Manual Vol. 2 (Electrical & Body) – PDF
Original price was: $85.00.$21.95Current price is: $21.95.
This is Volume 2 of the official Fiat Bravo/Brava (Type 182) factory service manual. It covers Electrical Equipment, Wiring Diagrams, Bodywork, and HVAC. Includes complete Fiat Bravo 182 wiring diagrams, connector block locations, fault-diagnosis charts, heater/A-C servicing, and full body panel removal and replacement procedures.
Description
Fiat Bravo (182) Service Manual Vol. 2 (Electrical & Body) – PDF DOWNLOAD

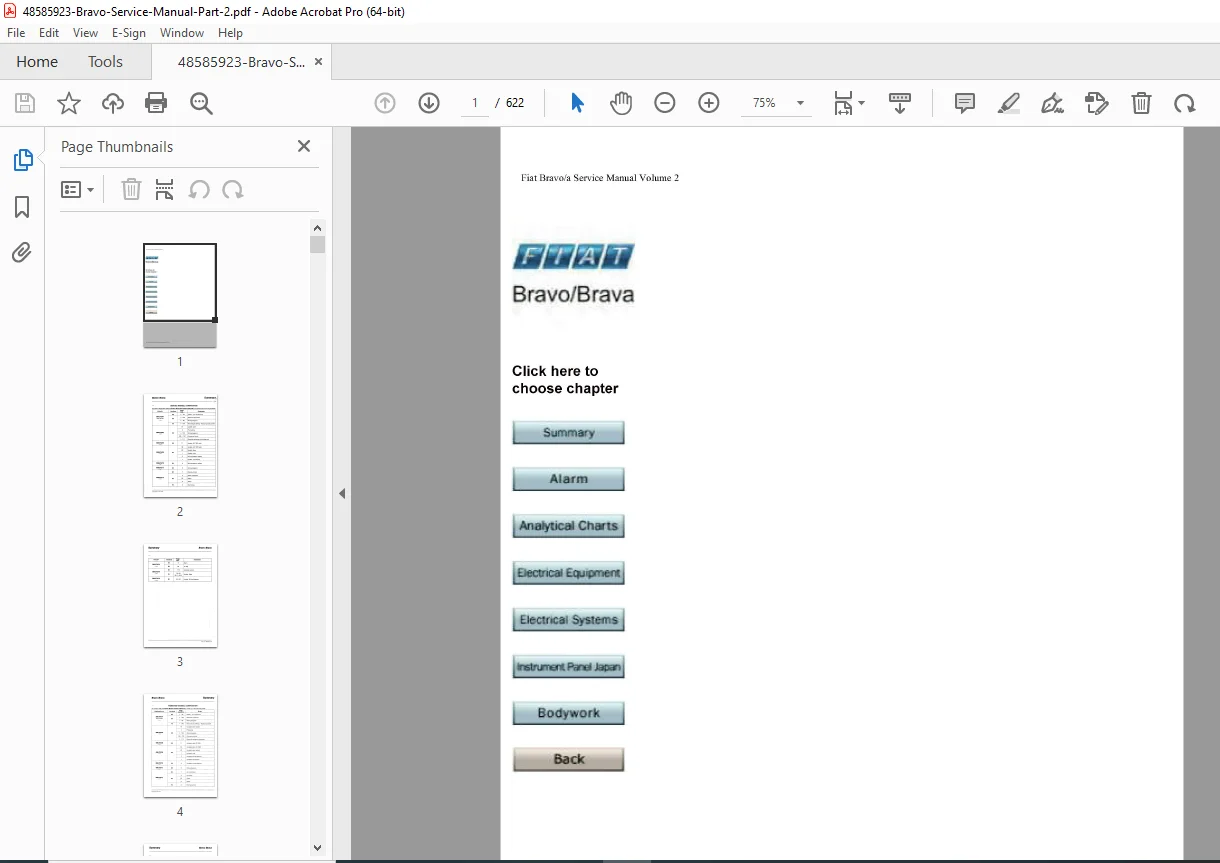

TABLE OF CONTENTS
SERVICE MANUAL COMPOSITION (1995–1998)
The manual is built from the following official Fiat print numbers:
| Print No. | Section | Pages | Description |
|---|---|---|---|
| 506.670/01 | 50 | 1–43 | Heater & Air Conditioning |
| 506.670/02 | 55 | 1–154 | Electrical Equipment |
| 506.670/05 | 70 | 1–55 | Wiring Diagrams |
| 506.670/06 | 55 | 1–145 | Body Panels – Removing & Refitting |
| 506.670/10 | – | 16 | Alarm Update |
| 506.670/11 | – | 4 | Pre-heating |
| 506.670/12 | – | 1–103 | Wiring Diagrams |
| 506.670/12 (cont.) | – | 105–161 | Connector Blocks |
| 506.670/?? | – | 1–117 | Electrical Fault Diagnosis |
| … | … | … | Radio updates, Alarm updates, Code updates, Wiring updates |
(Multiple compositions for 1995, 1996, 1997, 1998 editions included.)
📌 Detailed Sections Included
Section 50 – Heater & Air Conditioning
System layout
Heater/A/C components
A/C troubleshooting
HVAC controls
Climate control wiring updates
Section 55 – Electrical Equipment
Electrical system overview
Alarm system (with receiver, sensors, control unit)
Alarm programming & country code settings
Alarm component locations
Remote control programming (simplified & protected)
Airbag system
Radio system updates (4D 182L, AD 182H)
Pre-heating systems (diesel variants)

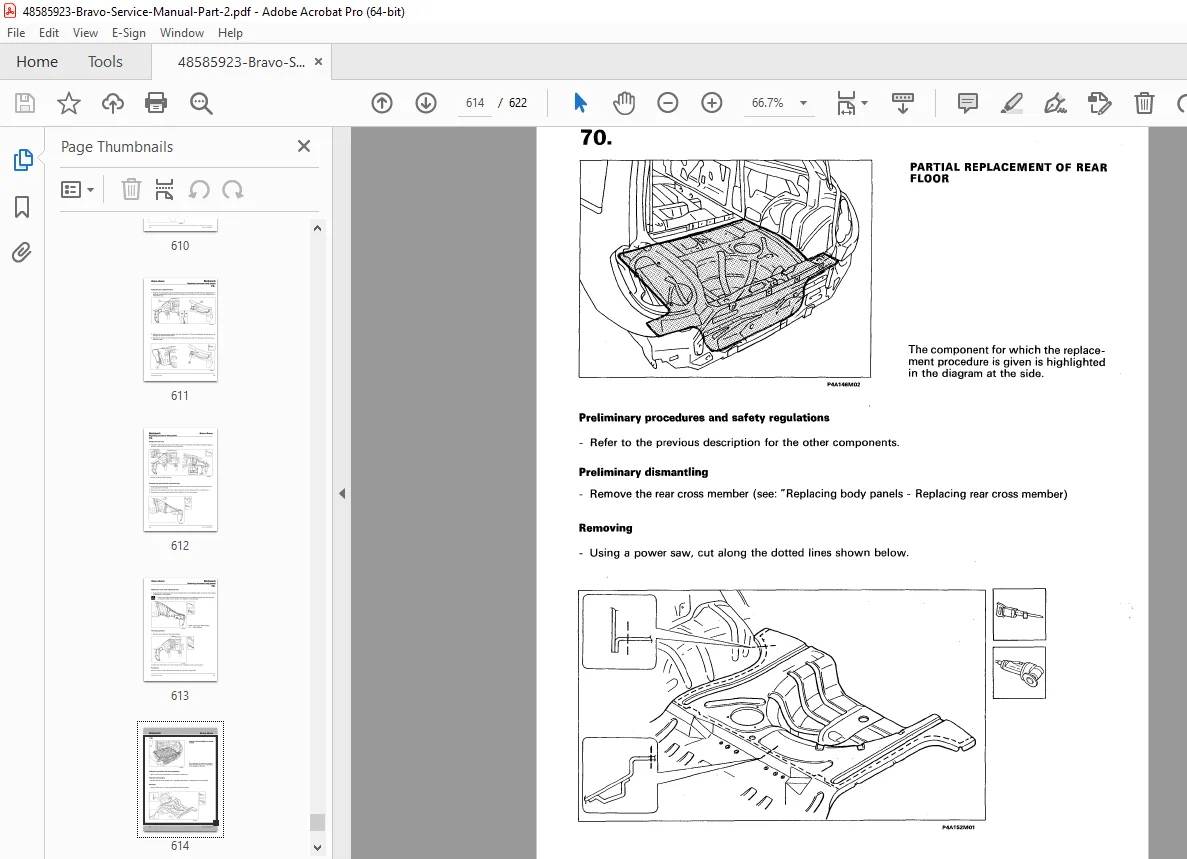

Section 70 – Bodywork
Body panel removal & refitting
Replacing welded panels
Roof-lining removal
Structural welding instructions
Step-by-step exterior panel replacement
📊 ELECTRICAL DIAGNOSTICS – ANALYTICAL CHARTS
The manual contains dozens of complete diagnostic flowcharts covering:
Parking lights, dipped/main beam lights
Number plate lighting
Central locking
Interior lights
Windows (EL/SX/ELX/GT/HGT variants)
Fuel gauge
Warning lights
Instrument cluster faults
Indicators, hazards, reverse lights
Brake light systems
Connector blocks
Full wiring diagrams for all trims
Each chart provides:
Wire colour references
Pin locations
Fuse/relay tests
Junction unit checks
Earth point references
📡 Wiring Diagrams Included
Massive set of diagrams included:
Full vehicle wiring (EL, SX, ELX, GT, HGT)
Light clusters (front & rear)
Electric windows (all trim levels)
Junction unit (complete)
Engine bay harnesses
Dashboard harness
A/C, heater, climate systems
Radio systems
Alarm & receiver
Airbag systems
Connector block reference maps
📄 File Details
| Field | Details |
|---|---|
| Manual Name | Fiat Bravo/Brava (182) Service Manual – Volume 2 |
| Models Covered | Fiat Bravo & Fiat Brava (Type 182) |
| Years Covered | 1995–1998 (all electrical updates included) |
| Content | Electrical, Wiring, Body Repair, HVAC, Diagnostics |
| PDF Quality | Good quality scan – fully legible diagrams |
| Pages | 622 |
