Fiat Hitachi TELEHANDLERS T13 T14 T17 Service Manual – PDF DOWNLOAD

Description

Fiat Hitachi TELEHANDLERS T13 T14 T17 Service Manual – PDF DOWNLOAD

FILE DETAILS:

Fiat Hitachi TELEHANDLERS T13 T14 T17 Service Manual – PDF DOWNLOAD

Language : English
Pages : 408
Downloadable : Yes
File Type : PDF

DESCRIPTION:

Fiat Hitachi TELEHANDLERS T13 T14 T17 Service Manual – PDF DOWNLOAD

AVOID ACCIDENTS

• Most accidents, whether they occur in workshop, on the farm, at home or on the road, are caused by the failure of some individuals to follow simple and fundamental safety rules and precautions.
• For this reason MOST ACCIDENTS CAN BE PREVENTED by recognising the real cause and doing something about it before the accident occurs.
• Regardless of the care used in the design and construction of any type of equipment, there are many conditions that cannot be completely safeguarded against without hindering reasonable accessibility and efficient operation. A careful operator is the best insurance against an accident.
• The complete observance of one simple rule would prevent many serious accidents. DANGER. Never attempt to clean, lubricate ormaintain a machine while it is in motion.

SAFETY RULES
SAFETY RULES

• ◊ Read and heed all safety rules before any intervention.
• Do not wear rings, wristwatches, jewellery, and loose or hanging apparels, such as ties, torn clothing, scarves, unbuttoned or unzipped jackets that can catch on moving parts. Wear proper safety equipment as recommended for the job. Examples: hard hat, heavy gloves, ear protection, safety glasses or goggles, reflector vests, respirator. Consult your employer for specific safety equipment requirements.
• Do not perform any service operation on the machine with a person seated in the operator’s compartment, unless he is an authorised operator co–operating in the operation to be performed.
• Never attempt to operate themachine or its tools from any position other than seated in the operator’s seat.
• Never perform any intervention on the machine with engine running unless this is prescribed. ◊ Cut–off the engine and make sure that all pressures in the hydraulic systems are released before removing caps, covers, valves etc. ◊ All service interventions must be performed with the utmost care and attention.
• Shop and/or field service platforms or ladders must be constructed and maintained in accordance with local and national regulations.
• Disconnect the batteries and tag all controls to signal that an intervention is in progress. Block the machine and all equipment that must be lifted.
• Do not check nor refill fuel tanks, as well as batteries, nor use starting fluid while smoking or near open flames since these fluids are flammable.
• Brakes are inactive when manually released for service interventions. Under such circumstances it is necessary to maintain the control of the machine using appropriate blocks or similar devices.
• The fuel–filling nozzle must be kept constantly inside the filling neck. Keep this contact from the beginning to the end of the fuelling operation to avoid the possibility that sparks due to static electricity are generated.
• Use only designated towing or attaching points. Use care in making attachments .Make sure pins and/or locks are secure before pulling. Stay clear of drawbars, cables or chains under load.
• To move a disabled machine, use a trailer or a low–boy, if available.
• To load/unload a machine from transporter, choose a level surface ensuring firm support to thewheels of truck or trailer. Anchor the machine

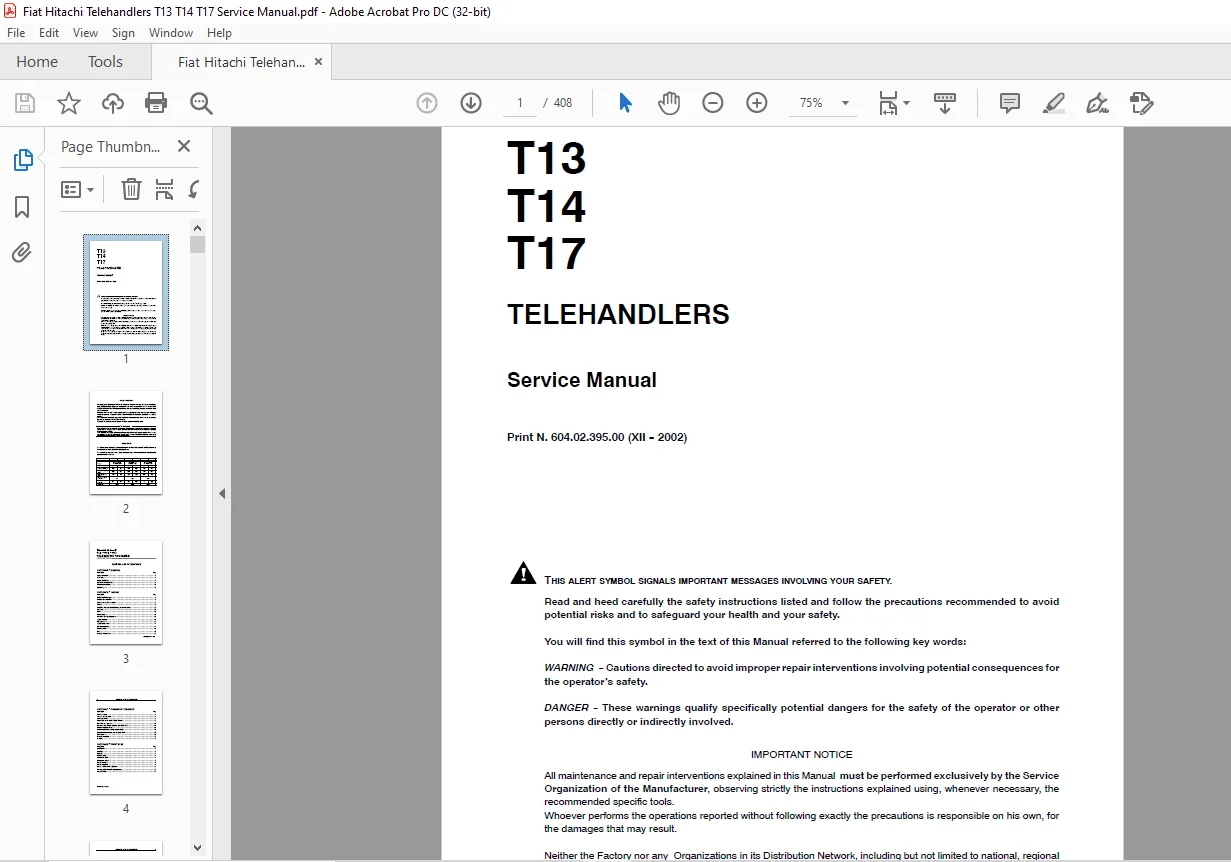

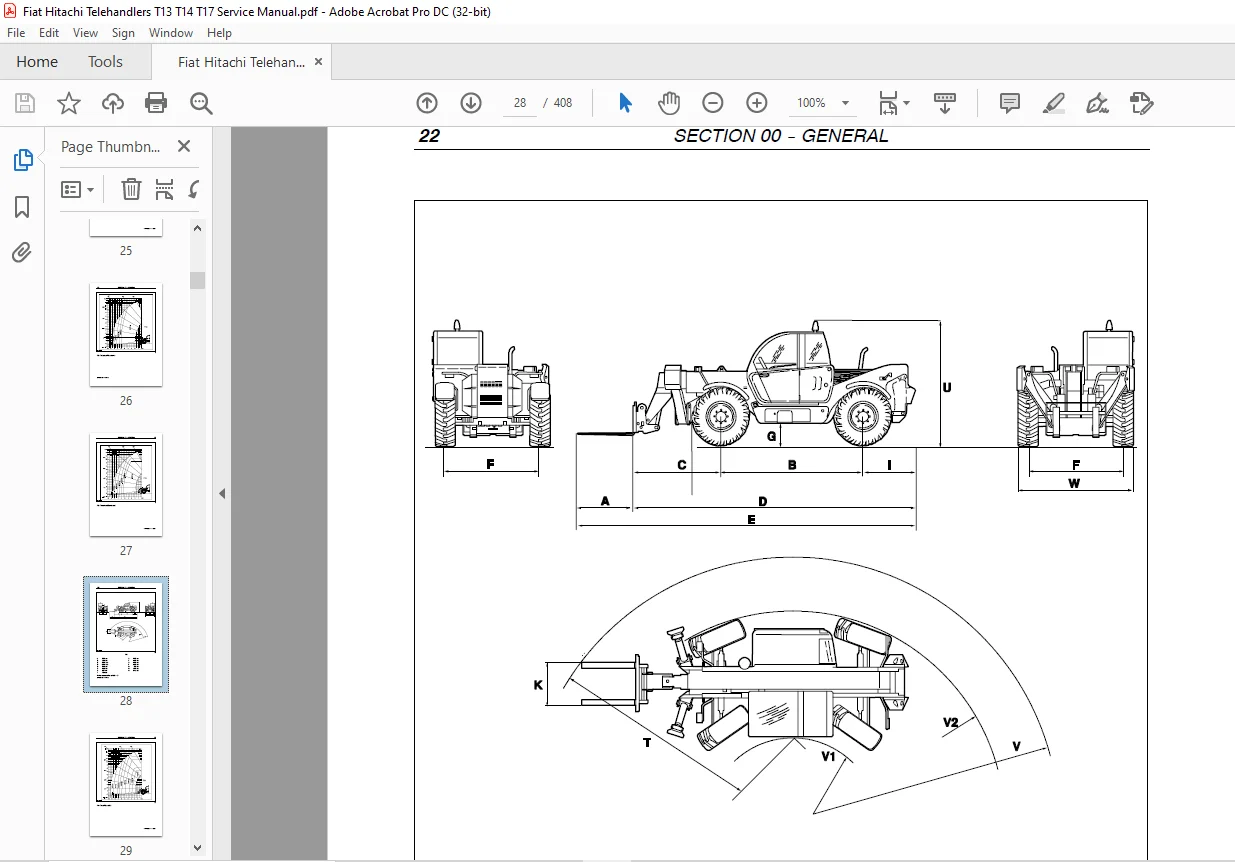

IMAGES PREVIEW OF THE MANUAL:

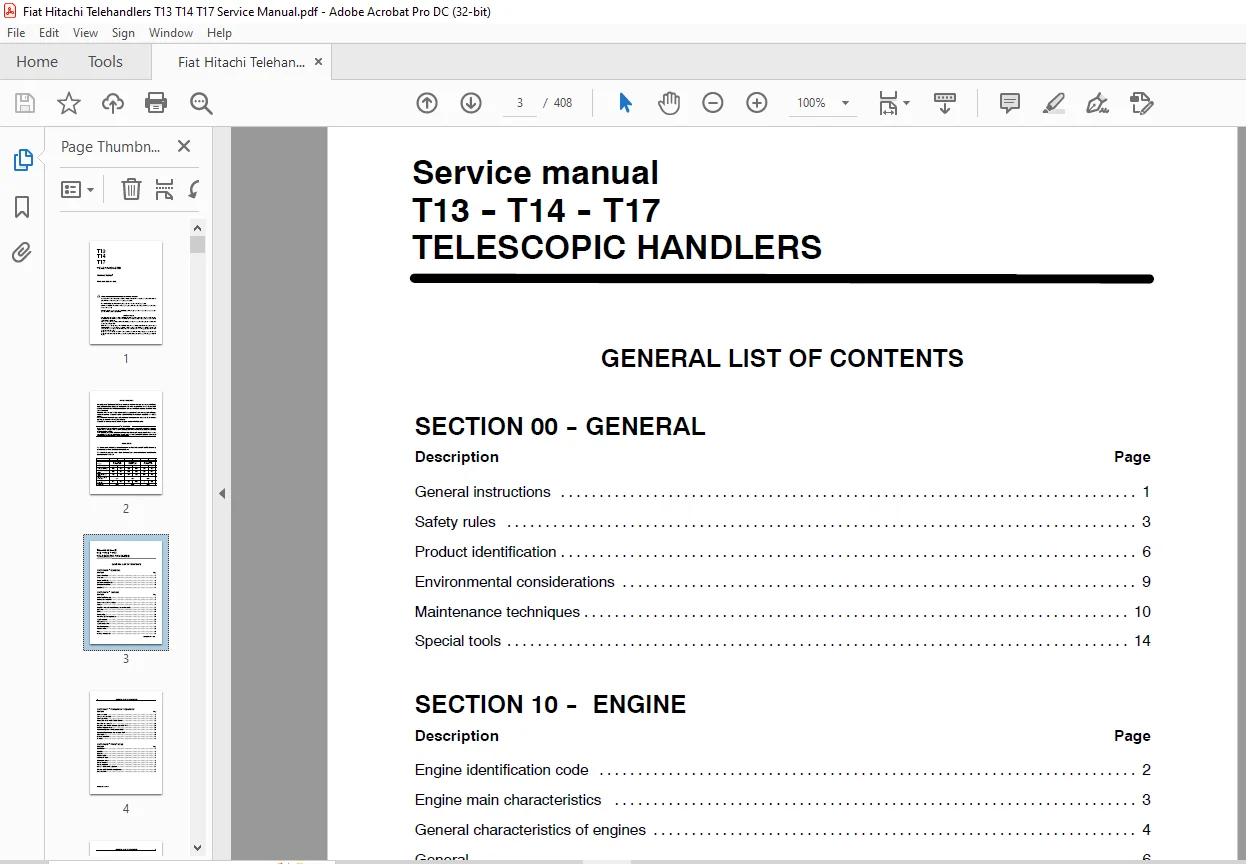

TABLE OF CONTENTS:

Fiat Hitachi TELEHANDLERS T13 T14 T17 Service Manual – PDF DOWNLOAD

SECTION 00 — GENERAL
Description Page
General instructions 1
Safety rules 3
Product identification 6
Environmental considerations 9
Maintenance techniques 10
Special tools 14
SECTION 10 — ENGINE
Description Page
Engine identification code 2
Engine main characteristics 3
General characteristics of engines 4
General 6
Description of the main mechanical components of the engine 12
Lubrication 23
Cooling 28
Turbocharging 30
Mechanical injection supply system 31
Injection assembly 33
Timing gear drive 43
Injection pump setting 44
Electrical components 45
Troubleshooting 46
Tools 50
Assembly clearance data 55
SECTION 21 — POWERSHIFT GEARBOX
Description Page
Gearbox assembly 5
Idler gear case assembly 7
Gearbox operation 8
Transmission and Hydraulic oil circuit diagrams 15
Modulation valve operation 31
Torque converter and heat exchanger hydraulic oil circuit 34
Troubleshooting procedures 37
Pressure testing clutch and high pressure circuit 38
Pressure testing torque converter and cooler circuit 39
Check points 40
Assembly instructions 42
Overhaul 45
SECTION 25 — FRONT AXLE
Description Page
Specifications 1
Description 2
Operation 3
Troubleshooting 4
Wheel toe–in check 5
Component overhaul 5
Front axle removal 6
Front axle overhaul 7
Axle drive pinion bearing adjustment 51
Bevel gear pinion installation and adjustment 53
Front drive shaft 57
SECTION 27 — REAR AXLE
Description Page
Specifications 1
Description 2
Operation diagram 3
Component overhaul 5
Rear axle removal procedure 5
Overhaul 6
SECTION 33 — BRAKES
Description Page
Power brakes 2
Parking brake 3
Brake release 6
Brake disc adjustment 6
Troubleshooting 7
Brake disc replacement 8
SECTION 35 — HYDRAULIC SYSTEM
Description Page
Technical data 2
Description and operation 3
Steering system hydraulic circuit 4
Steering valve 5
Telescopic boom hydraulic circuit 7
Component operation 13
Front loader controls 17
Power steering (OSPQ) 21
Telescopic boom distributor 23
Auxiliary controls distributor 26
Cylinders 27
Boom removal 37
SECTION 55 — ELECTRICAL SYSTEM
Description Page
Electrical equipment specifications 1
Electrical system and fuse 2
Controls and instruments 6
Bulb replacement 20
System precautions for battery charging and welding 23
Starting the machine using jump leads 24
Temporary wiring repair 25
Electrical system general fault finding 27
List of connectors 31
List of components 32
Cable key 34
How to use the circuit diagrams 36
Circuit 1: Starting/Recharge/Warning lights/Indicator lights 38
Circuit 2: Transmission 40
Circuit 3: Wheel alignment/Hydraulic solenoids/Brake system 42
Circuit 4: Arm control 44
Circuit 5: Stabiliser 46
Circuit 6: Lights/Windscreen wiper 48
Circuit 7: Work lamps/Roof beacon 50
Circuit 8: Tilting prevention system/Roof wiper 52
Circuit 9: Sound system heating/Electric socket/Roof lamp 54
Circuit 10: Air conditioner 56
