Fiatallis 260 260-A Tractor Scrapers 260E 260E-A Elevating Scrapers Service Manual PDF

Description

Fiatallis 260 260-A Tractor Scrapers 260E 260E-A Elevating Tractor Scrapers(Final Drive & Differential Brakes) Service Manual – PDF DOWNLOAD

FILE DETAILS:

Fiatallis 260 260-A Tractor Scrapers 260E 260E-A Elevating Tractor (Final Drive & Differential Brakes)Scrapers Service Manual – PDF DOWNLOAD

FN 70198345

Language : English
Pages : 54
Downloadable : Yes
File Type : PDF

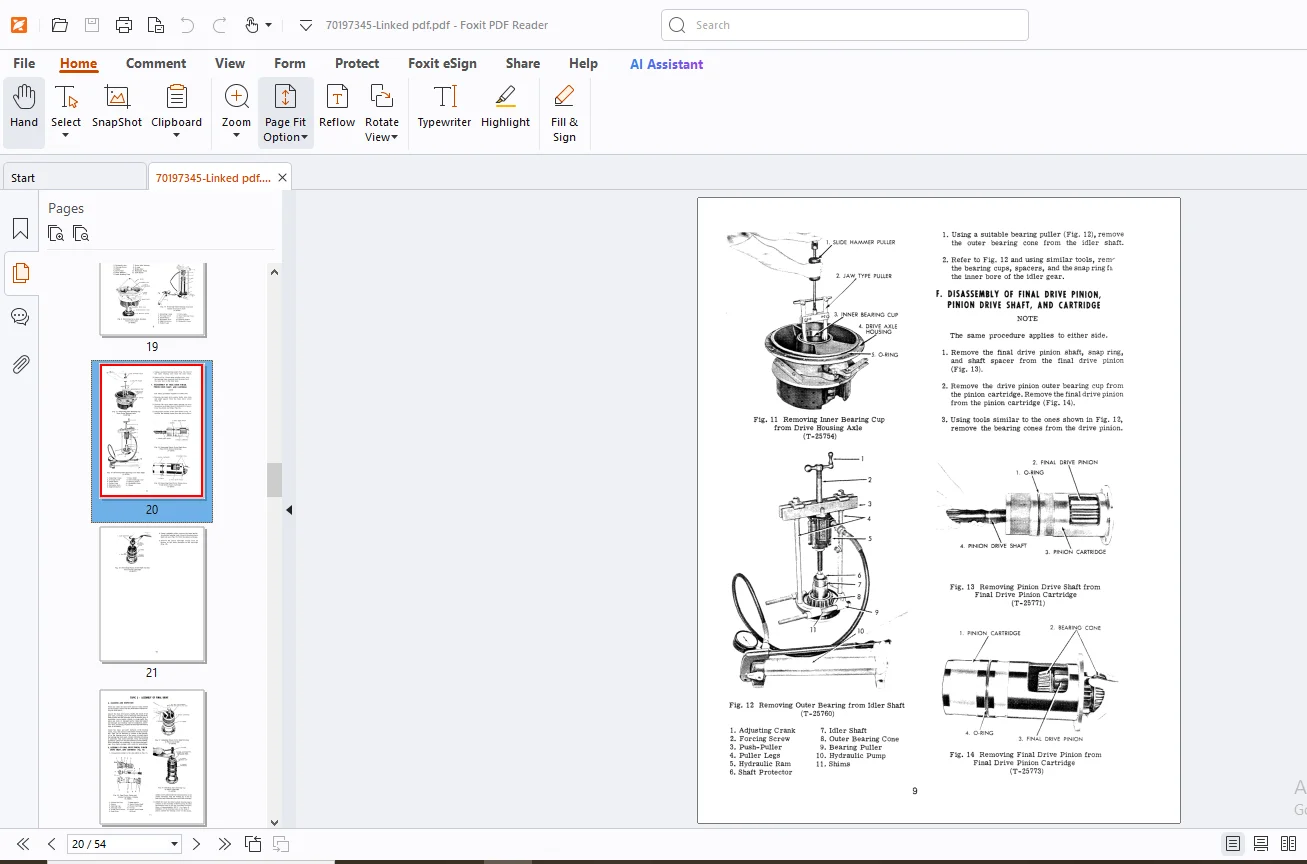

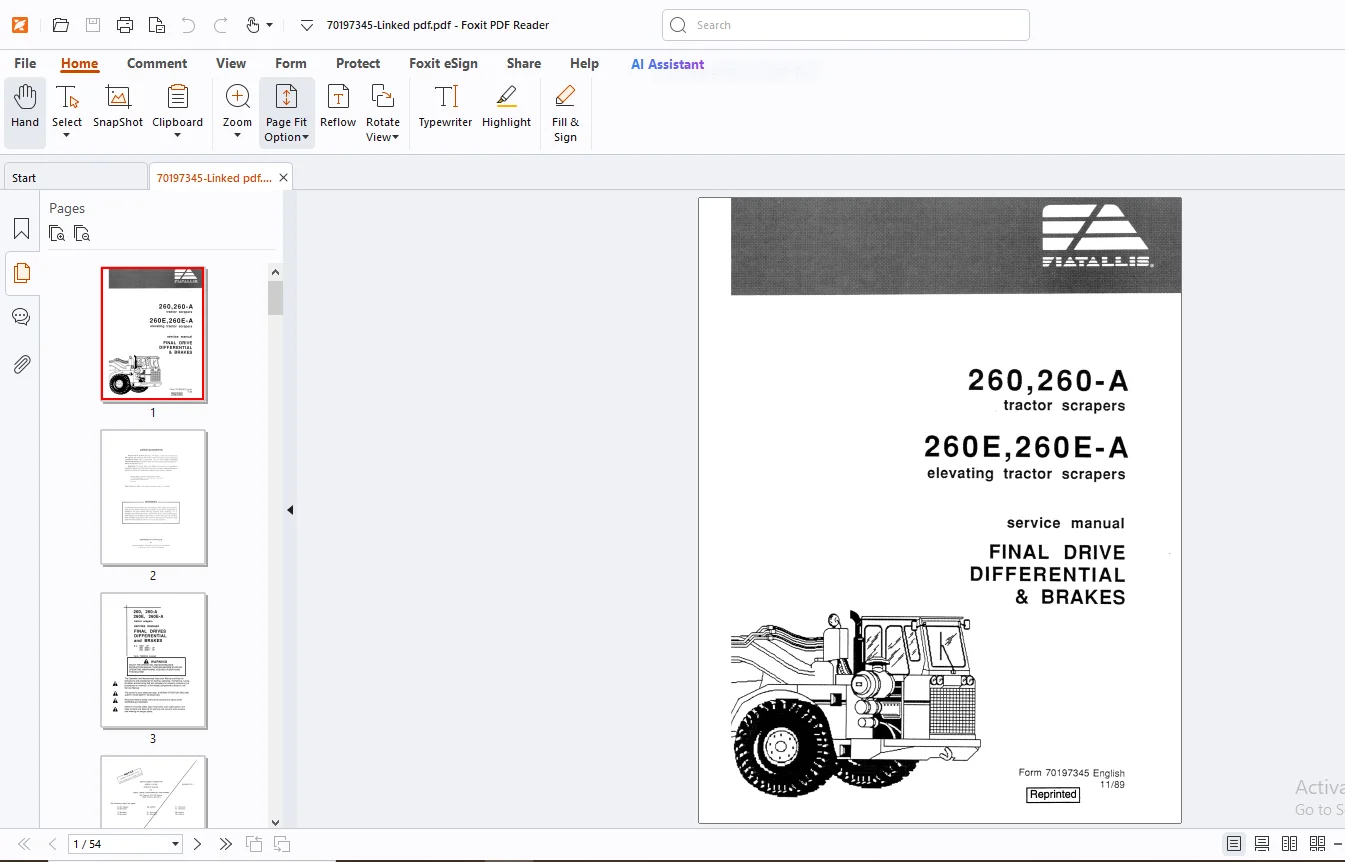

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Fiatallis 260 260-A Tractor Scrapers 260E 260E-A Elevating Tractor (Final Drive & Differential Brakes)Scrapers Service Manual – PDF DOWNLOAD

FN 70198345

• A. Drive Axle and Housing Removal
• B. Idler Gear Removal
• C. Removal of Final Drive Pinion, Pinion Drive Shaft, and Cartridge
• D. Disassembly of Drive Axle and Housing Assembly
• E. Idler Gear Disassembly
• F. Disassembly of Final Drive Pinion, Pinion Drive Shaft, and Cartridge

• A. Cleaning and Inspection
• B. Assembly of Final Drive Pinion, Pinion Drive Shaft, and Cartridge
• C. Assembly of Idler Gear
• D. Assembly of Drive Axle and Housing
• E. Installation of Final Drive Pinion, Pinion Drive Shaft, and Cartridge
• F. Installation of Idler Gear
• G. Installation of Drive Axle and Housing Assembly

• A. Inspection of Bevel Pinion
• B. Assembly of Bevel Pinion and Housing Assembly
• C. Installation of Bevel Pinion Assembly

• A. Removal of Bevel Gear and Differential Assembly
• B. Complete Disassembly of Differential
• C. Partial Disassembly of Differential

• A. Inspection of Differential
• B. Assembly of Differential
• C. Installation of Bevel Gear and Differential Assembly

• A. Wheel and Brake Drum Removal
• B. Slack Adjuster Removal
• C. Brake Removal and Reassembly

• A. Tapered Roller Bearings
• B. Bushings
• C. Shafts and Splines
• D. Oil Seals
• E. Gears
• F. Gaskets
• G. Adjusting Shims
• H. Wheel Bolts
• I. Brake Adjustment

• A. Gear Case
• B. Bevel Pinion and Bevel Gear
• C. Differential
• D. Final Drive Pinion Cartridge Assembly
• E. Idler Gear and Shaft
• F. Drive Axle and Gear
• G. Bearing Adjustments
• H. Torque Specifications

DESCRIPTION:

Fiatallis 260 260-A Tractor Scrapers 260E 260E-A Elevating Tractor (Final Drive & Differential Brakes)Scrapers Service Manual – PDF DOWNLOAD

FN 70198345

GENERAL:

SAFETY:

• Study the Operation and Maintenance Instruction Manual be- fore starting, operating, maintaining, fueling, or servicing machine. Read and heed all machine-mounted safety signs before starting, operating, maintaining, fueling or servicing machine.
• Machine-mounted safety signs have been color coded yellow with black border and lettering for WARNING and red with white border and lettering for DANGER points. Never attempt to operate the machine or its tools from any position other than seated in the operator’s seat.
• Keep head, body, limbs, hands and feet inside operator’s compartment at all times to reduce exposure to hazards outside the operator’s compartment Do not allow unauthorized personnel to operate service or maintain this machine. Always check work area for dangerous features.
• The following are examples of dangerous work areas: slopes, over hangs, timber, demolitions, fire, high walls, drop off, backfills, rough terrain, ditches, ridges, excavations, heavy traffic, crowded parking, crowded maintenance and closed areas. Use extreme care when in areas such as these.
• An operator must know the machine’s capabilities. When working on slopes or near drop offs be alert to avoid loose or soft conditions that could cause sudden tipping or loss of control. Do not jump on or off machine. Keep two hands and one foot, or two feet and one hand, in contact with steps grab rails and handles at all times. Do not use controls or hoses as hand holds when climbing on or off machine.
• Hoses and controls are movable and do not provide a solid support. Controls also may be inadvertently moved causing accidental machine or equipment movement. Keep operator’s compartment, stepping points, grab-rails and handles clear of foreign objects, oil, grease, mud or snow accumulation to minimize the danger of slipping or stumbling.
• Clean mud or grease from shoes before attempting to mount or operate the machine. Be careful of slippery conditions on stepping points, hand rails, and on the ground. Wear safety boots or shoes that have a high slip resistant sole material. For your personal protection.
• Do not attempt to climb on or off machine while machine is in motion. Never leave the machine unattended with the engine running. Always lock up machine when leaving it unattended. Return keys to authorized security. Heed all shut down procedures of the Operation and Maintenance Instruction Manual. Always set the parking brake when leaving the machine for any eason.
