Fiatallis 260-B 262-B Scrapes 261-B 263-B Elevating Scrapers Service Manual – PDF

Description

Fiatallis 260-B 262-B Tractor Scrapes 261-B 263-B Elevating Tractor Scrapers Service Manual – PDF DOWNLOAD

FILE DETAILS:

Fiatallis 260-B 262-B Tractor Scrapes 261-B 263-B Elevating Tractor Scrapers Service Manual – PDF DOWNLOAD

FN 73112420

Language : English
Pages : 76
Downloadable : Yes
File Type : PDF

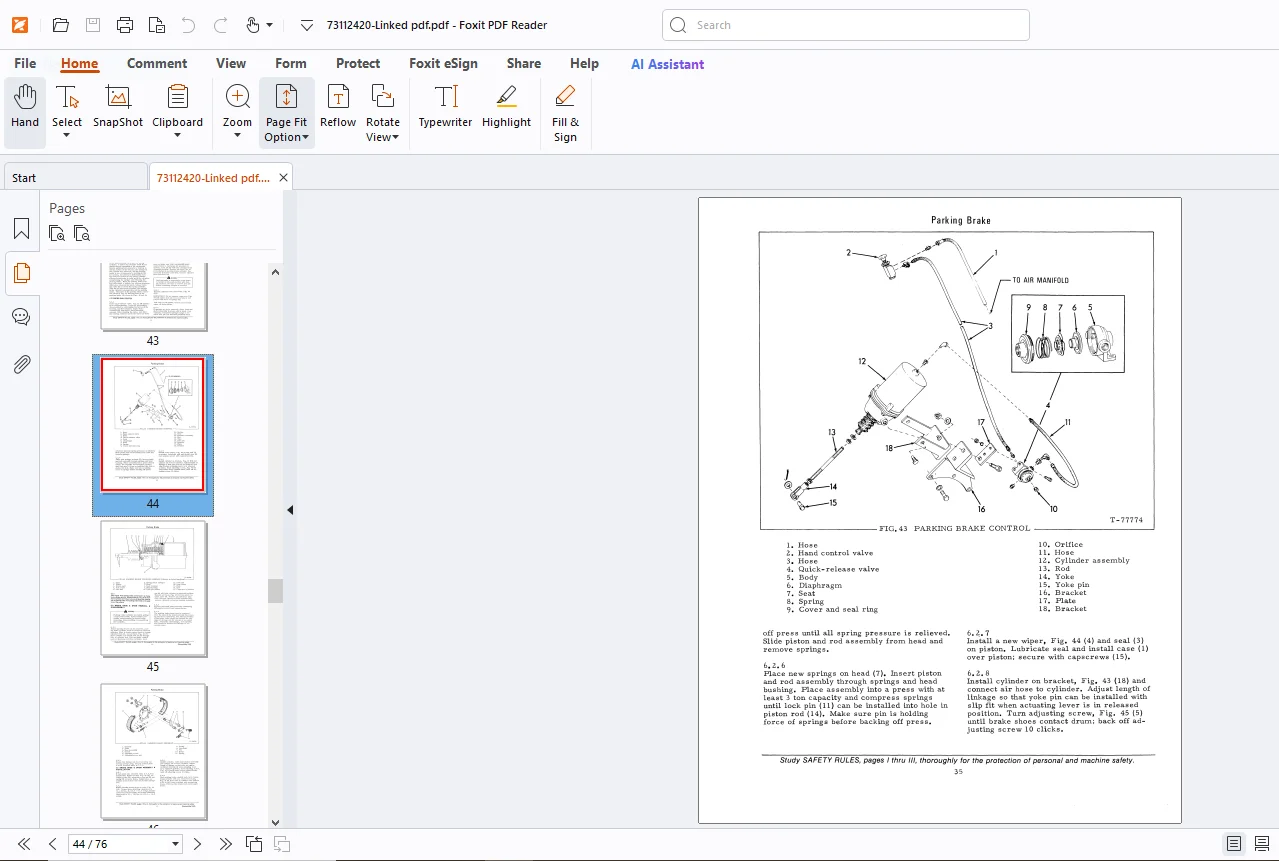

IMAGES PREVIEW OF THE MANUAL:

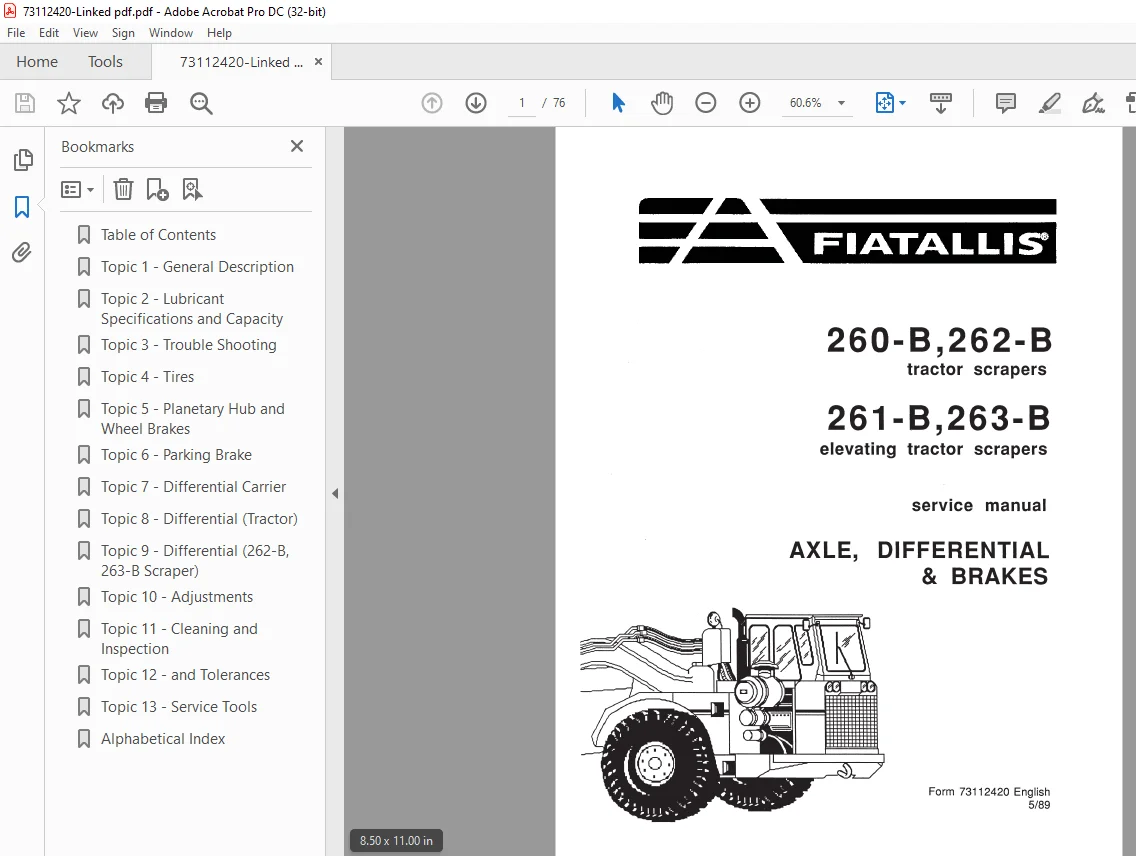

TABLE OF CONTENTS:

Fiatallis 260-B 262-B Tractor Scrapes 261-B 263-B Elevating Tractor Scrapers Service Manual – PDF DOWNLOAD

FN 73112420

Table of Contents 11
Topic 1 – General Description 12
Topic 2 – Lubricant Specifications and Capacity 13
Topic 3 – Trouble Shooting 14
Topic 4 – Tires 18
Topic 5 – Planetary Hub and Wheel Brakes 21
Topic 6 – Parking Brake 42
Topic 7 – Differential Carrier 48
Topic 8 – Differential (Tractor) 55
Topic 9 – Differential (262-B, 263-B Scraper) 58
Topic 10 – Adjustments 64
Topic 11 – Cleaning and Inspection 70
Topic 12 – and Tolerances 71
Topic 13 – Service Tools 73
Alphabetical Index 74

DESCRIPTION:

Fiatallis 260-B 262-B Tractor Scrapes 261-B 263-B Elevating Tractor Scrapers Service Manual – PDF DOWNLOAD

FN 73112420

GENERAL:

• Study the Operation and Maintenance Instruction Manual be- fore starting, operating, maintaining, fueling, or servicing machine. Read and heed all machine-mounted safety signs before starting, operating, maintaining, fueling or servicing machine.
• Machine-mounted safety signs have been color coded yellow with black border and lettering for WARNING and red with white border and lettering for DANGER points. Never attempt to operate the machine or its tools from any position other than seated in the operator’s seat.
• Keep head, body, limbs, hands and feet inside operator’s compartment at all times to reduce exposure to hazards outside the operator’s compartment. Do not allow unauthorized personnel to operate service or maintain this machine. Always check work area for dangerous features.
• The following are examples of dangerous work areas: slopes, over hangs, timber, demolitions, fire, high walls, drop off, backfills, rough terrain, ditches, ridges, excavations, heavy traffic, crowded parking, crowded maintenance and closed areas. Use extreme care when in areas such as these.
• An operator must know the machine’s capabilities. When working on slopes or near drop offs be alert to avoid loose or soft conditions that could cause sudden tipping or loss of control.
• Do not jump on or off machine. Keep two hands and one foot, or two feet and one hand, in contact with steps grab rails and handles at all times. Do not use controls or hoses as hand holds when climbing on or off machine.
• Hoses and controls are movable and do not provide a solid support. Controls also may be inadvertently moved causing accidental machine or equipment movement.
• Keep operator’s compartment, stepping points, grab-rails and handles clear of foreign objects, oil, grease, mud or snow accumulation to minimize the danger of slipping or stumbling. Clean mud or grease from shoes before attempting to mount or operate the machine.
• Be careful of slippery conditions on stepping points, hand rails, and on the ground. Wear safety boots or shoes that have a high slip resistant sole material. For your personal protection. Do not attempt to climb on or off machine while machine is in motion.
• Never leave the machine unattended with the engine running. Always lock up machine when leaving it unattended. Return keys to authorized security. Heed all shut down procedures of the Operation and Maintenance Instruction Manual. Always set the parking brake when leaving the machine for any reason.
