Fiatallis 545 605 645 745 Series Wheel Loader Repair Manual PDF

Description

Fiatallis 545 545H 545-B 605-B 645 645-B 745 745H 745-B 745H-B 745-C Wheel Loader Engine Service Manual – PDF DOWNLOAD

FILE DETAILS:

Fiatallis 545 545H 545-B 605-B 645 645-B 745 745H 745-B 745H-B 745-C Wheel Loader Engine Service Manual – PDF DOWNLOAD

FN 73055458

Language : English
Pages : 86
Downloadable : Yes
File Type : PDF

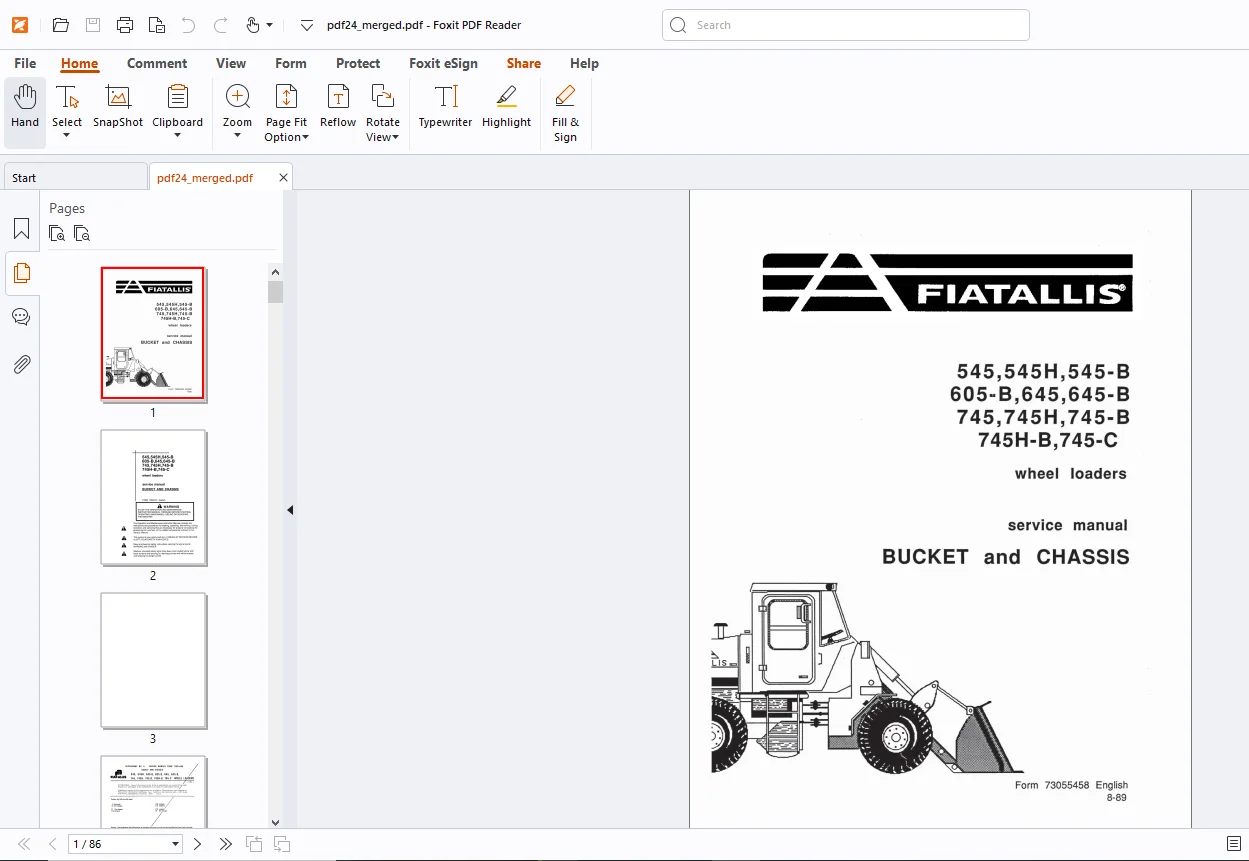

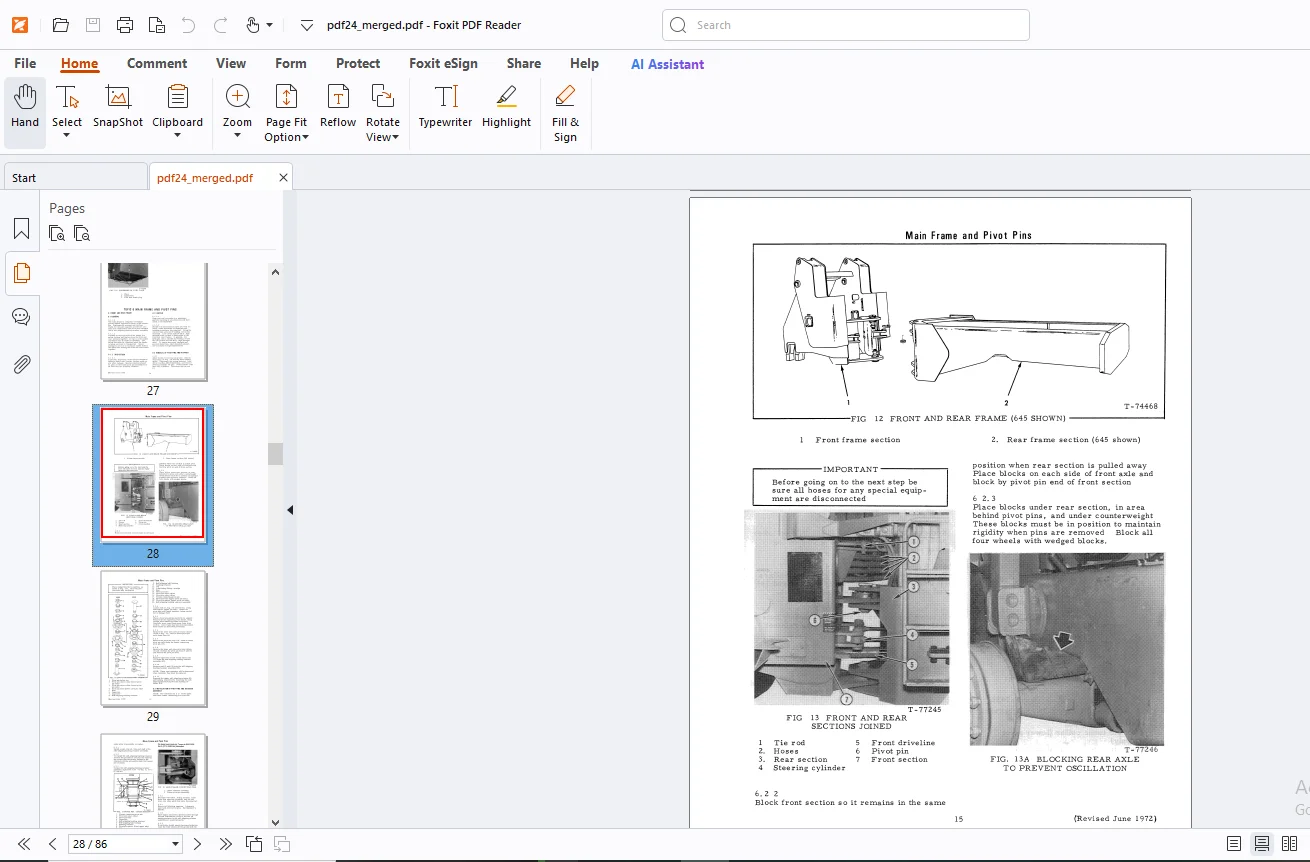

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Fiatallis 545 545H 545-B 605-B 645 645-B 745 745H 745-B 745H-B 745-C Wheel Loader Engine Service Manual – PDF DOWNLOAD

FN 73055458

• GENERAL DESCRIPTION – Page 3
• BUCKET AND LINKAGE – Page 9
  • 2.1 Bucket General Purpose – Page 10
  • 2.2 Cross and Dump Linkage – Page 10
  • 2.3 Boom – Page 10
  • 2.4 Bushing Replacement – Page 10
  • 2.5 Multi-Purpose Bucket – Page 10
  • 2.6 Clam Cylinder – Page 10

• FENDERS, LADDER, HOOD, BONNET, AND HAND RAIL – Page 11

  • 3.1 Fenders, Ladder, Hood, Bonnet, and Hand Rail – Page 11

• PLATFORM AND SEAT ASSEMBLY – Page 12
  • 4.1 General – Page 12
  • 4.2 Platform Assembly – Page 13
  • 4.3 Seat Assembly – Page 13
• FUEL TANK – Page 13
  • 5.1 Fuel Tank – Page 13
• MAIN FRAME AND PIVOT PINS – Page 13
  • 6.1 Front and Rear Frame – Page 13
  • 6.2 Pivot Pin (Upper and Lower) – Page 13
• TORQUE SPECIFICATIONS – Page 18
  • 7.1 Bucket and Linkage – Page 18
  • 7.2 Engine – Page 18
  • 7.3 Frame – Page 18
  • 7.4 Wheel and Axle – Page 18
• LINKAGE WEAR LIMITS – Page 18
• ROPS CAB – Page 20
• INDEX – Page 25

DESCRIPTION:

Fiatallis 545 545H 545-B 605-B 645 645-B 745 745H 745-B 745H-B 745-C Wheel Loader Engine Service Manual – PDF DOWNLOAD

FN 73055458

GENERAL:

SAFETY:

• Study the Operation and Maintenance Instruction Manual be fore starting, operating, maintaining, fueling, or servicing machine. Read and head all machine-mounted safety signs before starting, operating, maintaining, fueling or servicing machine
• Machine-mounted safety signs have been color coded yellow with black border and lettering for WARNING and red with white border and lettering for DANGER points Never attempt to operate the machine or its tools from any position other than seated in the operator’s seat Keep head, body, limbs, hands and feet inside operator’s compartment at al times to reduce exposure to hazards outside the operator’s compartment Do not allow unauthorized personnel to operate service or maintain this machine Always check work area for dangerous features
• The following are examples of dangerous work areas slopes, over hangs, timber, demolitions, fire, high walls, drop off, backfills, rough terrain, ditches, ridges, excavations, heavy traffic, crowded parking, crowded maintenance and closed areas Use extreme care when in areas such as these An operator must know the machine’s capabilities
• When working on slopes or near drop offs be alert to avoid loose or soft conditions that could cause sudden tipping or loss of control Do not jump on or off machine Keep two hands and one foot, or two feet and one hand, in contact with steps grab rails and handles at all times Do not use controls or hoses as hand holds
• when climbing on or off machine Hoses and controls are movable and do not provide a solid support Controls also may be inadvertently moved causing accidental machine or equipment movement Keep operator’s compartment, stepping points, grab-rails and handles clear of foreign objects, oil, grease, mud or snow accumulation to minimize the danger of slipping or stumbling.
• Clean mud or grease from shoes before attempting to mount or operate the machine. Be careful of slippery conditions on stepping points, hand rails, and on the ground Wear safety boots or shoes that have a high slip resistant sole material For your personal protection
• Do not attempt to climb on or off machine while machine is in motion Never leave the machine unattended with the engine running Always lock up machine when leaving it unattended Return keys to authorized security Heed all shut down procedures of the Operation and Maintenance Instruction Manual Always set the parking brake when leaving the machine for any reason
