Fiatallis Dozer 10C Crawler Tractor Service Manual – PDF DOWNLOAD

Description

Fiatallis Dozer 10C Crawler Tractor Service Manual – PDF DOWNLOAD

FILE DETAILS:

Fiatallis Dozer 10C Crawler Tractor Service Manual – PDF DOWNLOAD

FN 73158153

Language : English
Pages : 461
Downloadable : Yes
File Type : PDF

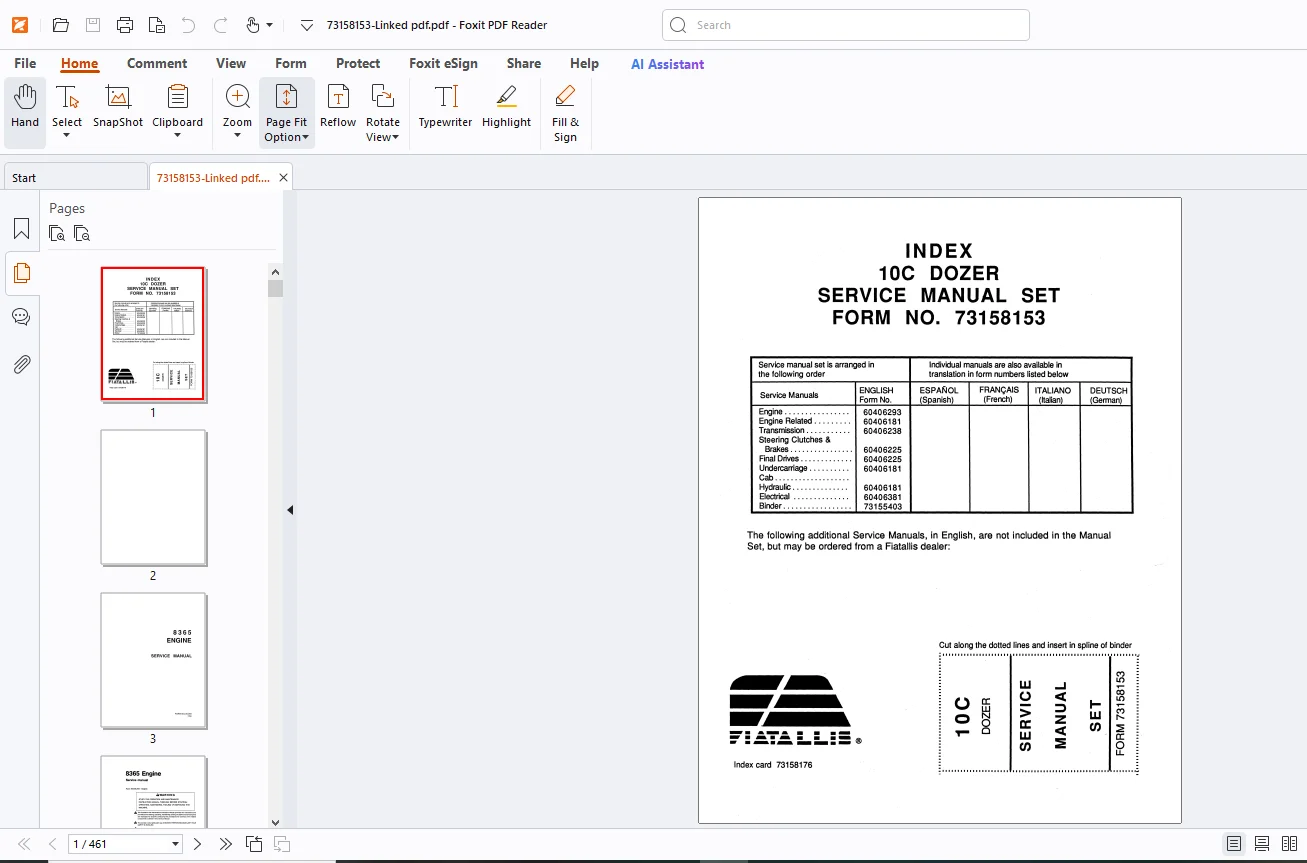

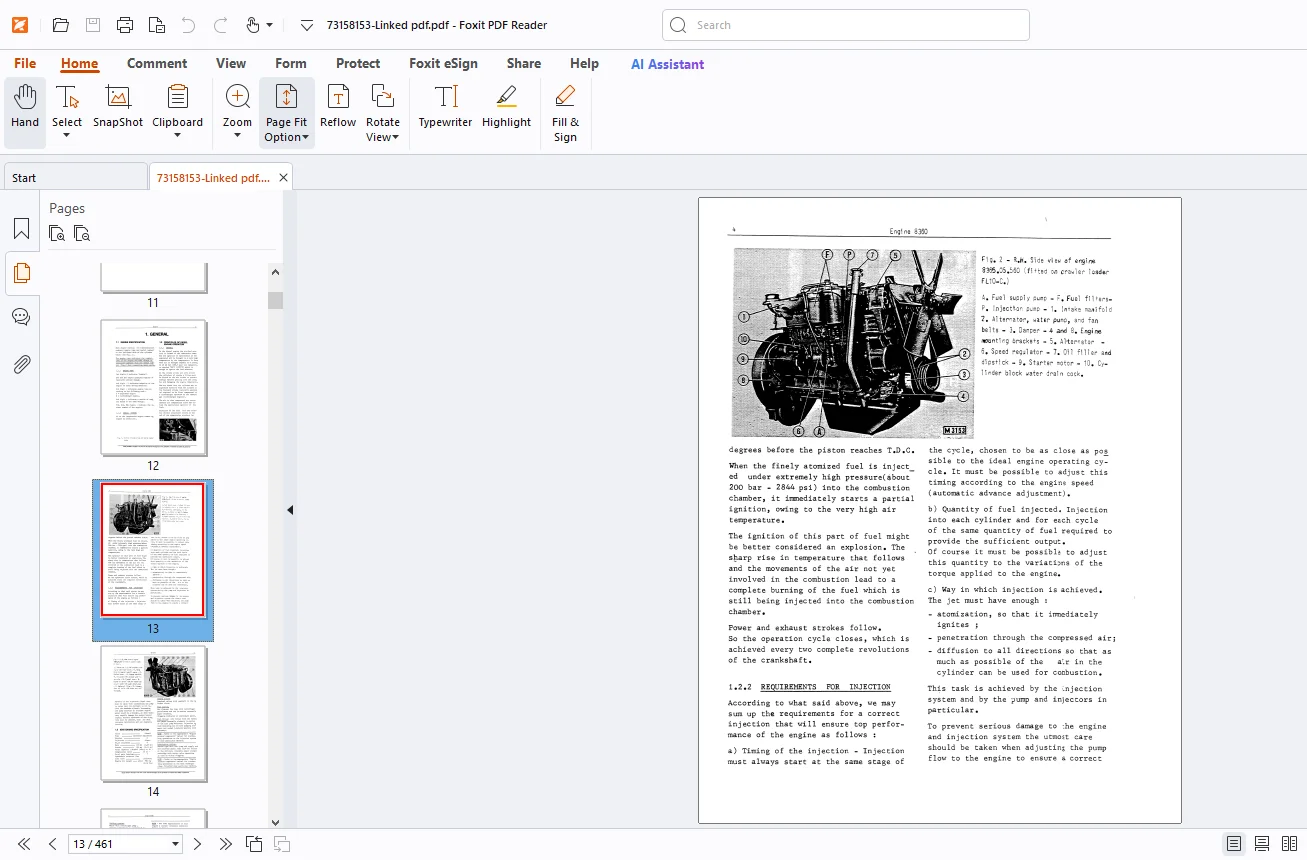

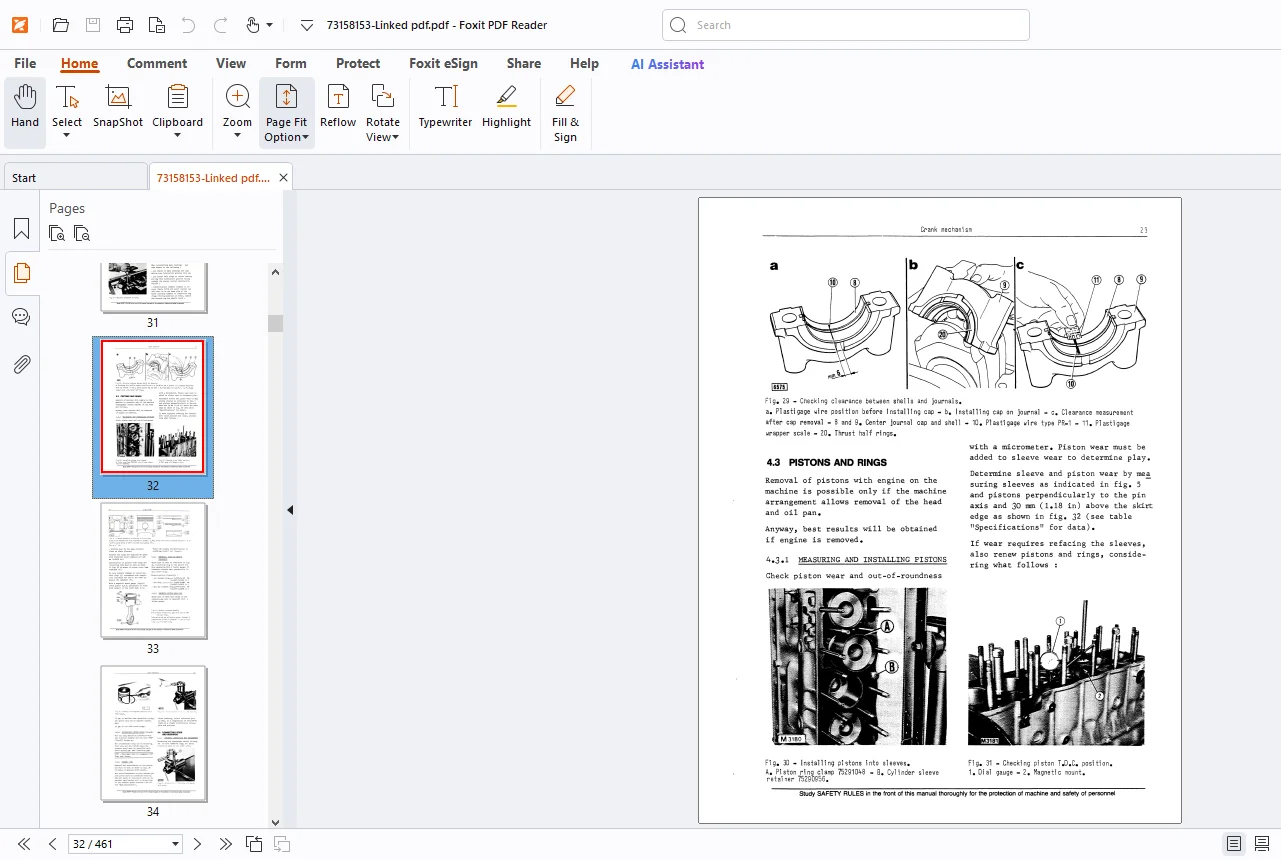

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Fiatallis Dozer 10C Crawler Tractor Service Manual – PDF DOWNLOAD

FN 73158153

Index 1
60406293-8365 Engine 3
Table of Contents 10
General 12
Cylinder Block and Cylinder Head 16
Timing System 22
Crank Mechanism 29
Fuel System 37
Lubrication 43
Cooling System 44
Troubleshooting and Tests 45
Specifications 57
Tightening Torques 60
Service Tools 62
60406181-General, Engine Related Components, Undercarriage 65
General 73
Engine Related Components 84
Undercarriage 102
Dozer Equipment 134
60406238-Transmission181
Section 1 – Hydraulic Torque Converter 188
Section 2 – Transmission 198
Section 3 – Converter-Transmission Hydraulic System 215
60406225-Bevel Gear, Brakes, Steering, Final Drives241
Bevel Gear 247
Brakes and Steering Clutches 259
Steering Clutch and Brake Hydraulic System 273
Final Drives and Sprockets 289
60406381-Electrical Systems307
Table of Contents 308
Supplement #1 to 60406381 310
Safety Rules 312
Electrical Systems – Batteries 320
Electrical Systems – Alternators 334
Electrical Systems – Starters 370
Electrical Systems – Wiring Diagrams 424

DESCRIPTION:

Fiatallis Dozer 10C Crawler Tractor Service Manual – PDF DOWNLOAD

FN 73158153

SAFETY RULES:

GENERAL:

• Study the Operation and Maintenance Instruction Manual before starting, operating, maintaining, fueling, or servicing machine Read and heed all machine-mounted safety signs before starting operating, maintaining, tweling or servicing machine Machine-mounted safety signs have been color coded vellow with black borders and lettering for warning and red with white borders and lettering for danger points
• Do not allow unauthorized personnel to service or maintain this machine Do not perform any work on equipment that is not authorized Follow the Maintenance and Service procedures Study the Operation and Maintenance Instruction Manual before starting, operating, maintaining, fueling or servicing this machine

Always wear safety glasses with side shields:

• Do not wear rings, wrist watches, jewelry, or loose or hanging apparel, such as ties, torn clothing, scarves, unbuttoned or unzipped jackets that can catch on moving parts Wear proper safety equipment as authorized for the job Examples: hard hats, safety shoes, heavy gloves, ear protectors, safety glasses or goggles, reflector vests, or respirators Consult your employer for specific safety equipment requirements Do not use controls or hoses as handholds when climbing on or off machine Hoses and controls are movable and do not provide a solid support.
• Controls may also be inadvertently moved causing accidental machine or equipment movement Do not jump on or off machine Keep two hands and one foot, or two feet and one hand, in contact with steps and grab-rails and handles at all times Machine should not be serviced with anyone in the opera- tor’s seat unless they are qualified to operate the machine and are assisting in the servicing.
• Keep operator’s compartment, stepping points, grab-rails and handles clean of foreign objects, oil, grease, mud or snow accumulation to minimize the danger of slipping or stumbling Clean mud or grease from shoes before attempting to mount or operate the machine Never attempt to operate the machine or its tools from any other position than seated in the operator’s seat Keep operator’s compartment clear of loose objects
• If movement of an attachment by means of the machine’s hydraulic system is required for service or maintenance, do not raise or lower attachments from any position other than when seated in the operator’s seat
• Before starting machine or moving attachment or tool, make sure to se brakes, sound horn and call for an all clear Raise attachment slowly Always block with external support any linkage or part on machine that requires work under the raised linkage, parts, or machine according to local or national requirements.
• Never allow anyone to walk under or be near unblocked raised equipment. Avoid working or walking under raised blocked equipment unless you are assured of your safety. Never place head, body, limbs, fingers, feet or hands into an exposed portion between uncontrolled or unguarded
