Fiatallis FD 14E Crawler Tractor 8365 Engine Service Manual – PDF

Description

Fiatallis FD 14E Crawler Tractor 8365 Engine Service Manual – PDF DOWNLOAD

FILE DETAILS:

Fiatallis FD 14E Crawler Tractor 8365 Engine Service Manual – PDF DOWNLOAD

FN 73156500

Language : English
Pages : 780
Downloadable : Yes
File Type : PDF

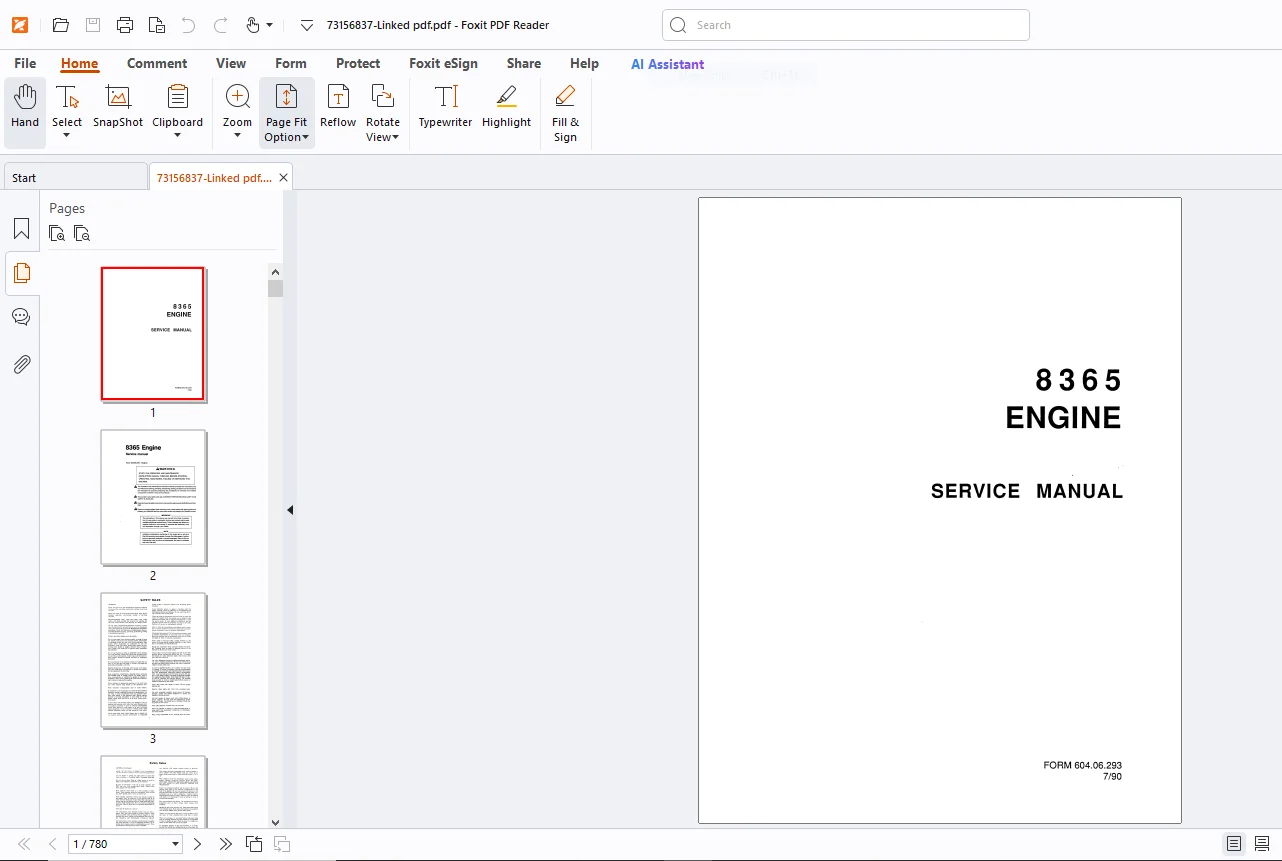

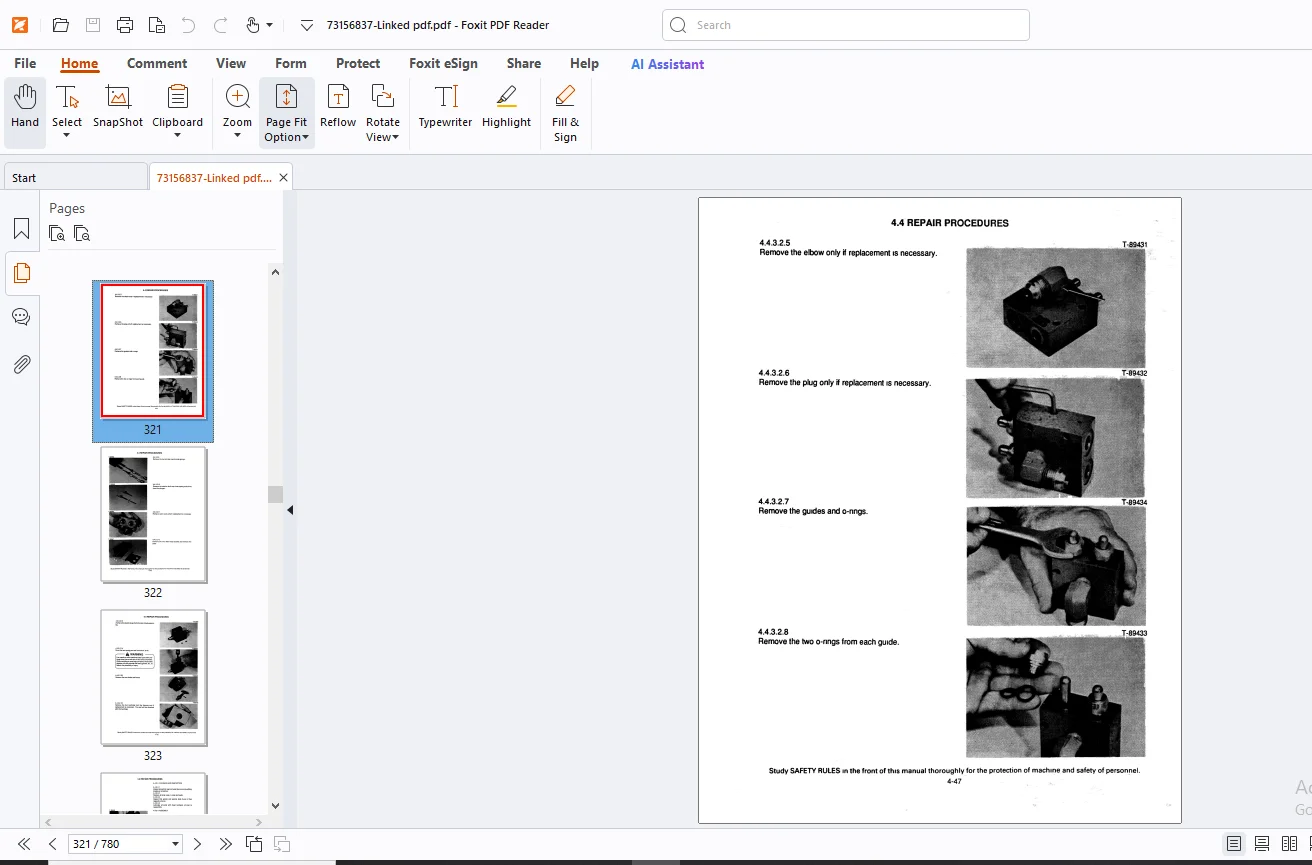

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Fiatallis FD 14E Crawler Tractor 8365 Engine Service Manual – PDF DOWNLOAD

FN 73156500

60406293-8365 Engine 1
Table of Contents 8
General 10
Cylinder Block and Cylinder Head 14
Timing System 20
Crank Mechanism 27
Fuel System 35
Lubrication 41
Cooling System 42
Troubleshooting and Tests 43
Specifications 55
Tightening Torques 58
Service Tools 60
73156500-FD14E Crawler 63
Supplement #1 Form 73156500 FD14E Crawler Tractor Service Manual 65
Table of Contents 69
Safety Rules 70
Standard Torque Specifications 77
Foreword 81
Section 1 – Engine Related Components 83
Section 2 – Transmission 127
Section 3 – Final Drives 225
Section 4 – Bevel Gear, Steering & Brakes 273
Section 5 – Hydraulics 381
Section 6 – Undercarriage 449
Section 7 – Electrical 509
Section 8 – Cab 729

DESCRIPTION:

Fiatallis FD 14E Crawler Tractor 8365 Engine Service Manual – PDF DOWNLOAD

FN 73156500

GENERAL

SAFETY RULES:

• Study the Operation and Maintenance Instruction Manual before starting, operating, maintaining, fueling, or servicing mashine Read and heed all machine-mounted safety signs before starting operating, maintaining, tweling or servicing machine
• Machine-mounted safety signs have been color coded vellow with black borders and lettering for warning and red with white borders and lettering for danger points Do not allow unauthorized personnel to service or maintain this machine
• Do not perform any work on equipment that is not authorized Follow the Maintenance and Service procedures Study the Operation and Maintenance Instruction Manual before starting, operating, maintaining, fueling or servicing this machine
• Always wear safety glasses with side shields Do not wear rings, wrist watches, jewelry, or loose or hanging apparel, such as ties, torn clothing, scarves, unbuttoned or unzipped jackets that can catch on moving parts Wear proper safety equipment as authorized for the job
• Examples: hard hats, safety shoes, heavy gloves, ear protectors, safety glasses or goggles, reflector vests, or respirators Consult your employer for specific safety equipment requirements Do not use controls or hoses as handholds when climbing on or off machine
• Hoses and controls are movable and do not provide a solid support. Controls may also be inadvertently moved causing accidental machine or equipment movement Do not jump on or off machine Keep two hands and one foot, or two feet and one hand, in contact with steps and grab-rails and handles at all times Machine should not be serviced with anyone in the operator’s seat unless they are qualified to operate the machine and are assisting in the servicing.
• Keep operator’s compartment, stepping points, grab-rails and handles clean of foreign objects, oil, grease, mud or snow accumulation to minimize the danger of slipping or stumbling Clean mud or grease from shoes before attempting to mount or operate the machine
• Never attempt to operate the machine or its tools from any other position than seated in the operator’s seat Keep operator’s compartment clear of loose objects If movement of an attachment by means of the machine’s hydraulic system is required for service or maintenance, do not raise or lower attachments from any position other than when seated in the operator’s seat Before starting machine or moving attachment or tool, make sure to se brakes, sound horn and call for an all clear
• Raise attachment slowly Always block with external support any linkage or part on machine that requires work under the raised linkage, parts, or machine according to local or national requirements.
• Never allow anyone to walk under or be near unblocked raised equipment. Avoid working or walking under raised blocked equipment unless you are assured of your safety. Never place head, body, limbs, fingers, feet or hands into an exposed portion between uncontrolled or unguarded
