Fiatallis FD255 Crawler Dozer Service Manual – PDF

Description

Fiatallis FD255 Crawler Dozer Service Manual – PDF DOWNLOAD

FILE DETAILS:

Fiatallis FD255 Crawler Dozer Service Manual – PDF DOWNLOAD

Print No:60402214

Language : English
Pages : 384
Downloadable : Yes
File Type : PDF

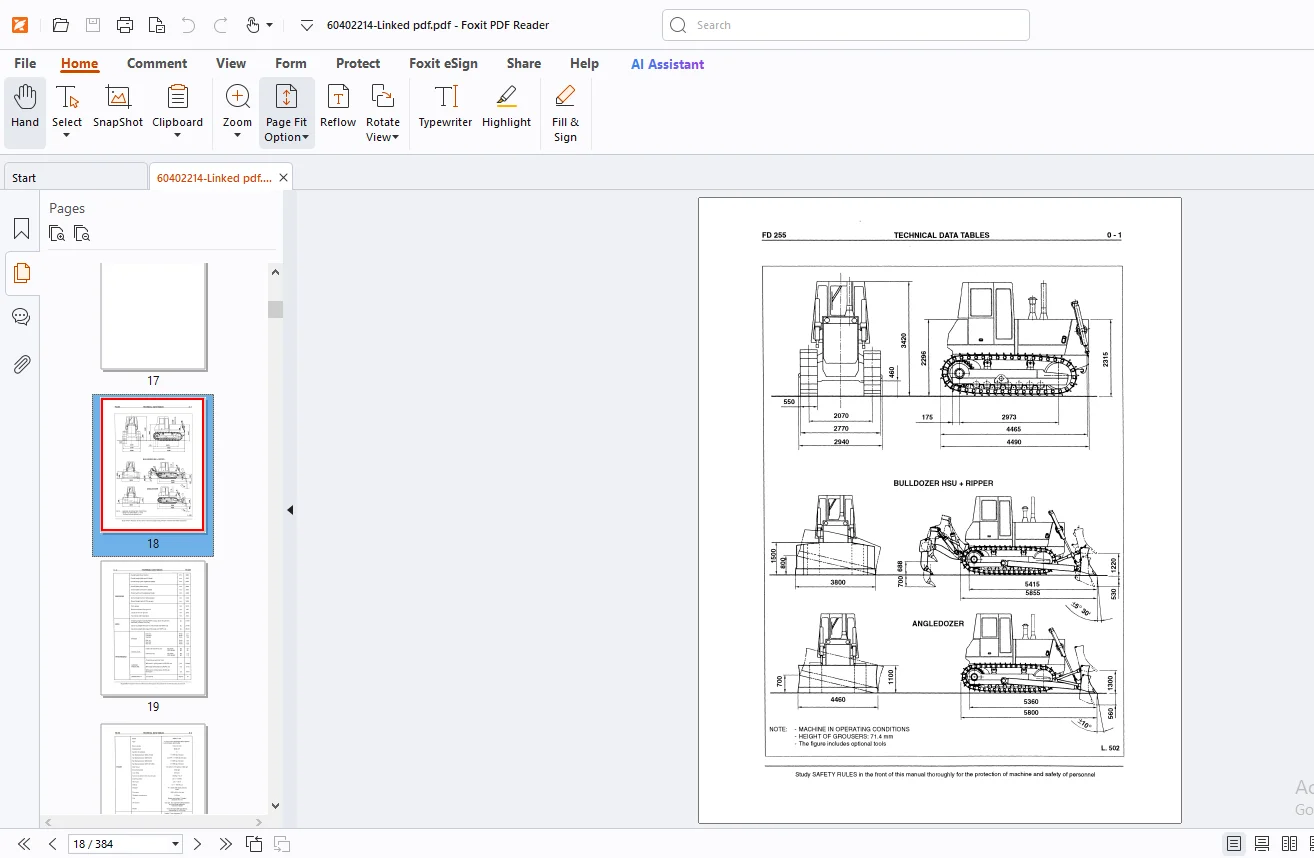

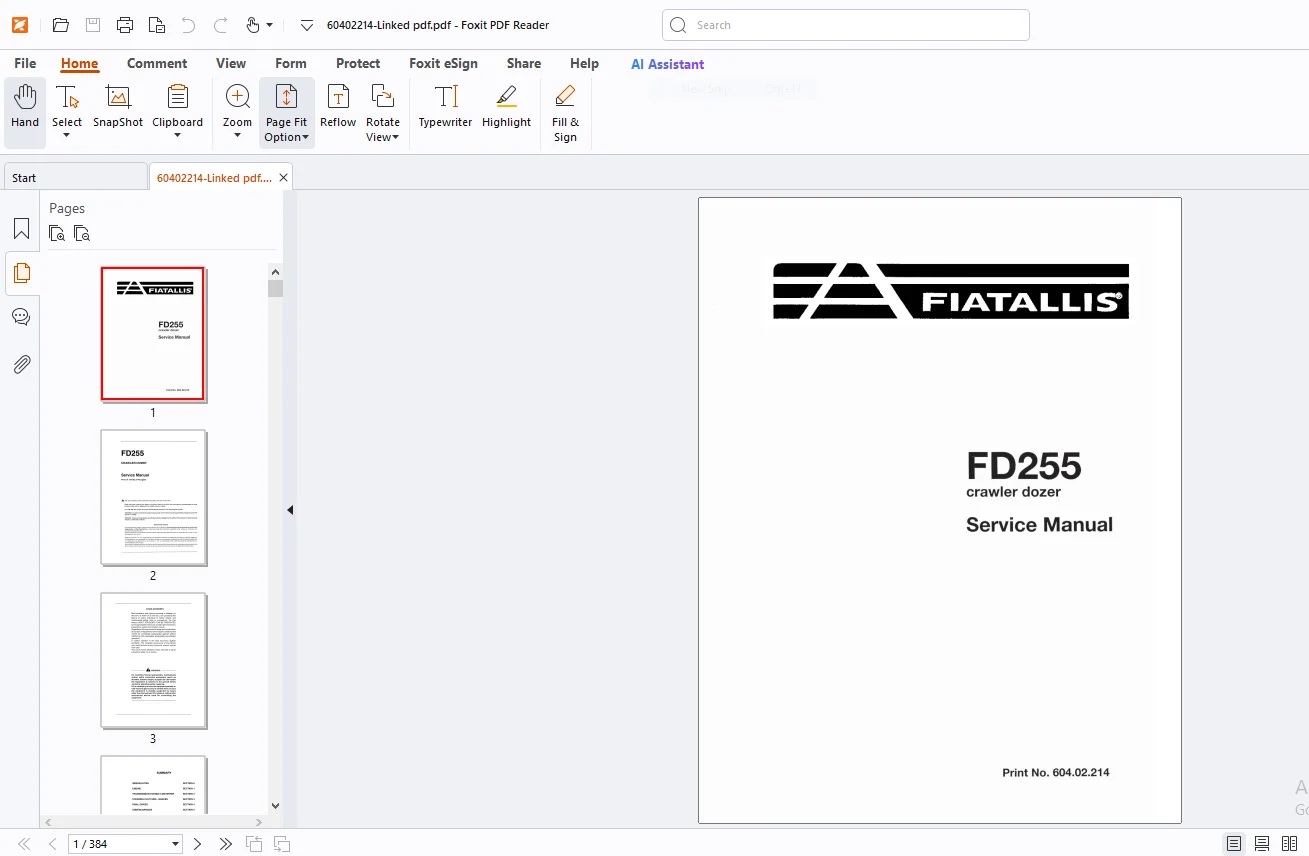

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Fiatallis FD255 Crawler Dozer Service Manual – PDF DOWNLOAD

Print No:60402214

Table of Contents 4
Section 0 – Generalities 6
Section 1 – Engine 42
Section 2 – Transmission 130
Section 3 – Steering Clutches and Brakes 206
Section 4 – Final Drives and Sprockets 264
Section 5 – Undercarriage 282
Section 6 – Hydraulic System For BullDozer Equipment 318
Section 7 – Electrical System 358

DESCRIPTION:

Fiatallis FD255 Crawler Dozer Service Manual – PDF DOWNLOAD

Print No:60402214

SAFETY RULES:

• Do not allow un authorized personnel to operate service or maintain this machine.
• Do not wear rings, wrist watches, jewellery, loose or hanging apparels, such as ties, torn clothing, scarves, unbuttoned or un zipped jackets that can catch on moving parts. Wear proper safety equipment as recommended for the job. Examples: hard hat, heavy gloves, ear protection, safety glasses or goggles, reflector vests, respirator. Consult your employer for specific safety equipment requirements. –
• Keep operator’s compartment, stepping points, grab- rails and handles clear of foreign objects, oil, grease, mud or snow accumulation to minimize the danger of slipping or stumbling. Clean mud or grease from shoes before attempting to mount or operate the machine.
• Do not jump on or off the machine. Keep two hands and one foot, or two feet and one hand in contact with step grab rails and handles at all times.
• Do not use controls or hoses as hand holds when climbing on or off machine. Hoses and controls are movable and do not provide a solid support. Controls also may be inadvertently moved causing accidental machine or equipment movement. Never attempt to operate the machine or its tools from any position other than seated in the operator’s seat. -Keep head, body, limbs, hands and feet inside operator’s compartment at all times to reduce exposure to hazards outside the operator’s compartment.
• Be careful of slippery conditions on stepping points, hand rails, and on the ground. Wear safety boots or shoes that have a high slip resistant sole material. Do not leave the machine until it is completely stopped Check the seat safety belt at least twice a year. If there are signs of wear or fraying or other signs of weakness that could lead to failure, replace it.
