Fiatallis FE18 FE20 FE28 Excavator Service lnformation Manual 73141432 – PDF DOWNLOAD

Description

Fiatallis FE18 FE20 FE28 Excavator Service lnformation Manual 73141432 – PDF DOWNLOAD

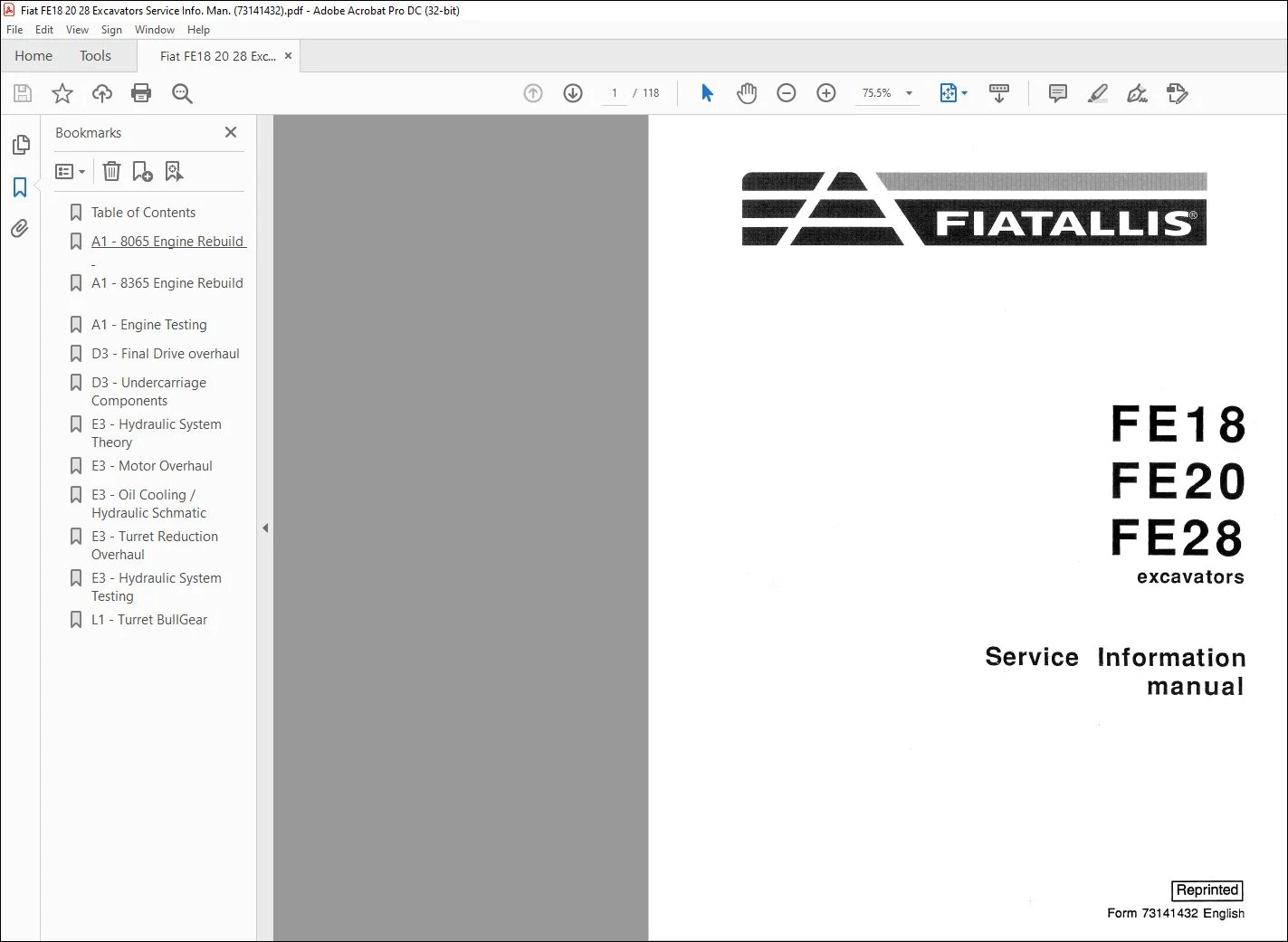

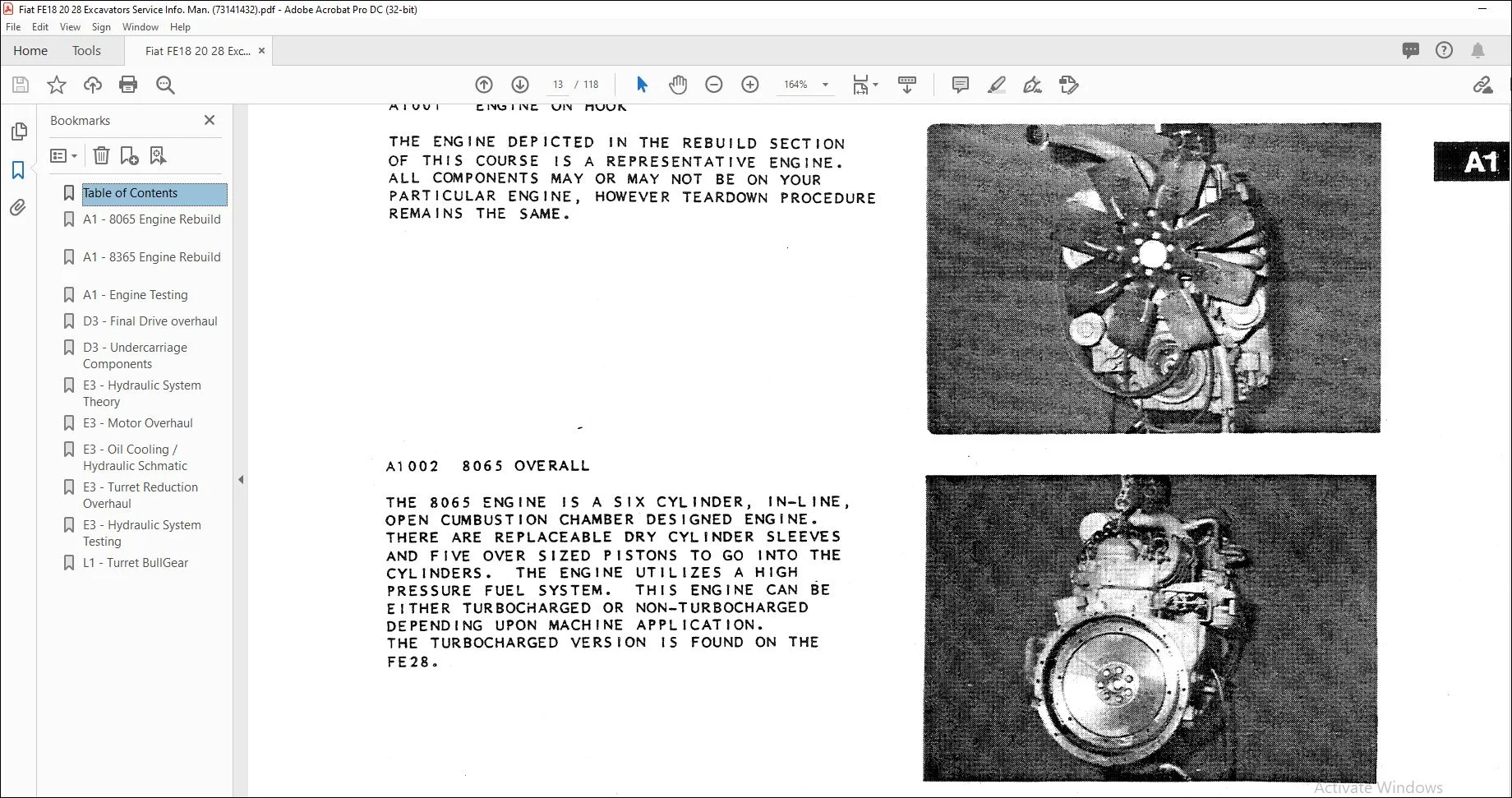

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Fiatallis FE18 FE20 FE28 Excavator Service lnformation Manual 73141432 – PDF DOWNLOAD

GENERAL

Study the Ope.ration and Maintenance Instruction Manual before , starting, operating, maintaining, fueling, or servicing machine.  Read and heed all machine-mounted safety signs before starting, operating, maintaining, fueling or servicing machine. Machine-mounted safety signs have been color coded yellow with black border and lettering for WARNING and red with white border and lettering for DANGER points.

• Never attempt to operate the machine ог its tools from any position other than seated ln the operator’s seat. Кеер head, body, limbs, hands and feet inside operator’s compartment at all times to reduce exposure to hazards outside the operator’s compartment. Do not allow unauthorized personnel to operate, service ог maintain this machine.
• Always check work агеа for dangerous features. The following are examples of dangerous work areas: slopes, overhangs, timber, demolitions, fire, high walls, dropoff, backfills, rough terrain, ditches, ridges, excavations, heavy traffic, crowded parking, crowded maintenance and closed areas. Use extreme саге when in areas such as these.
• An operator must know the machine’s capabllities. When working оп stopes ог near dropoffs Ье alert to avold loose ог soft conditions that could cause sudden tipping or loss of control. Do not jump on or off machine.
• Кеер two hands and one foot, or two feet and one hand, in contact with steps, grab rails and handles at all times. Do not use controls or hoses as handholds when climblng on ог off machine. Hoses and controls are movaЫe and do not provide а ·solid support. Controls also may Ье inadvertently moved causing accidental machine ог equlpment movement.
• Кеер operator’s compartment, stepping points, graЬ-rails and handles clear of foreign object-s, oil, grease, mud ог snow accumulation to minimize the danger of slipping or stumЫing. Clean mud or grease from shoes before attempting to mount or operate the machine. Ве .careful of slippery conditJons on stepping points, hand rails, and on the ground.
• Wear safety boots or shoes that have а high slip resistant sole material. For your personal protection, do not attempt to climb оп or off machine while machine is in motion. Never leave the machine unattended with the engine running. Always lock up machine when leaving it unattended. Return keys to authorized security.
• Heed all shutdown procedures of tbe Operation and Maintenance lnstructlon Manual. Always set the parking brake when leaving the machine for any reason. Do not wear rings, wrist watches, jewelry, loose or hanging apparel, such as ties, torn clothing, scarves, unbuttoned, or unzipped jackets that сап catch оп moving parts.
• Wear proper safety equipment as authorized for the job. Examples: hard hats, safety shoes, heavy gloves, еаг protectors, safety glasses or goggles, reflector vests, ог respirators. Consult your employer for specific safety equipment requirements. Do not carry loose objects in pockets that might fall unnoticed into open compartments.
• Do not use machine to carry loose objects Ьу means other than attachments for carrying such objects. DO NOT CARRY RIDERS unless the machine is equipped for carrying people to reduce personal exposure to being thrown off. Do not operate machinery in а condition of extreme fatigue ог illness. Ве especially careful towards the end of the shift.
• Roll Over Protective Structures аге required оп wheel loaders, dozer tractors, track type loaders, graders and scrapers Ьу ,local or national requirements. DO NOT operate this machine without а Roll over Protective Structure.
• Do not operate а machine without а falling object protective structure (FOPS). Do not орегаtе this machine without а rear canopy screen when machine is equipped with rear mounted towing winch. Seat belts are required to Ье provided with roll over protective structures ог roll protection cabs Ьу local ог national regulations. Кеер the safety belt fastened around you
• during operation. Where noise exposure exceeds 90 dBA for 8 hours, wear authorized ear protective equipment рег local ог national requirements that apply. Кеер clutches and brakes оп machine and attachments such as power control units, winches and master clutches adjusted according to Operation and Maintenance lnstruction Manuals of the manufacturers at all times.
• DO NOT adjust machine with engine running except as specified. Do not operate а machine with brakes out of adjustment. See the Operation and Maintenance lnstruction Manual. Move carefully when under, in or near machine or implements, Wear required protective equipment, such as hard hat, safety glasses , safety shoes, ear protectors.
• DO NOT operate this machine without a Roll Over Protective Structure. Do not operate a machine without a falling object protective strudure (FOPS). Do not operate this machine without a rear canopy screen when machine is equipped with rear mounted towing winch. Seat belts are required to be provided with roll over protective structures or roll protection cabs by local or national regulcltions. Keep the safety belt fastened around you during operation

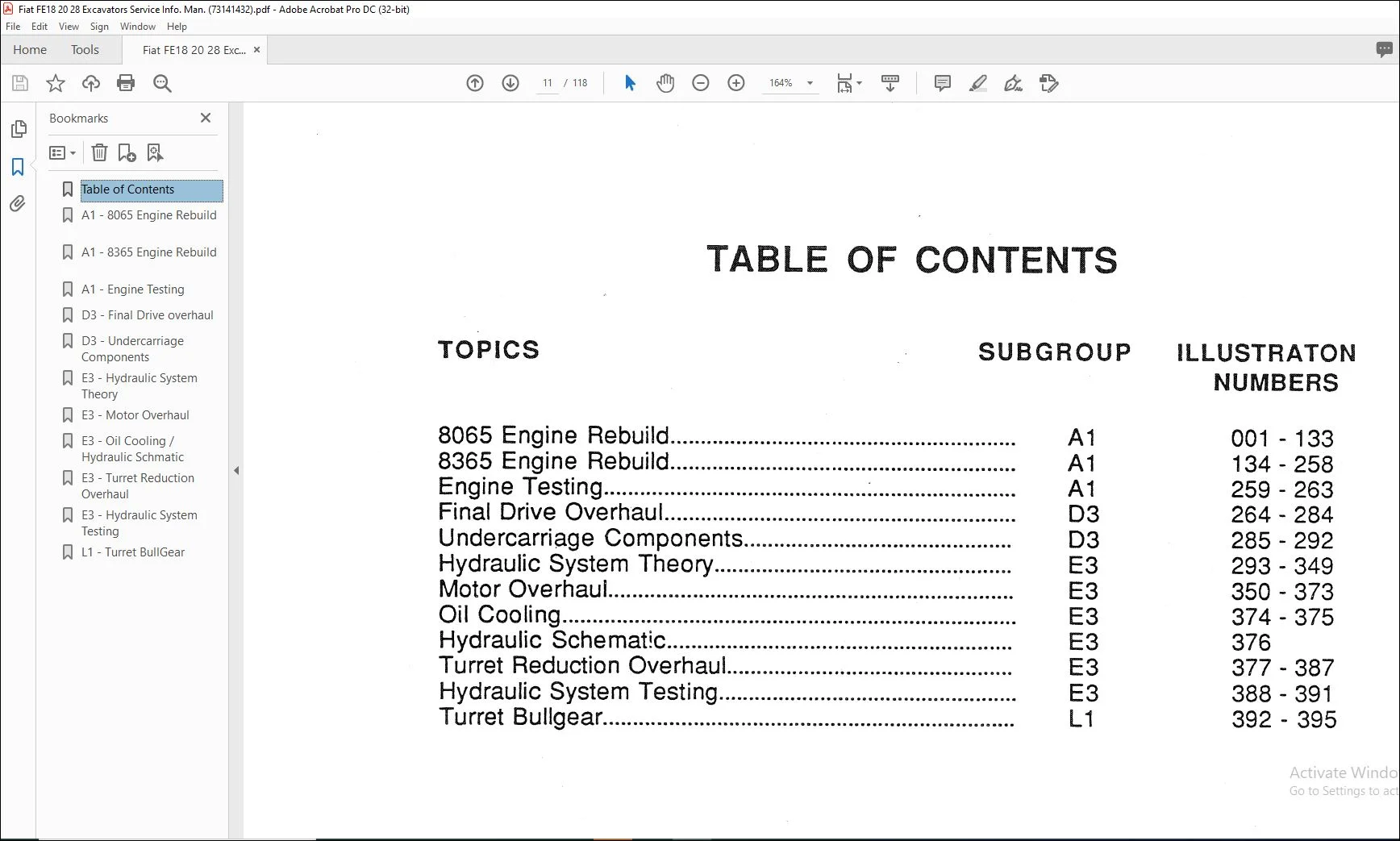

TABLE OF CONTENTS:

Fiatallis FE18 FE20 FE28 Excavator Service lnformation Manual 73141432 – PDF DOWNLOAD

Table of Contents 11
A1 – 8065 Engine Rebuild 13
A1 – 8365 Engine Rebuild 46
A1 – Engine Testing 78
D3 – Final Drive overhaul 79
D3 – Undercarriage Components 85
E3 – Hydraulic System Theory 87
E3 – Motor Overhaul 103
E3 – Oil Cooling / Hydraulic Schmatic 110
E3 – Turret Reduction Overhaul 111
E3 – Hydraulic System Testing 114
L1 – Turret BullGear 115

Questions? Email us: [email protected]

https://vimeo.com/730877146

PLEASE NOTE:

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]
