Fiatallis FE40L Hydraulic Excavator Operation & Maintenance Manual 60403139 – PDF DOWNLOAD

Description

Fiatallis FE40L Hydraulic Excavator Operation & Maintenance Manual 60403139 – PDF DOWNLOAD

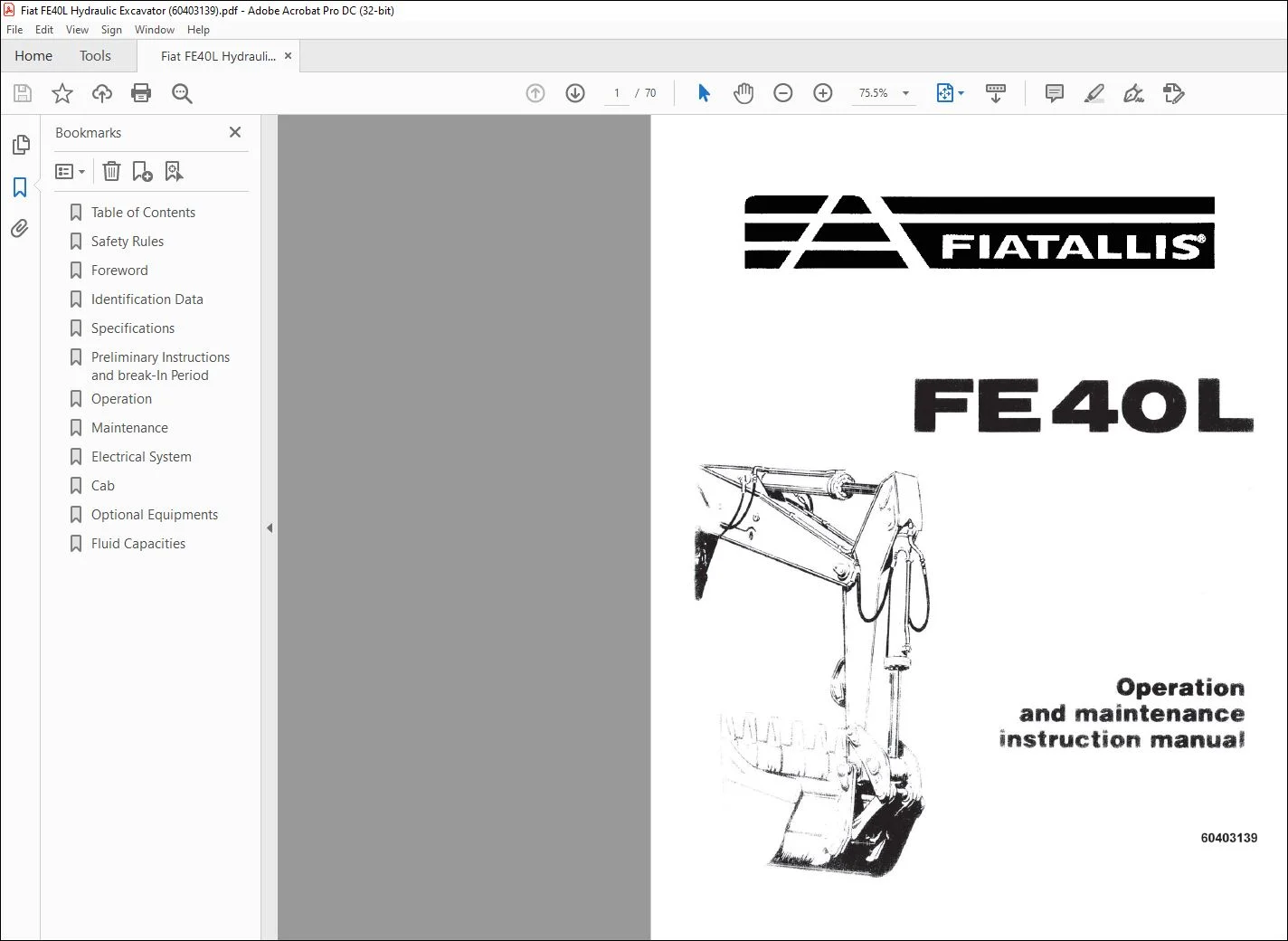

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Fiatallis FE40L Hydraulic Excavator Operation & Maintenance Manual 60403139 – PDF DOWNLOAD

GENERAL:

Study the Operation and Maintenance Instruction Manual before starting, operating, maintaining, fueling, or servicing machine. Read and head all machine-mounted safety signs before starting, operating, maintaining, fueling or servicing machine. Machine-mounted safety signs have been color coded yellow with black border and lettering for WARNING and red with white border and lettering for DANGER points.

• Never attempt to operate the machine or its tools from any position other than seated in the operator’s seat. Keep head, body, limbs, hands and feet inside operator’s compartment at all times to reduce exposure to hazards outside the operator’s compartment. Do not allow unauthorized personnel to operate, service or maintain this machine. Always check work area for dangerous features.
• The following are examples of dangerous work areas: slopes, overhangs, timber demolitions, fire, high walls, drop-offs, back fills, rough terrain, ditches, ridges, excavations, heavy traffic, crowded parking, crowded maintenance and closed areas. Use extreme care when in areas such as these. Never exceed the lifting capacity of the machine.
• An operator must know the machine’s capabilities. When working on slooes or near drop-offs be alert to avoid loose or sott conditions that could cause sudden tipping or loss of control. Be careful when the sprocket is under the cab; the direction of movement of the transport levers will be opposite of direction of machine movement. Know the working range of the rnachine.
• Always check height, width and weight restrictions in the working area, and be sure the machine will not exceed these limitations. Provide clearance for rear super-structure swing by barricading area to discourage entry. Use recommended buckets for machine, taking into account weight of material, loadability and heaping characteristics of material, terrain and other pertinent job factors.
• When counterweights have been provided, do not work machine if they have been removed. Do not jump on or off machine. Keep two hands and one foot, or two feet and one hand, in contact with steps, grab rails and handles at all times. Do not use controls or hoses as handholds when climbing on or off machine.
• Hoses and controls are movable and do not provide a solid support. Controls also may be inadvertently moved causing accidental machine or equipment movement. Keep operator’s compartment stepping points, grab rails and handles clear of foreign objects, oil, grease, mud or snow accumulation, to minimize the danger of slipping or stumbling.
• Clean mud or grease from shoes before attempting to mount or operate the machine. Be careful of slippery conditions on stepping points, hand rails, and on the ground. Wear safety boots or shoes that have a high slip resistant sole material. For your personal protection, do not attempt to climb on or off machine is in motion. Never leave the machine unattended with the engine running. Always lock up machine when leaving it unattended. Return keys to authorized security.
• Heed all shutdown procedures of the Operation and Maintenance Instruction Manual. Do not wear rings, wrist watches, jewelry, loose or hanging apparel, such as ties, torn clothing, scarves, unbuttoned or unzipped jackets that can catch on moving parts.
• Do wear proper safery equipment as authorized for the job. Examples: hard hat. safety shoes, heavy gloves, ear protectors, safety glasses or goggles, reflector vests, or respirators.
• Consult your employer for specific safety equipment requirements. Do not carry loose objects is pockets that might fall unnoticed into open compartments. Do not use machine to carry loose objects by means other than attachments for carrying such objects. No machine should ever be used as a work platform or scaffolding.
• Other unorthodox uses (such as pushing trucks or other machinery) should be avoided. Always be aware of presence of people in the work site. Adjust all mirrors for visibility towards the rear of the machine. Never use the bucket or attachment as a man lift or allow riders on the machine.

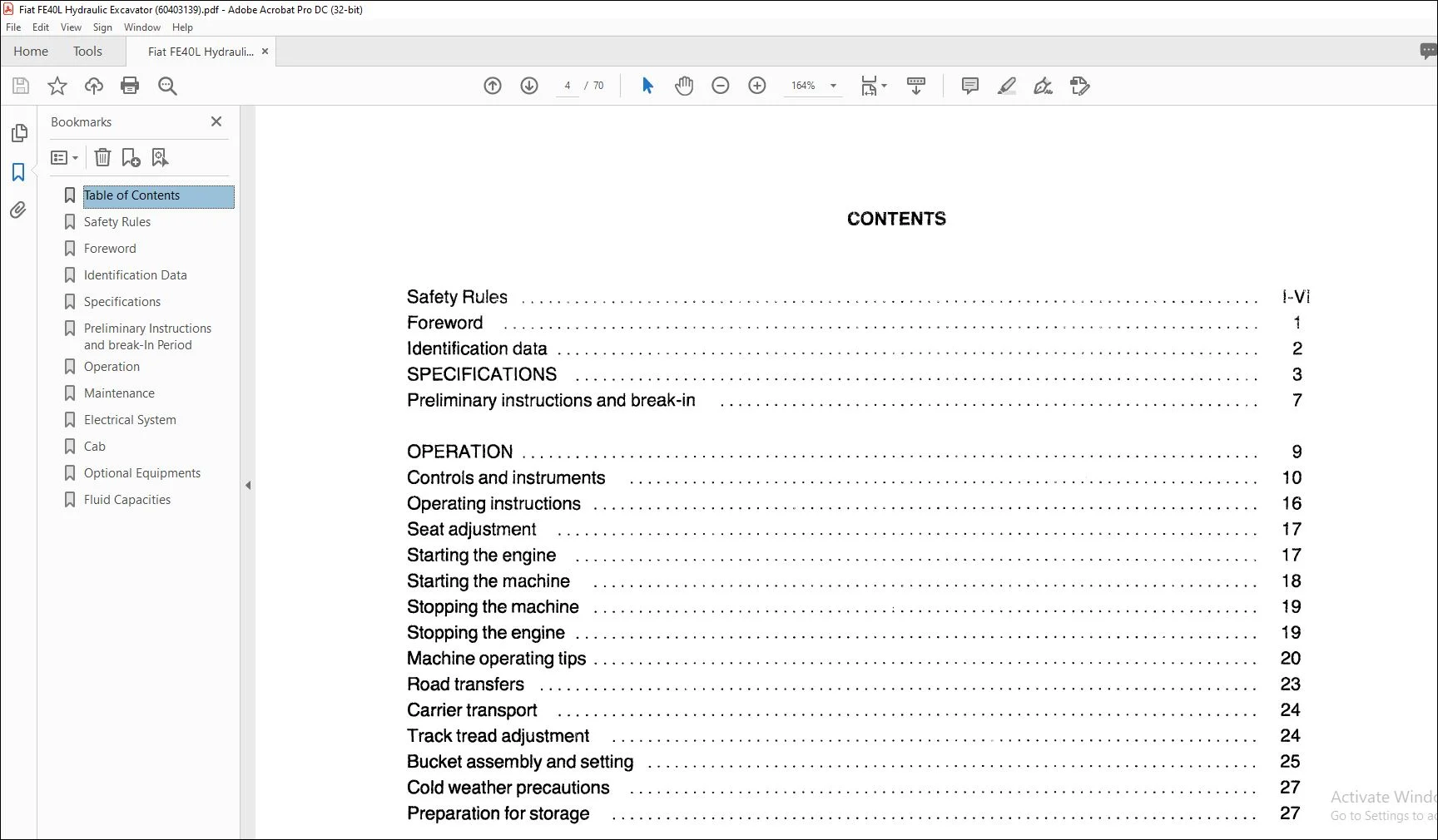

TABLE OF CONTENTS:

Fiatallis FE40L Hydraulic Excavator Operation & Maintenance Manual 60403139 – PDF DOWNLOAD

Safety Rules I-VI
Foreword

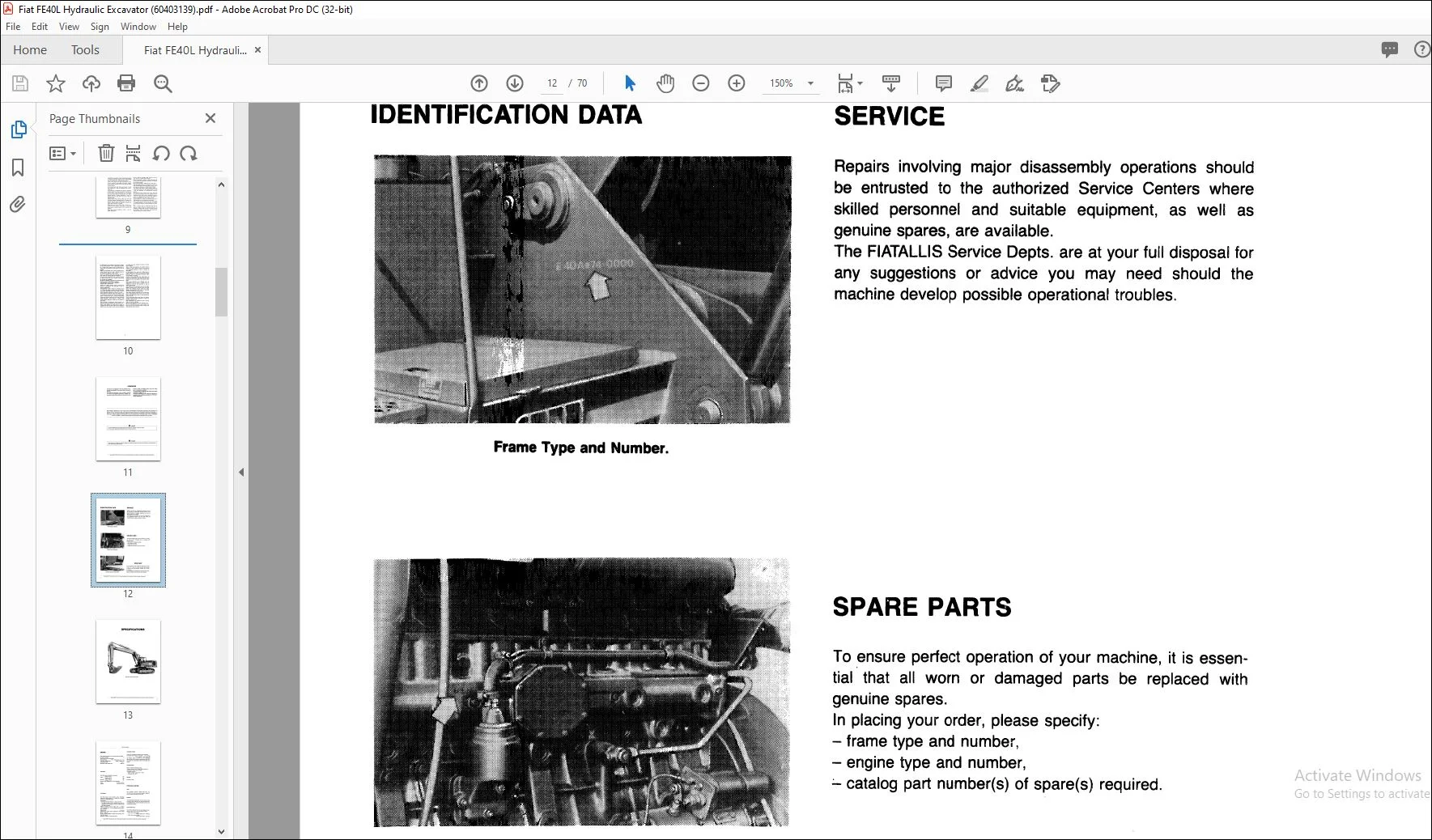

Identification data 2
SPECIFICATIONS 3
Preliminary instructions and break-in
OPERATION
Controls and instruments
Operating instructions
Seat adjustment
Starting the engine
Starting the machine
Stopping the machine ,
Stopping the engine
Machine operating tips
Road transfers
Carrier transport
Track tread adjustment
Bucket assembly and setting
Cold weather precautions
Preparation for storage
MAINTENANCE
Lubrication and service guide
1 O hour services
50 hour services
100 hour services
250 hour services
500 hour services 38
1 000 hour services 39
2000 hour services 42
Periodic services 43
ELECTRICAL SYSTEM 48
Wiring diagram 49
CAB 50
OPTIONAL EQUIPMENTS 54
FLUID CAPACITIES 58
