Fiatallis FG70 FG75 FG85 FG105 Series B Motor Graders Service Manual 73160218 – PDF DOWNLOAD

Description

Fiatallis FG70 FG75 FG85 FG105 Series B Motor Graders Service Manual 73160218 – PDF DOWNLOAD

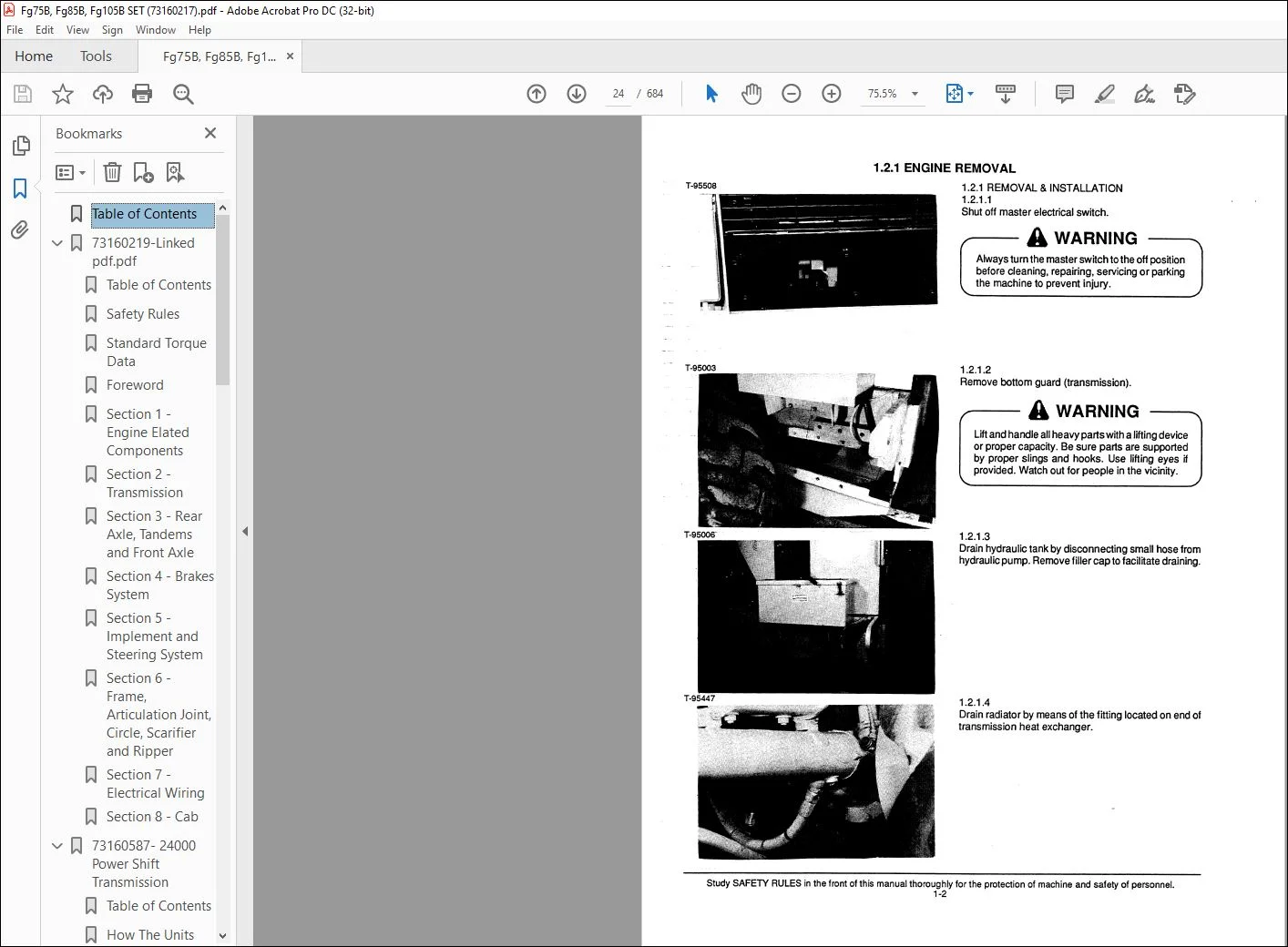

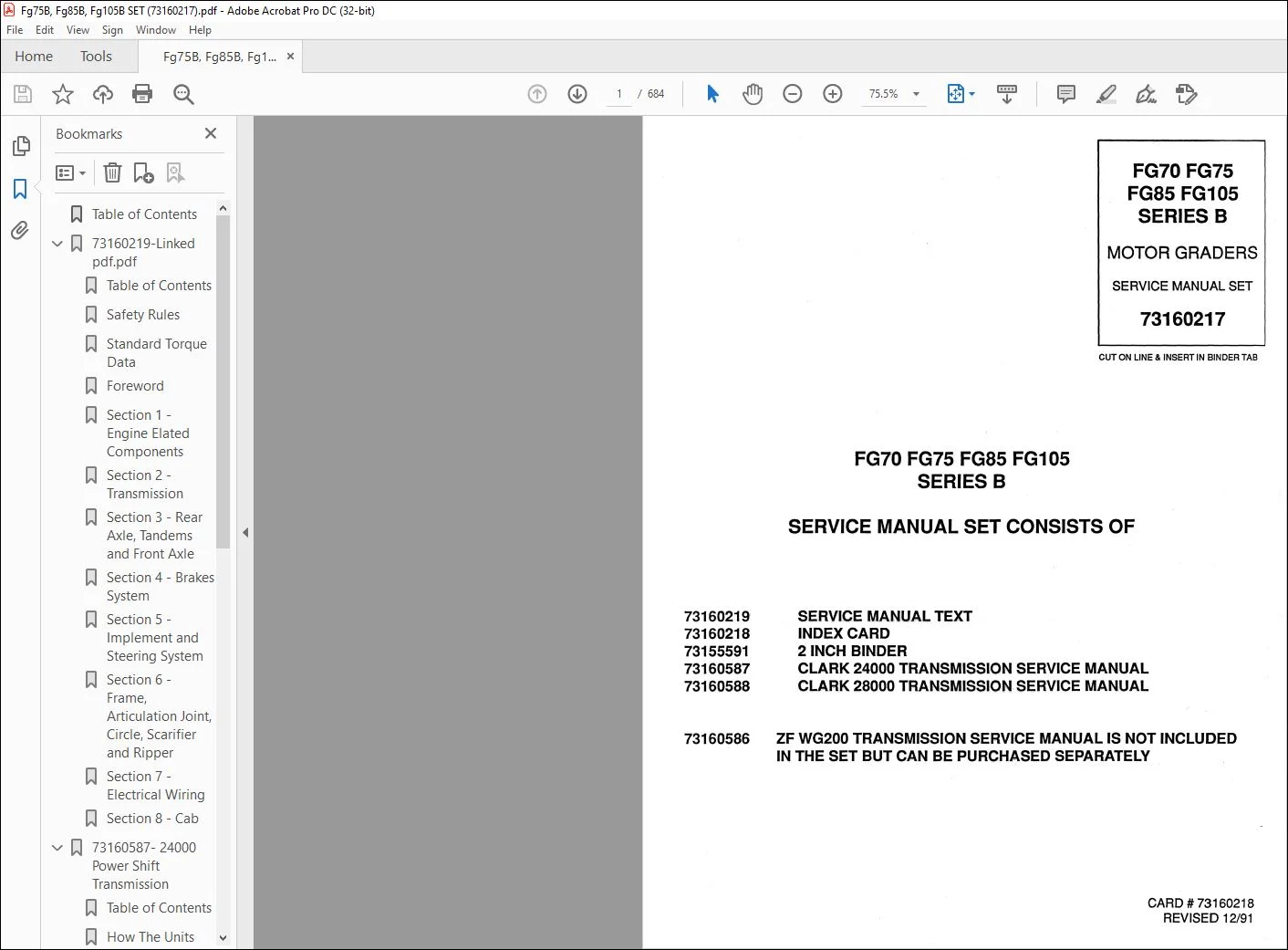

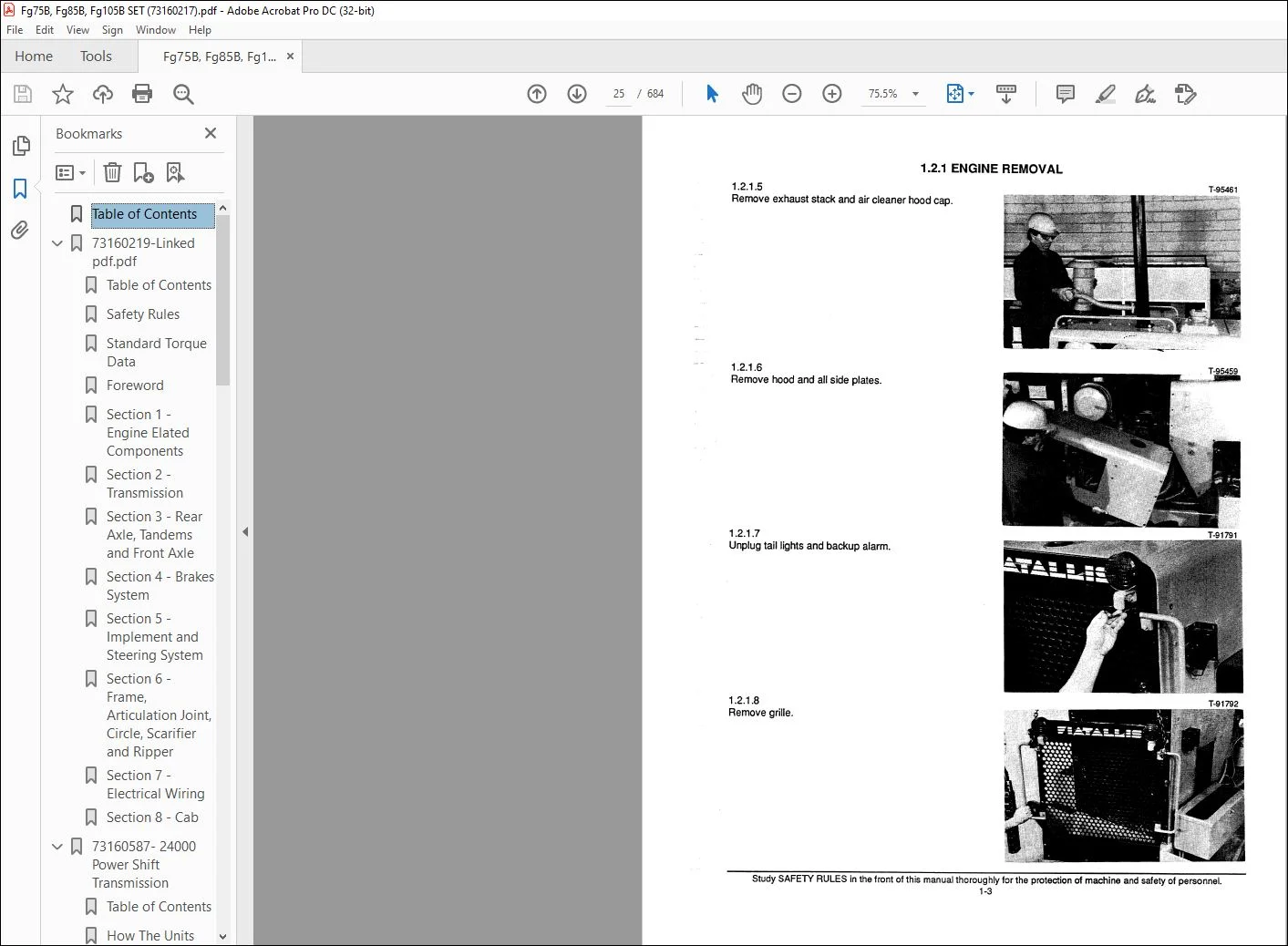

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Fiatallis FG70 FG75 FG85 FG105 Series B Motor Graders Service Manual 73160218 – PDF DOWNLOAD

GENERAL:

Study the Operation and Maintenance Instruction Manual before starting, operating, maintaining, fueling, or servicing machine. Read and heed all machine-mounted safety signs before starting, operating, maintaining, fueling or servicing machine. Machine-mounted safety signs have been color coded yellow with black border and lettering for WARNING and red with white border and lettering for DANGER points.

• Never attempt to operate the machine or its tools -from any position other than seated in the operator’s seat. Keep head, body, limbs, hands and feet inside operator’s compartment at all times to re.duce exposure to hazards outside the operator’s compartmeiiL .
• Do not allow unauthorized personnel to operate service or maintain this machine. Always check work area for dangerous features. The following are examples of dangerous work areas: slopes, over hangs, timber, demolitions, fire, high walls, drop off, backfills, rough terrain, ditches, ridges, excavations, heavy traffic, crowded parking, crowded maintenance and closed areas.
• Use extreme care when in areas such as these. An operator must know the machine’s capabilities. When working on slopes or near drop offs be alert to avoid loose or soft conditions that could cause sudden tipping or loss of control.
• Do not jump on oroff machine. Keep two hands and one foot, or two feet and one hand, in contact with steps grab rails and handles at all times. Do not use controls or hoses as hand holds when climbing on or off machine. Hoses and controls are movable and do not provide a solid support.
• Controls also may be inadvertently moved causing accidental machine or equipment movement. Keep operator’s compartment, stepping points, grab-rails and handles clear of foreign objects, oil, grease, mud or snow accumulation to minimize the danger of slipping or stumbling.
• Clean mud or grease from shoes before attempting to mount or operate the machine. Be careful of slippery conditions on stepping points, hand rails, and on the ground. Wear safety boots or shoes that have a high slip resistant sole material. For your personal protection.
• Do not attempt to climb on or off machine while machine is in motion. Never leave the machine unattended with the engine running. Always lock up machine when leaving it unattended. Return keys to authorized security. Heed all shut down procedures of the Operation _and Maintenance Instruction Manual. Always set the parking brake .when leaving the machine for any reason.

TABLE OF CONTENTS:

Fiatallis FG70 FG75 FG85 FG105 Series B Motor Graders Service Manual 73160218 – PDF DOWNLOAD

SAFETY RU LES I VI
FOREWORD VII
STANDARD TORQUE SPECIFICATIONS VIII XI
ENGINE RELATED COMPONENTS SECTION 1
TRANSMISSION SECTION 2
AXLES & TANDEMS SECTION 3
BRAKE SYSTEM SECTION 4
STEERING & IMPLEMENT SECTION 5
FRAME, ARTICULATION & CIRCLE SECTION 6
ELECTRICAL SYSTEM SECTION 7
CAB SECTION 8
