Fiatallis FG75 FG85 FG95(Cummins)Motor Graders Service Manual PDF

Description

Fiatallis FG75 FG85 FG95(Cummins)Motor Graders Service Manual – PDF DOWNLOAD

FILE DETAILS:

Fiatallis FG75 FG85 FG95(Cummins)Motor Graders Service Manual – PDF DOWNLOAD

FN 73158165

Language : English
Pages : 465
Downloadable : Yes
File Type : PDF

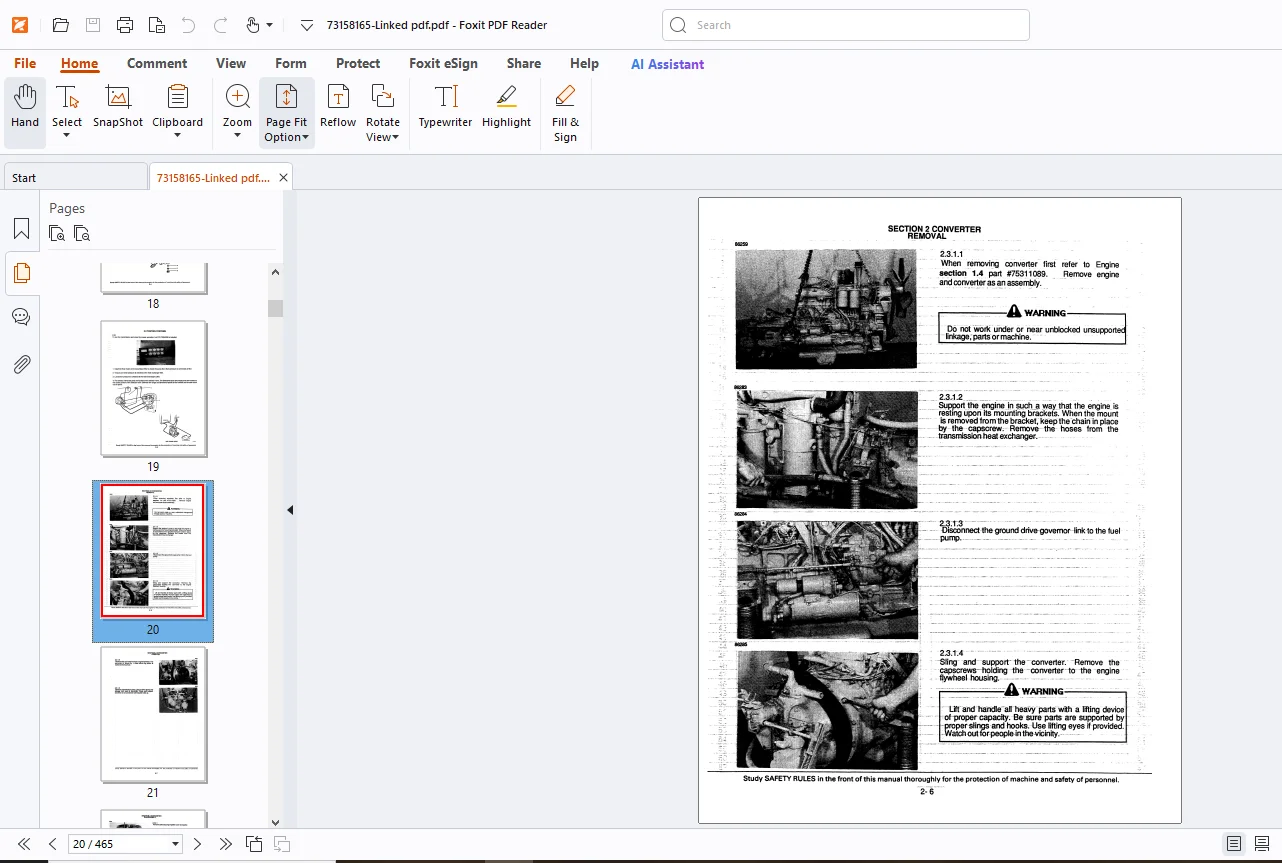

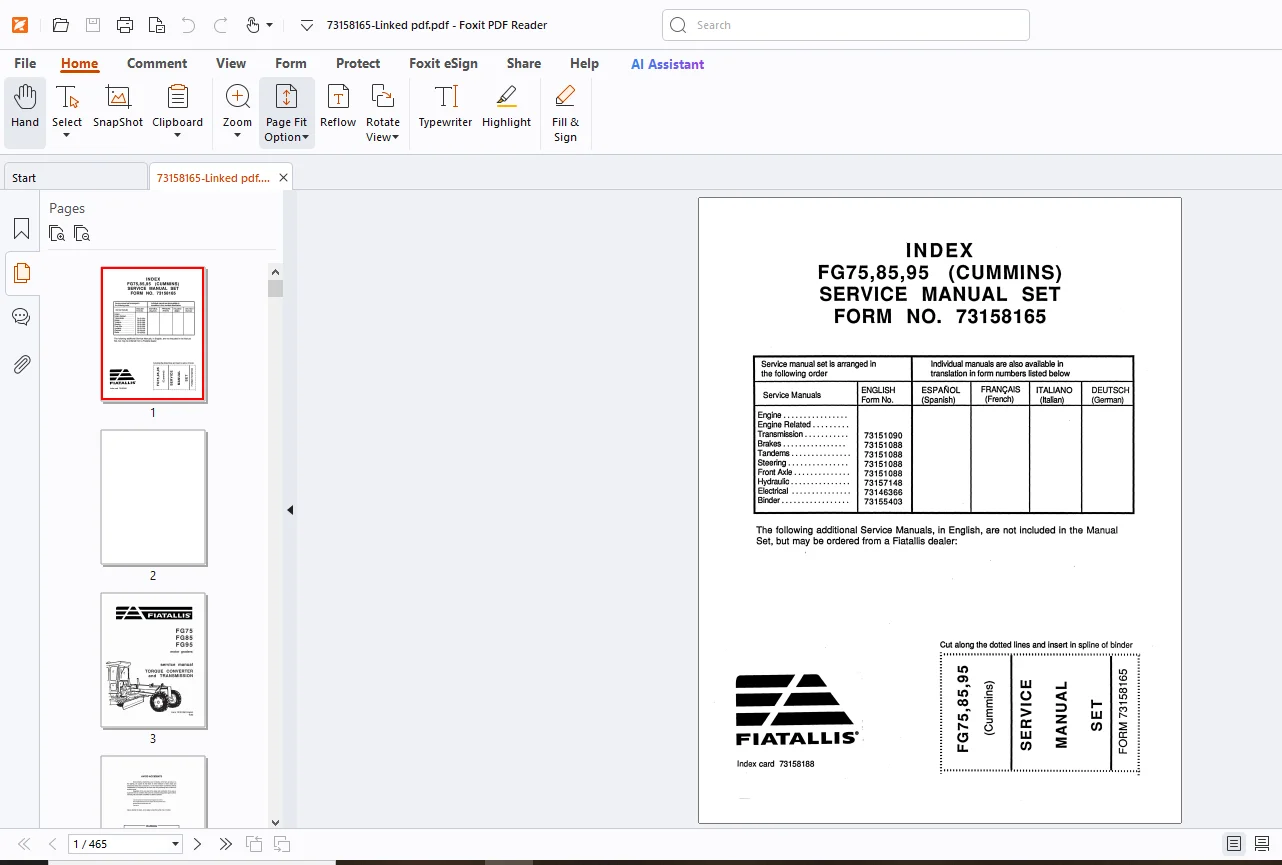

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Fiatallis FG75 FG85 FG95(Cummins)Motor Graders Service Manual – PDF DOWNLOAD

FN 73158165

Index 1
73151090-Torque Converter and Transmission 3
Table of Contents 8
Table of Contents 8
Foreword 15
21 General Description 16
22 Testing 19
23 Repair Procedures 20
24 Troubleshooting 86
25 Tools 89
26 Specifications 90
73151088-Axles, Tandems and Brakes 95
Supplement No 1 (73151088) FG75, FG85 & FG95 Axle, Tandems & Brakes Manual 98
Table of Contents 106
General Description 107
Troubleshooting 110
Test Systems 111
Repair Procedures 113
Tools 162
Specifications 164
General Description (Front Wheels, Axle & Wheel Lean) 171
Troubleshooting 172
Repair Procedure 173
Specifications 183
73157148-Steering and Implement Hydraulics189
Table of Contents 199
Topic 1 – Implement Hydraulic System Operation 200
Topic 2 – Steering System Operation 208
Topic 3 – Oil Specifications, Capacities and Service 218
Topic 4 – Troubleshooting and Testing 220
Topic 5 – Repair Procedures 232
Topic 6 – Tools 252
Topic 7 – Specifications 254
73146366-Electrical Systems273
Safety Rules 274
Table of Contents 281
General Description 282
Troubleshooting 283
Changing Circuit 286
Starting Circuit 294
Ignition Circuit 296
Accessory Ciruits 300
Batteries 302
Electrical System Schematics 307

DESCRIPTION:

Fiatallis FG75 FG85 FG95(Cummins)Motor Graders Service Manual – PDF DOWNLOAD

FN 73158165

GENERAL:

SAFETY:

• Study the Operation and Maintenance Instruction Manual before starting, operating, maintaining, fueling, or servicing machine. Read and heed al machine-mounted safety signs before starting, operating, maintaining, fueling or servicing machine.
• Machine-mounted safety signs have been color coded yellow with black border and lettering for WARNING and red with white border and lettering for DANGER points. Never attempt to operate the machine or its tools from any position other than seated in the operator’s seat.
• Keep head, body, limbs, hands and feet inside operator’s compartment at all times to reduce exposure to hazards outside the operator’s compartment. Do not allow unauthorized personnel to operate service or maintain this machine. Always check work area for dangerous features.
• The following are examples of dangerous work areas: slopes, over hangs, timber, demolitions, fire, high walls, drop off, backfills, rough terrain, ditches, ridges, excavations, heavy traffic, crowded parking, crowded maintenance and closed areas. Use extreme care when in areas such as these.
• An operator must know the machine’s capabilities. When working on slopes or near drop offs be alert to avoid loose or soft conditions that could cause sudden tipping or loss of control. Do not jump on or off machine. Keep two hands and one foot, or two feet and one hand, in contact with steps grab rails and handles at all times. Do not use controls or hoses as hand holds when climbing on or off machine.
• Hoses and controls are movable and do not provide a solid support. Controls also may be inadvertently moved causing accidental machine or equipment movement.
• Keep operator’s compartment, stepping points, grab-rails and handles clear of foreign objects, oil, grease, mud or snow accumulation to minimize the danger of slipping or stumbling. Clean mud or grease from shoes before attempting to mount or operate the machine.
• Be careful of slippery conditions on stepping points, hand rails, and on the ground. Wear safety boots or shoes that have a high sip resistant sole material. For your personal protection. Do not attempt to climb on or off machine while machine is in motion.
• Never leave the machine unattended with the engine running. Always lock up machine when leaving it unattended. Return keys to authorized security. Heed all shut down procedures of the Operation and Maintenance Instruction Manual Always set the parking brake when leaving the machine for any reason.
