Fiatallis FR140.2 Wheel Loader Service Manual SN 180-UP – PDF DOWNLOAD

Description

Fiatallis FR140.2 Wheel Loader Service Manual SN 180-UP – PDF DOWNLOAD

FILE DETAILS:

Fiatallis FR140.2 Wheel Loader Service Manual SN 180-UP – PDF DOWNLOAD

Language : English
Pages : 195
Downloadable : Yes
File Type : PDF

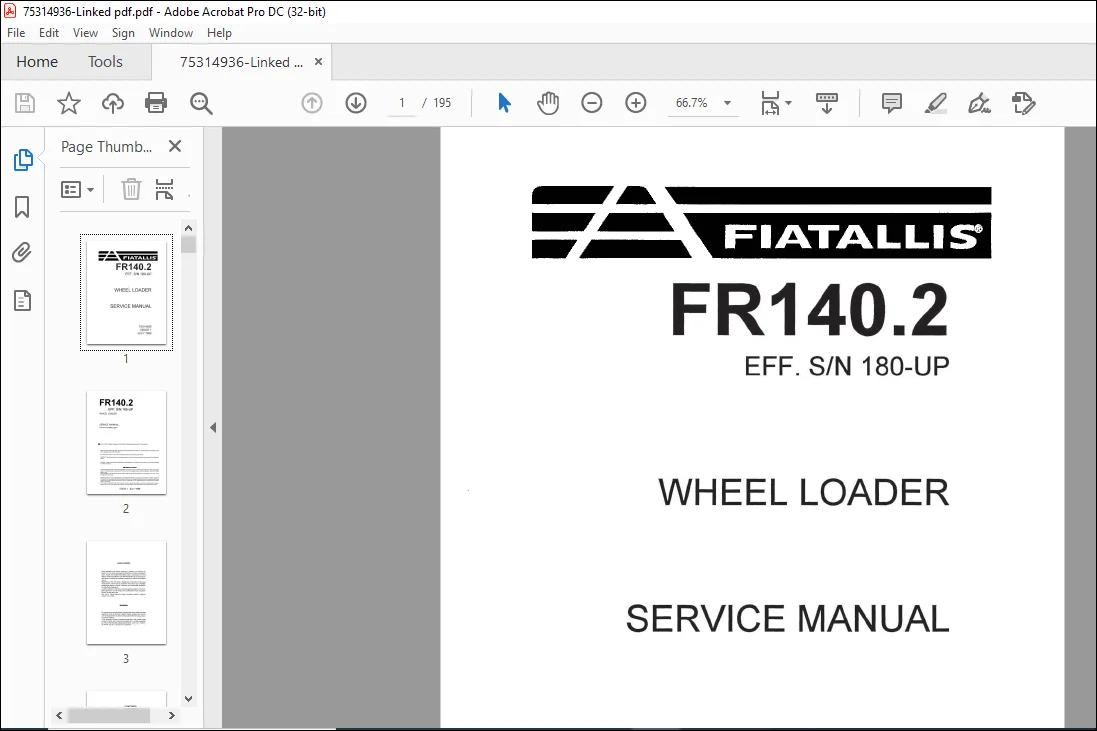

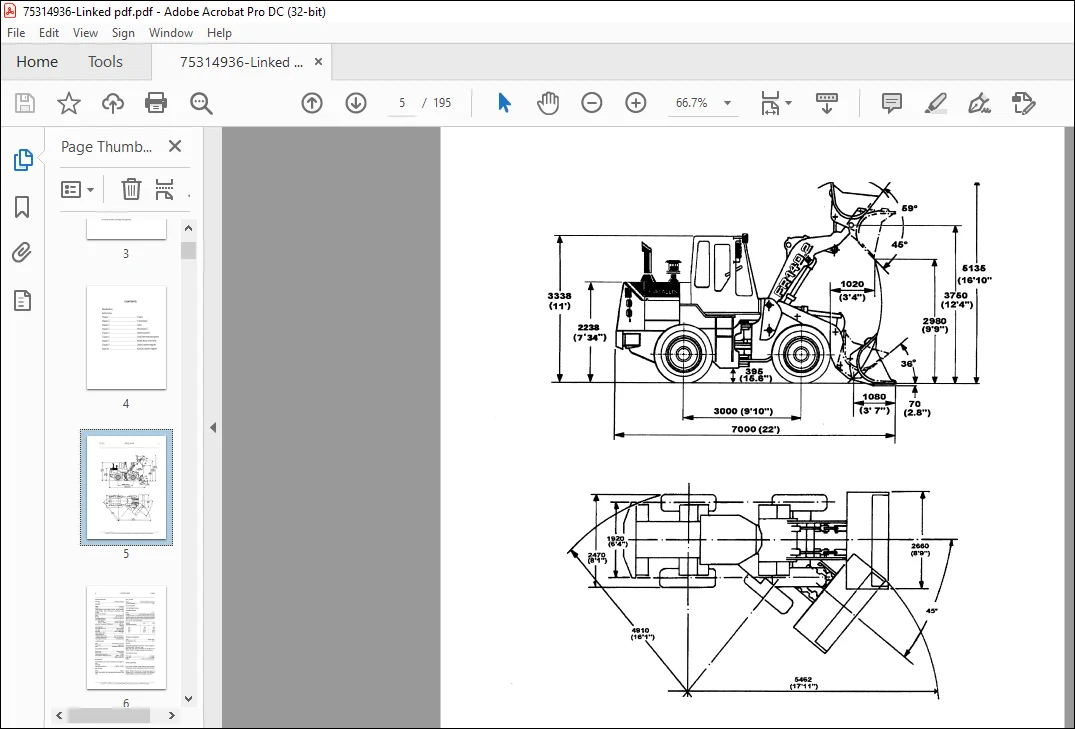

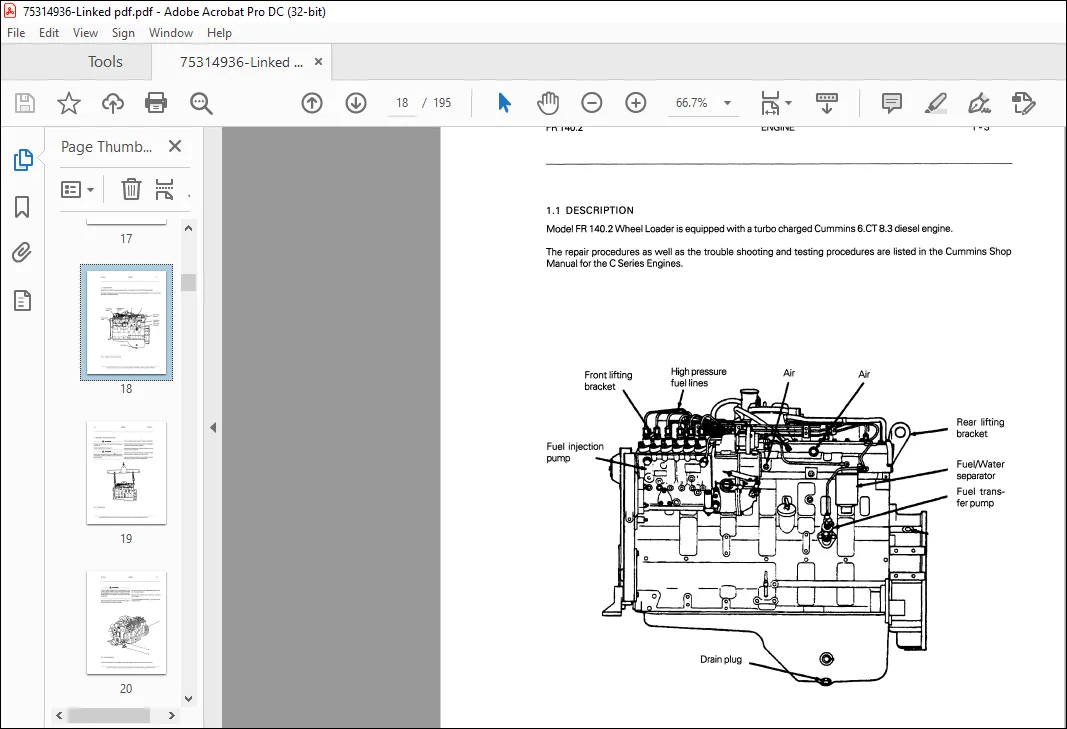

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Fiatallis FR140.2 Wheel Loader Service Manual SN 180-UP – PDF DOWNLOAD

GENERALITIES

• Study this Manual before starting, operating, maintaining fuelling or servicing the machine.
• Read and heed all safety rules before any intervention. Do no allow unauthorized personnel to operate service or maintain this machine.
• Do not wear rings, wrist watches, jewelry, loose or hang-up apparels, such as ties, torn clothing, scarves, unbuttoned or unzipped jackets that can attach on moving parts. Wear proper safety equipment as recommended for the job. Examples : hard hat, heavy gloves, ear protection, safety glasses or goggles, reflector vests, respirator. Consult your employer for specific safety equipment requirements.
• Keep operator’s compartment, stepping points, grabrails and handles clear of foreign objects, oil, grease, mud or snow accumulation to minimize the danger of slipping or stumbling. Clean mud or grease from shoes before attempting to mount or operate the machine.
• Do not jump on or off the machine. Keep two hands and one foot, or two feet and one hand in contact with step grab rails and handles at all times.
• Do not use controls or hoses as hand holds when climbing on or off machine. Hoses and controls are movable and do not provide a solid support. Controls also may be inadvertently moved causing accidental machine or equipment movement.
• Never attempt to operate the machine or its tools from any position other than seated in the operator’s seat.
• Keep head, body limbs, hands and feet inside operator’s compartment at all times to reduce exposure to hazards outside the operator’s compartment.
• Be careful of slippery conditions on stepping points  handrails, and on the ground. Wear safety boots or shoes that have a high slip resistant sole material.
• Do not leave the machine until it is completely stopped.
• Check the seat safety belt at least twice a year. If there are signs of wear or fraying or other signs of weakness that could lead to failure, replace it.

TABLE OF CONTENTS:

Fiatallis FR140.2 Wheel Loader Service Manual SN 180-UP – PDF DOWNLOAD

Table of Contents .............  4
Specifications ................  5
Safety Rules ..................  9
Engine ........................ 16
Transmission .................. 22
Axles ......................... 28
Brake System .................. 83
Steering System ...............111
Implement Hydraulic System ....134
Bucket Boom and Frame .........163
Electric System Diagram .......188
Appendix ......................195
