Fiatallis FR15 FR15B Service Manual (60406412) – PDF DOWNLOAD

Description

Fiatallis FR15 FR15B Service Manual (60406412) – PDF DOWNLOAD

FILE DETAILS:

Fiatallis FR15 FR15B Service Manual (60406412) – PDF DOWNLOAD

Language : English
Pages : 189
Downloadable : Yes
File Type : PDF

DESCRIPTION:

Fiatallis FR15 FR15B Service Manual (60406412) – PDF DOWNLOAD

GENERAL

• Study the Operation and Maintenance Instruction Manual before starting, operating, maintaining, fueling, or servicing machine.
• Read and heed all machine-mounted safety signs before starting, operating, maintaining, fueling or servicing machine.
• Machine-mounted safety signs have been color coded yellow with black borders and lettering for warning and red with white borders and lettering for danger points.
• Do not allow unauthorized personnel to service or maintain this machine. Do not perform any work on equipment that is not authorized. Follow the Maintenance and Service procedures. Study the Operation and Maintenance Instruction Manual before starting, operating, maintaining, fueling or servicing this machine.
  Always wear safety glasses with side shields.
• Do not wear rings, wrist watches, jewelry, or loose or hanging apparel, such as ties, torn clothing, scarves. unbuttoned or unzipped jackets that can catch on moving parts. Wear proper safety equipment as authorized for the job. Examples: hard hats, safety shoes, heavy gloves, ear protectors, safety glasses or goggles, reflector vest, or respirators. Consult your employer for specific safety equipment requirements.
• Do not use controls or hoses as handholds when climbing on or off machine. Hoses and controls are movable and do not provide a solid support. Controls may also be inadvertently moved causing accidental machine or equipment movement.
• Do not jump on or off machine. Keep two hands and one foot, or two feet and one hand, in contact with steps and grab-rails and handles at all times.
  Machine should not be serviced with anyone in the operator’s seat unless they are qualified to operate the machine and are assisting in the servicing.
• Keep operator’s compartment, stepping points, grabrails and handles clean of foreign objects, oil, grease, mud or snow accumulation to minimize the danger of slipping or stumbling. Clean mud or grease from shoes before attempting to mount or operate the machine. Never attempt to operate the machine or its tools from any other position than seated in the operator’s seat. Keep operator’s compartment clear of loose objects. If movement of an attachment by means of the machine’s hydraulic system is required for service or maintenance, do not raise or lower attachments from any position other than when seated in the operator’s seat. Before starting machine or moving attachment or tool, make sure to set brakes, sound horn and call for an all  clear. Raise attachment slowly.

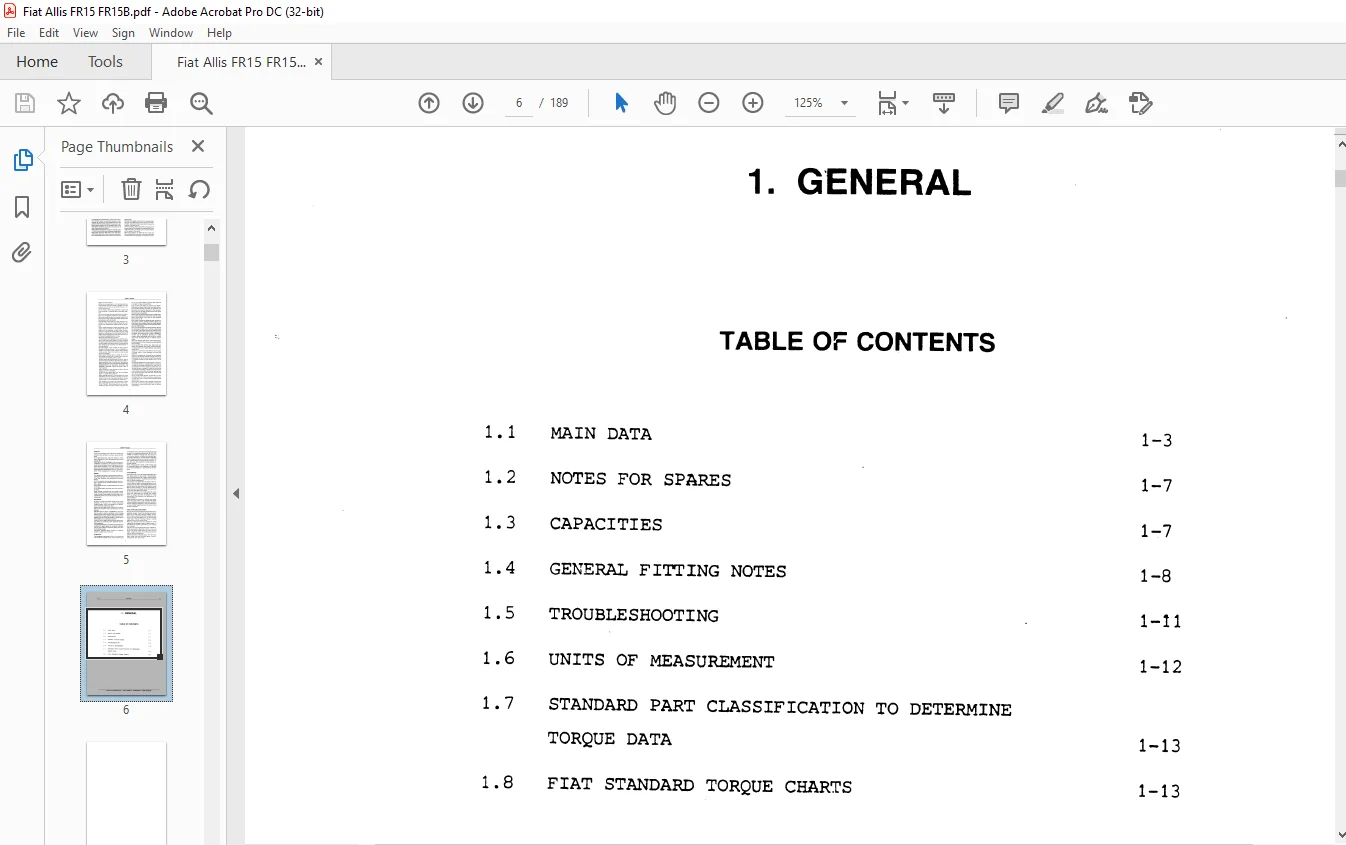

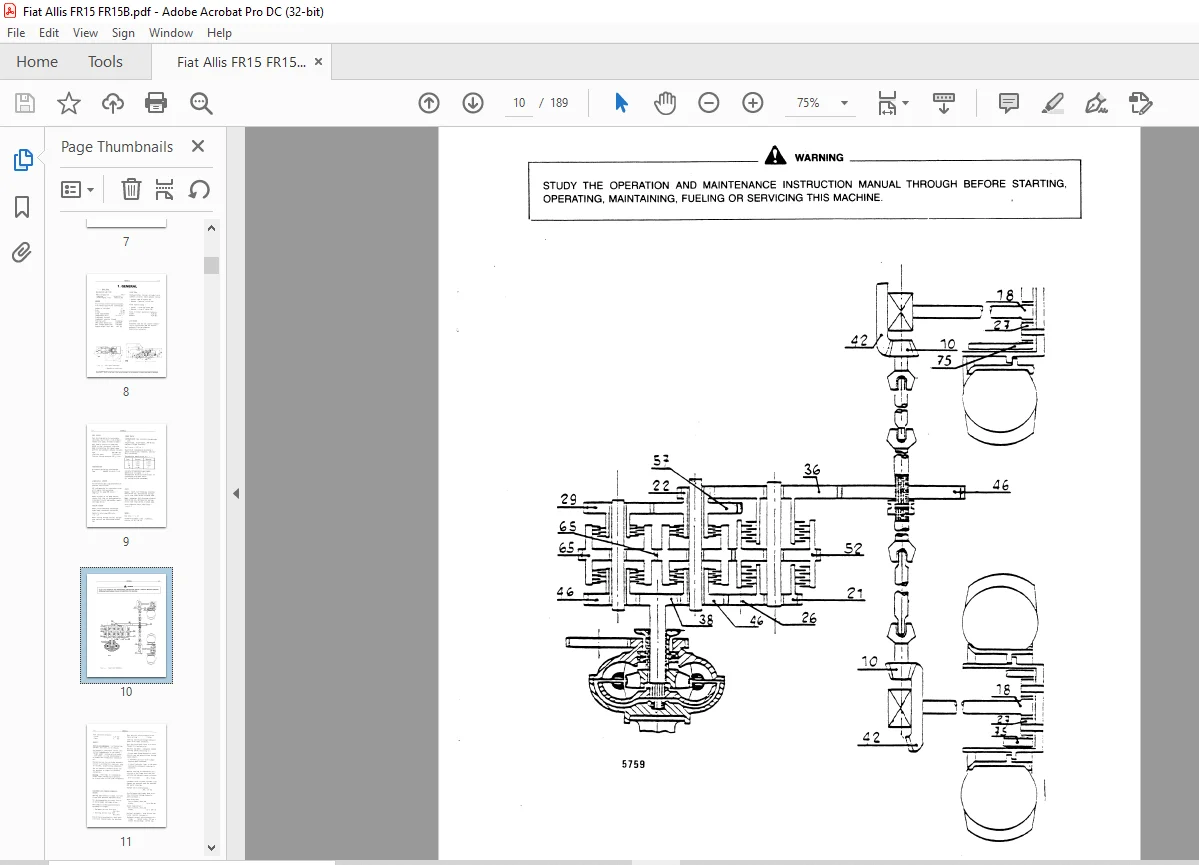

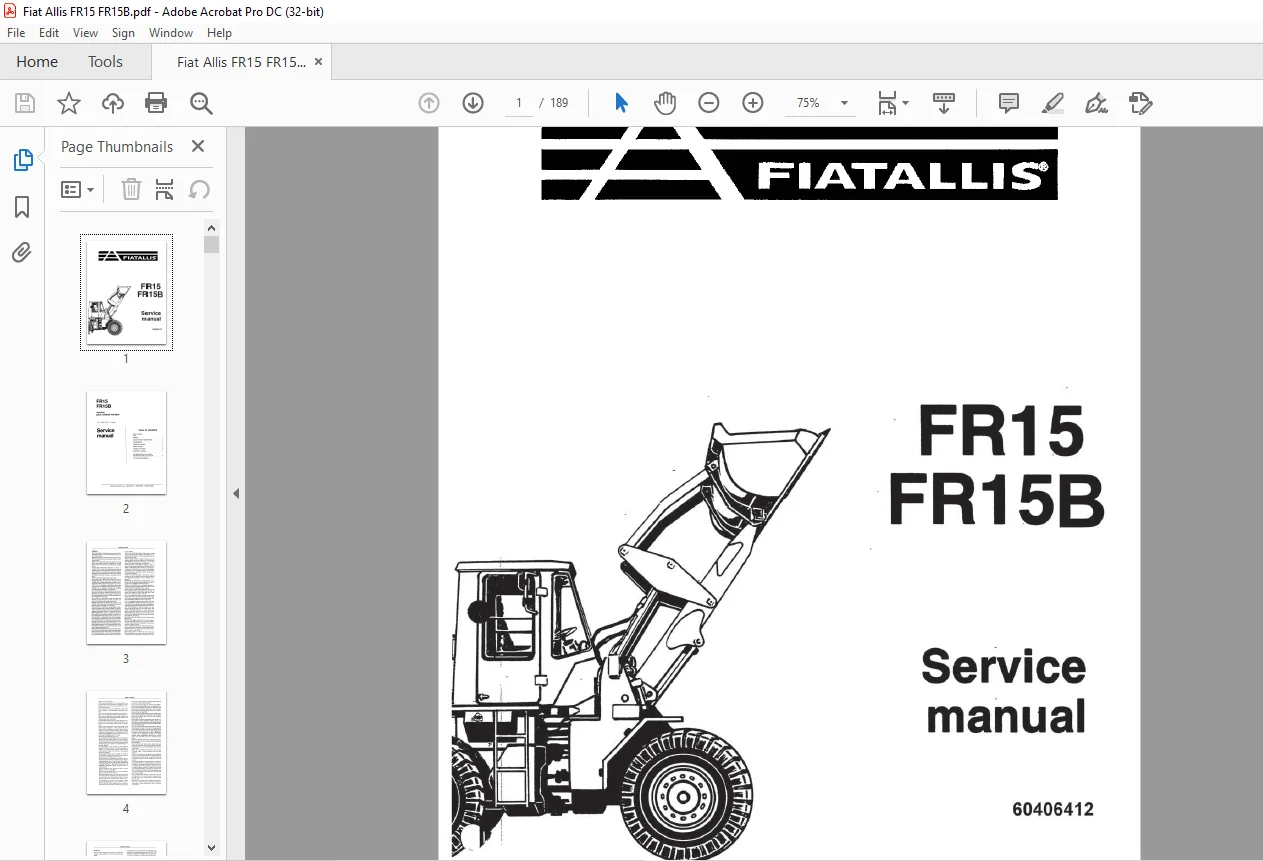

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Fiatallis FR15 FR15B Service Manual (60406412) – PDF DOWNLOAD

Table of Contents  .....................  2
General ................................  6
Engine Related Components .............. 22
Power Train ............................ 44
Axles and Wheels ....................... 50
Brake System ........................... 58
Hydraulic System ....................... 86
Electrical System ......................143
FR 15B/M Implement Hydraulic System ....149
Service Manual FR158 Wheel Loader ......184
