Fiatallis FR160.2 Wheel Loader Service Manual (SN 582101-UP) – PDF DOWNLOAD

Description

Fiatallis FR160.2 Wheel Loader Service Manual (SN 582101-UP) – PDF DOWNLOAD

FILE DETAILS:

Fiatallis FR160.2 Wheel Loader Service Manual (SN 582101-UP) – PDF DOWNLOAD

Language : English
Pages : 422
Downloadable : Yes
File Type : PDF

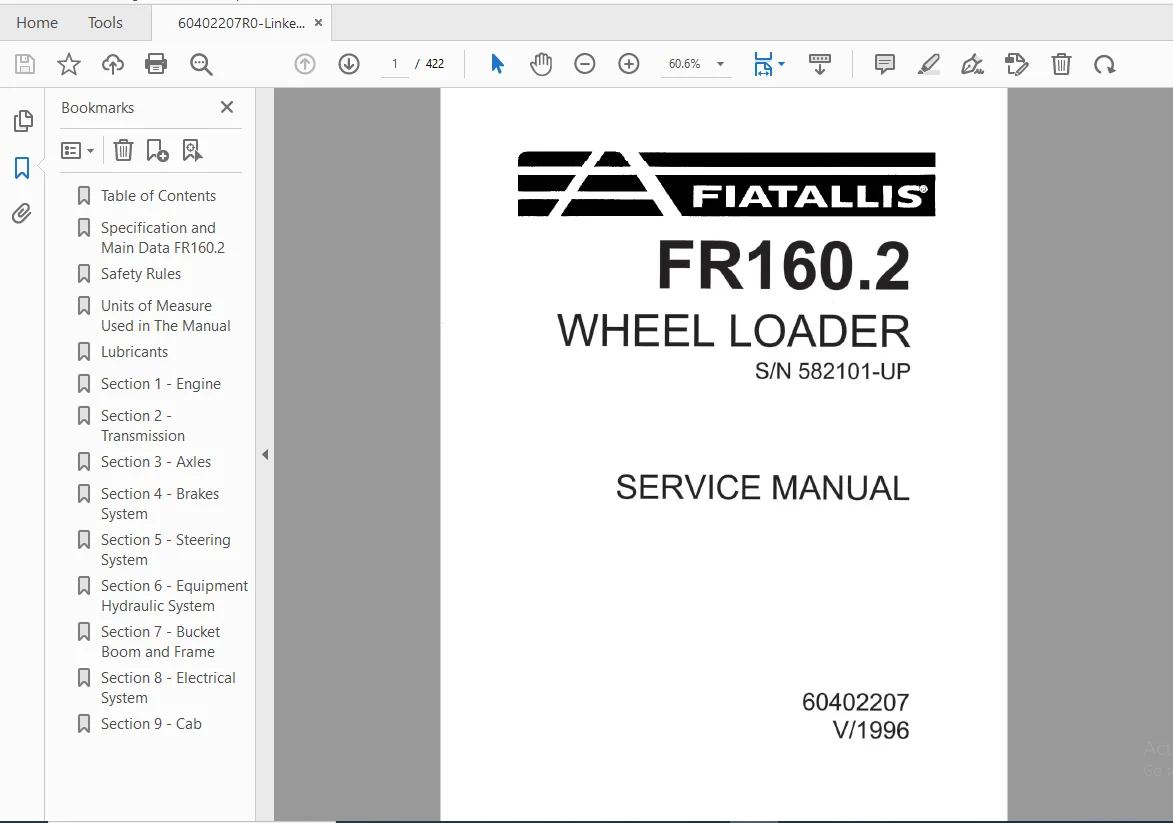

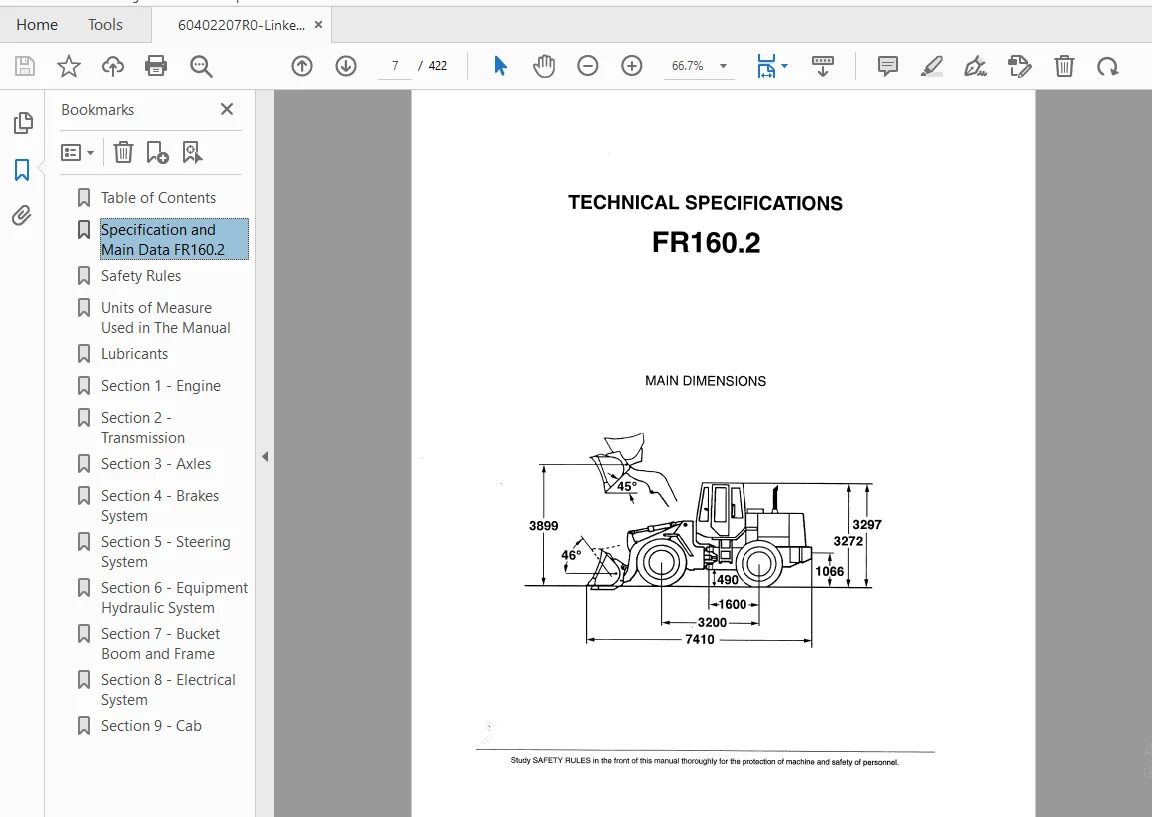

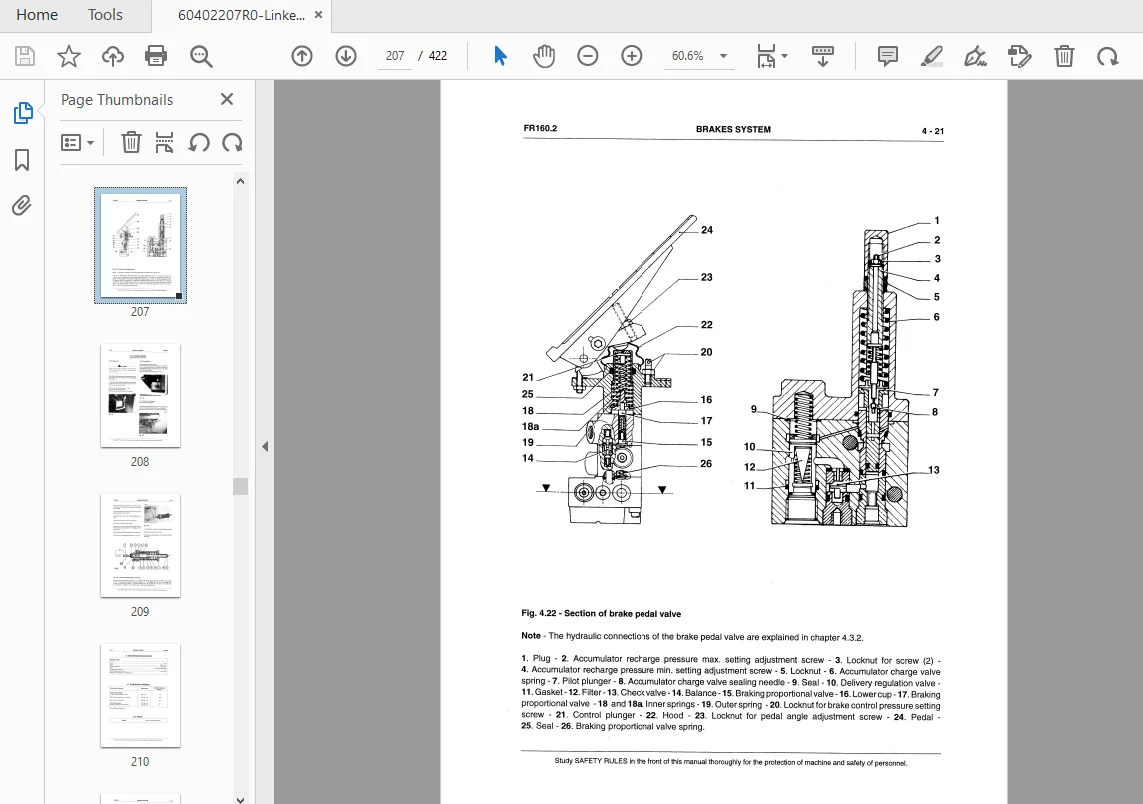

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Fiatallis FR160.2 Wheel Loader Service Manual (SN 582101-UP) – PDF DOWNLOAD

GENERALITIES

• Study this Manual before starting, operating, maintaining, fuelling or servicing the machine.
• Read and heed all safety rules before any intervention.
• Do not allow unauthorised personnel to operate service or maintain this machine.
• Do not wear rings, wrist watches, jewellery, loose or hanging apparels, such as ties, torn clothing, scarves, unbuttoned or unzipped jackets that can catch on moving parts.
• Wear proper safety equipment as recommended for the job. Examples: hard hat, heavy gloves, ear protection,
  safety glasses or goggles, reflector vests, respirator. Consult your employer for specific safety equipment requirements.
• Keep operator’s compartment, stepping points, grab-rails and handles clear of foreign objects, oil, grease, mud or snow accumulation to minimize the danger of slipping or stumbling. Clean mud or grease from shoes before attempting
  to mount or operate the machine.
• Do not jump on or off the machine. Keep two hands and one foot, or two feet and one hand in contact with step grab rails and handles at all times.
• Do not use controls or hoses as hand holds when climbing on or off machine. Hoses and controls are movable and do not provide a solid support. Controls also may be inadvertently moved causing accidental machine or equipment movement.
• Never attempt to operate the machine or its tools from any position other than seated in the operator’s seat.
• Keep head, body, limbs, hands and feet inside operator’s compartment at all times to reduce exposure to hazards outside the operator’s compartment.
• Be careful of slippery conditions on stepping points, hand rails, and on the ground. Wear safety boots or shoes that have a high slip resistant sole material.
• Do not leave the machine until it is completely stopped. Check the seat safety belt at least twice a year. If there are
• signs of wear or fraying or other signs of weakness that could lead to failure, replace it.

TABLE OF CONTENTS:

Fiatallis FR160.2 Wheel Loader Service Manual (SN 582101-UP) – PDF DOWNLOAD

Table of Contents ..........................  5
Specification and Main Data FR160.2  .......  7
Safety Rules ............................... 11
Units of Measure Used in The Manual  ....... 18
Lubricants   ............................... 21
Section 1 - Engine ......................... 23
Section 2 - Transmission ................... 59
Section 3 - Axles ..........................127
Section 4 - Brakes System ..................185
Section 5 - Steering System ................213
Section 6 - Equipment Hydraulic System  ....239
Section 7 - Bucket Boom and Frame ..........297
Section 8 - Electrical System ..............323
Section 9 - Cab ............................411
