Fiatallis FR220.2 Wheel Loader Service Manual (604.02.209) – PDF DOWNLOAD

Description

Fiatallis FR220.2 Wheel Loader Service Manual (604.02.209) – PDF DOWNLOAD

FILE DETAILS:

Fiatallis FR220.2 Wheel Loader Service Manual (604.02.209) – PDF DOWNLOAD

Language : English
Pages : 458
Downloadable : Yes
File Type : PDF

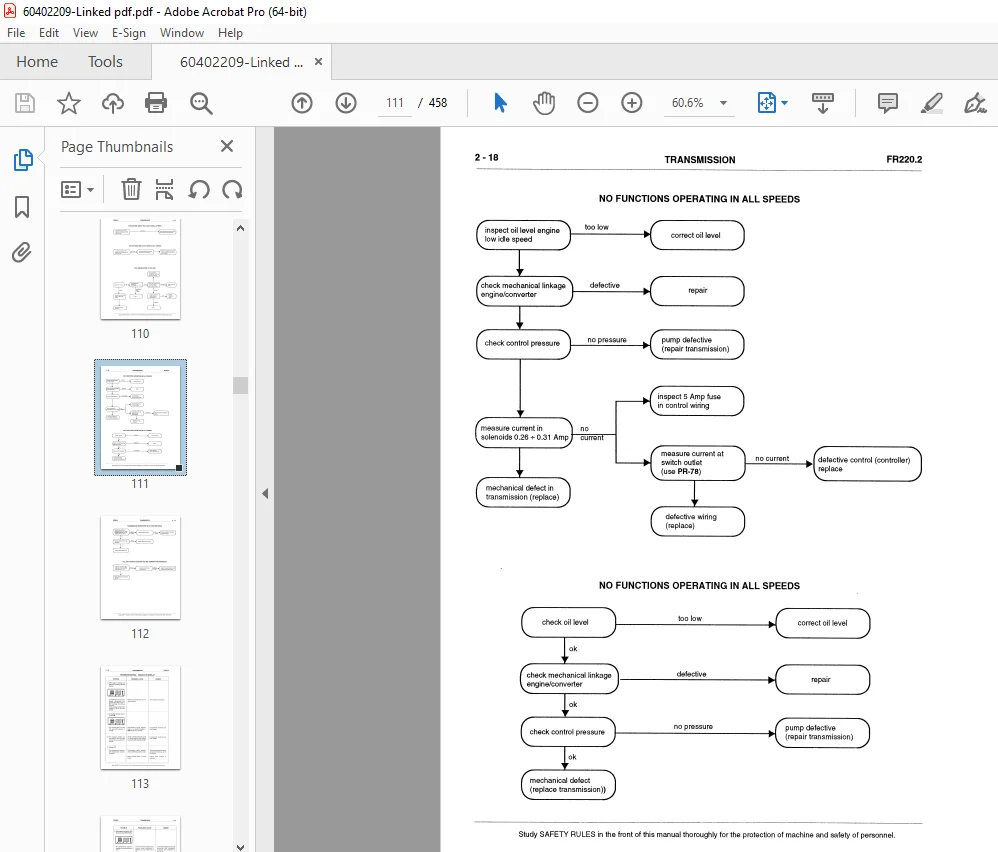

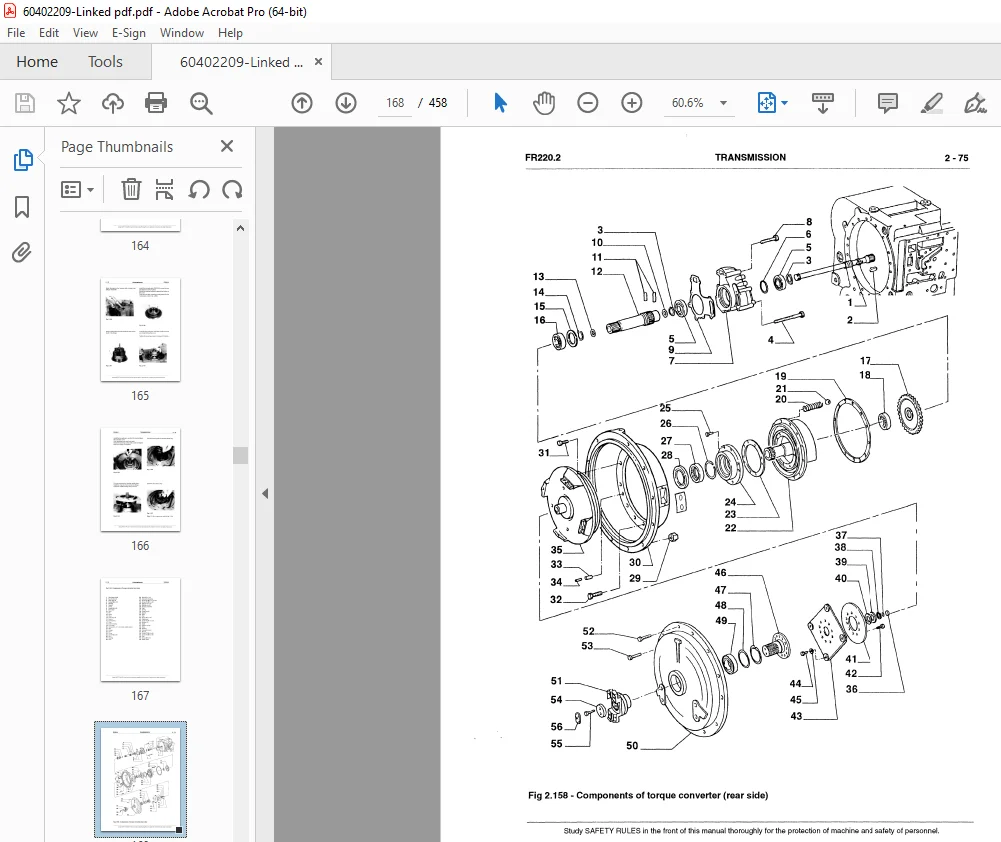

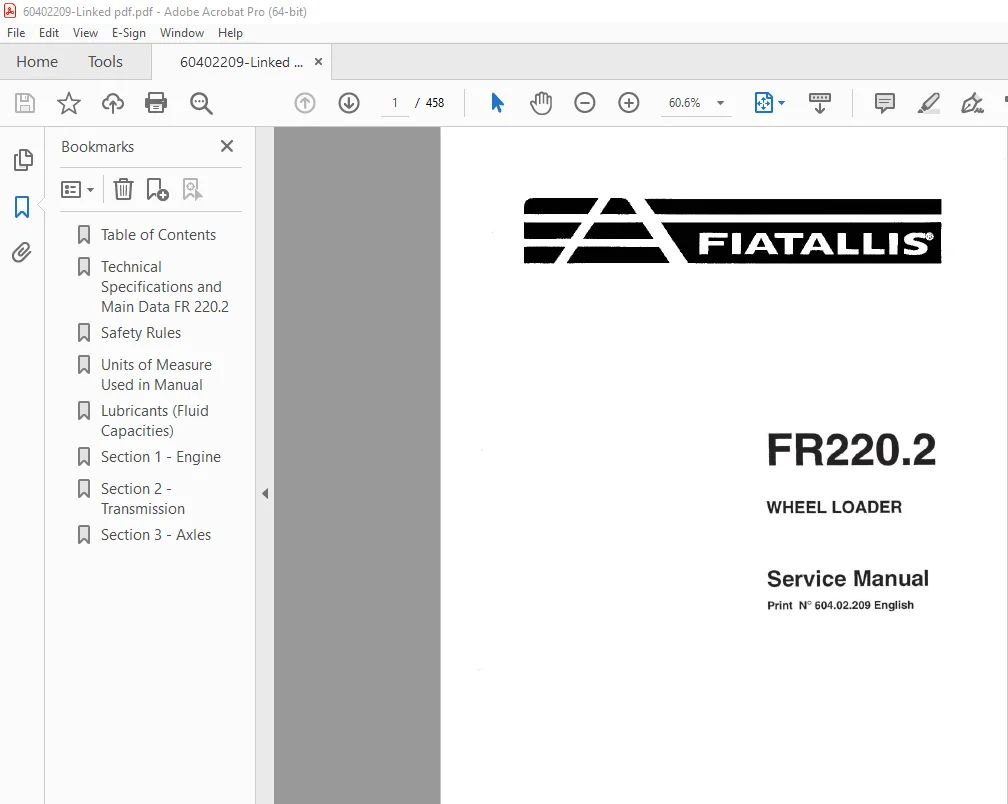

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Fiatallis FR220.2 Wheel Loader Service Manual (604.02.209) – PDF DOWNLOAD

• The engine is a direct injection, turbo-charged type, and is made of the following main elements.
• Cast iron cylinder block, with seven crankshaft and con-rod journals, induction hardened, equipped with vibration damper.
• Crankshaft and con-rod bearings, including two thin shell half-bearings lined with anti-friction material, four thrust washers located on the central crankshaft journal.
• Aluminium alloy ellipsoid pistons, a high turbulence combustion chamber is obtained on the piston crown. The pistons are equipped with three elastic rings: the first, trapezoidal shaped compression, the second rectangular shaped compression, the third an oil scraper.
• Con-rods, drop-forged, equipped with bosses to be machined to obtain the balancing and weight equalisation.
• Timing, with overhead valves, driven through the camshaft by tappets, rods and rocker arms.
• The camshaft is mounted on the side of the cylinder block and is driven by gears connected to the crankshaft.
• Forced circulation lubrication, obtained by a gear pump, driven by the crankshaft through gears.
• A heat exchanger and two cartridge filters, a breather regulator, mounted on the rear rocker arm cover are installed on the lubrication system.
• The oil pressure regulation and safety valves are mounted on the oil filters support. Forced circulation cooling, obtained by a centrifugal pump, driven by the crankshaft, through gears. The water circulation is controlled by two thermostats.
• The cooling of the fluid is obtained by a vertical radiator and air flow, generated by a fan. Anti corrosion water filter.

TABLE OF CONTENTS:

Fiatallis FR220.2 Wheel Loader Service Manual (604.02.209) – PDF DOWNLOAD

Table of Contents ..................................  5
Technical Specifications and Main Data FR 220.2 ....  6
Safety Rules .......................................  9
Units of Measure Used in Manual    ................. 16
Lubricants (Fluid Capacities)   .................... 19
Section 1 - Engine ................................. 21
Section 2 - Transmission ........................... 95
Section 3 - Axles ..................................174
Section 4 - Brakes .................................222
Section 5 - Steering System ........................251
Section 6 - Equipment Hydraulic System .............276
Section 7 - Bucket and Frame  ......................334
Section 8 - Electrical System ......................356
Section 9 - Cab ....................................446
