Fiatallis FR220 Wheel Loader Service Manual – PDF DOWNLOAD

Description

Fiatallis FR220 Wheel Loader Service Manual – PDF DOWNLOAD

FILE DETAILS:

Fiatallis FR220 Wheel Loader Service Manual – PDF DOWNLOAD

Language : English
Pages : 437
Downloadable : Yes
File Type : PDF

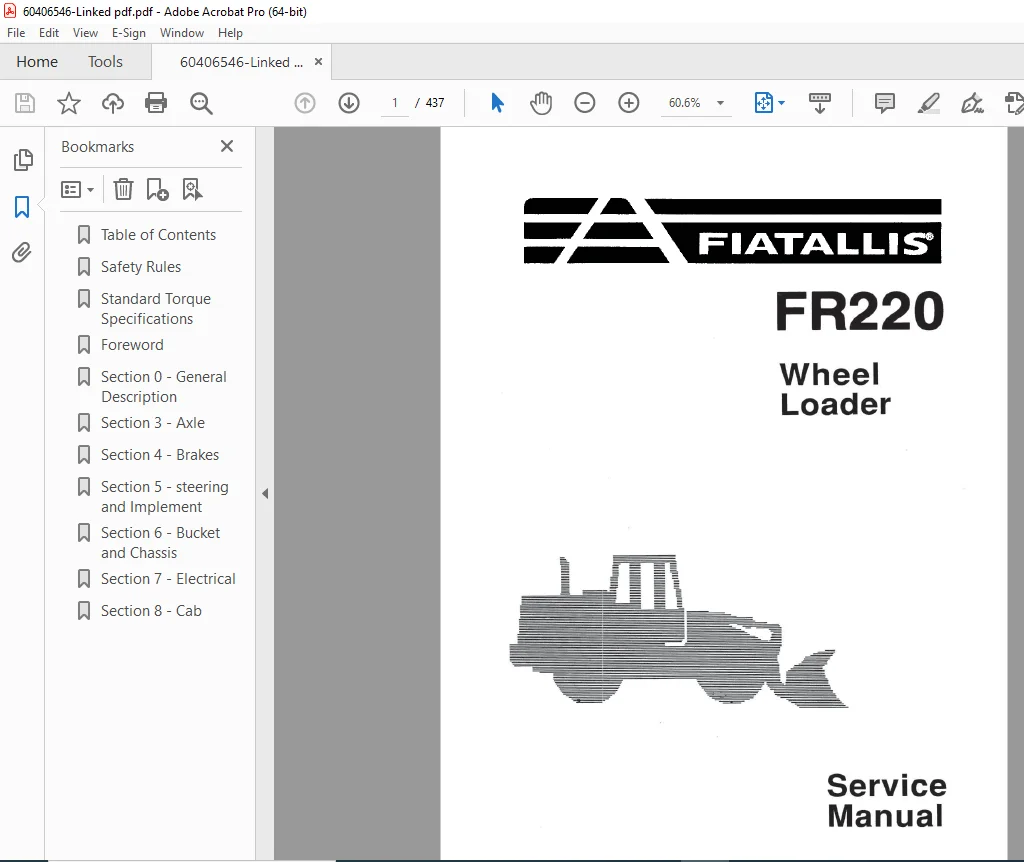

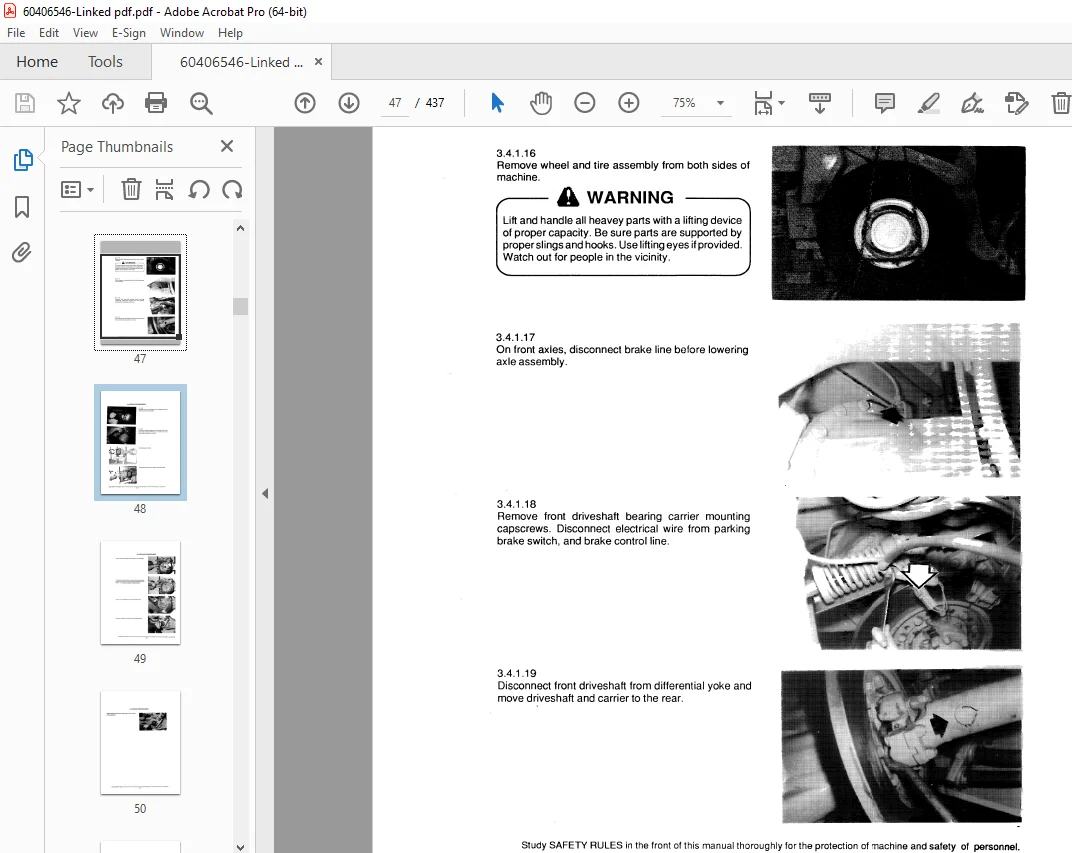

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Fiatallis FR220 Wheel Loader Service Manual – PDF DOWNLOAD

GENERAL

• Study the Operation and Maintenance Instruction Manual before starting, operating, maintaining, fueling, or servicing machine.
• Read and heed all machine-mounted safety signs before starting, operating, maintaining, fueling or servicing machine.
• Machine-mounted safety signs have been color coded yellow with black border and lettering for WARNING and red with white border and lettering for DANGER points.
• Never attempt to operate the machine or its tools from any position other than seated in the operator’s seat. Keep head, body, limbs, hands and feet inside operator’s compartment at all times to reduce exposure to hazards outside the operator’s compartment.
• Do not allow unauthorized personnel to operate service or maintain this machine.
• Always check work area for dangerous features. The following are examples of dangerous work areas: slopes, over hangs, timber, demolitions, fire, high walls, drop off, back fills, rough terrain, ditches, ridges, excavations, heavy traffic, crowded parking, crowded maintenance and closed areas. Use extreme care when in areas such as these.
• An operator must know the machine’s capabilities. When working on slopes or near drop offs be alert to avoid loose or soft conditions that could cause sudden tipping or loss of control.
• Do not jump on or off machine. Keep two hands and one foot, or two feet and one hand, in contact with steps grab rails and handles at all times.
• Do not use controls or hoses as hand holds when climbing on or off machine. Hoses and controls are movable and do not provide a solid support. Controls also may be inadvertently moved causing accidental machine or equipment movement.
• Keep operator’s compartment, stepping points, grab-rails and handles clear of foreign objects, oil, grease, mud or snow accumulation to minimize the danger of slipping or stumbling.
  Clean mud or grease from shoes before attempting to mount or operate the machine.
• Be careful of slippery conditions on stepping points, hand rails, and on the ground. Wear safety boots or shoes that have a high slip resistant sole material.

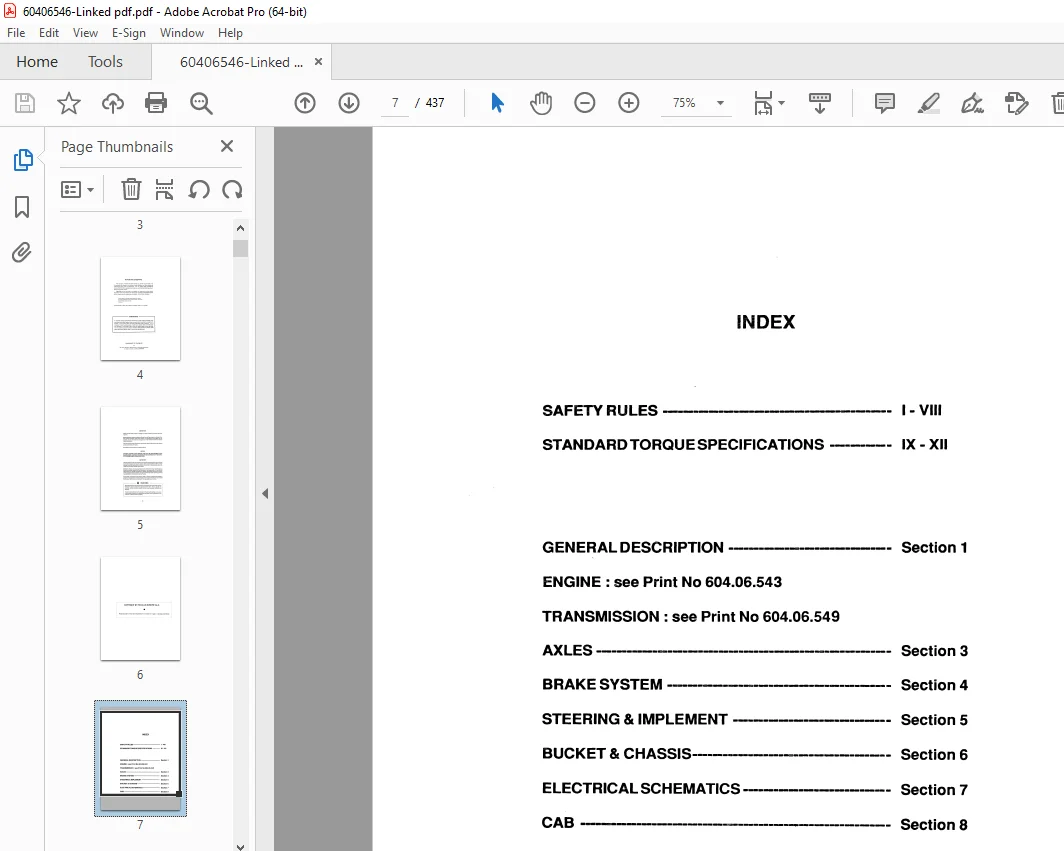

TABLE OF CONTENTS:

Fiatallis FR220 Wheel Loader Service Manual – PDF DOWNLOAD

Table of Contents .....................  7
Safety Rules ..........................  9
Standard Torque Specifications ........ 16
Foreword .............................. 22
Section 0 - General Description ....... 25
Section 3 - Axle ...................... 35
Section 4 - Brakes ....................119
Section 5 - steering and Implement ....175
Section 6 - Bucket and Chassis ........295
Section 7 - Electrical ................323
Section 8 - Cab .......................402
