Fiatallis FT110 Backhoe Loader Service Manual 75128707 – PDF DOWNLOAD

Description

Fiatallis FT110 Backhoe Loader Service Manual 75128707 – PDF DOWNLOAD

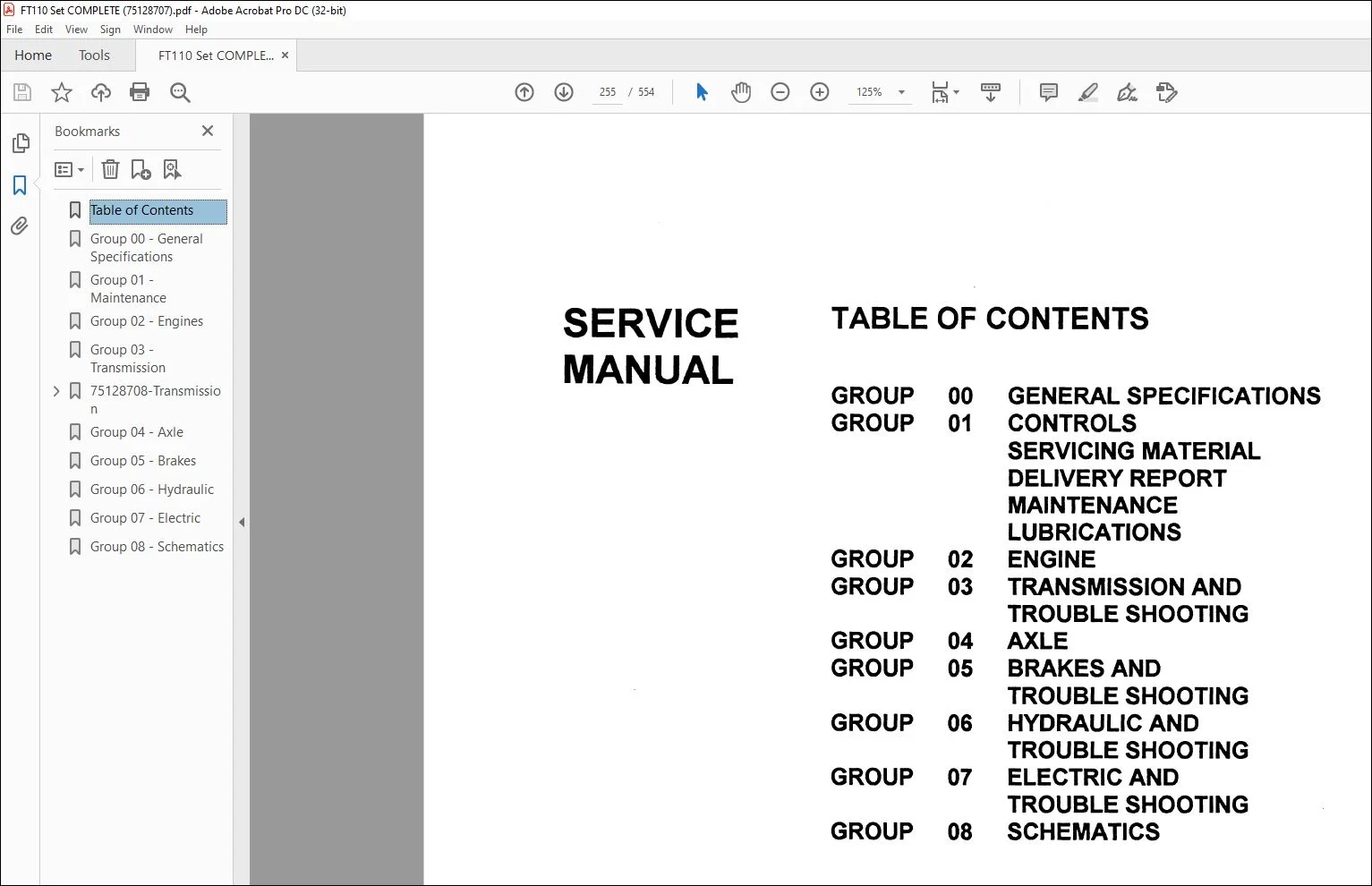

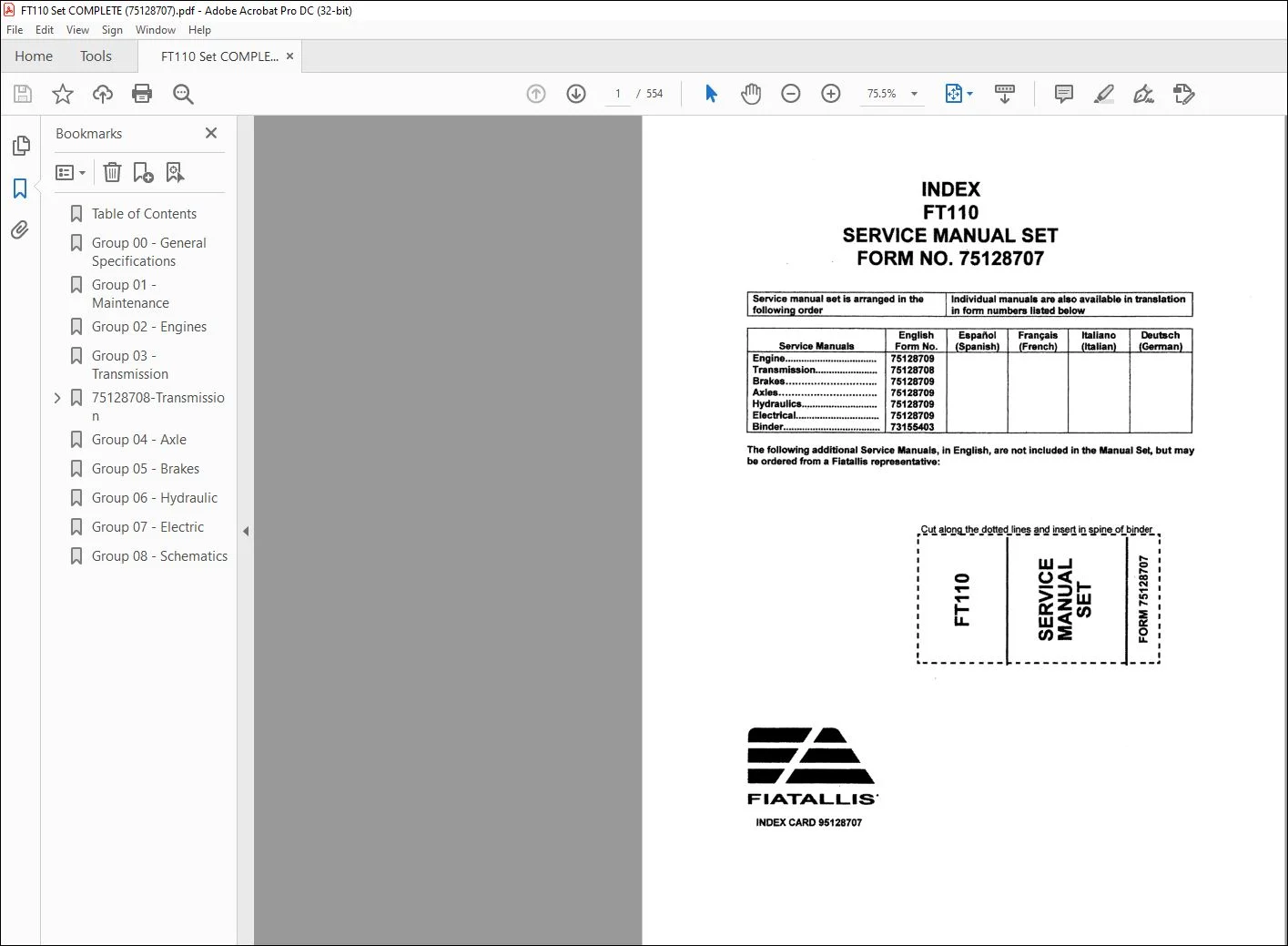

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Fiatallis FT110 Backhoe Loader Service Manual 75128707 – PDF DOWNLOAD

GENERAL INFORMATION:
MACHINE OVERVIEW:

The Fiatallis n 110 backhoe loader is powered by a turbocharged four-cylinder diesel engine with full powershift transmission and a single-stage, single-phase torque converter. Three hydraulic gear pumps supply oil to the loader, backhoe, stabilizers, joystick controls, hydrostatic power steering and braking system.

• Braking action is activated by the foot brake pedal. Oil-bath, self-adjusting brake discs on the four wheels are controlled by two independent brake systems which ensure emergency braking, should one circuit fail.
• The load bearing frame has been designed to support the high torsional and bending stresses encountered during severe working conditions. It consists of two box-type structures, connected in the center by a cross member and at the rear by the frame of the backhoe.

OPERATOR’S AREA:

The operator’s area is accessible from either side of the machine. Operator visibility (with cab) is enhanced by the expansive cab windows. Excellent visibility is ensured by large glazed surfaces and by the front and rear windshield washer/wipers. The wide and comfortable operator’s area is equipped with two independent servo-hydraulic single-lever joysticks.

• The dashboard includes a wide range of controls identified by symbols that comply with international standards. The adjustable seat provides for operator comfort and improves operator and machine efficiency. – A wide range of accessories and options are available.
• Standard interior cab equipmem includes heater and defroster, tinted cab glass, sun visors, interior cab light, and rearview mirror. Internally, the cab roof and floor are equipped with sounct deadening material to further reduce noise and increase operator comfort.
