Fiatallis FX220LC Crawler Excavator Operation & Maintenance Manual 59822020 – PDF DOWNLOAD

Description

Fiatallis FX220LC Crawler Excavator Operation & Maintenance Manual 59822020 – PDF DOWNLOAD

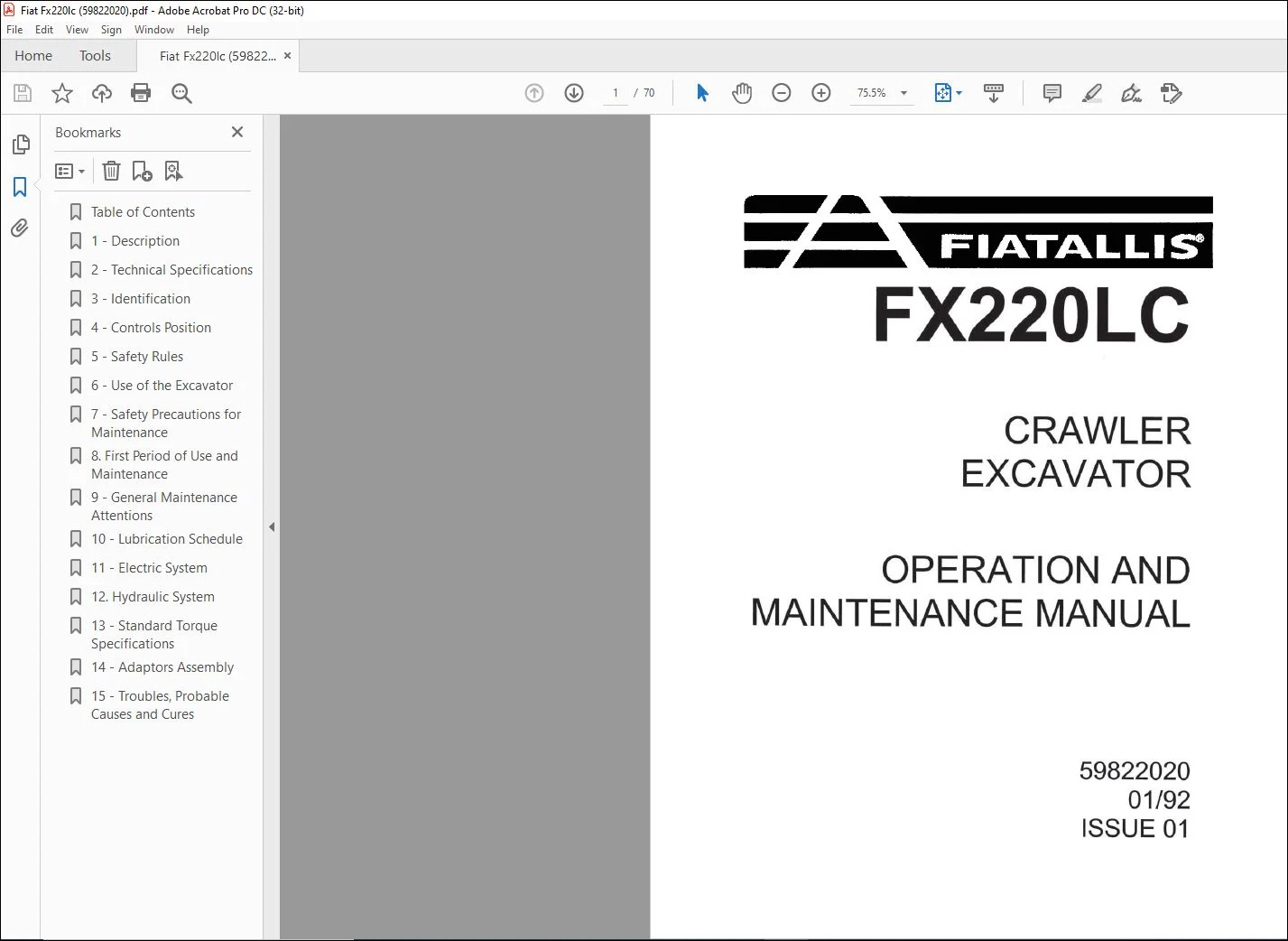

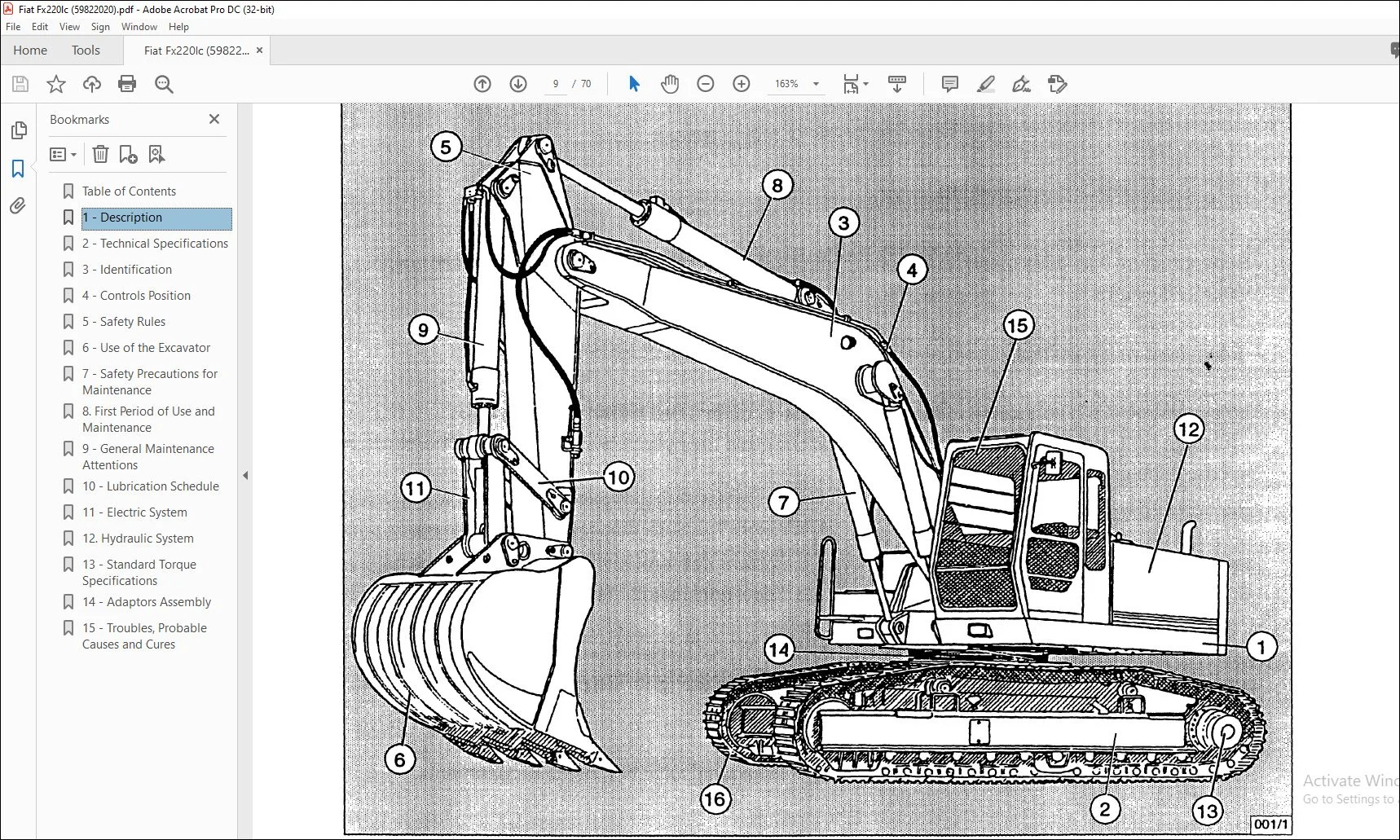

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Fiatallis FX220LC Crawler Excavator Operation & Maintenance Manual 59822020 – PDF DOWNLOAD

INTRODUCTION:

In this file you will find most valuable information concerning operation, lubrication, and maintenance of your
FIAT HITACHI excavator.
Observe the instructions in this manual for:
– your personal safety
– operating safety
– ready and efficient performance of your excavator.
Periodic preventive inspections and maintenace are the surest means of keeping the machine in proper
working order.
Prompt detection and correction of minor irregularities, and immediate replacement of worn o”u t or broken
parts will prevent failures and avoid expenses. Replace damaged graphics.
Observe safety precautions to prevent injury and damage.

Fire- prevention
Important
In order to prevent risks of possible fire break out observe the following items:
1) Keep the excavator clean, especially from inflammable materials. Clean the excavator after servicing the
hydraulic system, engine and fuel system by means of a steam jet.
2) Clean engine compartment, hydraulic pump department and service platform of the superstructure.
Thereafter check fuel lines, engine oil lines and hydraulic oil lines for leakage, loose fastenings and
damage.
If any leakage, damage, or loose fastening is found, corrective action must be taken immediately.
3) Check all electrical cables terminals and connections for loose fastenings, damage and \'(ear. Replace
or repair defective or worn parts without delay.
4) Check the turbocharger for correct mounting and tight exhaust, intake and lube oil connections. Carry
out all necessary repairs without delay.
5) On machines equipped with a fire detection and suppression system refer to the following:
– for correct.maintenance and inspection refer to the manufacturers Service Manual
– when cleaning the power compartment take care the heat detection sensors do not come in contact with
hot steam or other hot agent. Otherwise the fire suppression system may be triggered.
6) Make sure fire extinguishers are charged and ready for use.
7) On delivery the excavator is not equipped with a fire suppression system, or estinguishers. Provide
for installation of such devices.

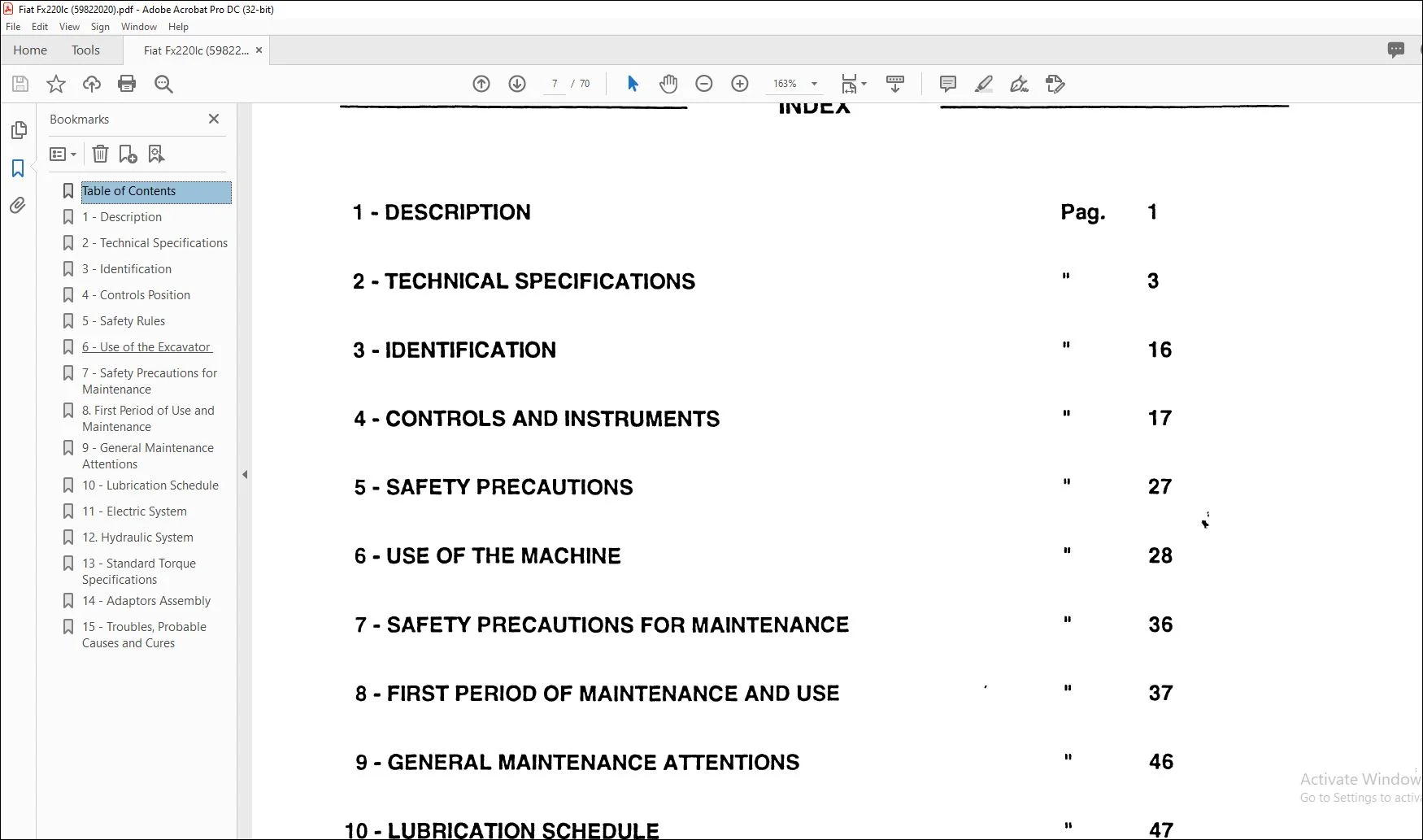

TABLE OF CONTENTS:

Fiatallis FX220LC Crawler Excavator Operation & Maintenance Manual 59822020 – PDF DOWNLOAD

1 – DESCRIPTION Pag. 1
2 – TECHNICAL SPECIFICATIONS 3
3 – IDENTIFICATION 16
4 – CONTROLS AND INSTRUMENTS 17
5 – SAFETY PRECAUTIONS 27
6 – USE OF THE MACHINE 28
7 – SAFETY PRECAUTIONS FOR MAINTENANCE 36
8 – FIRST PERIOD OF MAINTENANCE AND USE 37
9 – GENERAL MAINTENANCE ATTENTIONS 46
10- LUBRICATION SCHEDULE 47
11 – ELECTRICAL SYSTEM 49
12 – HYDRAULIC SYSTEM 51
13 – STANDARD TORQUE SPECIFICATIONS II 53
14 – ADAPTORS ASSEMBLY 57
15 -TROUBLES: PROBABLE CAUSES AND CURES 59
