FiatAllis FX310 Hydraulic Excavator Service Manual 60406759 – PDF DOWNLOAD

Description

FiatAllis FX310 Hydraulic Excavator Service Manual 60406759 – PDF DOWNLOAD

FILE DETAILS:

FiatAllis FX310 Hydraulic Excavator Service Manual 60406759 – PDF DOWNLOAD

Language : English
Pages : 765
Downloadable : Yes
File Type : PDF

DESCRIPTION:

FiatAllis FX310 Hydraulic Excavator Service Manual 60406759 – PDF DOWNLOAD

GENERAL:

Study the Operation and Maintenance lnstruction Manual before starting, operating, maintaining, fueling, or servicing machine.

• Read and heed ali machine-mounted safety signs before starting, operating, maintaining, fueling or servicing machine.
• Machine-mounted safety signs have been color coded yellow with black border and lettering for WARNING and red with white border and lettering for DANGER points.
• Never attempt to operate the machine or its tools from any position other than seated in the operator’s seat.
• Keep head, body, limbs, hands and feet inside operator’s compartment at all times to reduce exposure io hazards outside the operator’s compartment.
• Do not allow unauthorized personnel to operate service or maintain this machine. Always check work area for dangerous features.
• The following are examples of dangerous work areas: slopes, over hangs, timber, demolitions, fire, high walls, drop off, back fills, rough terrain, ditches, ridges, excavations, heavy traffic, crowded parking, crowded maintenance and closed areas. Use extreme care when in areas s_uch as these.
• An operator must know the machine’s capabilities. When working on slopes or near drop offs be alert to avoid loose or soit conditions that could cause sudden tipping or loss of control.
• Do not jump on or off machine. Keep two hands and one foot, or two teet and one hand, in contact with steps grab rails and handles at ali times.
• Do not use controls or hoses as hand holds when climbing on or off machine. Hoses and controls are movable and do not provide a solid support. Controls also may be inadvertently moved causing accidental machine or equipment movement.
• Keep operator’s compartment stepping points, grab-rails and handles clear of foreign objects, oil, grease, mud or snow accumulation to minirhize the danger of slipping or stumbling. Clean mud or grease from.shoes before attempting to mount or operate the machine.
• Be careful of slippery conditions on steppi’ng points, hand rails, and on the ground. Wearsafety boots or shoes thai have a high slip resistant sole material.
• For your personal protection. Do not attempt to climb on oroff machine while machine is in motion.
• Never leave the machine unattended with the engine running.
• Always lock up machine when leaving it unattended. Return keys to authorized security. Heed ali shut down procedures of the Operation and Maintenance lnstruction Manual.

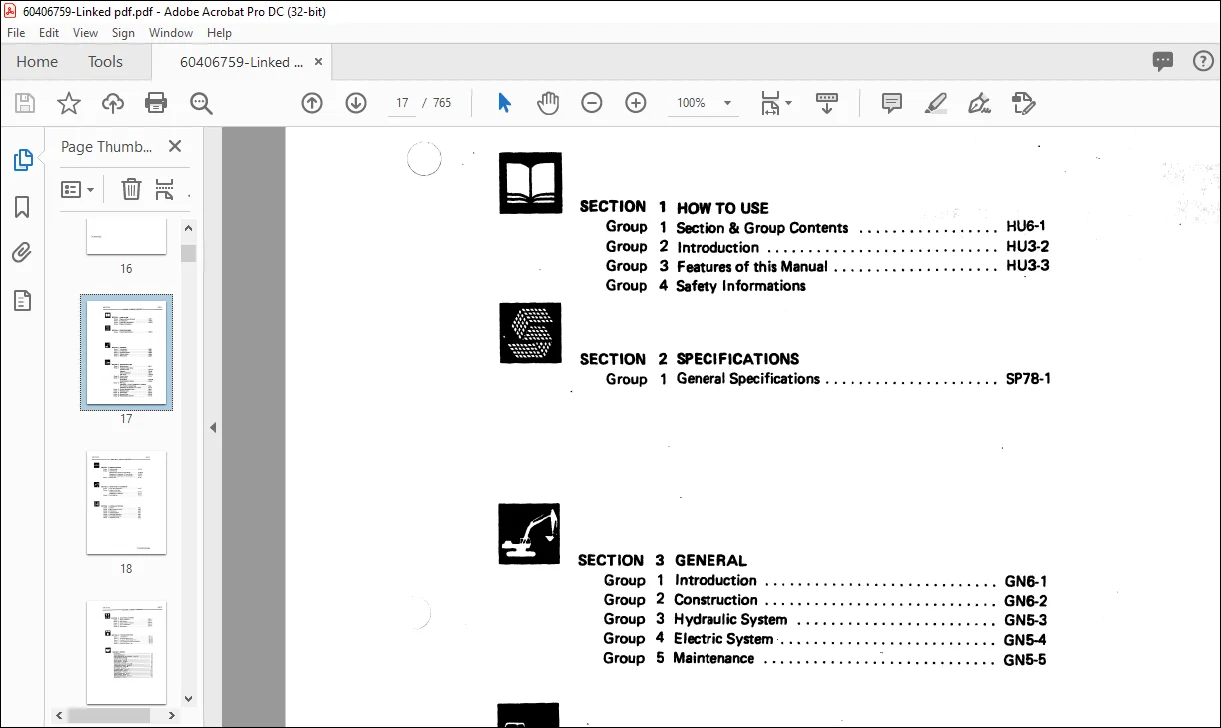

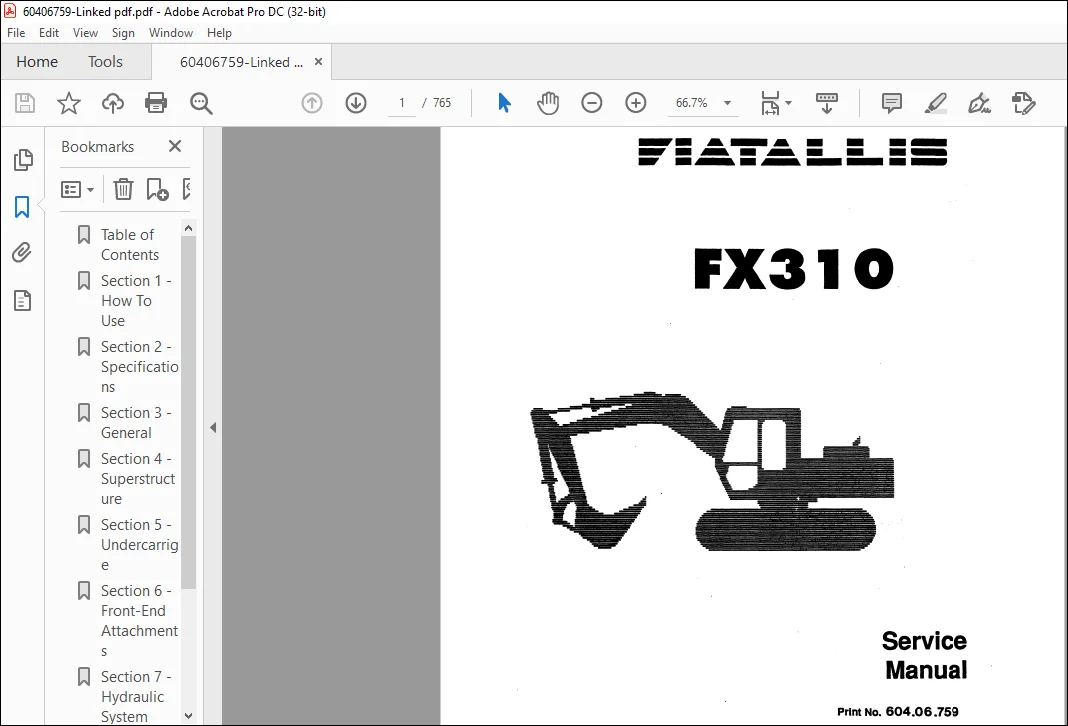

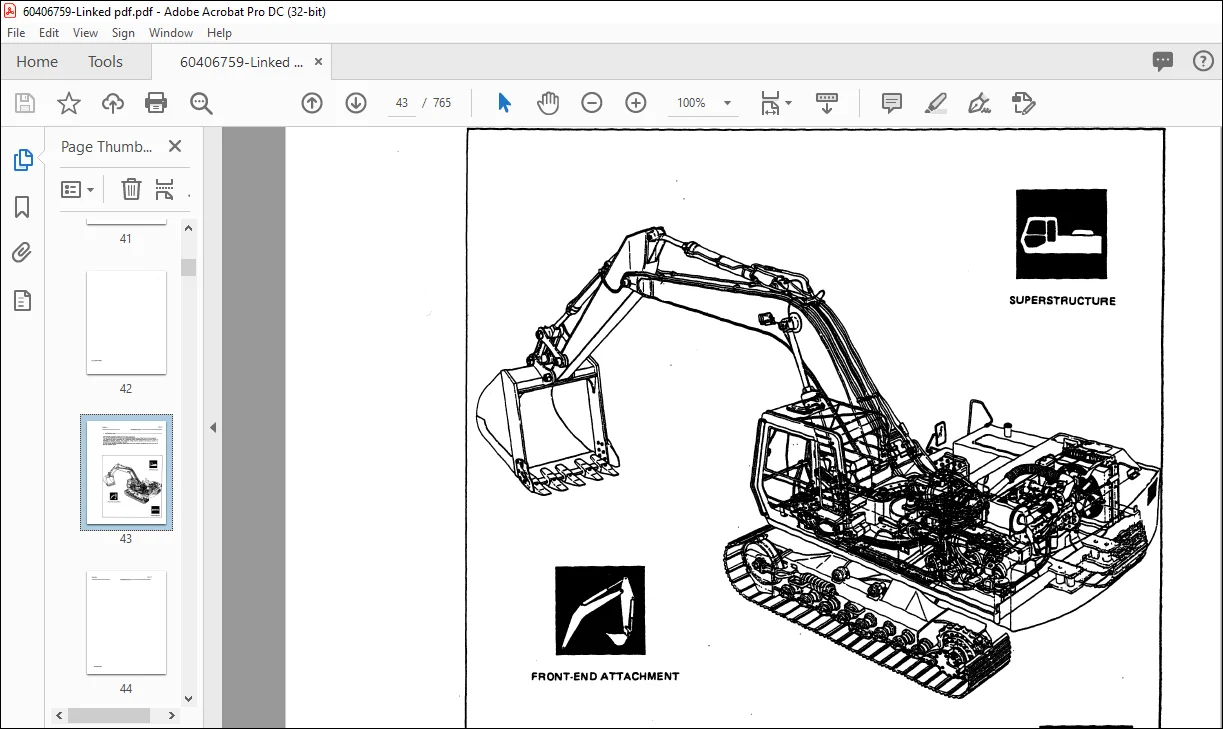

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

FiatAllis FX310 Hydraulic Excavator Service Manual 60406759 – PDF DOWNLOAD

Table of Contents
.................... 13
Section 1 - How To Use
............... 15
Section 2 - Specifications
........... 29
Section 3 - General
.................. 41
Section 4 - Superstructure
........... 75
Section 5 - Undercarrige
.............403
Section 6 - Front-End Attachments
....513
Section 7 - Hydraulic System
 ........553
Section 9 - Electrical System
 .......611
Section 10 - Troubleshooting
.........659

Questions? Email us: [email protected]

https://vimeo.com/846966465?share=copy

PLEASE NOTE:

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]

S.V
