Fiatallis HD-6 HD-11 Crawler Tractors Steering Clutches & Brakes Service Manual – PDF

Description

Fiatallis HD-6 HD-11 Crawler Tractors Steering Clutches & Brakes Service Manual – PDF DOWNLOAD

FILE DETAILS:

Fiatallis HD-6 HD-11 Crawler Tractors Steering Clutches & Brakes Service Manual – PDF DOWNLOAD

FN 70650433

Language : English
Pages : 80
Downloadable : Yes
File Type : PDF

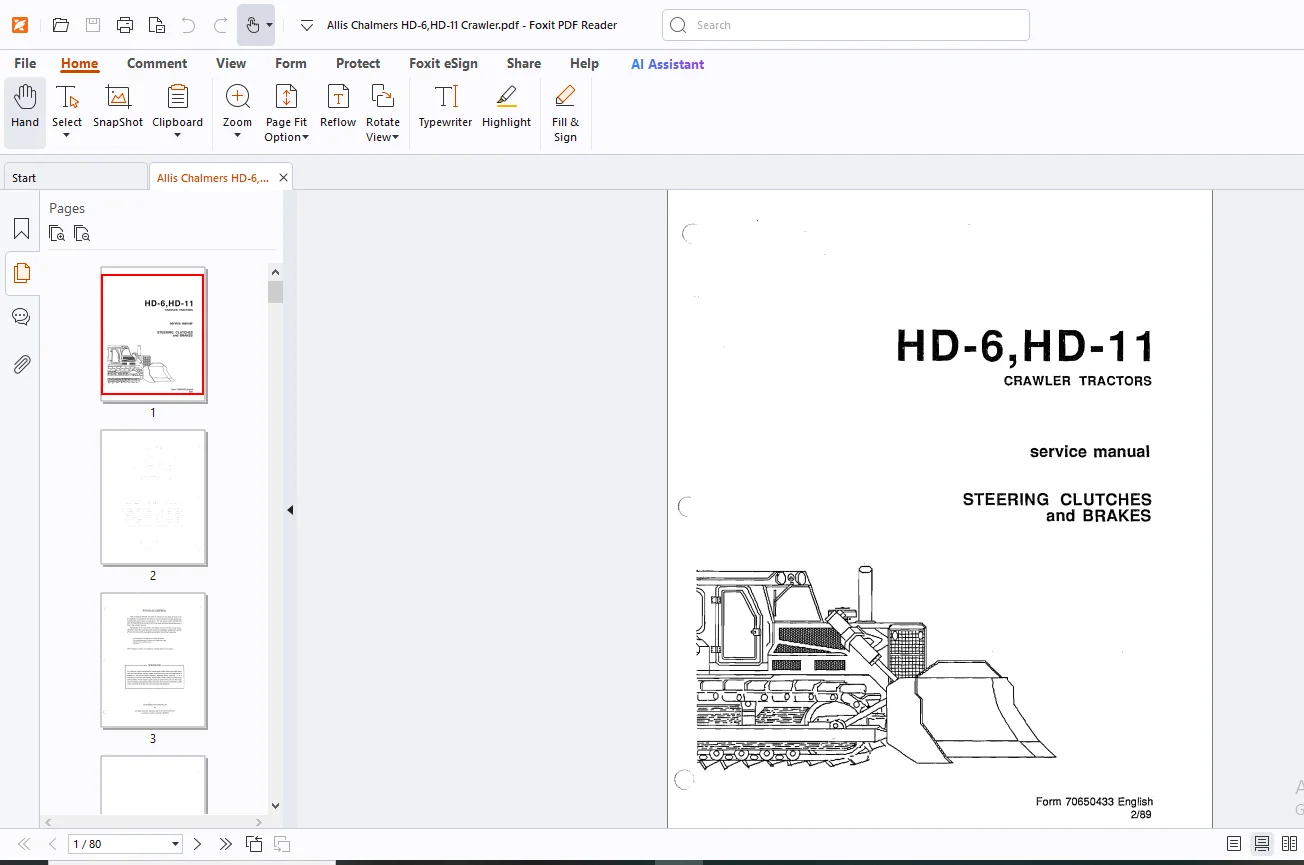

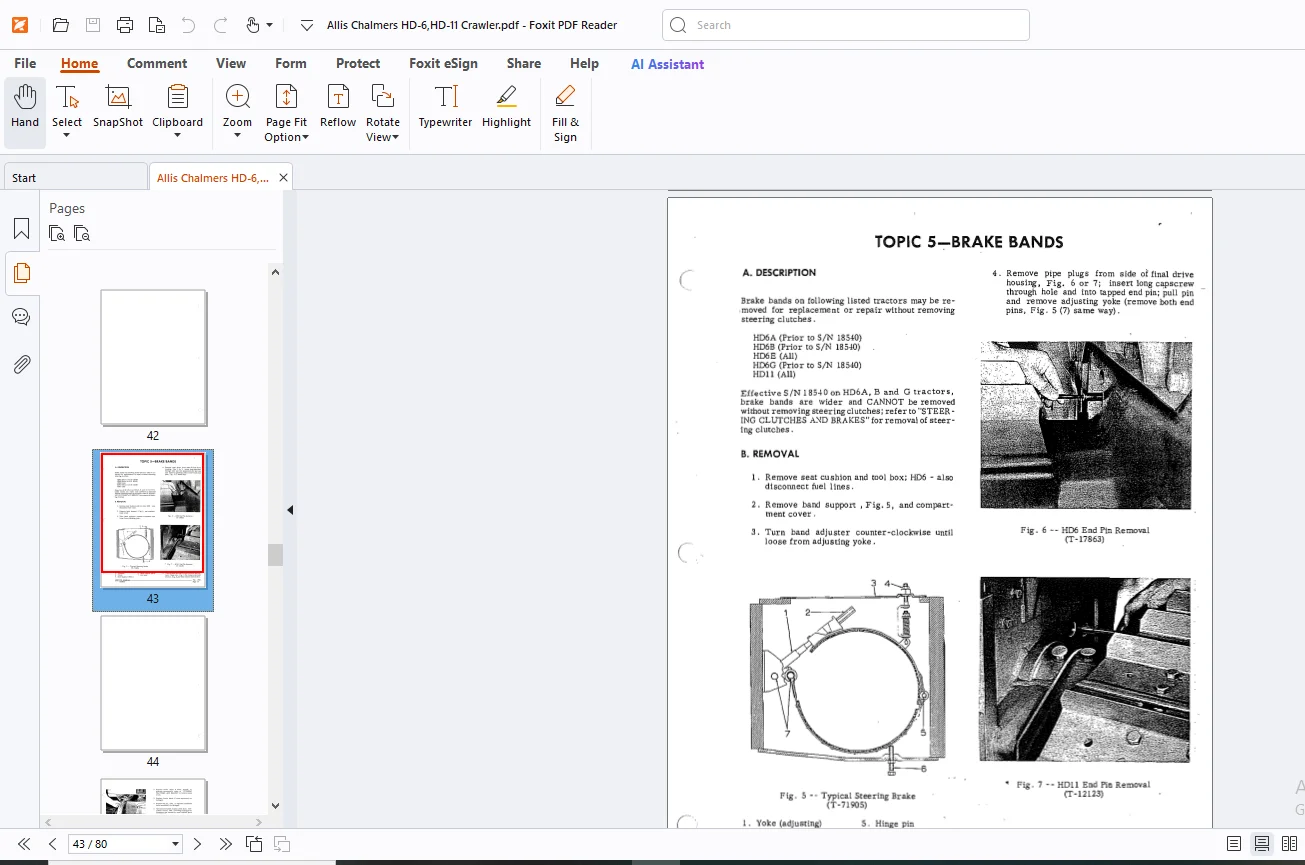

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Fiatallis HD-6 HD-11 Crawler Tractors Steering Clutches & Brakes Service Manual – PDF DOWNLOAD

FN 70650433

• 1. GENERAL DESCRIPTION – Page 7
• 2. TROUBLE SHOOTING – Page 10
• 3. STEERING HYDRAULIC SYSTEM – Page 12
  • A. Description – Page 12
  • B. Lubricant Specifications, Capacity, & Service – Page 13
  • C. Steering Control Valve – Page 13
  • D. Steering Pump – Page 13
  • E. Adjustments – Page 14
• 6. WASHING STEERING CLUTCHES AND BRAKES – Page 15
• 7. BRAKE BANDS – Page 15
  • A. Description – Page 15
  • B. Removal – Page 16
  • C. Inspection – Page 16
  • D. Installation – Page 16
• 8.
  STEERING CLUTCHES AND BRAKES – Page 17
  • A. Description – Page 17
  • B. Removal – Page 17
  • C. Disassembly – Page 17
  • D. Inspection – Page 17
  • E. Assembly – Page 17
  • F. Installation – Page 17
• 9.
  STEERING CLUTCH THROWOUT ASSEMBLIES – Page 20
  • A. Description – Page 20
  • B. Removal and Disassembly – Page 21
• 10. STEERING AND BRAKE LINKAGE ADJUSTMENTS – Page 23
  • C. Inspection – Page 23
  • D. Assembly and Installation – Page 24
• 11. FITS AND TOLERANCES – Page 24
• 12. SERVICE TOOLS – Page 24
• 13. CONVERSION TABLES – Page 24

DESCRIPTION:

Fiatallis HD-6 HD-11 Crawler Tractors Steering Clutches & Brakes Service Manual – PDF DOWNLOAD

FN 70650433

GENERAL:

• Study the Operation and Maintenance Instruction Manual be- fore starting, operating, maintaining, fueling, or servicing machine.
• Read and heed all machine-mounted safety signs before starting, operating, maintaining, fueling or servicing machine.
• Machine-mounted safety signs have been color coded yellow with black border and lettering for WARNING and red with while border and lettering for DANGER points. Never attempt to operate the machine or its tools from any position other than seated in the operator’s seat. Keep head, body, limbs, hands and feet inside operator’s compartment at all times to reduce exposure to hazards outside the operator’s compartment.
• Do not allow unauthorized personnel to operate service or maintain this machine. Always check work area for dangerous features. The following are examples of dangerous work areas: slopes, over hangs, timber, demolitions, fine, high walls, drop off, back fills, rough terrain, ditches, ridges, excavations, heavy traffic, crowded parking, crowded maintenance and closed areas.
• Use extreme care when in areas such as these. An operator must know the machine’s capabilies. When working on slopes or near drop offs be alert to avoid loose or soft conditions that could cause sudden tipping or loss of control.
• Do not jump on or off machine. Keep two hands and one foot, or two feet and one hand, in contact with steps grab rails and handles at all times. Do not use controls or hoses as hand holds when climbing on or off machine. Hoses and controls are movable and do not provide a solid support.
• Controls also may be inadvertently moved causing accidental machine or equipment movement. Keep operator’s compartment, stepping points, grab-ralls and handles clear of foreign objects, oil, grease, mudor snow accumulation to minimize the danger of slipping or stumbling.
• Clean mud or grease from shoes before attempting to m o mount or operate the machine. Be careful of slippery conditions on stepping points, hand rails, and on the ground. Wear safety boots or shoes that have a high sip resistant sole material. For your personal protection. Do not attempt to climb on or off machine while machine is in motion.
• Never leave the machine unattended with the engine running. Always lock up machine when leaving it unattended. Return keys to authorized security. Heed all shut down procedures of The Operation and Maintenance Instruction Manual. Always set the parking brake when leaving the machine for any reason,
