Fiatallis M100 100-B 100-C 150-C 200-C Tandems & Rear Axle Service Manual 70641623 – PDF DOWNLOAD

Description

Fiatallis M100 100-B 100-C 150-C 200-C Tandems & Rear Axle Service Manual 70641623 – PDF DOWNLOAD

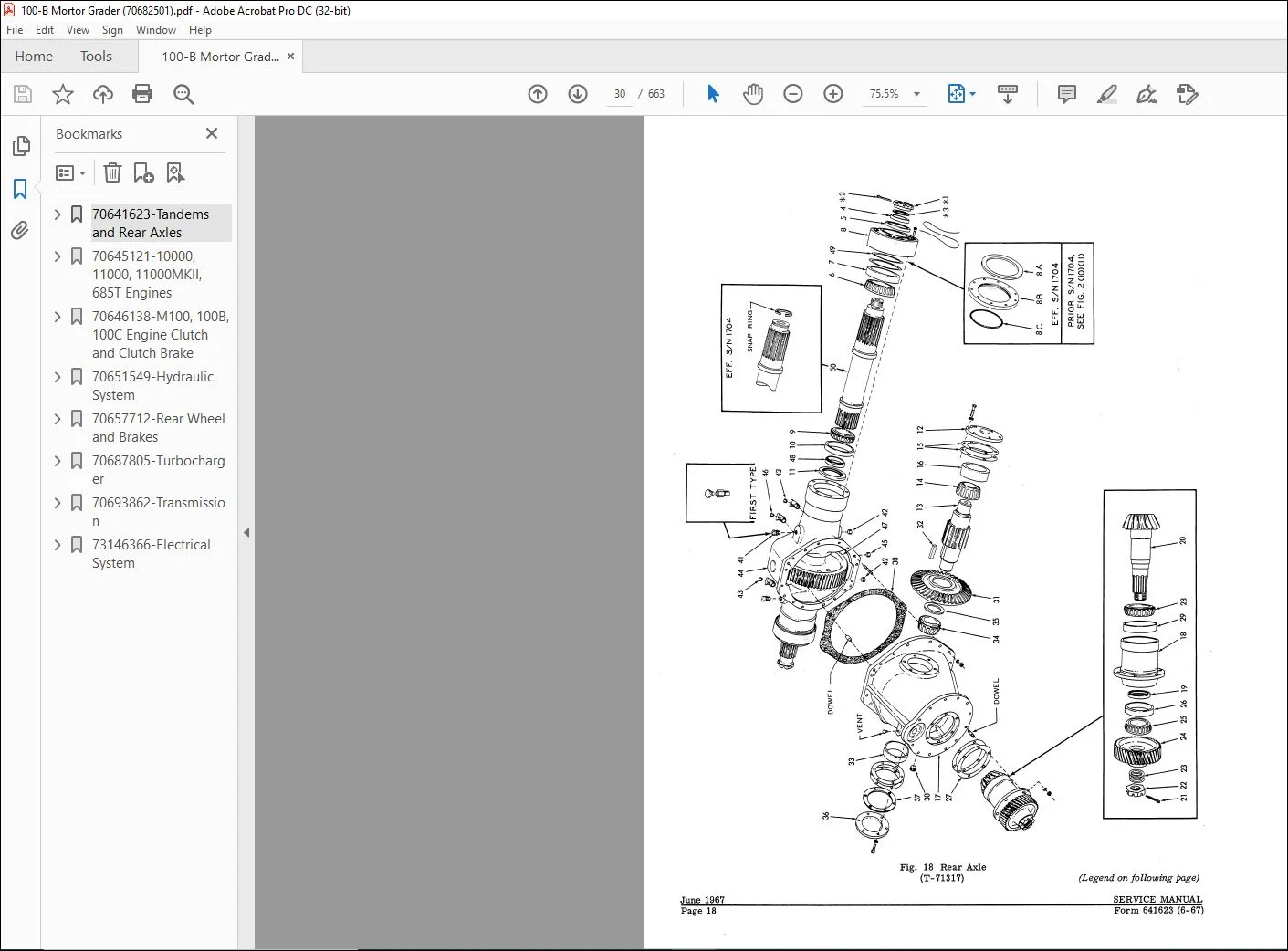

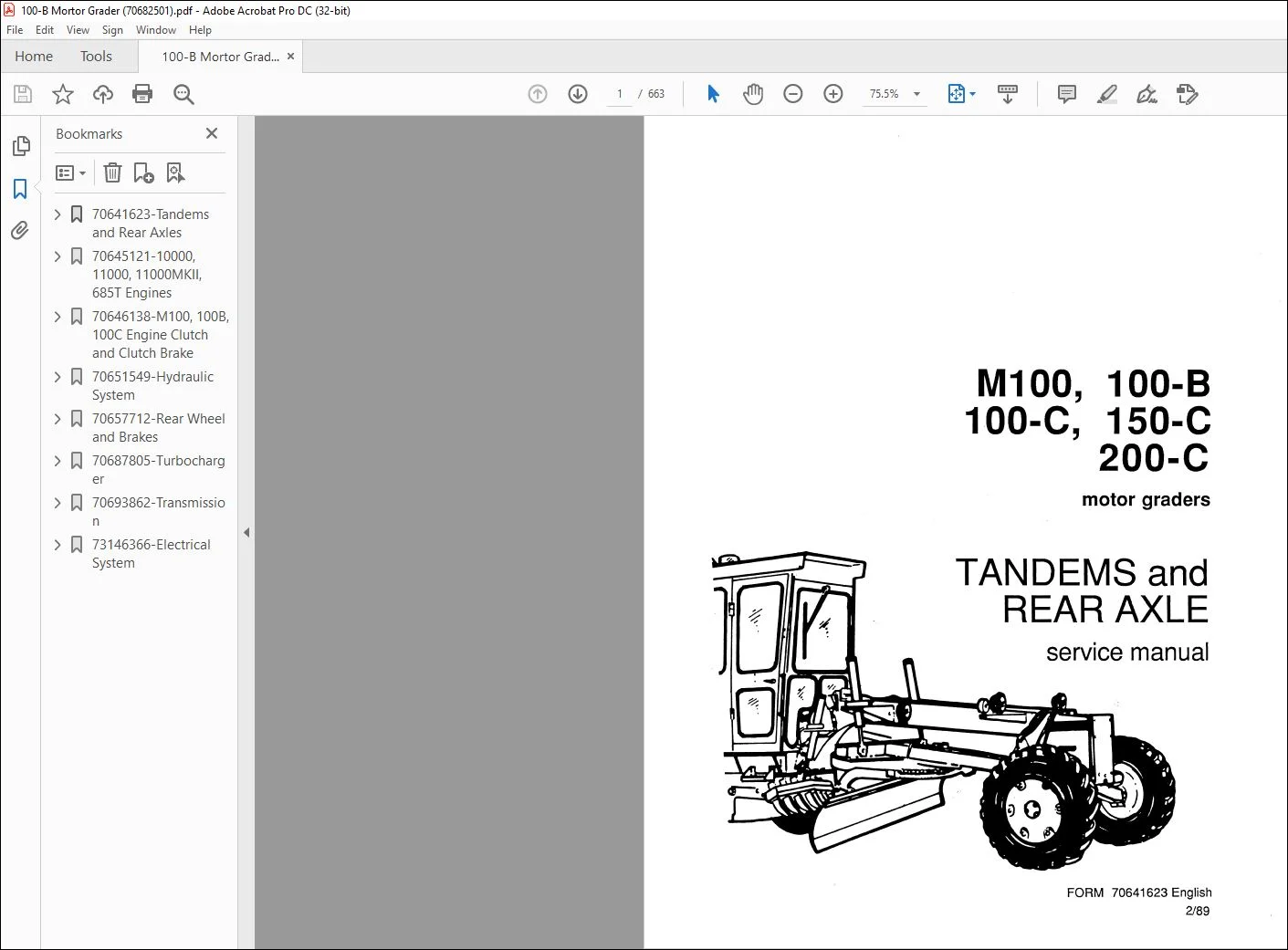

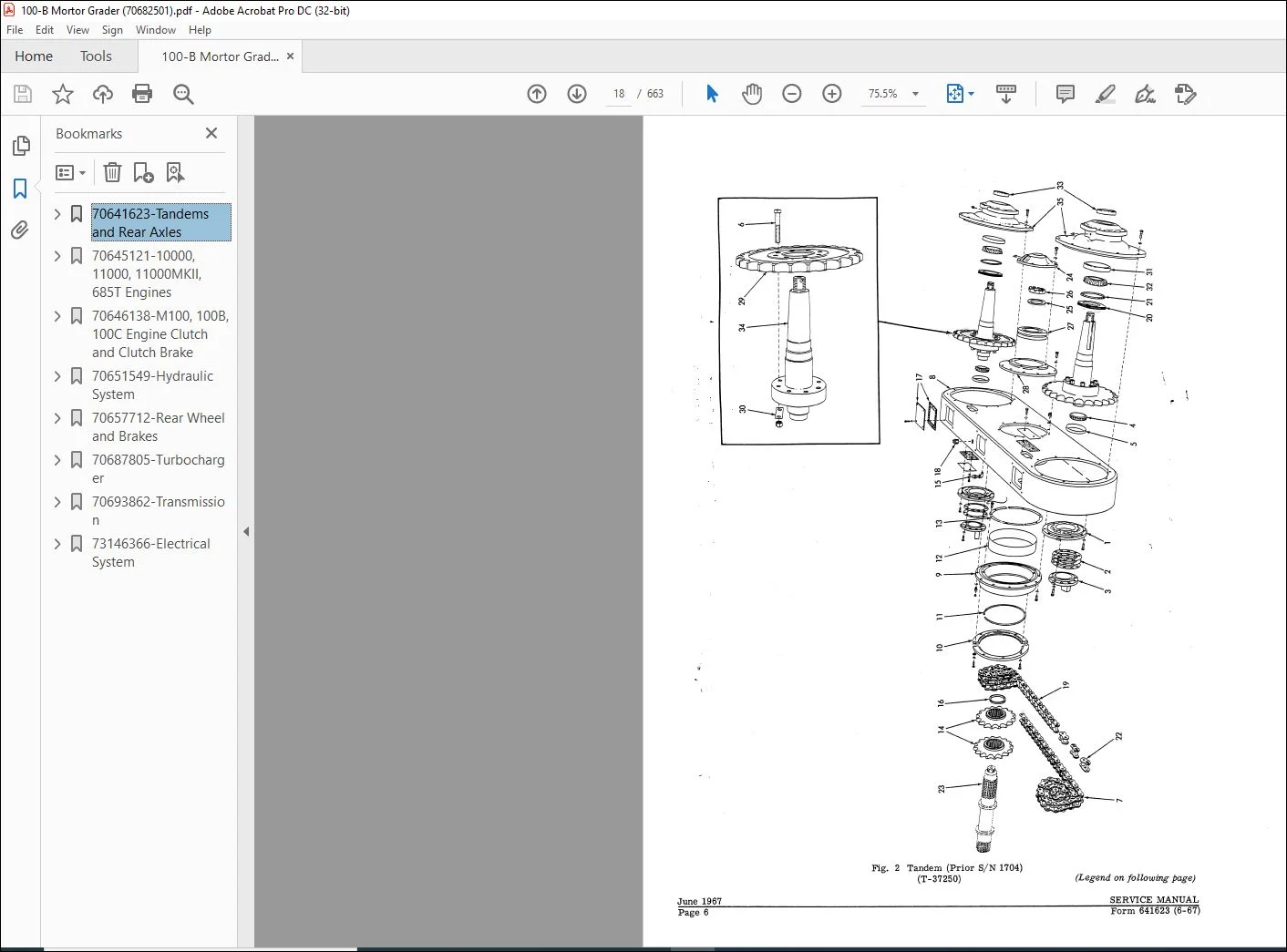

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Fiatallis M100 100-B 100-C 150-C 200-C Tandems & Rear Axle Service Manual 70641623 – PDF DOWNLOAD

M-100 S/N 101-1000
100-8 S/N 1001-5000
S/N 67S05001-67S08000
100-C S/N 28 27Y08001-27Y09100
S/N 57M09101-Up
150-C S/N 99C01001-99C01700
S/N 58U01701-UP
200-C S/N 90M01001-90M01700
S/N 59C01701-UP

GENERAL:

Study the Operation and Maintenance Instruction Manual before starting, operating, maintaining, fueling, or servicing machine. Read and heed all machine-mounted safety signs before starting, operating, maintaining, fueling or servicing machine.

• Machine-mounted safety signs have been color coded yellow with black border and lettering for WARNING and red with white border and lettering for DANGER points. Never attempt to operate the machine or its tools from any pcsition other than seated in the operator’s seat.
• Keep head, body, limbs, hands and feet inside operator’s compartment at all times to reduce exposure to hazards outside the operator’s compartment. Do not allow unauthorized personnel to operate service or maintain this machine. Always check work area for dangerous features.
• The following are examples of dangerous work areas: slopes, over hangs, timber, demolitions, fire, high walls, drop off, backfills, rough terrain, ditches, ridges, excavations, heavy traffic, crowded parking, crowded maintenance and closed areas. Use extreme care when in areas such as these.
• An operator must know the machine’s capabilities. When working on slopes or near drop offs be alert to avoid loose or soft conditions that could cause sudden tipping or loss of control. Do not jump on or off machine. Keep two hands and one foot, or two feet and one hand, in contact with steps grab rails and handles at all times. Do not use controls or hoses as hand holds when climbing on or off machine.
• Hoses and controls are movable and do not provide a solid support. Controls also may be inadvertently moved causing accidental machine or equipment movement. Keep operator’s compartment, stepping points, grab-rails and handles clear of foreign objects, oil, grease, mud or snow accumulation to minimize the danger of slipping or stumbling.
• Clean mud or grease from shoes before attempting to mount or operate the machine. Be careful of slippery conditions on stepping points, hand rails, and on the ground. Wear safety boots or shoes that have a high slip resistant sole material. For your personal protection.
• Do not attempt to climb on or off machine while machine is in motion. Never leave the machine unattended with the engine running.
• Always lock up machine when leaving it unattended. Return keys to authorized security. Heed all shut down proc;eduresof the Operation and Maintenance Instruction Manual. Always · set the parking brake when leaving the machine for any reason.

TABLE OF CONTENTS:

Fiatallis M100 100-B 100-C 150-C 200-C Tandems & Rear Axle Service Manual 70641623 – PDF DOWNLOAD

INDEX
TOPIC TITLE
GENERAL DESCRIPTION
TROUBLE SHOOTING
A Tandems
B Rear Axle
LUBRICANT SPECIFICATIONS, CAPACITY, AND
SERVICE
TANDEMS
A Description
B Removal and Installation of Tandem
C Disassembly and Assembly of Tandem
REAR AXLE
A Description
B Removal of Cross Shaft Housing Assembly
C Disassembly of Cross Shaft Housing
D Assembly of Cross Shaft Housing
E Installation of Cross Shaft Housing Assembly
F Removal and Installation of Rear Axle as an Assembly
G Removal of Rear Axle Components
H Installation of Rear Axle Components
GENERAL INSPECTION
FITS AND TOLERANCES
A Tandems
B Rear Axle Assembly
SERVICE TOOLS
CONVERSION TABLES

Need help? Contact: [email protected]

https://vimeo.com/735385150

PLEASE NOTE:

• This is not a physical manual but a digital manual – meaning no physical copy will be couriered to you. The manual can be yours in the next 2 mins as once you make the payment, you will be directed to the download page IMMEDIATELY.
• This is the same manual used by the dealers inorder to diagnose your vehicle of its faults.
• Require some other service manual or have any queries: please WRITE to us at [email protected]
