Fujifilm DRYPIX 7000 Service Manual MC PDF DOWNLOAD

Description

Fujifilm DRYPIX 7000 Service Manual MC –  PDF DOWNLOAD

Description

This Fujifilm DRYPIX 7000 service manual PDF focuses on the Removal and Adjustment (MC) section, providing essential instructions for technicians servicing the DRYPIX 7000 medical dry imager. It details DRYPIX 7000 removal and adjustment procedures for components like covers, frames, tray loading units, removal units, conveyor units, sub-scanning units, scanning optics units, heat development units, film release units, controllers, sorters, and software installations. Emphasis is placed on safety precautions, including electrical shock prevention, static electricity handling, and film exposure avoidance during maintenance.

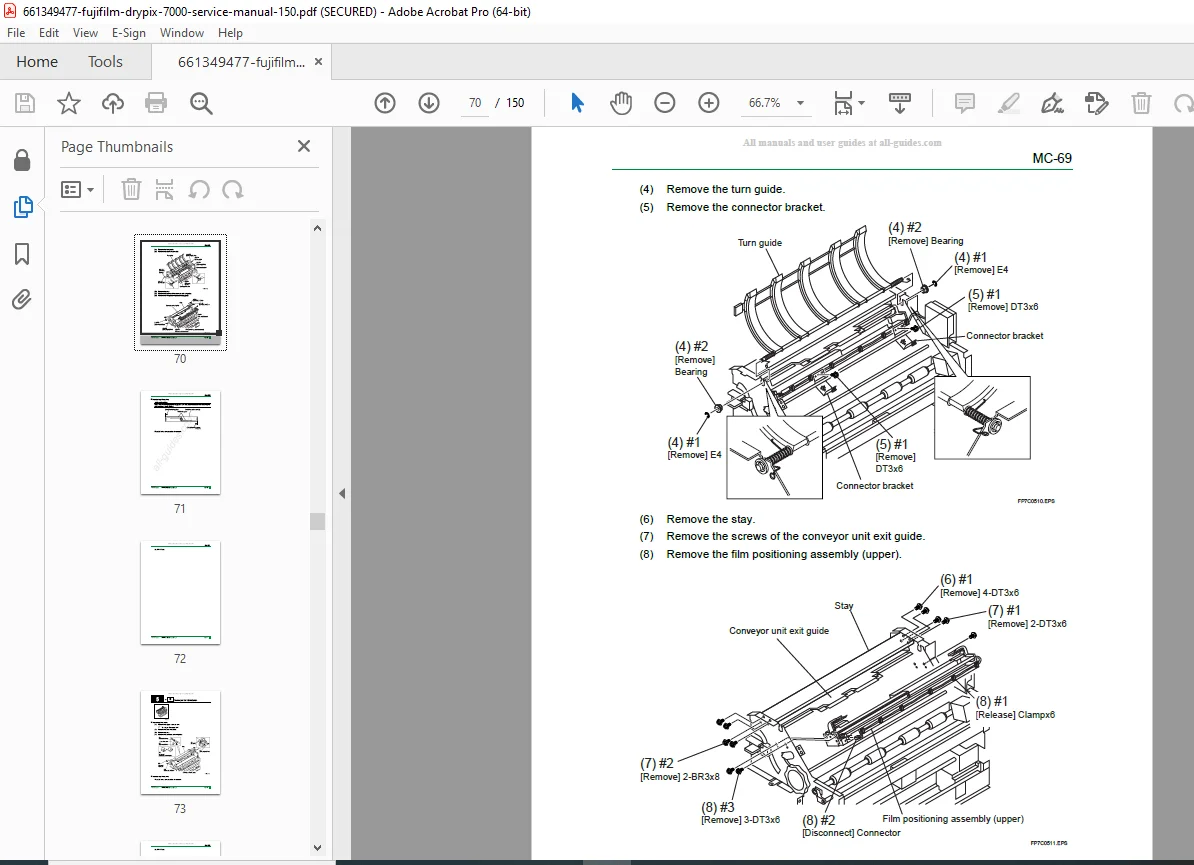

The manual includes a control sheet with revision history (up to Rev. 02 in 2003) and guidelines for inspections, replacements, and adjustments, noting that only parts requiring special attention are described—refer to the Parts List for others. Visual aids such as diagrams, exploded views, and photos support the procedures throughout.

Table of Contents

• 1. COVERS
  • 1.1 Covers (MC-10)
• 2. FRAME
  • 2.1 BCR Assembly (MC-12)
• 3. TRAY LOADING UNIT
  • 3.1 Tray Loading Unit (MC-14)
  • 3.2 Tray (MC-18)
  • 3.3 Film Pack/Shutter Detection Sensor (SA11, SA21, SA31) (MC-22)
  • 3.4 Tray Detection Switch (SA12, SA22, SA32) (MC-24)
  • 3.5 Tray Lock Assembly (MC-25)
  • 3.6 Tray Loading Unit Rail (MC-26)
  • 3.7 Tray Rail (MC-30)
  • 3.8 Squeezing Roller (MC-32)
  • 3.9 Special Screw (MC-34)
• 4. REMOVAL UNIT
  • 4.1 Removal Unit (MC-36)
  • 4.2 Removal Drive Cam (MC-40)
  • 4.3 Suction Cup Arm (MC-44)
  • 4.4 Suction Cup (MC-48)
  • 4.5 Bellows (MC-50)
• 5. CONVEYOR UNIT
  • 5.1 Upper Conveyor Unit (MC-52)
  • 5.2 Film Positioning Motor (Lower) (MD6) (MC-58)
  • 5.3 Upper Conveyor Unit Exit Motor (MD2) (MC-60)
  • 5.4 Cleaning Roller Grip Release Motor (MD4) (MC-62)
  • 5.5 Film Positioning Assembly (Lower) (MC-64)
  • 5.6 Film Positioning Motor (Upper) (MD5) (MC-66)
  • 5.7 Film Positioning Assembly (Upper) (MC-68)
  • 5.8 Conveyor Unit Exit Guide (MC-72)
  • 5.9 Conveyance Driving Roller (Upper) (MC-74)
  • 5.10 Conveyance Driving Roller (Lower) (MC-76)
  • 5.11 Conveyor Unit Guide (MC-78)
  • 5.12 Grip Idle Gear (MC-79)
  • 5.13 Lower Conveyor Unit (MC-80)
• 6. SUB-SCANNING UNIT
  • 6.1 Sub-Scanning Unit (MC-82)
  • 6.2 Sub-Scanning Motor (ME1) (MC-92)
  • 6.3 Sub-Scanning Roller (MC-94)
  • 6.4 Film Leading Edge Detection Sensor (SE1) (MC-98)
• 7. SCANNING OPTICS UNIT
  • 7.1 Scanner Unit (MC-104)
• 8. HEAT DEVELOPMENT UNIT
  • 8.1 Cooling Fan Assembly (MC-110)
  • 8.2 Filter Section Cooling Fan (MC-112)
  • 8.3 Film Cooling Section (MC-114)
  • 8.4 Heat Development Unit (MC-116)
  • 8.5 Heat Development Rack Assembly (MC-118)
  • 8.6 Heat Development Roller (MC-122)
• 9. FILM RELEASE UNIT
  • 9.1 Film Release Unit (MC-124)
  • 9.2 Density Measurement Light-Emitting Board (LED15A) (MC-126)
• 10. CONTROLLER
  • 10.1 Operation Panel (MC-128)
  • 10.2 Controller Assembly (MC-130)
  • 10.3 HDD (MC-132)
  • 10.4 PC Board (MC-134)
  • 10.5 MCT Board (MC-135)
• 11. SORTER
  • 11.1 Film Conveyance Timing Belt (MC-136)
  • 11.2 Jam Removing Guide Plate Magnet (MC-139)
• 12. VERSION UPGRADE AND FULL INSTALLATION OF MAIN UNIT SOFTWARE
  • 12.1 Preparations (Same for Version Upgrades and Full Installation) (MC-140)
  • 12.2 Version Upgrade (MC-141)
  • 12.3 Full Installation (MC-144)
• 13. BOARD SETTING AND LED LIGHTING INFORMATION (MC-)

No separate bookmarks or index are present beyond the table of contents. This Fujifilm medical imager repair guide ensures precise heat development unit maintenance and scanning optics unit disassembly with torque specifications and adjustment notes.

File Details

• Manual Name: DRYPIX 7000 Service Manual – Removal and Adjustment (MC)
• Models Covered: DRYPIX 7000
• Year: 2003
• Manual PDF Quality: High-resolution scan with clear text, diagrams, and illustrations
• No of Pages: 150
