Furukawa Fxj Series Hydraulic Breaker Instruction Manual – PDF Download

Description

Furukawa Fxj Series Hydraulic Breaker Instruction Manual – PDF Download

Description:

Overview

Furukawa Fxj series hydraulic breaker instruction manual for models Fxj175 Fxj275 Fxj375 Fxj475 attached to excavators. Released by Furukawa Rock Drill Co., Ltd. it’s for operators service folks with 113 pages on safe use care. Foreword stresses reading fully using genuine parts for warranty. Safety info outlines precautions before after engine start safe operation parking transport maintenance.

IMAGES:

Safety and Outline

Safety section details control measures hazards like flying debris high pressure oil. Outline names components specs external dimensions rod types applications oil hose plugs. Declaration conformity CE marking.

Operation

Operation covers mounting/dismounting on excavator hydraulic piping lubrication oil/grease. Starting stopping correct methods tool selection based material. Operating tips for efficiency avoid blank firing overheating. Underwater use special kits.

Maintenance and Troubleshooting

Maintenance daily weekly monthly checks cleaning lubrication. Inspection wear parts like rod bushings piston cylinder. Replacement procedures accumulator charging side bolts tension. Troubleshooting common issues no impact weak strike oil leaks with causes remedies. Storage long-term prep.

Parts and Accessories

Parts lists exploded views ordering info. Accessories like special tools kits. Torque specs for bolts e.g. side 500-600 Nm but not all listed general guidelines. Includes diagrams hydraulic circuits. Missing exhaustive pressures assumes gauge use. Good field manual though sections assume excavator knowledge lacks some pinouts.

File Details

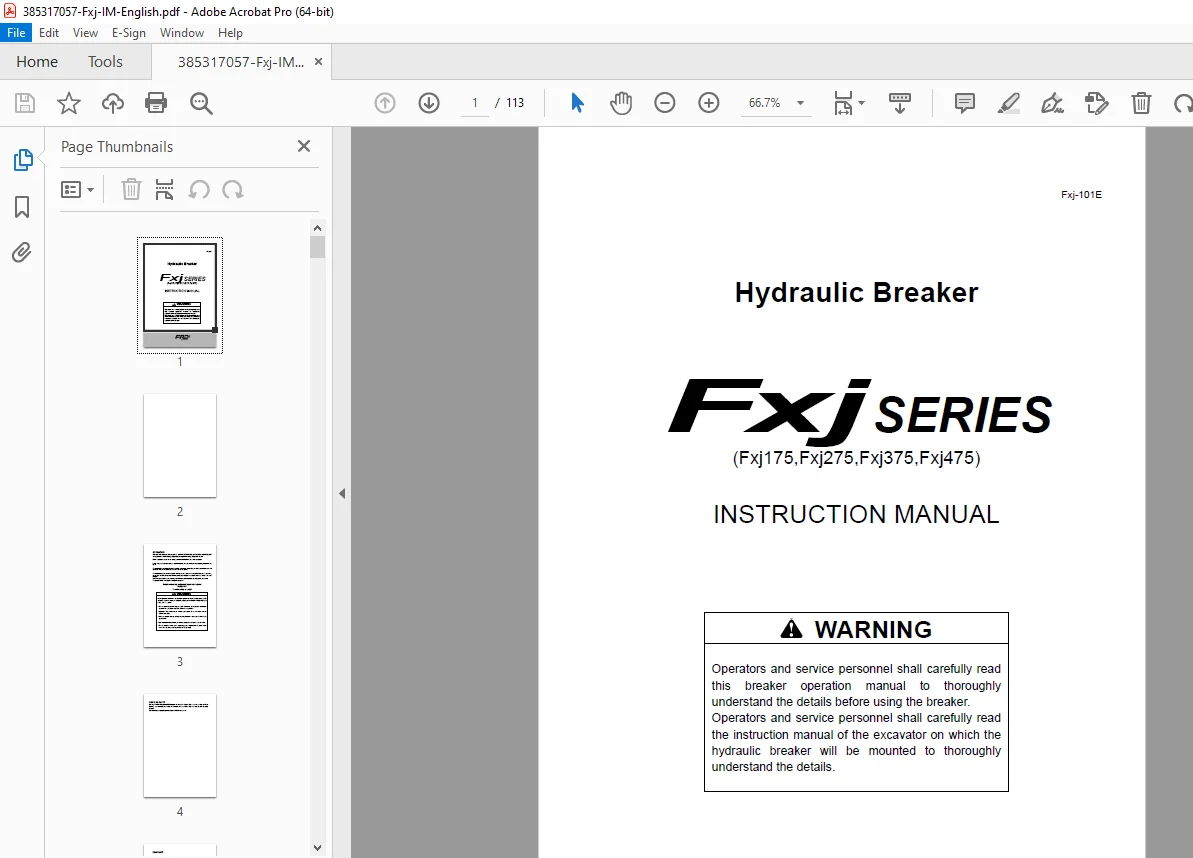

• Document Title: Hydraulic Breaker Fxj SERIES INSTRUCTION MANUAL (Fxj-101E)
• Models Covered: Fxj175, Fxj275, Fxj375, Fxj475

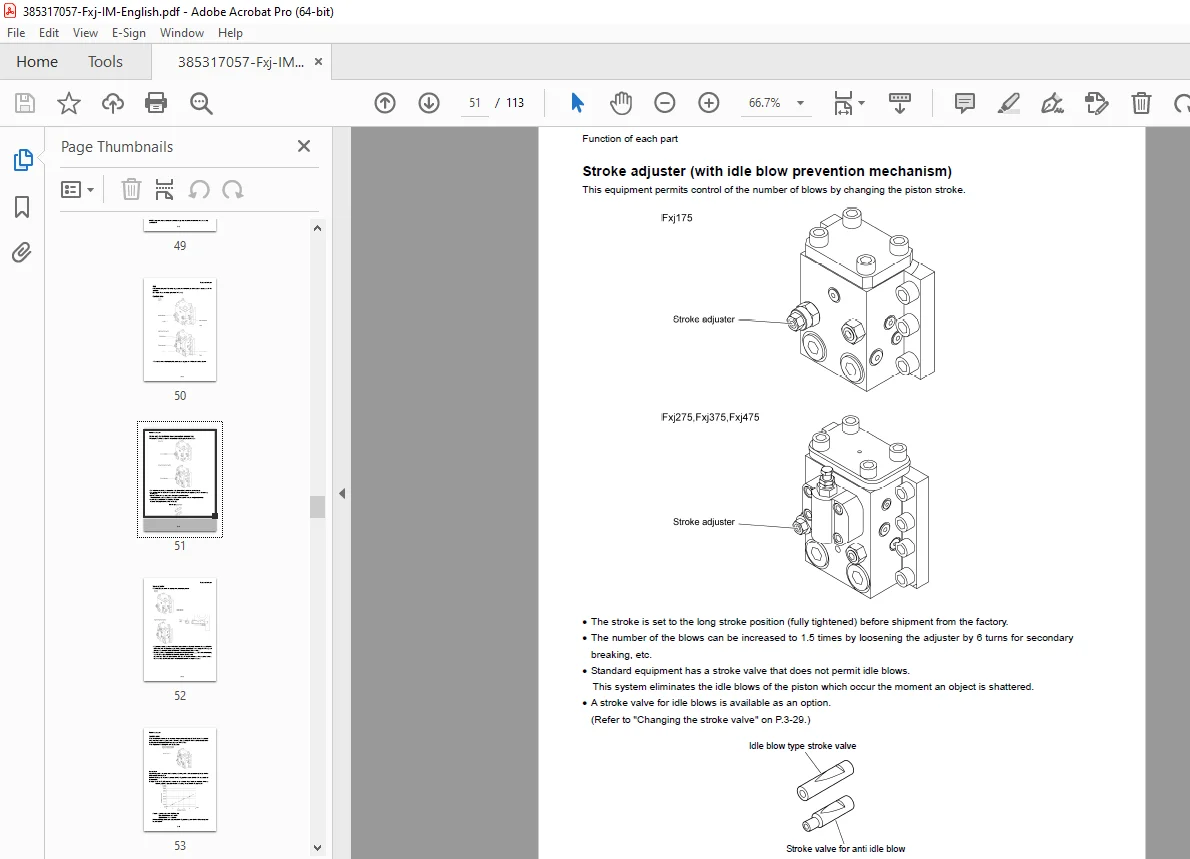

• System Coverage: Safety Information, Outline of the Breaker, Declaration of Conformity, Location of Model Name and Serial No., Location of Warning Labels, Warranty, Safety (Precautions), Operation (Name of Components and Specifications, Function of Each Part, External Dimensions, Mounting/Dismounting, Hydraulic Piping, Lubrication, Starting/Stopping, Operating Method, Tool Selection, Underwater Operation), Maintenance (Daily/Weekly/Monthly Checks, Inspection, Replacement Procedures, Troubleshooting, Storage), Parts List, Accessories
• Pages: 113
• Format: Searchable PDF (OCR-enabled)
• Languages: English
• File Size: ~3.04 MB
• Quality Notes: Factory scan with clear text, crisp schematics, OCR searchable; diagrams sharp and legible. ✅ Verified factory technical content.
