Overview

This comprehensive Galaxy Multiparameter Monitor Service Manual is an essential reference for L&T medical equipment service engineers and authorized technicians. It provides detailed technical guidance for servicing and maintaining Galaxy multiparameter patient monitors used in operating rooms, ICUs, and emergency departments.

What’s Covered

System Architecture & Components

• Main board microcontroller specifications (AM188EM processor)
• ECG amplifier modules (Star and AAMI configurations)
• Non-Invasive Blood Pressure (NIBP) module
• Pulse Oximetry (SpO2) module with MP204 and MP506 variants
• Capnography CO₂ measurement modules
• Anaesthetic Gas Module (AGM) for volatile agent monitoring
• Switch Mode Power Supply (SMPS) – both high-rated and triphase versions
• Battery system (6V, 4Ah lead acid sealed batteries)
• Display controllers and keyboard interfaces

Circuit Theory & Technical Details

• ECG Monitoring: 3-lead and 5-lead cable configurations, fault detection, CAL pulse generation, amplifier stages with gain selection
• Invasive Blood Pressure (IBP): Dual channel measurement, transducer circuits, calibration procedures
• Temperature Monitoring: Dual channel thermistor-based temperature sensing
• Respiration Measurement: Impedance variation detection between RA and LA leads
• Power Supply Design: AC-DC converter, DC-DC converter with isolated outputs (+12V, -12V, +5V), battery charger and low-battery shutdown logic
• Signal Flow Architecture: Complete signal path from patient to display with 200 samples/second ADC conversion

Installation & Safety

• Electrical safety requirements (IEC 60601-1 standards compliance)
• ESD (Electrostatic Discharge) protection protocols
• Installation site requirements and ventilation specifications
• Mains voltage specifications (95-265V AC, 50/60Hz)
• Battery charging and operational specifications
• Patient safety features including cuff overpressure protection

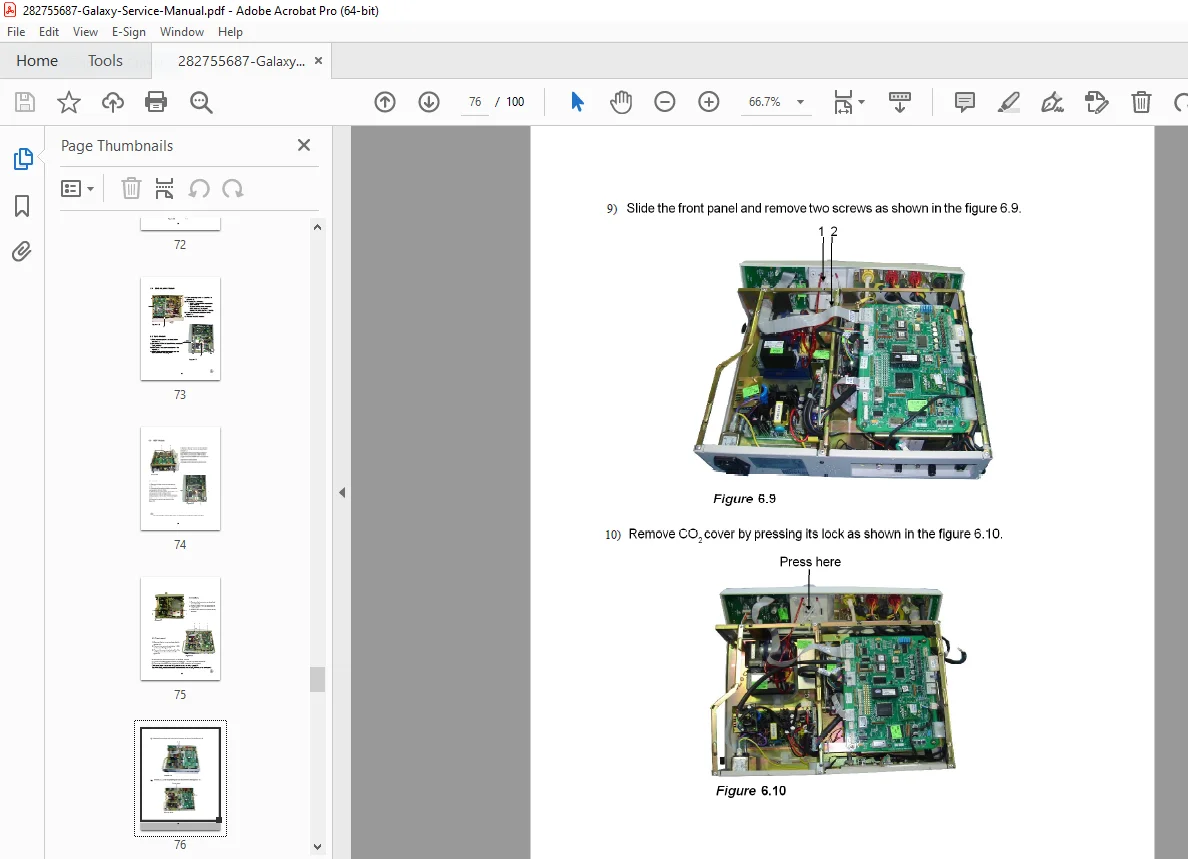

Assembly/Disassembly Procedures (Step-by-Step Guide)

Troubleshooting & Diagnostics

• System Diagnosis: Comprehensive flowcharts for all parameter failures
• Error Codes: Detailed explanations for NIBP errors (loose cuff, air leak, overpressure, excessive motion, position errors)
• CO₂ Module Issues: Occlusion detection, water trap management, sample line maintenance
• AGM Module Issues: Water trap full, sample line blockage
• Troubleshooting Trees: Systematic decision trees for:
  • Unit not powering on
  • Parameter detection failures
  • Display malfunctions
  • ECG, SpO₂, NIBP, IBP, temperature monitoring issues
  • Capnography and AGM module failures

Calibration Procedures

• CO₂ module calibration (HIGH CAL procedure with 10% calibration gas)
• Display size selection (14″, 15″, 17″ monitors)
• System settings including adult/neonatal mode selection
• Service mode access with password protection
• DEMO mode operation for training

Specifications & Technical Data

Equipment Classification

• Mode: Continuous operation
• Protection Class: Class I
• Electrical Shock Protection: Type CF (ECG, IBP, Temperature, Respiration) / Type B (SpO₂) / Type BF (NIBP)

Power Requirements

• Input: 95-265V AC, 50/60Hz (±5%), 3.15A fuse
• SMPS Output: +5V, ±12V regulated
• Battery: Internal (6V, 4Ah lead acid x2 in series = 12V), External (12V, 2A minimum)
• Battery Runtime: 55-60 minutes (fully charged, with NIBP 2min timer + 8sec recorder)

Monitor Parameters Supported

• ECG (3-lead/5-lead)
• Respiration rate
• Dual temperature channels
• Dual invasive blood pressure (IBP1, IBP2)
• Non-invasive blood pressure (NIBP)
• Pulse oximetry (SpO₂) with plethysmograph
• Capnography (EtCO₂, FiCO₂)
• Anaesthetic agents (Fi, Et for Halothane, Isoflurane, Sevoflurane, Enflurane, Desflurane)
• Nitrous oxide (N₂O) monitoring

Display & Output

• VGA monitor output (15-pin D-sub connector)
• 640×480 pixel resolution
• Selectable monitor sizes: 14″, 15″, 17″
• Recorder: Thermal printing, 58mm paper width, 48mm print width, 25mm/sec speed
• CNS Interface: RS485 protocol for Skyline Central Nursing Station
• SYNC output: 1Vp-p ECG signal for defibrillator

Upgradation Procedures

• Software upgrades via EEPROM replacement (U5 & U6)
• Adding dual invasive pressures (IBP1 & IBP2)
• Adding NIBP module capability
• Adding SpO₂ parameter
• Hardware expansion steps with connector panel modifications

Spare Parts List

Comprehensive catalog including:

• Accessories: NIBP cuffs (adult, child, neonatal), ECG cables (3-lead, 5-lead), SpO₂ extension cables, temperature probes (YSI series), IBP transducers
• Cables & Assemblies: 24 different cable types with part numbers
• Non-PWA Components: Knobs, fuses, connectors, front panels, chassis, feet
• PWA Assemblies: Main PWA, NIBP module, ECG amplifier modules, SMPS variants, SpO₂ modules

Table of Contents Structure

1. Introduction – System overview, hardware components, software architecture
2. Safety – Electrical safety, equipment safety, ESD protection methods
3. System Architecture – Detailed component descriptions and interconnections
4. Getting Started – Power requirements, installation site setup, unpacking, battery operation
5. Circuit Theory – In-depth technical analysis of all functional blocks
6. Assembly/Disassembly – Step-by-step removal and replacement procedures
7. Upgradation – Software and hardware expansion guidelines
8. Troubleshooting – Diagnostic procedures, error codes, systematic repair flowcharts
9. Spare Parts – Complete parts catalog with country of origin and replacement codes
