Gallignani G880 J Bale Wrapper Parts Manual – PDF

Description

Gallignani G880 J Bale Wrapper Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Gallignani G880 J Bale Wrapper Parts Manual – PDF DOWNLOAD

Language : Italian, Spanish, French, German, and English
Pages : 60
Downloadable : Yes
File Type : PDF

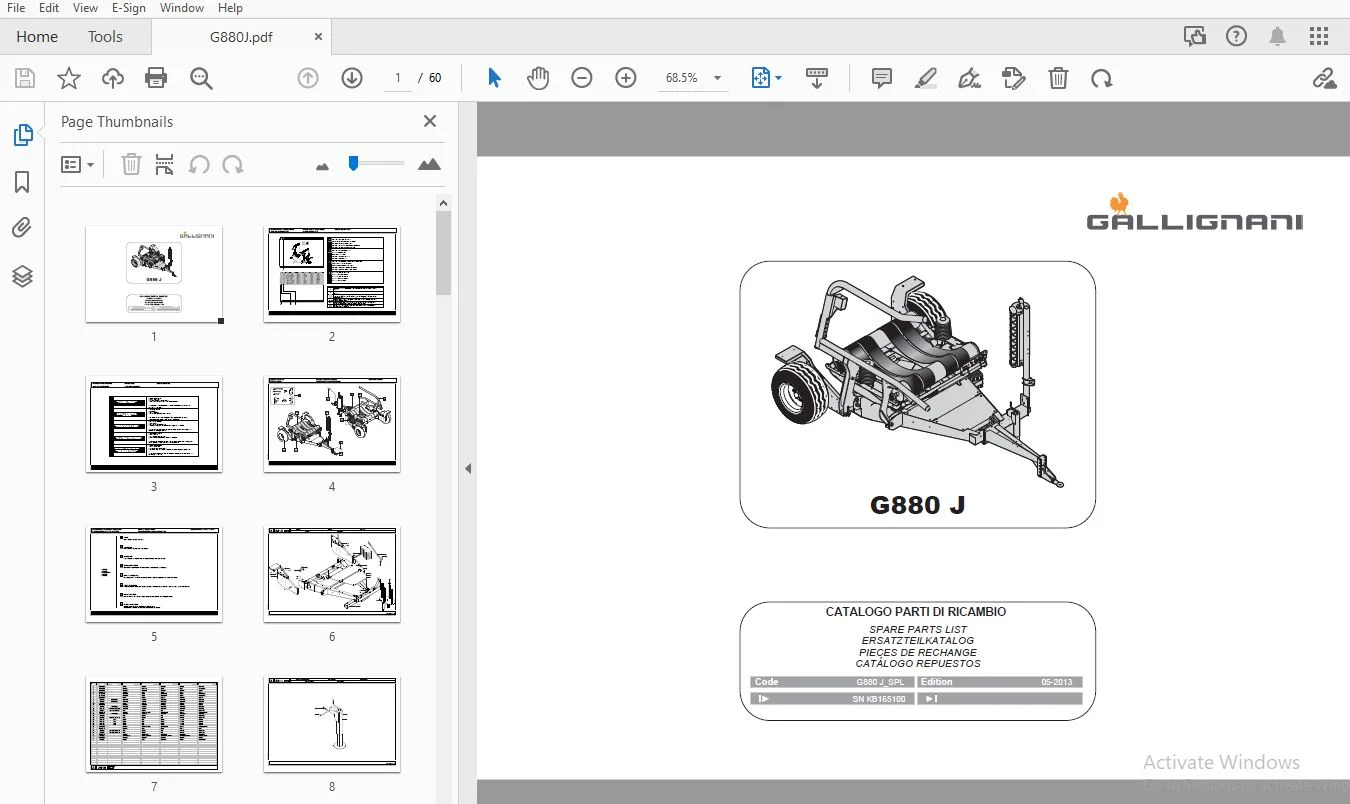

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Gallignani G880 J Bale Wrapper Parts Manual – PDF DOWNLOAD

1 3501827G Piede di appoggio SUPPORT FOOT PIED D’APPUI SCHÜTZFUSS PIE DE APOYO.............. 9
1 3501A26G Timone Drawbar Gouvernal Lanza de tiro Deichsel..................................11
1 3944800 Ruota completa Wheel ass'y Roue Rueda completa Kompl. rad.........................13
1 3501B85KV Forca Fork Fourche Horquilla Gabel..............................................15
1 3501D11KV Telaio Frame Chassis Chasis Rahmen..............................................17
1 3502852G Albero Shaft Arbre Árbol Welle...................................................19
1 3502816 Albero Shaft Arbre Árbol Welle....................................................21
1 3502830KV Tubo Hose Tuyau Tubo Schlauch...................................................23
1 TB211204 #N/D #N/D #N/D #N/D..............................................................25
1 TB211215 #N/D #N/D #N/D #N/D..............................................................27
1 3508967KV Telaio Frame Chassis Chasis Rahmen..............................................29
1 0092012 8X50 EN28752 Spina Pin Goupille Clavija Splint....................................31
1 3508927 Cinghia Belt Courroie Correa Riemen...............................................33
1 8877F77 Tubo Hose Tuyau Tubo Schlauch.....................................................35
1 8859927 Motore Motor Moteur Motor Motor...................................................39
1 8859929KV Martinetto Ram Verin Gato Zylinder..............................................41
1 8859720KV Martinetto Ram Verin Gato Zylinder..............................................43
1 8858259 Serbatoio Tank Réservoir Depósito Tank............................................45
1 3517929KV Protezione Guard Protection Protección Schutz...................................49
1 MT00001653 Scatola di comando Control box Boîte de commande Caja de mando Steuerkasten....51
1 8850015 UNI 5737 M 6X 35 Vite Screw Vis Tornillo Schraube.................................53
1 8889286 Decalcomania Transfer Decalcomanie Calcomanía Aufkleber...........................55
1 8889H22 Decalcomania Transfer Decalcomanie Calcomanía Aufkleber...........................57
