Gaspardo Maestra (MT) Parts Manual G19530523 – PDF

Description

Gaspardo Maestra (MT) Parts Manual G19530523 – PDF DOWNLOAD

FILE DETAILS:

Gaspardo Maestra (MT) Parts Manual G19530523 – PDF DOWNLOAD

Language : Italian, Spanish, French, German, and English
Pages : 78
Downloadable : Yes
File Type : PDF

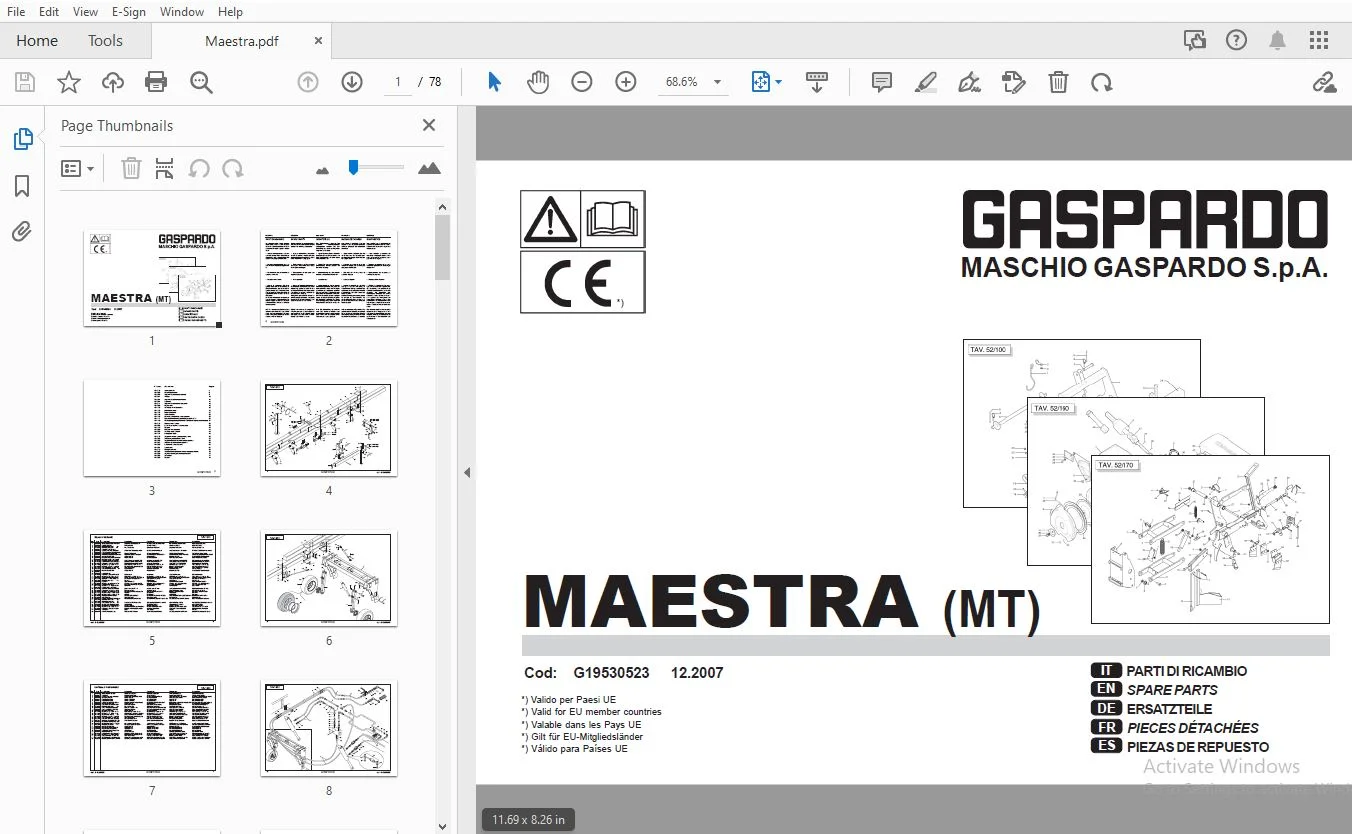

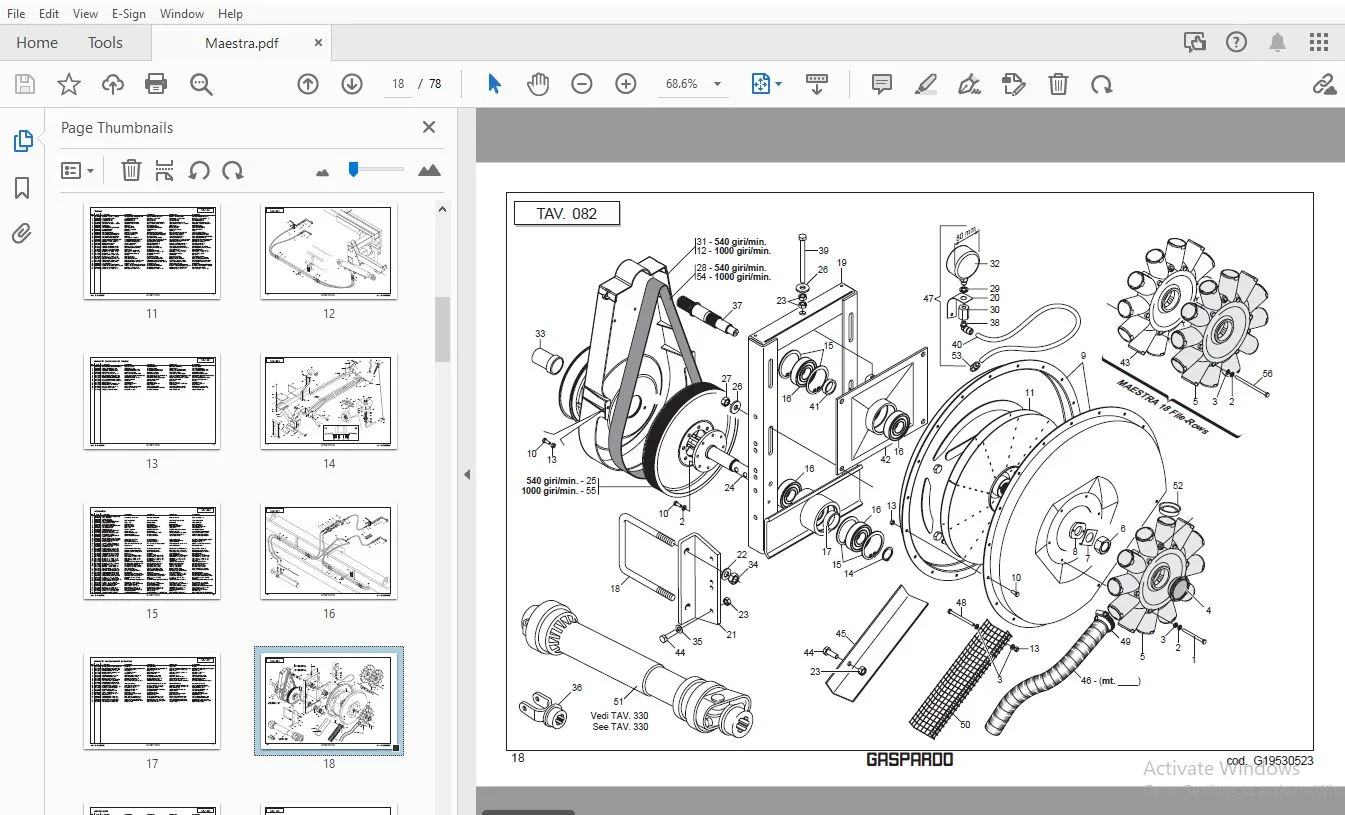

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Gaspardo Maestra (SP) Parts Manual G19530881 – PDF DOWNLOAD

Italian:

1. TAV. 012 Telaio portante – Supporting frame
2. TAV. 022 Carrello posteriore – Rear carriage
3. TAV. 032 Impianto oleodinamico carrello – Hydraulic system for carriage
4. TAV. 041 Timone – Drawbar
5. TAV. 051 Impianto oleodinamico timone – Hydraulic system for drawbar
6. TAV. 064 Segnafile – Row marker
7. TAV. 071 Impianto oleodinamico segnafile – Hydraulic system for row marker
8. TAV. 082 Depressore – Depressor
9. TAV. 122 Scatola di rinvio elemento – Element gearbox
10. TAV. 132 Distributore semi – Seed distributor
11. TAV. 140 Dischi di semina – Seed discs
12. TAV. 153 Telaio elemento – Element frame
13. TAV. 163 Ruote di profondità di compressione – Depth compression wheels
14. TAV. 171 Coprisemi anteriori e posteriori per ruote a “V” – Front and rear seed covers for “V” wheels
15. TAV. 180 Ruota compressione farmflex Ø 370 (con copriseme anteriore) – Compression wheel farmflex Ø 370 (with front seed cover)
16. TAV. 312 Coltro a disco striato – Notched disc coulter
17. TAV. 202 Esclusione elettrica file di semina – Electric seed row exclusion
18. TAV. 113 Cambio – Gearbox
19. TAV. 093 Ruote di trasmissione – Transmission wheels
20. TAV. 300 Scaletta ruote portanti – Ladder for supporting wheels
21. TAV. 101 Flangiatura ruote – Wheel flanging
22. TAV. 213 Supporti serbatoi spandiconcime ferro – Iron fertilizer spreader tank supports
23. TAV. 222 Serbatoi spandiconcime ferro – Iron fertilizer spreader tanks
24. TAV. 233 Supporti serbatoi spandiconcime plastica – Plastic fertilizer spreader tank supports
25. TAV. 242 Serbatoi spandiconcime plastica – Plastic fertilizer spreader tanks
26. TAV. 262 Elementi di concimazione – Fertilization elements
27. TAV. 251 Speedy set – Speedy set
28. TAV. 273 Microgranulatore – Microgranulator
29. TAV. 282 Trasmissione spandiconcime e microgranulatore – Fertilizer spreader and microgranulator transmission
30. TAV. 320 Applicazione doppio microgranulatore – Double microgranulator application
31. TAV. 292 Accessori – Accessories
32. TAV. 330 Cardani – Cardan shafts

Spanish:

1. TAV. 012 Bastidor portante – Supporting frame
2. TAV. 022 Carro trasero – Rear carriage
3. TAV. 032 Sistema hidráulico del carro – Hydraulic system for carriage
4. TAV. 041 Timón – Drawbar
5. TAV. 051 Sistema hidráulico del timón – Hydraulic system for drawbar
6. TAV. 064 Marcador de filas – Row marker
7. TAV. 071 Sistema hidráulico del marcador de filas – Hydraulic system for row marker
8. TAV. 082 Depresor – Depressor
9. TAV. 122 Caja de engranajes del elemento – Element gearbox
10. TAV. 132 Distribuidor de semillas – Seed distributor
11. TAV. 140 Discos de siembra – Seed discs
12. TAV. 153 Bastidor del elemento – Element frame
13. TAV. 163 Ruedas de compresión de profundidad – Depth compression wheels
14. TAV. 171 Tapas de semillas delanteras y traseras para ruedas en “V” – Front and rear seed covers for “V” wheels
15. TAV. 180 Rueda de compresión farmflex Ø 370 (con tapa de semilla delantera) – Compression wheel farmflex Ø 370 (with front seed cover)
16. TAV. 312 Reja de disco estriado – Notched disc coulter
17. TAV. 202 Exclusión eléctrica de filas de siembra – Electric seed row exclusion
18. TAV. 113 Caja de cambios – Gearbox
19. TAV. 093 Ruedas de transmisión – Transmission wheels
20. TAV. 300 Escalera para ruedas portantes – Ladder for supporting wheels
21. TAV. 101 Brida de las ruedas – Wheel flanging
22. TAV. 213 Soportes de depósitos esparcidor de fertilizantes de hierro – Iron fertilizer spreader tank supports
23. TAV. 222 Depósitos esparcidor de fertilizantes de hierro – Iron fertilizer spreader tanks
24. TAV. 233 Soportes de depósitos esparcidor de fertilizantes de plástico – Plastic fertilizer spreader tank supports
25. TAV. 242 Depósitos esparcidor de fertilizantes de plástico – Plastic fertilizer spreader tanks
26. TAV. 262 Elementos de fertilización – Fertilization elements
27. TAV. 251 Speedy set – Speedy set
28. TAV. 273 Microgranulador – Microgranulator
29. TAV. 282 Transmisión para esparcidor de fertilizantes y microgranulador – Fertilizer spreader and microgranulator transmission
30. TAV. 320 Aplicación de doble microgranulador – Double microgranulator application
31. TAV. 292 Accesorios – Accessories
32. TAV. 330 Cardanes – Cardan shafts

French:

1. TAV. 012 Cadre porteur – Supporting frame
2. TAV. 022 Chariot arrière – Rear carriage
3. TAV. 032 Système hydraulique du chariot – Hydraulic system for carriage
4. TAV. 041 Timon – Drawbar
5. TAV. 051 Système hydraulique du timon – Hydraulic system for drawbar
6. TAV. 064 Traceur de rangs – Row marker
7. TAV. 071 Système hydraulique du traceur de rangs – Hydraulic system for row marker
8. TAV. 082 Dépresseur – Depressor
9. TAV. 122 Boîte de renvoi de l’élément – Element gearbox
10. TAV. 132 Distributeur de semences – Seed distributor
11. TAV. 140 Disques de semis – Seed discs
12. TAV. 153 Cadre de l’élément – Element frame
13. TAV. 163 Roues de compression de profondeur – Depth compression wheels
14. TAV. 171 Couvre-graines avant et arrière pour roues en “V” – Front and rear seed covers for “V” wheels
15. TAV. 180 Roue de compression farmflex Ø 370 (avec couvre-graines avant) – Compression wheel farmflex Ø 370 (with front seed cover)
16. TAV. 312 Soc à disque strié – Notched disc coulter
17. TAV. 202 Exclusion électrique des rangs de semis – Electric seed row exclusion
18. TAV. 113 Boîte de vitesses – Gearbox
19. TAV. 093 Roues de transmission – Transmission wheels
20. TAV. 300 Échelle pour roues porteuses – Ladder for supporting wheels
21. TAV. 101 Bride de roues – Wheel flanging
22. TAV. 213 Supports de réservoirs distributeur d’engrais en fer – Iron fertilizer spreader tank supports
23. TAV. 222 Réservoirs distributeur d’engrais en fer – Iron fertilizer spreader tanks
24. TAV. 233 Supports de réservoirs distributeur d’engrais en plastique – Plastic fertilizer spreader tank supports
25. TAV. 242 Réservoirs distributeur d’engrais en plastique – Plastic fertilizer spreader tanks
26. TAV. 262 Éléments de fertilisation – Fertilization elements
27. TAV. 251 Speedy set – Speedy set
28. TAV. 273 Microgranulateur – Microgranulator
29. TAV. 282 Transmission pour distributeur d’engrais et microgranulateur – Fertilizer spreader and microgranulator transmission
30. TAV. 320 Application double microgranulateur – Double microgranulator application
31. TAV. 292 Accessoires – Accessories
32. TAV. 330 Arbres de transmission – Cardan shafts

German:

1. TAV. 012 Tragendes Rahmen – Supporting frame
2. TAV. 022 Hinterwagen – Rear carriage
3. TAV. 032 Hydraulikanlage für den Wagen – Hydraulic system for carriage
4. TAV. 041 Deichsel – Drawbar
5. TAV. 051 Hydraulikanlage für die Deichsel – Hydraulic system for drawbar
6. TAV. 064 Spurmarkierer – Row marker
7. TAV. 071 Hydraulikanlage für Spurmarkierer – Hydraulic system for row marker
8. TAV. 082 Entlüfter – Depressor
9. TAV. 122 Umlenkgetriebe des Elements – Element gearbox
10. TAV. 132 Samenauswerfer – Seed distributor
11. TAV. 140 Säscheiben – Seed discs
12. TAV. 153 Rahmenteil des Elements – Element frame
13. TAV. 163 Tiefenkompressionsräder – Depth compression wheels
14. TAV. 171 Vorder- und Hinter-Säabdeckungen für “V”-Räder – Front and rear seed covers for “V” wheels
15. TAV. 180 Kompressionsrad farmflex Ø 370 (mit vorderem Säabdeckung) – Compression wheel farmflex Ø 370 (with front seed cover)
16. TAV. 312 Gezahntes Scheibenscharm – Notched disc coulter
17. TAV. 202 Elektrische Abschaltung von Saatreihen – Electric seed row exclusion
18. TAV. 113 Getriebe – Gearbox
19. TAV. 093 Antriebsräder – Transmission wheels
20. TAV. 300 Leiter für tragende Räder – Ladder for supporting wheels
21. TAV. 101 Radflansch – Wheel flanging
22. TAV. 213 Stützen für Eisen-Düngerstreuerbehälter – Iron fertilizer spreader tank supports
23. TAV. 222 Eisen-Düngerstreuerbehälter – Iron fertilizer spreader tanks
24. TAV. 233 Stützen für Kunststoff-Düngerstreuerbehälter – Plastic fertilizer spreader tank supports
25. TAV. 242 Kunststoff-Düngerstreuerbehälter – Plastic fertilizer spreader tanks
26. TAV. 262 Düngungselemente – Fertilization elements
27. TAV. 251 Speedy set – Speedy set
28. TAV. 273 Mikrogranulator – Microgranulator
29. TAV. 282 Getriebe für Düngerstreuer und Mikrogranulator – Fertilizer spreader and microgranulator transmission
30. TAV. 320 Anwendung von Doppel-Mikrogranulator – Double microgranulator application
31. TAV. 292 Zubehör – Accessories
32. TAV. 330 Kardanantriebe – Cardan shafts

English:

1. TAV. 012 Supporting frame
2. TAV. 022 Rear carriage
3. TAV. 032 Hydraulic system for carriage
4. TAV. 041 Drawbar
5. TAV. 051 Hydraulic system for drawbar
6. TAV. 064 Row marker
7. TAV. 071 Hydraulic system for row marker
8. TAV. 082 Depressor
9. TAV. 122 Element gearbox
10. TAV. 132 Seed distributor
11. TAV. 140 Seed discs
12. TAV. 153 Element frame
13. TAV. 163 Depth compression wheels
14. TAV. 171 Front and rear seed covers for “V” wheels
15. TAV. 180 Compression wheel farmflex Ø 370 (with front seed cover)
16. TAV. 312 Notched disc coulter
17. TAV. 202 Electric seed row exclusion
18. TAV. 113 Gearbox
19. TAV. 093 Transmission wheels
20. TAV. 300 Ladder for supporting wheels
21. TAV. 101 Wheel flanging
22. TAV. 213 Iron fertilizer spreader tank supports
23. TAV. 222 Iron fertilizer spreader tanks
24. TAV. 233 Plastic fertilizer spreader tank supports
25. TAV. 242 Plastic fertilizer spreader tanks
26. TAV. 262 Fertilization elements
27. TAV. 251 Speedy set
28. TAV. 273 Microgranulator
29. TAV. 282 Fertilizer spreader and microgranulator transmission
30. TAV. 320 Double microgranulator application
31. TAV. 292 Accessories
32. TAV. 330 Cardan shafts

S.S 09/24
