Gaspardo MT Parts Manual G19530255 – PDF

Description

Gaspardo MT Parts Manual G19530255 – PDF DOWNLOAD

FILE DETAILS:

Gaspardo MT Parts Manual G19530255 – PDF DOWNLOAD

Language : Italian, English, German, French & Spanish
Pages : 90
Downloadable : Yes
File Type : PDF

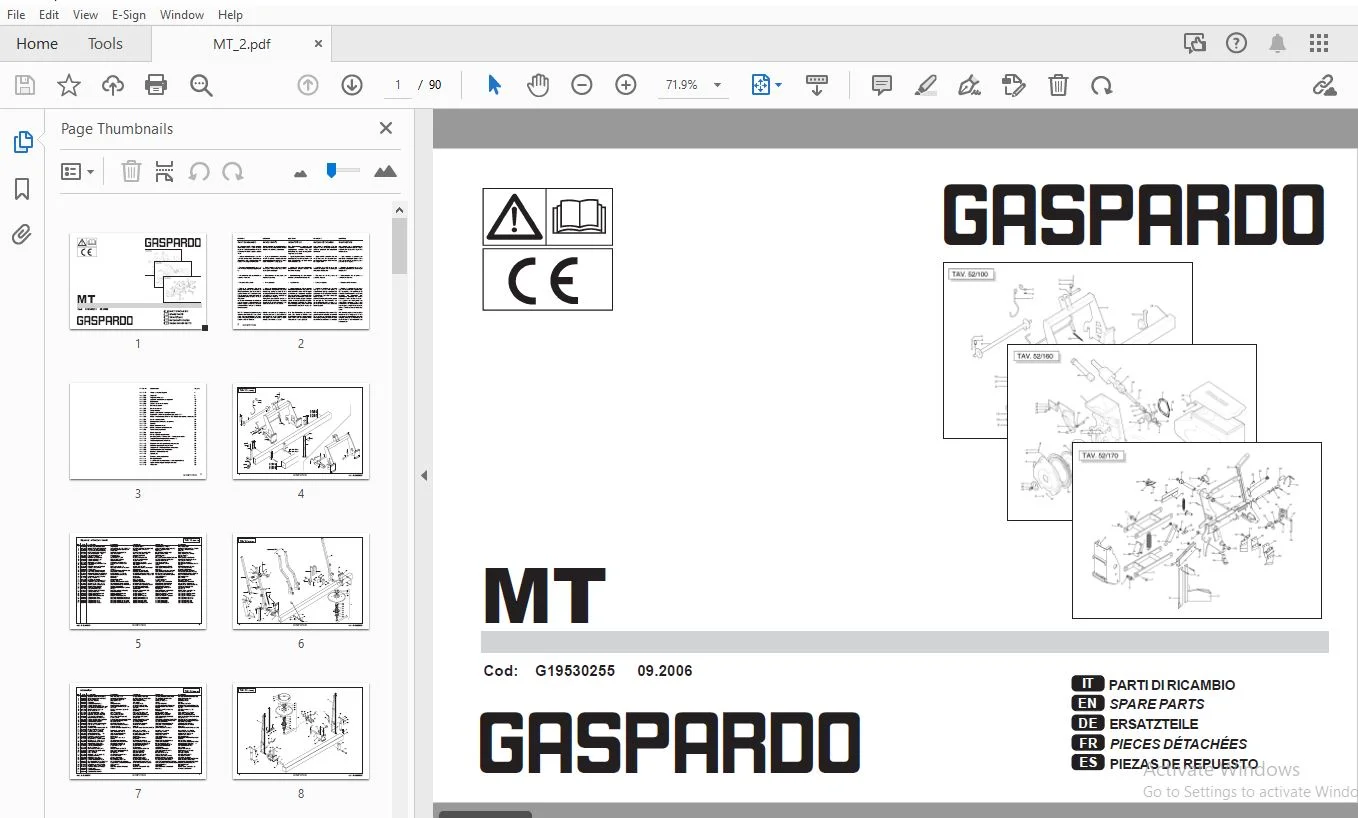

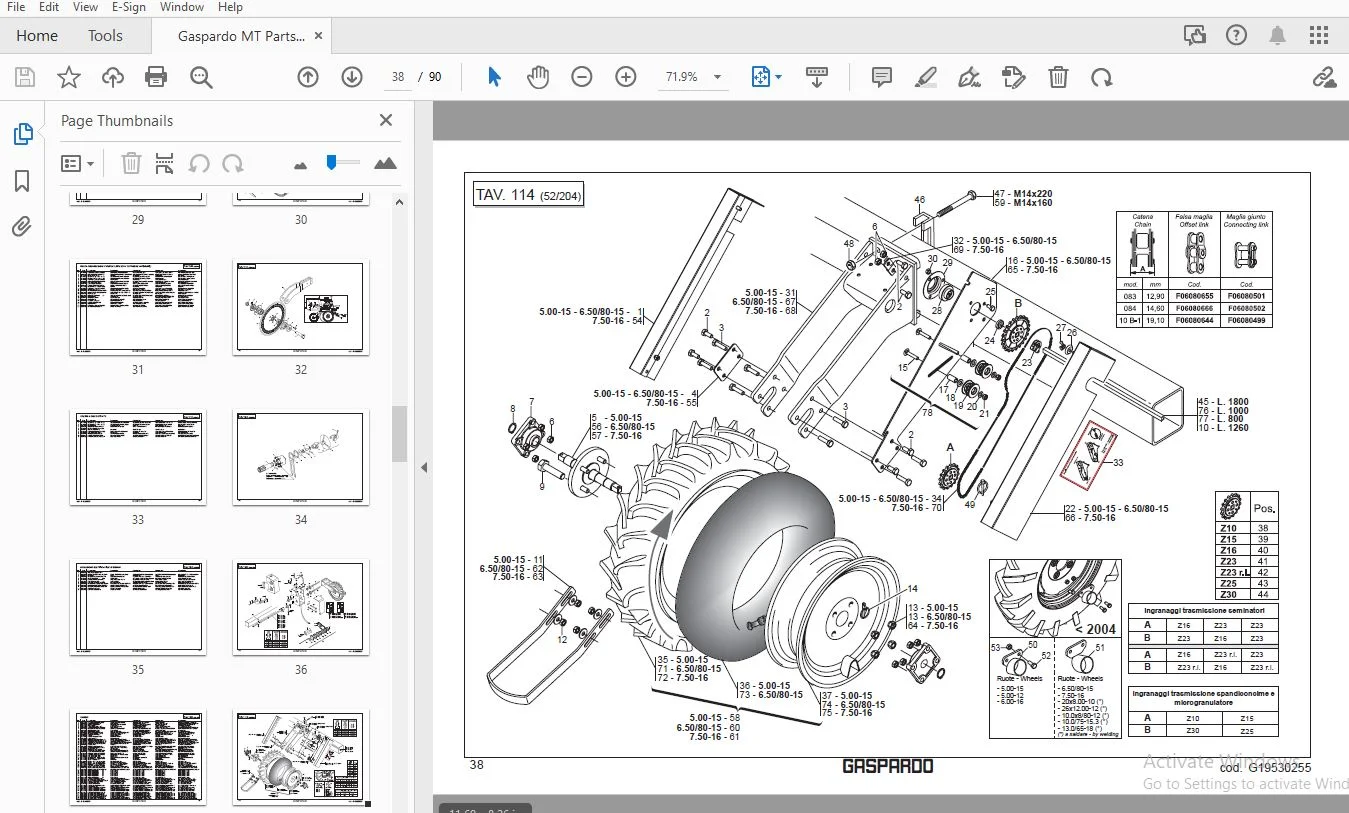

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Gaspardo MT Parts Manual G19530255 – PDF DOWNLOAD

TAV. 013 Frame and 3-point hitch 4
TAV. 024 Row markers 6
TAV. 033 Reinforced row markers 8
TAV. 043 Hydraulic system for row markers 10
TAV. 053 Depressor 12
TAV. 062 Element gearbox 14
TAV. 072 Seed distributor 16
TAV. 230 Seeding discs 18
TAV. 084 Element frame 20
TAV. 095 Depth and compression wheels 24
TAV. 311 Front and rear seed covers for “V” wheels 28
TAV. 250 Farmflex compression wheel Ø 370 (with front seed cover) 30
TAV. 331 Notched disc coulter 32
TAV. 262 Electric seed row exclusion 34
TAV. 103 Gearbox 36
TAV. 114 Transmission wheels 38
TAV. 114-A Front transmission wheels 42
TAV. 320 Supporting wheels ladder 46
TAV. 201 Adjustable wheels 48
TAV. 220 Rear power take-off 52
TAV. 271 Wheel kit for rocky terrain – Wheel flanging 54
TAV. 122 Iron fertilizer spreader tank supports 56
TAV. 131 Iron fertilizer spreader tanks 58
TAV. 142 Plastic fertilizer spreader tank supports 62
TAV. 152 Plastic fertilizer spreader tanks 64
TAV. 293 Support for single fertilizer spreader tank 68
TAV. 303 Single fertilizer spreader tank 70
TAV. 163 Fertilization elements 74
TAV. 194 Speedy set 76
TAV. 241 Pneumatic fertilization 78
TAV. 174 Microgranulator 80
TAV. 182 Fertilizer spreader and microgranulator transmission 84
TAV. 340 Double microgranulator application 86
TAV. 210 Accessories 88

S.S 10/24
