GE HiSpeed QX/i CT Scanner Service Manual PDF (6 Books, Rev 08, 1068p)
Original price was: $120.00.$32.95Current price is: $32.95.
Download the GE Medical Systems HiSpeed QX/i CT Scanner Service Manual (General)—a complete multi-book factory reference covering safety, service procedures, Service Desktop tools/diagnostics, system overview (console/gantry/table), calibrations, logs, error tools, and advanced troubleshooting. Includes detailed hardware, boards, power distribution, DAS/MDAS, replacement procedures, ESD handling, Unix/Linux commands, and image quality guidance.
Description
GE HiSpeed QX/i CT Scanner Service Manual PDF DOWNLOAD
Description
This is the official HiSpeed QX/i Service Manual – General (Direction 2340897-100, Revision 08) in a 6-book technical publication set. It’s designed for trained service personnel and provides structured guidance for safe servicing, system understanding, diagnostics, calibrations, and maintenance workflows used in the field.
✅ What this manual helps you do
Follow safety & hazard standards (electrical, mechanical, radiation precautions) before servicing.
Use the Service Desktop menus, tools, utilities, and diagnostics to troubleshoot faster.
Understand the system block diagrams and how data flows through console → gantry → image chain.
Reference hardware, boards, connectors, pinouts, power distribution, and replacement/retest workflows.
🗂️ Table of Contents

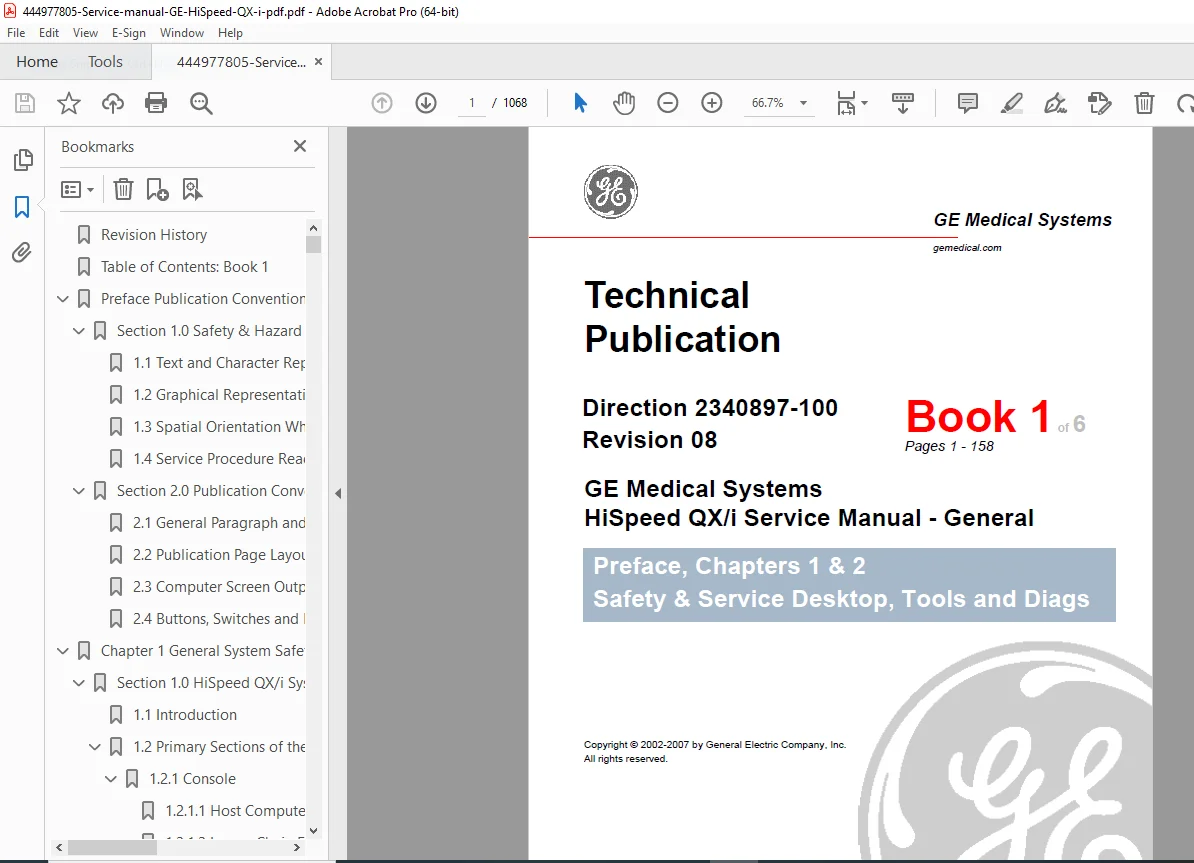

Book 1 (Pages 1–158): Preface + Safety + Service Desktop / Tools
Preface / Publication Conventions
Chapter 1: General System Safety & Service
HiSpeed QX/i System Overview (Console, Gantry, Table)
Normal System Operational Safety (hazards, indicators, E-Stop, interlocks)
Equipment service safety notes (gantry/table/console, chemicals & materials, fastener torque, etc.)
Chapter 2: Service Desktop, Tools, and Diagnostics
Service Desktop menus, resets, diagnostics GUI
Scanner utilities (Tube warmup, FastCal, DAS gain calibration, collimator calibration)
Tools: Log Viewer, Flash Download Tool, Diagnostic Data Collection (DDC), Scan Data Analysis, DAS tools, X-ray generation tools, data path tests
Book 4 (TOC excerpt shown): Detector / DAS / MDAS + Replacement Procedures

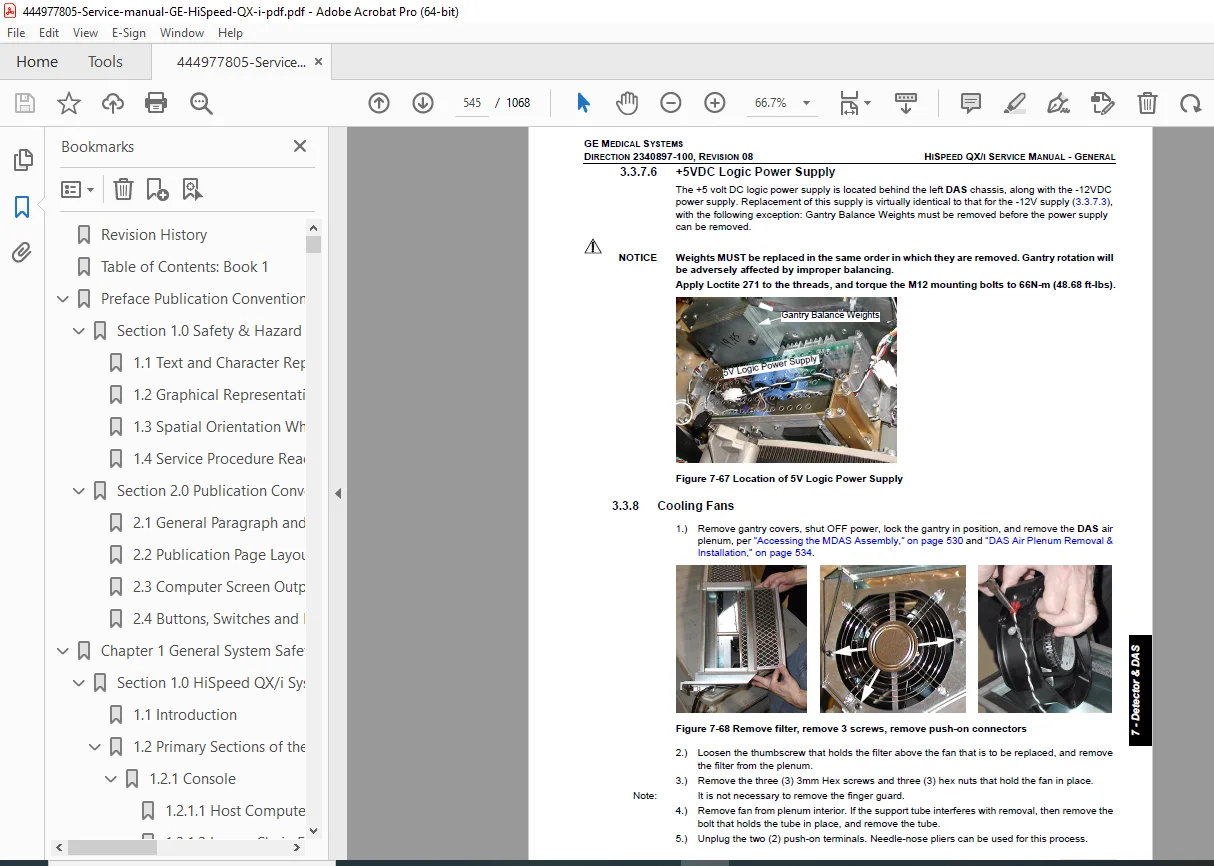

Detector heater power supply, detector flexes
DAS external interface pinouts (Cable A–I)
DAS backplanes, LEDs, test points
DAS Control Board (DCB), Detector Heater Control Board (DHCB), connector pinouts
DAS power supply adjustments
MDAS cleaning / de-ionizing procedure

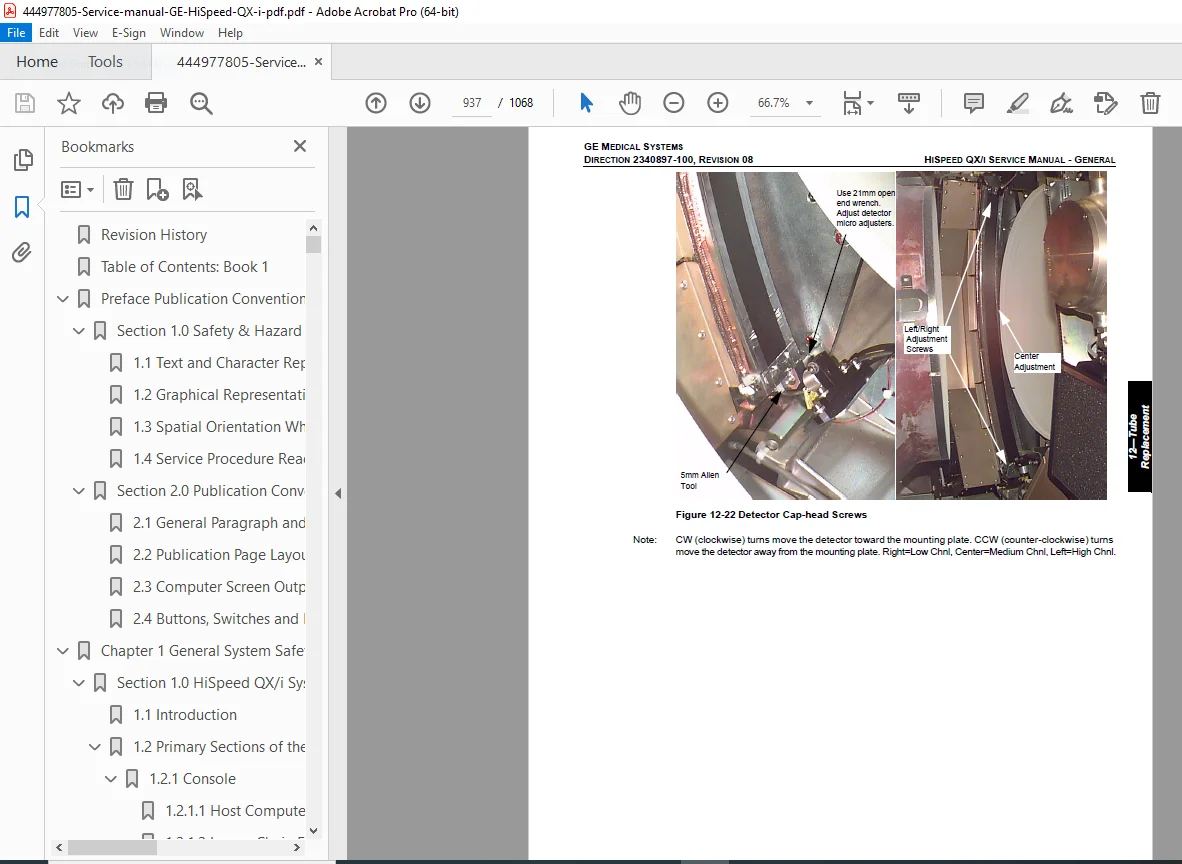

Replacement procedures (DMB, detector replacement, MDAS, converter boards, backplanes, power supplies, retest matrix)
Book 6 (TOC excerpt shown): Options / Records + ESD + Unix/Linux + Glossary
FlexTrial options (request, configuration, de-install)
Data record (site history, system tests)
Console hardware compatibility
ESD management & device handling
Unix & Linux commands (navigation, monitoring, editing, rebooting)
Glossary
Image Quality (section shown near Book 6 TOC)
Image series / scan protocol responsibilities and evaluation notes
📌 File Details
| Item | Details |
|---|---|
| Manual name | HiSpeed QX/i Service Manual – General |
| Models covered | GE HiSpeed QX/i CT Scanner |
| Year | Copyright 2002–2007 |
| Manual PDF quality | Technical publication (multi-book set) |
| No. of pages | ~1068 pages total |
Service it like the pros—get the complete HiSpeed QX/i factory service manual set with diagnostics, procedures, and hardware detail in one download. Buy now and access it instantly.
