GE W2000 Dragline For Electrical Equipment Manual BI180864 PDF

Description

GE W2000 Dragline For Electrical Equipment Manual BI180864 – PDF DOWNLOAD

FILE DETAILS:

GE W2000 Dragline For Electrical Equipment Manual BI180864 – PDF DOWNLOAD

Language : English
Pages : 1409
Downloadable : Yes
File Type : PDF

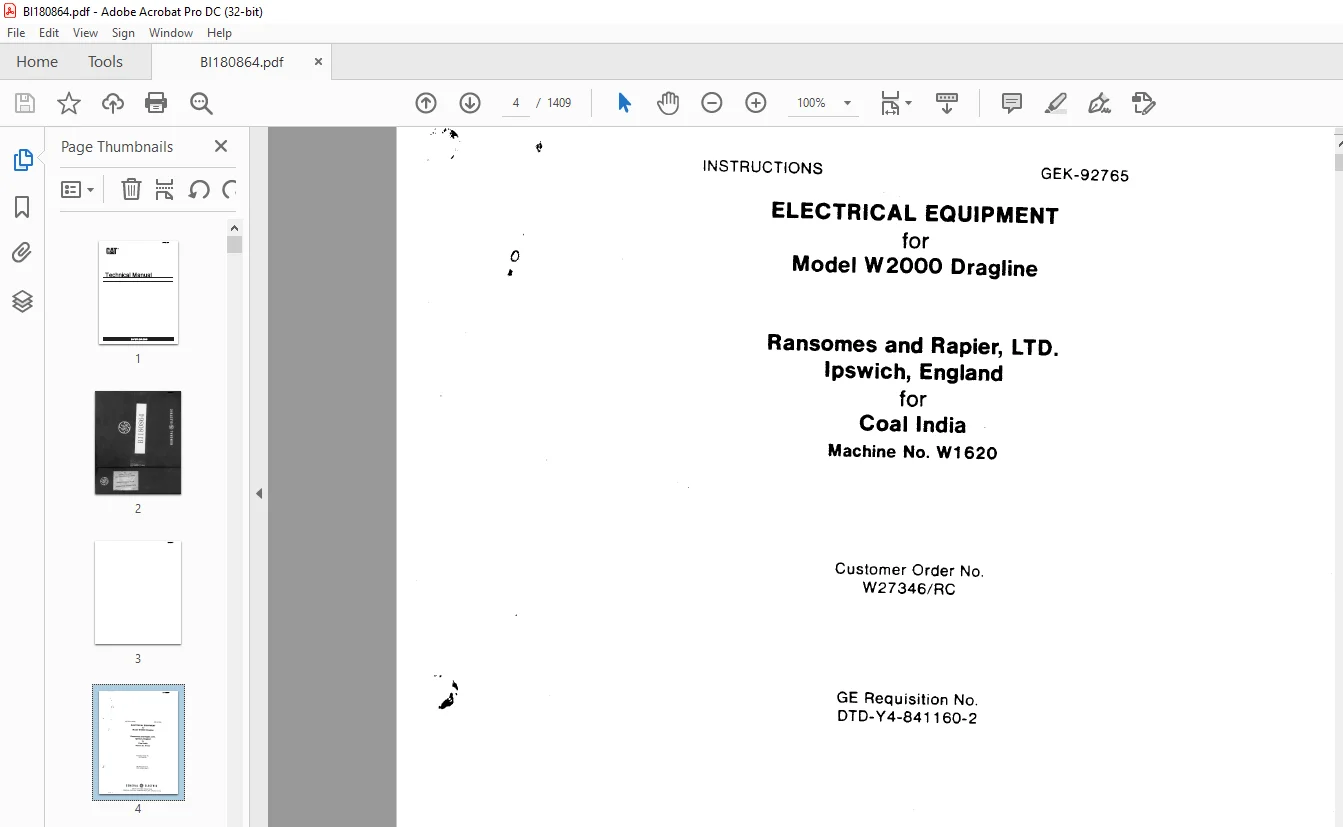

IMAGES PREVIEW OF THE MANUAL:

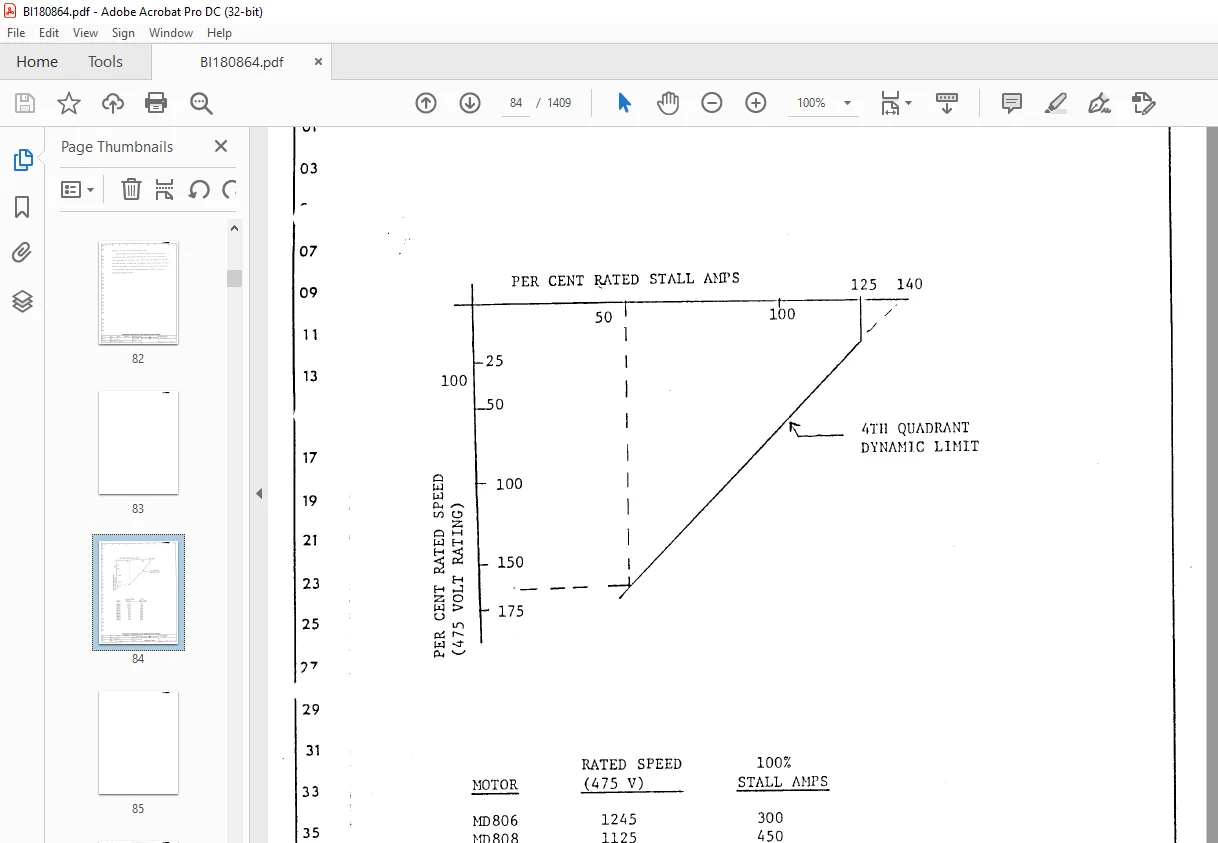

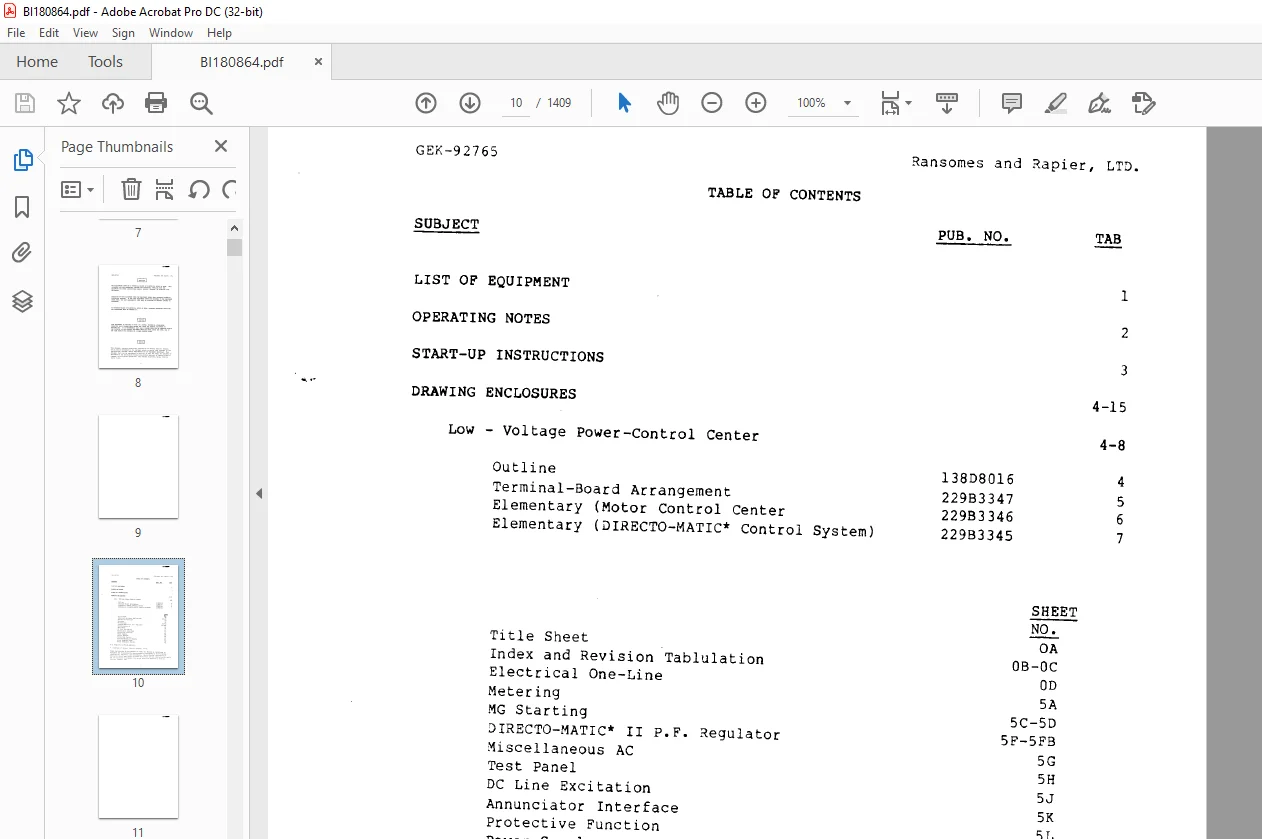

TABLE OF CONTENTS:

GE W2000 Dragline For Electrical Equipment Manual BI180864 – PDF DOWNLOAD

LIST OF EQUIPMENT
OPERATING NOTES
START-UP INSTRUCTIONS
DRAWING ENCLOSURES
Low – Voltage Power-Control Center
Outline
Terminal-Board Arrangement
Elementary (Motor Control Center
Elementary (DIRECTO-MATIC* Control System)
Title Sheet
Index and Revision Tablulation
Electrical One-Line
Metering
MG Starting
DIRECTO-MATIC* II P.F. Regulator
Miscellaneous AC
Test Panel
DC Line Excitation
Annunciator Interface
Protective Function
Power Supply
Switch Modules
Monitoring Circuit
Anti-Condensation Heaters
Hoist Armature Loop
Hoist Generator Fields

DESCRIPTION:

GE W2000 Dragline For Electrical Equipment Manual BI180864 – PDF DOWNLOAD

INTRODUCTION:

These notes are intended to provide a basic knowledge of the regulator theory,
regulator tune-up procedure and trouble shooting guidance. They cannot, of
course, cover all the possible details associated with the excavator but an
understanding of the material here will provide a good foundation for those
involved with the machine control functions. Those responsible for tune-up,
maintenance and trouble shooting should keep these notes readily available
and add supplementary notes based on experience with the control.

MODES OF OPERATION:

• A DC motor is capable of acting as a motor or a brake. The various modes
  of operation can be determined by knowing the direction of rotation and whether
  the motor is providing energy to drive n In.id or pmviclin”, hrakinr. action by
  absorbing energy from the load.
• Hoisting always requires the motor to provide energy to lift a load.
  Therefore, this is a MOTORING operation. On the other hand lowering usually
  requires the motor to hold back the load and is an OVERHAULING condition.
  That is, the force of gravity tries to accelerate the load beyond the intended
  speed, and the motor must actually provide a braking action.
• REGENERATIVE action is similar to the overhauling condition in that the motor
  must provide braking action. However, the term REGENERATION is reserved for a
  transient operation. For example, the torque required to decelerate a lowering
  load to rest is a regenerative operation. Regeneration may also occur in the
  hoisting direction. This is because the motor tries to slow the drive down
  faster than the weight of the load can decelerate the inertia of the drum and
  other rotating parts. Under this condition, the motor actually provides a
  braking effort to help slowdown the drive.

GE W2000 DRAGLINE FOR ELECTRICAL EQUIPMENT MANUAL BI180864 PDF:

S.V 29/03/2025
