Gehl 135 Mix-All Service Parts Manual 903478 – PDF DOWNLOAD

Description

Gehl 135 Mix-All Service Parts Manual 903478 – PDF DOWNLOAD

FILE DETAILS:

Gehl 135 Mix-All Service Parts Manual 903478 – PDF DOWNLOAD

Language : English
Pages : 84
Downloadable : Yes
File Type : PDF
Size: 4.77 MB

TABLE OF CONTENTS:

Gehl 135 Mix-All Service Parts Manual 903478 – PDF DOWNLOAD

Introduction (Mr Dealer) Inside Front Cover
Table of Contents I
Decal Locations 2-5
Frame & Axles 6
Concentrate Hopper & Drive 7
Tank & Discharge Conveyor 8-9
Implement Drive & Guards 10-11
Unloading Conveyor (Used Before S N4 l 36) 12-l 3
Unloading Conveyor (Used After SN4135) 14-15
Conveyor Winch (Used Before SN4l36) 16-17
Conveyor Winch (Used After SN4135) 18-19
Conveyor Drive (Used Before SN4336) 20
Conveyor Drive (Used After SN4335) 2 I
Transmission, Drive & Guards 22-23
Mill Frame & Blower 24-25
Mill Cylinder 26
Transmission 27
Universal Drives 28
H itchjack 29
Hydraulic Components – Valves, Regulator &
Motors 30-31
Hydraulics (Self-contained System) 32-33
Hydraulics (Tractor-powered System) 34
Options 35-57
PBF Hydraulics 35
PBF Cylinder Supports & Guards 36-37
PBF Cylinder & Drive 38-39
PBF Conveyor Table 40-41
PBF Hopper 42-43
Gravity Feeder (GF) 44
Page
SAF Trough Pivot & Support 45
SAF Trough (Before SN 10,001) 46-47
SAF Trough (After SNI0,000) 48-51
SAF Hopper & Hydraulic Controls 52-53
SAF/ FR Roller, Hopper & Hydraulic
Controls 54-55
Feed Roll (FR) Feeder 56-57
Accessories ; 58-69
Molasses Attachment 58-59
Wheel Set 59
Remote Unloading Conveyor Control 60-61
Control Box 62
Conveyor Worm Control 62
Auxiliary Remote Control 63
Conveyor Extension Pivot Brake 63
Folding Unloading Conveyor Extensions 64
Stationary Conveyor Extensions 65
Screens 65
Audible & Visual Alarm Indicators 65
Scale Kits – Analog & Digital 66
Scale Battery Mounting Kit 67
Double Bagger 67
Hopper Magnet 67
PBF Small Grain Auger 68
Fenders 69
PBF Table Extension 69
Numerical Index 70-77
Standard Hardware Torque Specifications
Inside Back Cover

DESCRIPTION:

Gehl 135 Mix-All Service Parts Manual 903478 – PDF DOWNLOAD

INTRODUCTION:

When ordering service parts, specify tht .correct part number, full description, quantity required, the . unit model number and serial number, The Mixer Model and Serial numbers are on·a decal located on the Frame member in the rear at the base of the Tank. The Swinging Auger Feeder (as applicable) Model and Serial numbers are also on a decal attached to the unit.

• The Power Bale Feeder. {as applicable) Model and Serial numbers are also on a decal attached · to the unit. “Right” and “Left” are determined from a position standing behind the Mixer.
• From this position the Feeder Attachment is on the right. GEHL Company reserves the right to make changes or improvements in the design or construction of any part of the unit without incurring the obligation to install such changes on any unit previously delivered.

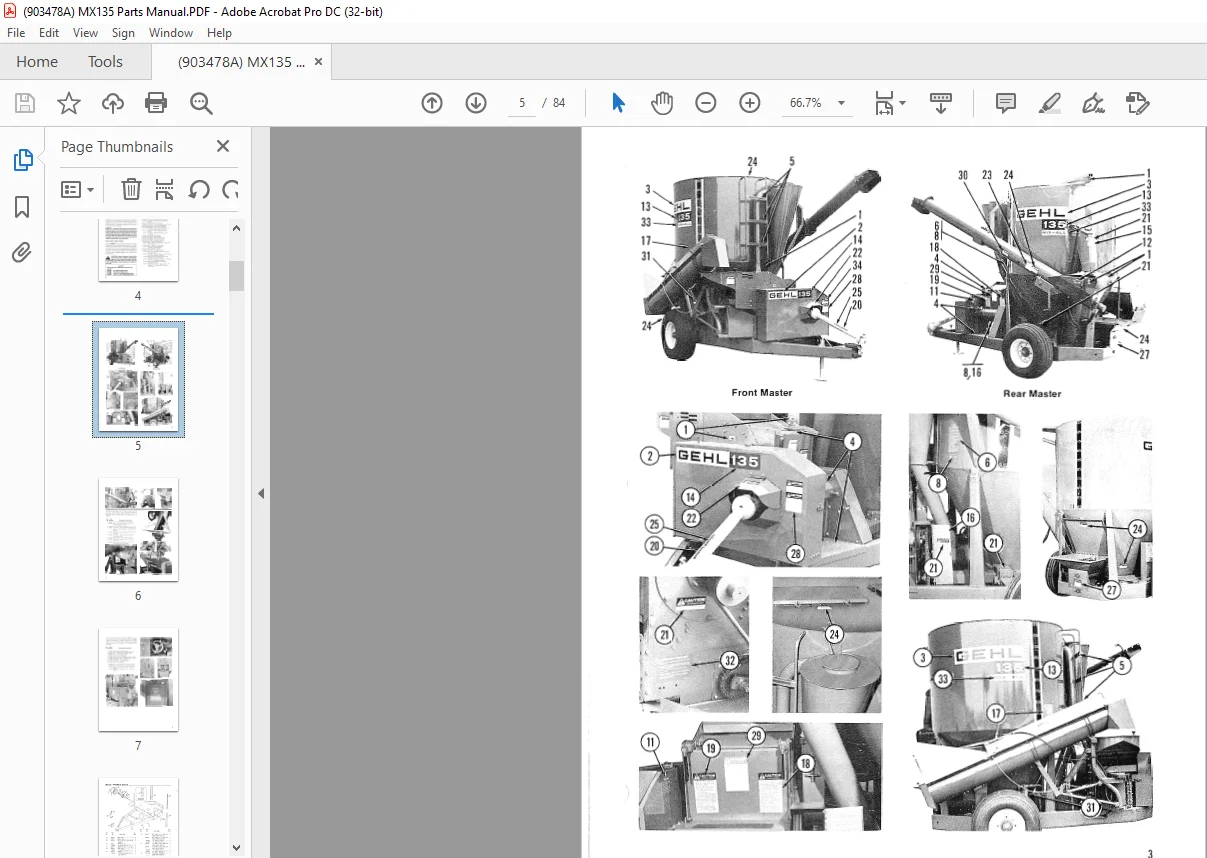

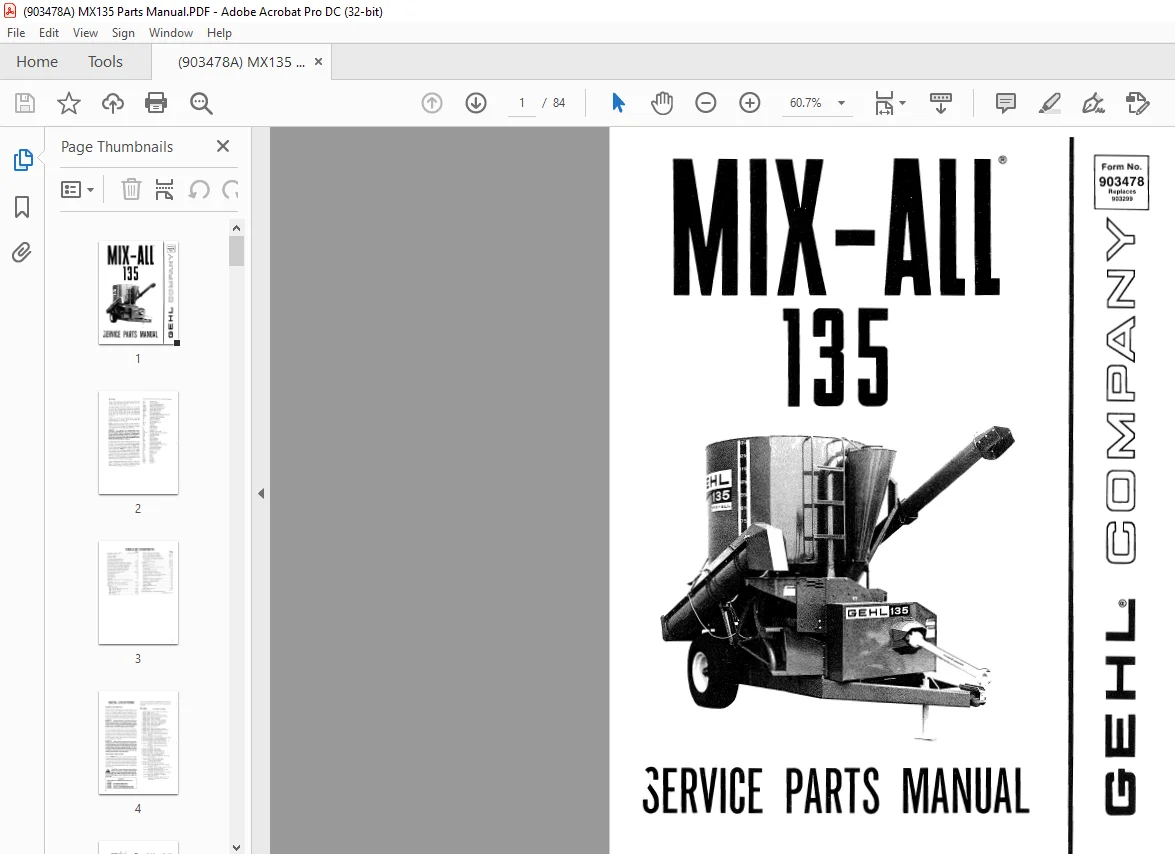

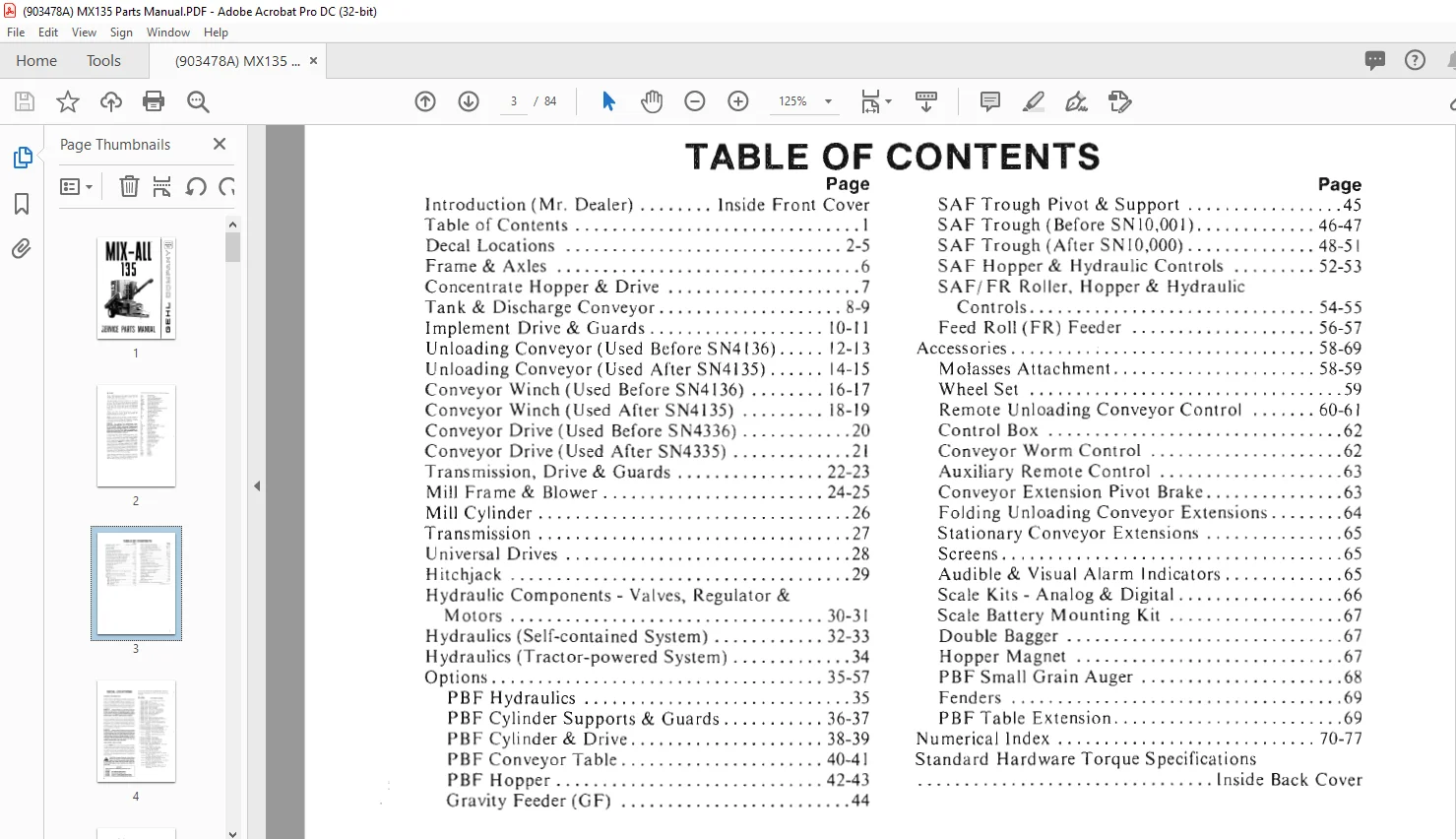

IMAGES PREVIEW OF THE MANUAL:
