Gehl 1540 1580 Forage Blowers Parts Manual(907570) – PDF DOWNLOAD

Description

Gehl 1540 1580 Forage Blowers Parts Manual(907570) – PDF DOWNLOAD

FILE DETAILS:
Gehl 1540 1580 Forage Blowers Parts Manual(907570) – PDF DOWNLOAD

Language : English
Pages : 54
Downloadable : Yes
File Type : PDF
Size: 1.51 MB

TABLE OF CONTENTS:

Gehl 1540 1580 Forage Blowers Parts Manual(907570) – PDF DOWNLOAD

Introduction

• When ordering service parts, specify the correct part number, full description, quantity required, the unit model number and serial number. The Forage Blower model and serial numbers are on a plate located on the left side of the Rear Main Frame, adjacent to the Rotor Drive Sheave.
• “Right” and “Left” are determined from a position standing behind the Forage Blower. From this position, the Blower Outlet is toward the “left” side and the Infeed Hopper is on the “right” side. GEHL
• Company reserves the right to make changes or improvements in the design or construction of any part of the unit without incurring the obligation to install such changes on any previously delivered units.

DESCRIPTION:

Gehl 1540 1580 Forage Blowers Parts Manual(907570) – PDF DOWNLOAD

Introduction Inside Front Cover
Table Of Contents 1
Decal Locations 2–3
Spinner Bearings – After SN23900-1540 & SN7700-1580 4–5
Spinner Bearings – Before SN23901-1540 & SN7701-1580 6–7
Spinner Drive 8–9
Fan Assembly, Housing & Outlet 10–13
Frame & Wheels 14–15
Spinner Emergency Shutoff Control 16–17
Spinner Inlet 18–19
Hopper Inlet & Belt Cover 20–21
Hopper & Spinner Covers 22–23
FB1540 – 540 RPM Telescoping Drive (35 Series)(After SN25500) 24
FB1540 – 540 RPM Telescoping Drive (35 Series)(Before SN25501) 25
FB1540 – 540 RPM Telescoping Drive (55 Series)(After SN25500) 26
FB1540 – 540 RPM Telescoping Drive (55 Series)(Before SN25501) 27
FB1580 – Transmission (After SN7316) 28
FB1580 – Transmission (Before SN7317 & After SN6442) 29
FB1580 – Transmission (Before SN6443) 30
FB1540 – 540 RPM Telescoping Drive (55 Series)(After SN8413) 31
FB1540 – 540 RPM Telescoping Drive (44 Series)(After SN6442 & Before SN7317) 32
FB1540 – 540 RPM Telescoping Drive (55 Series)(After SN7316 & Before SN8413, Before SN6443) 33
FB1580 – 1000 RPM Telescoping Drive (44 Series)(After SN8450) 34
FB1580 – 1000 RPM Telescoping Drive (44 Series)(After SN8450 & Before SN7317) 35
FB1580 – 1000 RPM Telescoping Drive (44 Series)
(After SN7316 & Before 8451, After SN5700 & Before SN6643) 36
FB1580 – 1000 RPM Telescoping Drive (35 Series)(Before SN5701) 37
Optional Equipment 38–44
Water Injection System 38
Tire Guard 39
9 Inch Blower Pipes & Elbows 40
Adjustable Deflector 41
9 Inch Quick Clamp 42
Small Grain Shield 43
Flexible Deflector 43
Safety Chain 44
Index 45
Numerical Index 46–50
Standard Hardware Torque Specifications Inside Back Cover

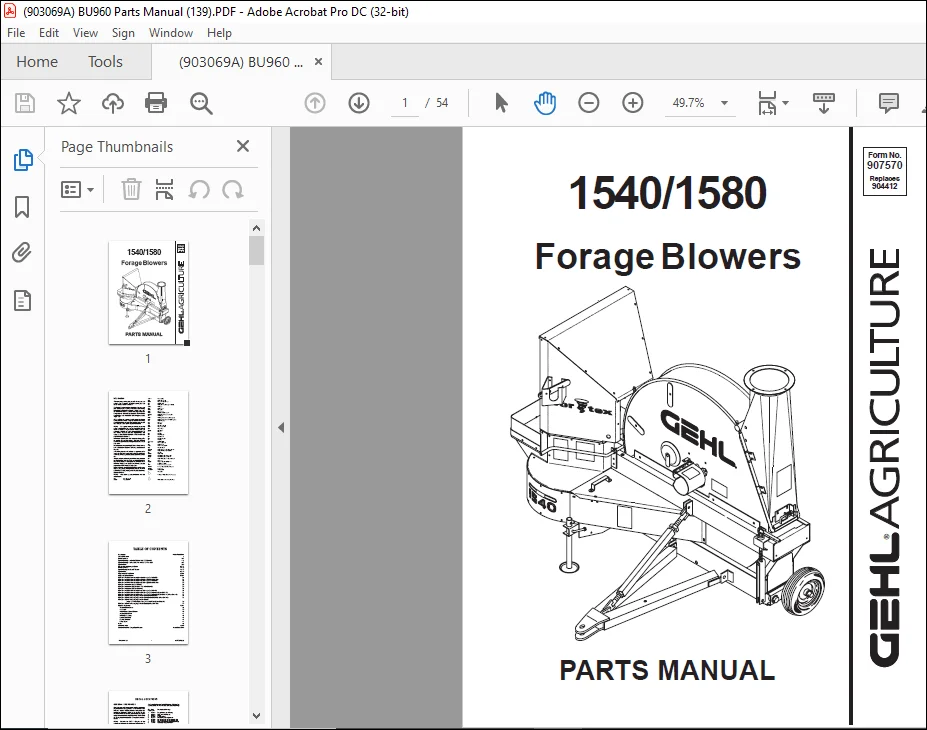

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:

• This is not a physical manual but a digital manual – meaning no physical copy will be couriered to you. The manual can be yours in the next 2 mins as once you make the payment, you will be directed to the download page IMMEDIATELY.
• This is the same manual used by the dealers inorder to diagnose your vehicle of its faults.
• Require some other service manual or have any queries: please WRITE to us at [email protected]

S.M
