Gehl 2350 Disc Mower Conditioner Service Parts Manual(904228) – PDF DOWNLOAD

Description

Gehl 2350 Disc Mower Conditioner Service Parts Manual(904228) – PDF DOWNLOAD

FILE DETAILS:

Gehl 2350 Disc Mower Conditioner Service Parts Manual(904228) – PDF DOWNLOAD

Language : English
Pages : 44
Downloadable : Yes
File Type : PDF
Size: 2.93 MB

TABLE OF CONTENTS:

Gehl 2350 Disc Mower Conditioner Service Parts Manual(904228) – PDF DOWNLOAD

Introduction Inside Front Cover
Table of Contents 1
Primary Gearbox (Before SN2801) 10-11
Primary Gearbox (After SN2800) 12-13
Drum DriveGearbox 14-15
BottomRollerMounting 25
Decal Locations 2-3
Main Frame, Suspension & Rear Guard 4-5
Drawbar 6-7
Front Guard, Apron, Side Panels & Swathdoors 8-9
CutterbM Support 16
CutterbarAssemblyHardware
CutterbM Assembly 18-19
Cutterbar Discs (Before SN2251) 20-21
Cutterbar Discs (After SN2250)
Conditioning Roller Drive Gearbox
TopRollerMounting
Roller Assemblies 27
Left Lift Cylinder 28
Right Lift Cylinder 29
Standard 540 RPM Telescoping Drive 30
Standard540RPMPTOClutches
Optional 1000 RPM Telescoping Drive
Optional 1000 RPM PTO Clutches 33
Accessories
Drawbar Pivot Hydraulic Cylinder Control Kit(s)
Drawbar Pivot Hydraulic Cylinder

35
Numerical Index
~
37-40
Standard Hardware Torque Values Inside Back Cover

DESCRIPTION:

Introduction:

•  When ordering service parts, specify the correct part number, full description, quantity required, and the unit model and serial numbers. Model and Serial numbers for this unit are on a Decal located on the left side of the Main Frame, near the Drawbar anchor point.
• “Right” and “Leftn are determined from a position standing behind the machine. From this position, the Drawbar is on the left. GEHL Company reserves the right to make changes or improvements in the design or construction of any part of the unit without incurring the obligation to install such changes on any previously delivered units.
• The hardware listed is for mounting information and is NOT included with the replacement part. Refer to the following abbreviations table for fastener descriptions.. In the Parts List, if a number precedes the abbreviation, the nwnber represents either quantity required (if ollIer than one per item) or size.

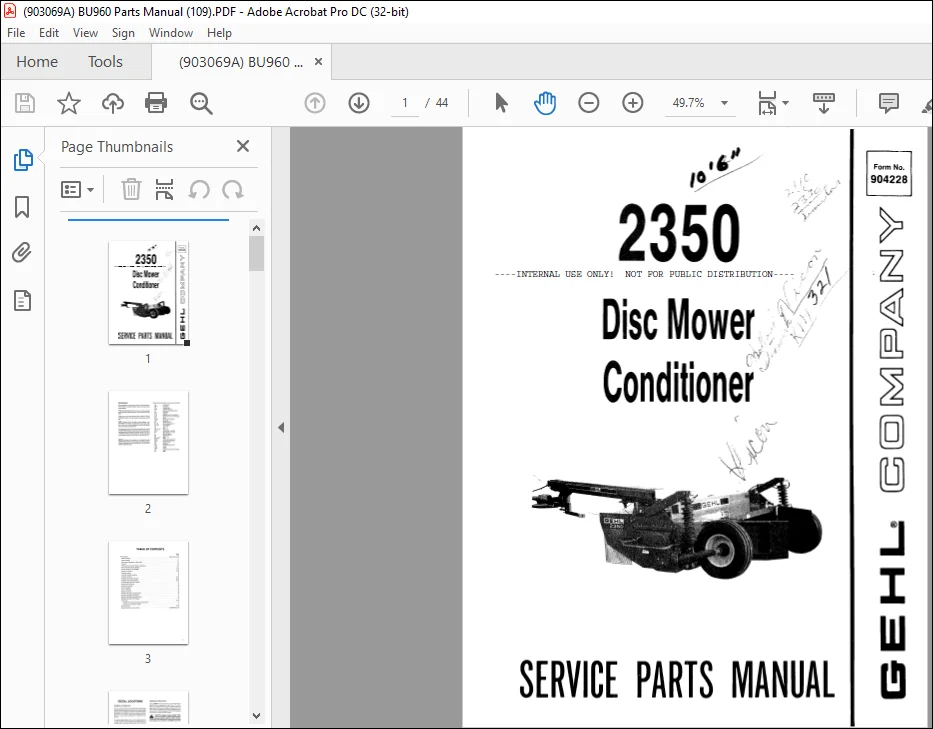

IMAGES PREVIEW OF THE MANUAL:
