Gehl 300 Series Scavenger II Manure Spreader Parts Manual 907504 – PDF DOWNLOAD

Description

Gehl 300 Series Scavenger II Manure Spreader Parts Manual 907504 – PDF DOWNLOAD

FILE DETAILS:

Gehl 300 Series Scavenger II Manure Spreader Parts Manual 907504 – PDF DOWNLOAD

Language : English
Pages : 80
Downloadable : Yes
File Type : PDF
Size: 1.3 MB

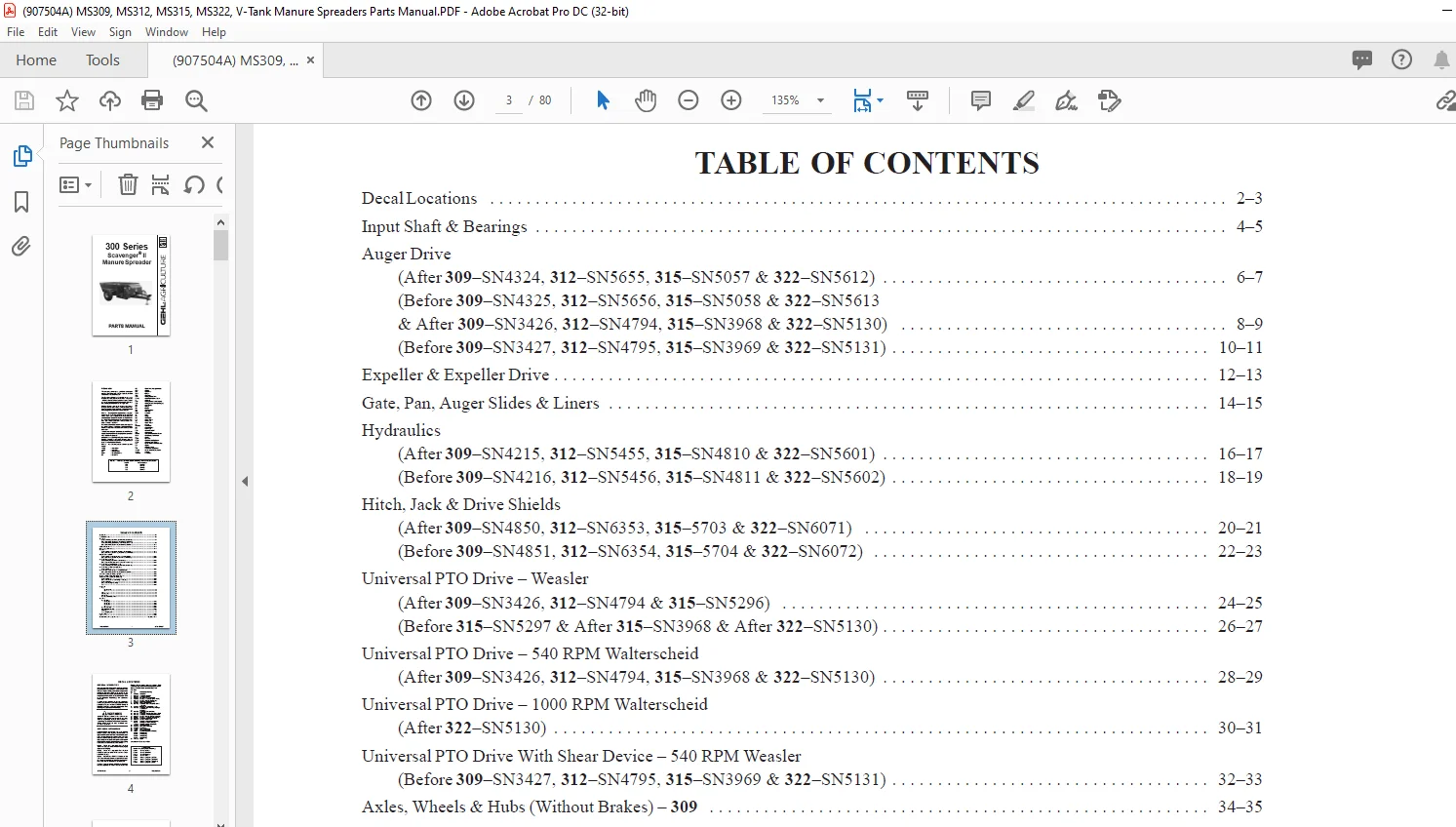

TABLE OF CONTENTS:

Gehl 300 Series Scavenger II Manure Spreader Parts Manual 907504 – PDF DOWNLOAD

Decal Locations 2–3
Input Shaft & Bearings 4–5
Auger Drive
(After 309–SN4324, 312–SN5655, 315–SN5057 & 322–SN5612) 6–7
(Before 309–SN4325, 312–SN5656, 315–SN5058 & 322–SN5613
& After 309–SN3426, 312–SN4794, 315–SN3968 & 322–SN5130) 8–9
(Before 309–SN3427, 312–SN4795, 315–SN3969 & 322–SN5131) 10–11
Expeller & Expeller Drive 12–13
Gate, Pan, Auger Slides & Liners 14–15
Hydraulics
(After 309–SN4215, 312–SN5455, 315–SN4810 & 322–SN5601) 16–17
(Before 309–SN4216, 312–SN5456, 315–SN4811 & 322–SN5602) 18–19
Hitch, Jack & Drive Shields
(After 309–SN4850, 312–SN6353, 315–5703 & 322–SN6071) 20–21
(Before 309–SN4851, 312–SN6354, 315–5704 & 322–SN6072) 22–23
Universal PTO Drive – Weasler
(After 309–SN3426, 312–SN4794 & 315–SN5296) 24–25
(Before 315–SN5297 & After 315–SN3968 & After 322–SN5130) 26–27
Universal PTO Drive – 540 RPM Walterscheid
(After 309–SN3426, 312–SN4794, 315–SN3968 & 322–SN5130) 28–29
Universal PTO Drive – 1000 RPM Walterscheid
(After 322–SN5130) 30–31
Universal PTO Drive With Shear Device – 540 RPM Weasler
(Before 309–SN3427, 312–SN4795, 315–SN3969 & 322–SN5131) 32–33
Axles, Wheels & Hubs (Without Brakes) – 309 34–35
Single Axle, Wheels & Hubs (Without Brakes) – 312 36–37
Tandem Axles, Wheels & Hubs (Without Brakes)
(After 312–SN5855) 38–39
(Before 312–SN5856 & 315–SN4891)(2-1/2″ Spindles) 40–41
(After 315–SN4890) 42–43
(Before 315–SN4891)(3″ Spindles) 44–45
322 46–47
Components
Jacks
309, 312 & 315 48
322 49
Augers 50
Auger Cylinders 51
Gate Cylinders 52
Hydraulic Lid Cylinders – 322 53
Accessories
Hydraulic Brakes
309 (Export) 54–55
312 (Export) 56–57
315 (Export) 58–59
322 60–61
Hydraulic Lid – 322 62–63
Splash Guards & Side Rails 64–65
Safety Chains 66
Transport Lighting Kits 67
Numerical Index 68–73
Index 74–75
Standard Hardware Torque Specifications Inside Back Cover
907504/AP1096 2 Printed in U S A

DESCRIPTION:

Gehl 300 Series Scavenger II Manure Spreader Parts Manual 907504 – PDF DOWNLOAD

Introduction :

When ordering service parts, specify the correct part number, full description, quantity required, the unit model number and serial number. The Spreader model and serial numbers are on a plate located on the front, left corner of the Tank. “Right” and “Left” are determined from a position standing behind the Spreader and facing in the direction of travel.

• From this position, the Expeller is on the “right” side. GEHL Company reserves the right to make changes or improvements in the design or construction of any part of the unit without incurring the obligation to install such changes on any previously delivered units.
• Refer to the abbreviations table located on this page for the various fastener descriptions. Standard attaching hardware torque values are also provided on the inside back cover. Items shown in the parts list that do not have Reference Numbers are shown for reference purposes only and are NOT available for purchase. Unless otherwise specified, all Cap Screws or Bolts are Grade 5, cadmium or zinc plated; Hexagon Nuts for Grade 5 Screws or Bolts are Grade B; Hexagon Nuts for other Screws or Bolts are Grade A.

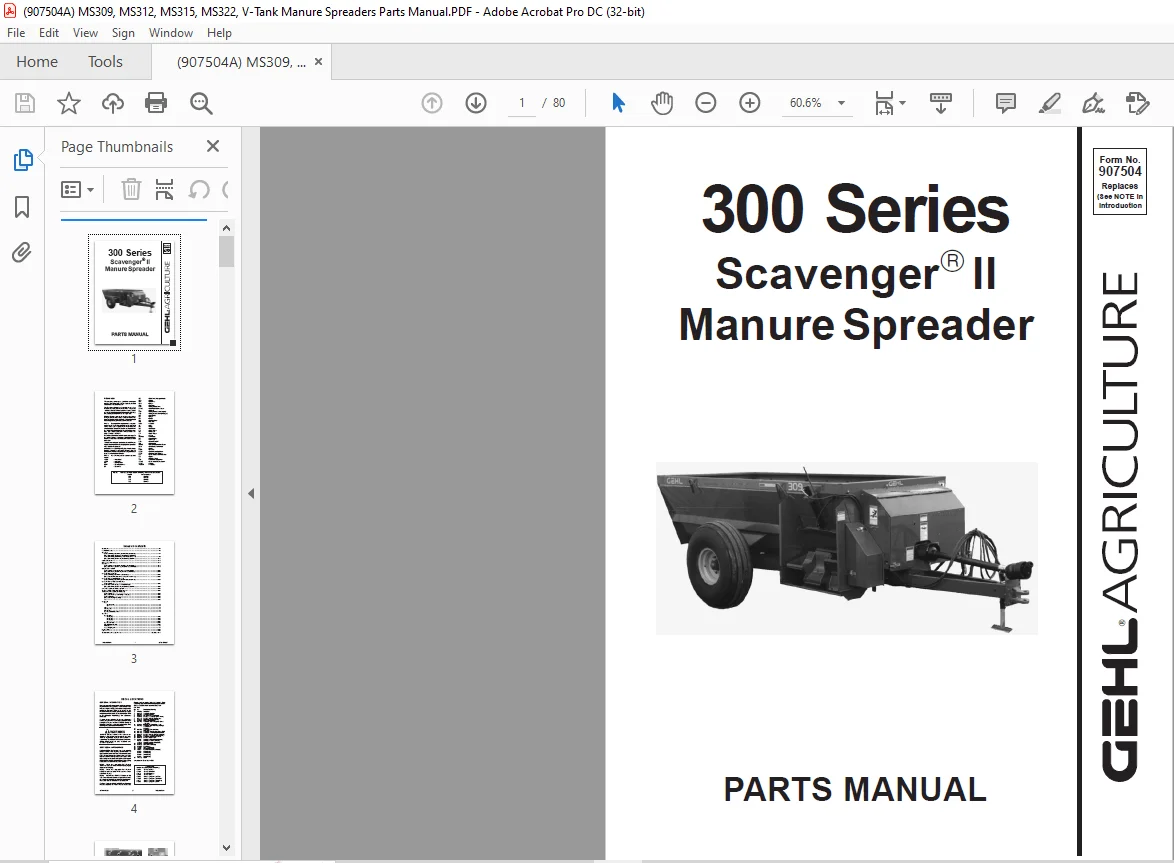

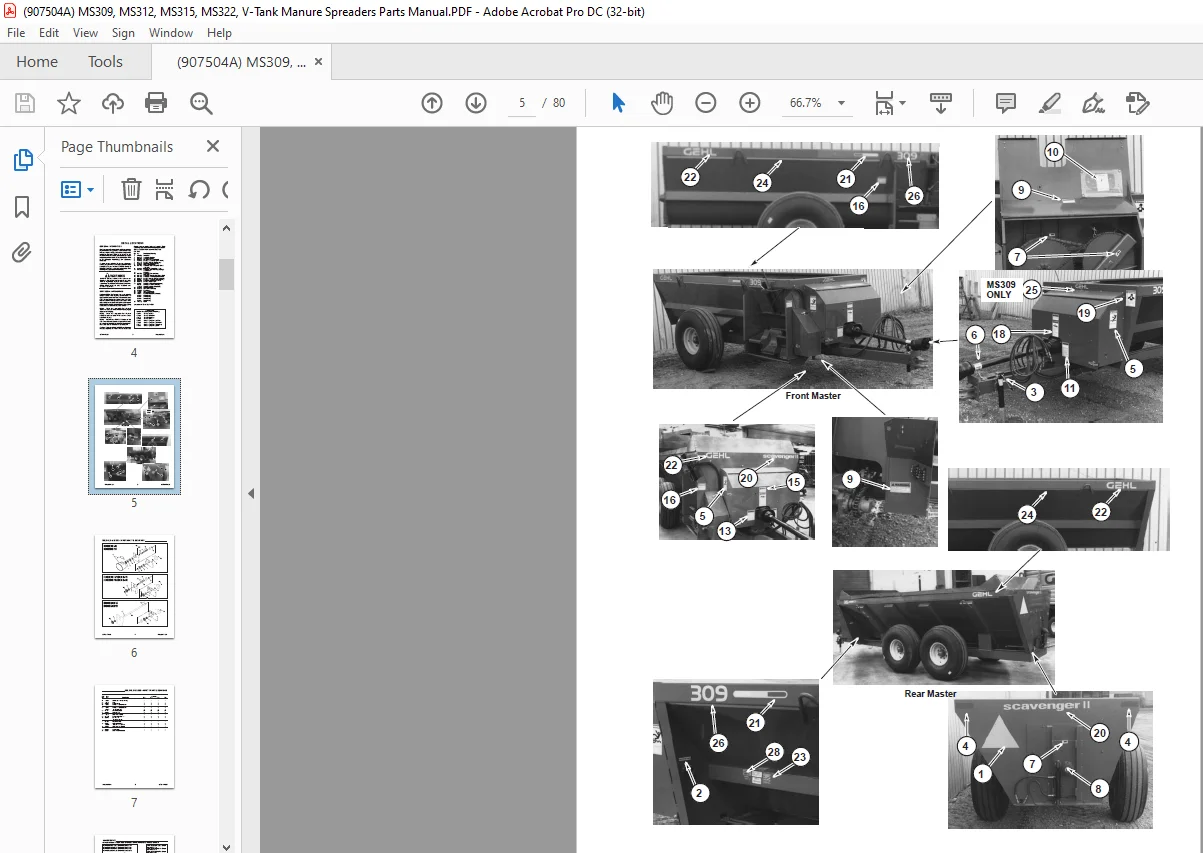

IMAGES PREVIEW OF THE MANUAL:
