Gehl 7435 7500 Mixer Feeders Parts Manual(907102) – PDF DOWNLOAD

Description

Gehl 7435 7500 Mixer Feeders Parts Manual(907102) – PDF DOWNLOAD

FILE DETAILS:

Gehl 7435 7500 Mixer Feeders Parts Manual(907102) – PDF DOWNLOAD

Language : English
Pages : 38
Downloadable : Yes
File Type : PDF
Size: 1.07 MB

TABLE OF CONTENTS:

Gehl 7435 7500 Mixer Feeders Parts Manual(907102) – PDF DOWNLOAD

Introduction Inside Front Cover
Table of Contents 1
Decal Locations 2-5
PTO, Hitchjack, Wheels, Discharge Gate & Hydraulics 6-7
Rear Drive & Guard 8-9
Chaincase 10-11
Axles, Scale & Weighbars 12-13
One-Piece Discharge Conveyor 14-15
Two-Piece Discharge Conveyor 16-17
Augers & Front Bearings 18
Transport Lights 19
Component Breakdowns 20-26
Hydraulic Motor & Cylinders 20
Hitchjack 21
Augers 22-23
Universal Drives 24-25
Gearbox (Powerhead No 8) 26
Accessories 27-30
Single Valve Conversion Kit 27
Battery Box 28
Magnet Assembly 28
Safety Tow Chain 29
Remote Scale Indicator (Requires Model 3200 Scale) 29
Audible & Visual Scale Alarms (Models 2100 & 3200 Only) 29
1000 RPM Conversion Kit 30
Alphabetical Index 31
Numerical Index 32-34
Standard Hardware Torque specifications Inside Back Cover

DESCRIPTION:

Gehl 7435 7500 Mixer Feeders Parts Manual(907102) – PDF DOWNLOAD

Introduction

When ordering service parts, specify the correct part number, full description, quantity required, the unit model number and serial number. The Mixer Feeder model and serial number is on a plate located on the left side of the Main Frame at the front left corner.

• “Right” and “Left” are determined from a position standing behind the Mixer Feeder facing the direction of travel. From this position, the Discharge Gate is on the “left” side.
• GEHL Company reserves the right to make changes or improvements in the design or construction of any part of the unit without incurring the obligation to install such changes on any previously delivered units.
• Refer to the abbreviations table located on this page for the various fastener descriptions. Standard attaching hardware torque values are also provided on the inside back cover.
• In the exploded view parts list, Reference Numbers may have additional information following the Reference Number. A Tear Drop symbol will indicate an application of a “wet” product such as oil, and the number inside the Tear Drop will correspond to the description in the Parts List.
• Also, a number inside of a hexagon will be the torque value required, in foot pounds, on the associated Reference Number. Items shown in the parts list that do not have Reference Numbers are shown for reference purposes only and are NOT available for purchase.
• Unless otherwise specified, all Cap Screws or Bolts are Grade 5, cadmium or zinc plated; Hexagon Nuts for Grade 5 Screws or Bolts are Grade B; Hexagon Nuts for other Screws or Bolts are Grade A.

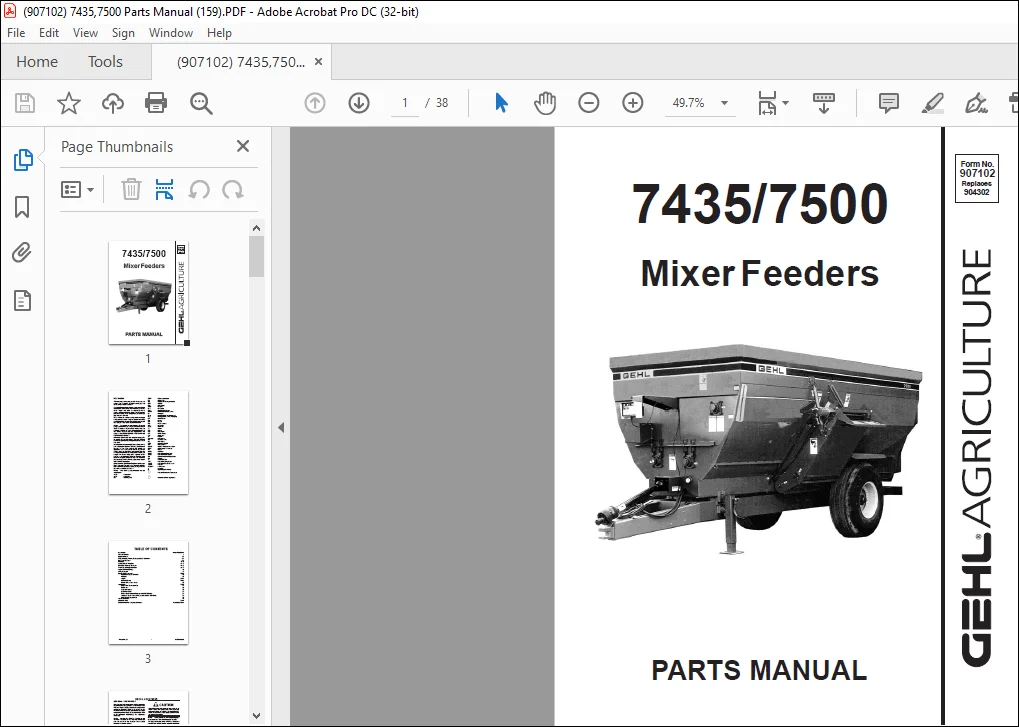

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]
