Gehl Center Pivot Mower Conditioner 2230 Service Parts Manual(903219A) – PDF DOWNLOAD

Description

Gehl Center Pivot Mower Conditioner 2230 Service Parts Manual(903219A) – PDF DOWNLOAD

FILE DETAILS:

Gehl Center Pivot Mower Conditioner 2230 Service Parts Manual(903219A) – PDF DOWNLOAD

Language : English
Pages : 36
Downloadable : Yes
File Type : PDF
Size: 5.93 mb

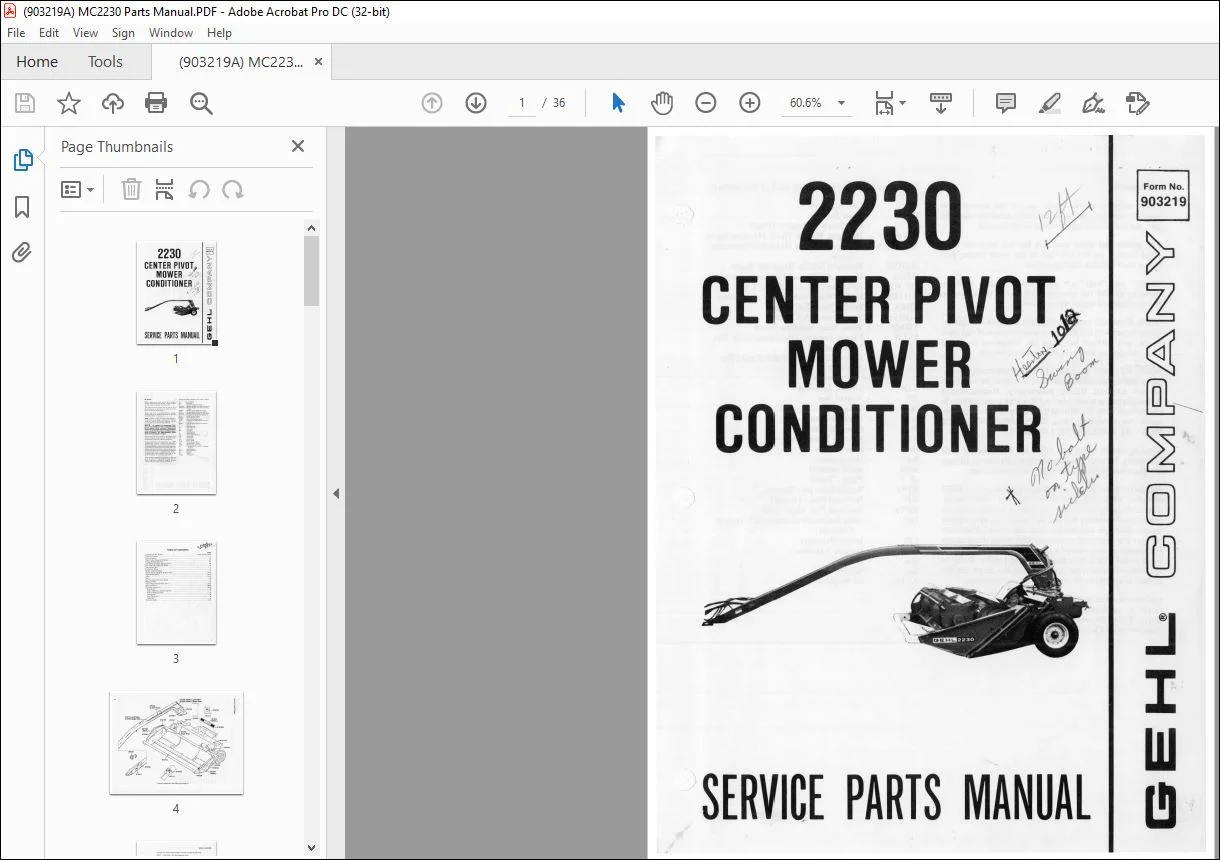

 IMAGES PREVIEW OF THE MANUAL:

 DESCRIPTION:

Gehl Center Pivot Mower Conditioner 2230 Service Parts Manual(903219A) – PDF DOWNLOAD

Mr. Dealer:

• When ordering service parts, specify the correct part number, full description, quantity required, the unit model number and serial number. Numbers for this unit are on a decal located under the Top Channel, near the Center Column of the Left Frame Assembly.
• “Right” and “Left” are determined from a position standing at rear of the unit facing the direction of travel. From this position, the Universal Drive and Transmission are on the left side.
• GEHL Company reserves the right to make changes or improvements in the design or construction of any part of the unit without incurring the obligation to install such changes on any unit previously delivered
• Common attaching hardware, such as nuts, cap screws, etc. is listed in the parts list but NOT illustrated, except where a particular routing or special fastening arrangement MUST be maintained. The hardware listed is for mounting purposes and is NOT included when the part is ordered for replacement.
• Refer to the abbreviations table for the various fastener descriptions. For the part number of common hardware, refer to the Attaching Hardware Table located on the Inside Back Cover. Standard hardware torque values are also provided on the same page.
• Unless otherwise specified, all Cap Screws or Bolts are Grade 5, cadmium or zinc plated; Hexagon Nuts for Grade 5 Cap Screws or Bolts are Grade B; Hexagon Nuts for other Cap Screws or Bolts are Grade A.

TABLE OF CONTENTS:

Gehl Center Pivot Mower Conditioner 2230 Service Parts Manual(903219A) – PDF DOWNLOAD

Introduction (Mr Dealer) Inside Front Cover
Table of Contents 1
Decal Locations 2-3
Main Frame Linkage & Flotation 4-5
Tongue & Hydraulic Drive 6-7
Jack, Hitch & Tongue Swing Control 8-9
PTO Hydraulic Pump (540 RPM) 10
Step-up Gear Box • 11
Hydrostatic Motor 12
Header Control Cylinders 13
Header Frame, Shields & Primary Drive 14-15
Auger & Reel Drive 16-17
Auger 18-19
Reel 20
Hay Conditioner Windrow Shield 21
Wheels & Hubs 21
Sickle, Guard (Tie) & Sickle Drive 22-23
Hay Conditioner 24-25
Options & Accessories 26-30
Reel Bat Kit 26
Center Skid Shoes & Wear Plate Kit 27
Stub-on-Stub Guard Kit 28
Swathing Kit 29
Crop Divider Kit 30
Paddle Kit 30
Numerical Index 31-32
