Gehl Forage Blowers 1540 1580 PARTS MANUAL(907570B) – PDF DOWNLOAD

Description

Gehl Forage Blowers 1540 1580 PARTS MANUAL(907570B) – PDF DOWNLOAD

FILE DETAILS:

Gehl Forage Blowers 1540 1580 PARTS MANUAL(907570B) – PDF DOWNLOAD

Language : English
Pages : 54
Downloadable : Yes
File Type : PDF
Size: 1.51 MB

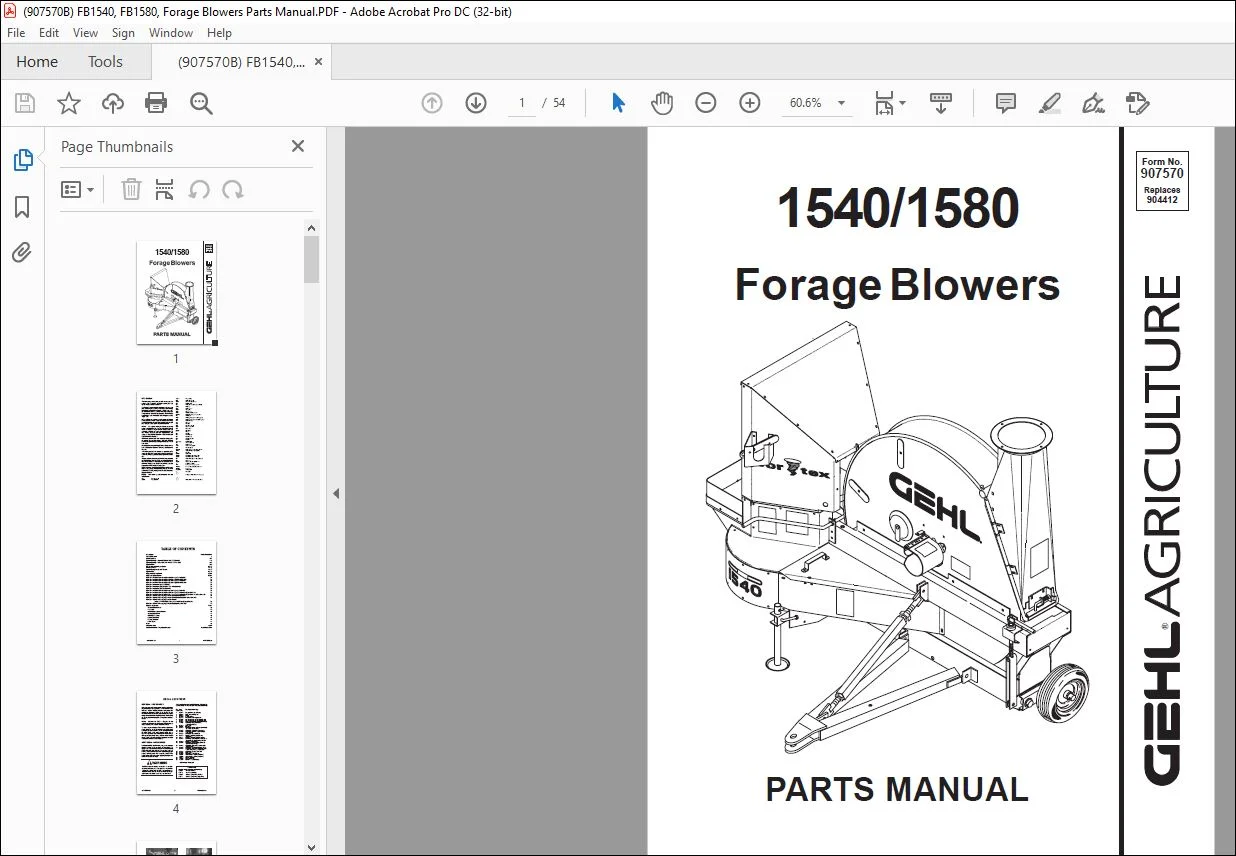

 IMAGES PREVIEW OF THE MANUAL:

 DESCRIPTION:

Gehl Forage Blowers 1540 1580 PARTS MANUAL(907570B) – PDF DOWNLOAD

• Introduction
• When ordering service parts, specify the correct part number, full description, quantity required, the unit model number and serial number. The Forage Blower model and serial numbers are on a plate located on the left side of the Rear Main Frame, adjacent to the Rotor Drive Sheave.
• “Right” and “Left” are determined from a position standing behind the Forage Blower. From this position, the Blower Outlet is toward the “left” side and the Infeed Hopper is on the “right” side.
• GEHL Company reserves the right to make changes or improvements in the design or construction of any part of the unit without incurring the obligation to install such changes on any previously delivered units.
• Refer to the abbreviations table located on this page for the various fastener descriptions. Standard attaching hardware torque values are also provided on the inside back cover. In the exploded view parts list, Reference Numbers may have additional information following the Reference Number.
• A Tear Drop symbol will indicate an application of a “wet” product such as oil, and the number inside the Tear Drop will correspond to the description in the Parts List. Also, a number inside a hexagon will be the torque value required, in foot pounds, on the associated Reference Number.
• Items shown in the parts list that do not have Reference Numbers are shown for reference purposes only and are NOT available for purchase. Unless otherwise specified, all Cap Screws or Bolts are Grade 5, zinc plated; Hexagon Nuts for Grade 5 Screws or Bolts are Grade B; Hexagon Nuts for other Screws or Bolts are Grade A.

TABLE OF CONTENTS:

Gehl Forage Blowers 1540 1580 PARTS MANUAL(907570B) – PDF DOWNLOAD

Inside Front Cover
Table Of Contents 1
Decal Locations 2–3
Spinner Bearings – After SN23900-1540 & SN7700-1580 4–5
Spinner Bearings – Before SN23901-1540 & SN7701-1580 6–7
Spinner Drive 8–9
Fan Assembly, Housing & Outlet 10–13
Frame & Wheels 14–15
Spinner Emergency Shutoff Control 16–17
Spinner Inlet 18–19
Hopper Inlet & Belt Cover 20–21
Hopper & Spinner Covers 22–23
FB1540 – 540 RPM Telescoping Drive (35 Series)(After SN25500) 24
FB1540 – 540 RPM Telescoping Drive (35 Series)(Before SN25501) 25
FB1540 – 540 RPM Telescoping Drive (55 Series)(After SN25500) 26
FB1540 – 540 RPM Telescoping Drive (55 Series)(Before SN25501) 27
FB1580 – Transmission (After SN7316) 28
FB1580 – Transmission (Before SN7317 & After SN6442) 29
FB1580 – Transmission (Before SN6443) 30
FB1540 – 540 RPM Telescoping Drive (55 Series)(After SN8413) 31
FB1540 – 540 RPM Telescoping Drive (44 Series)(After SN6442 & Before SN7317) 32
FB1540 – 540 RPM Telescoping Drive (55 Series)(After SN7316 & Before SN8413, Before SN6443) 33
FB1580 – 1000 RPM Telescoping Drive (44 Series)(After SN8450) 34
FB1580 – 1000 RPM Telescoping Drive (44 Series)(After SN8450 & Before SN7317) 35
FB1580 – 1000 RPM Telescoping Drive (44 Series)
(After SN7316 & Before 8451, After SN5700 & Before SN6643) 36
FB1580 – 1000 RPM Telescoping Drive (35 Series)(Before SN5701) 37
Optional Equipment 38–44
Water Injection System 38
Tire Guard 39
9 Inch Blower Pipes & Elbows 40
Adjustable Deflector 41
9 Inch Quick Clamp 42
Small Grain Shield 43
Flexible Deflector 43
Safety Chain 44
Index 45
Numerical Index 46–50
Standard Hardware Torque Specifications Inside Back Cover
