Gehl RB 1400 Baler Service Parts Manual(902510) – PDF DOWNLOAD

Description

Gehl RB 1400 Baler Service Parts Manual(902510) – PDF DOWNLOAD

TABLE OF CONTENTS:

Gehl RB 1400 Baler Service Parts Manual(902510) – PDF DOWNLOAD

Introduction , 3
Decai Locations : 4-5
Main Frame (Used before Serial #1753) 6-7
Main Frame (Used after Serial #1752) 8-9
Upper Belt Tension & Bale Size Mechanism 10
Twinebox & Twine Wrapping Mechanism 11
Implement Driveline Drawbar & Hitchjack 12-15
Pickup & Pickup Drive 16-17
Pickup Lift & Overfill Clutch 18
Transmission • 19
Roller Drive (Used before Serial #1753) 20-21
Roller Drive (Used after Serial #1752) 22-23
Hitch Jacks _ _ 24
Rear Gate with Hydraulics
(Used before Serial #1753) 26-27
Rear Gate with Hydraulics
(Used after Serial #1752) 28-29
Upper Belts & Rollers, Shuttle & Bale Starter 30-31
Platform Belt & Rollers
(Used before Serial #1753) 32-33
Platform Belt & Rollers
Universal Drives 36-37
Options · 38-41
Electric Twine Wrapping Kit 801143 38
Manual Twine Wrapping Kit 801797 39
1000 RPM Conversion Kit 801552 39
Light Crop Hold-down Kit 066779 40
Hydraulic Twine Wrapping Kit 801611 40
Dual Hydraulics Kit 801087 40
Wheel Set 850180 41
Wheel & Tire Set 801535 41
Bale Counter Kit 801782 41
Accessories : : , 42-44
Platform Belt Dutchman Kit 067152 42
72″ Platform Belt Lacing Pin Kit 901751 42
5″ Upper Belt Dutchman Kit 066782 43
6″ U pper Belt Dutchman Kit 059802 43
Slow-down Sprocket Kit 066780 • 43
Relacing Kit 80 l 086 44
Lacing Kit 901733 44
Roller Friction Surface Kit 901716 44
Packing Roller Lagging Kit 068633 44
Numerical Index 45-47

DESCRIPTION:

Gehl RB 1400 Baler Service Parts Manual(902510) – PDF DOWNLOAD

INTRODUCTION
Mr. Dealer:

• Give complete information when ordering service parts. Always give complete part number and also complete part description. The model number and serial number of the unit should always be given. Numbers for this unit are on a decai located under the Top Channel, near the Center Column of the Left Frame Assembly. ·
• “Right” and “Left” are determined from a position standing at rear of the unit facing the direction of travei. From this position, the Universal Drive and Transmission are on the left side.
• GEHL Company rese”rves the right to make changes or improvements in the design or construction of any pai:,t of the unit without incurring the obligation to install such changes on any unit previously delivered.

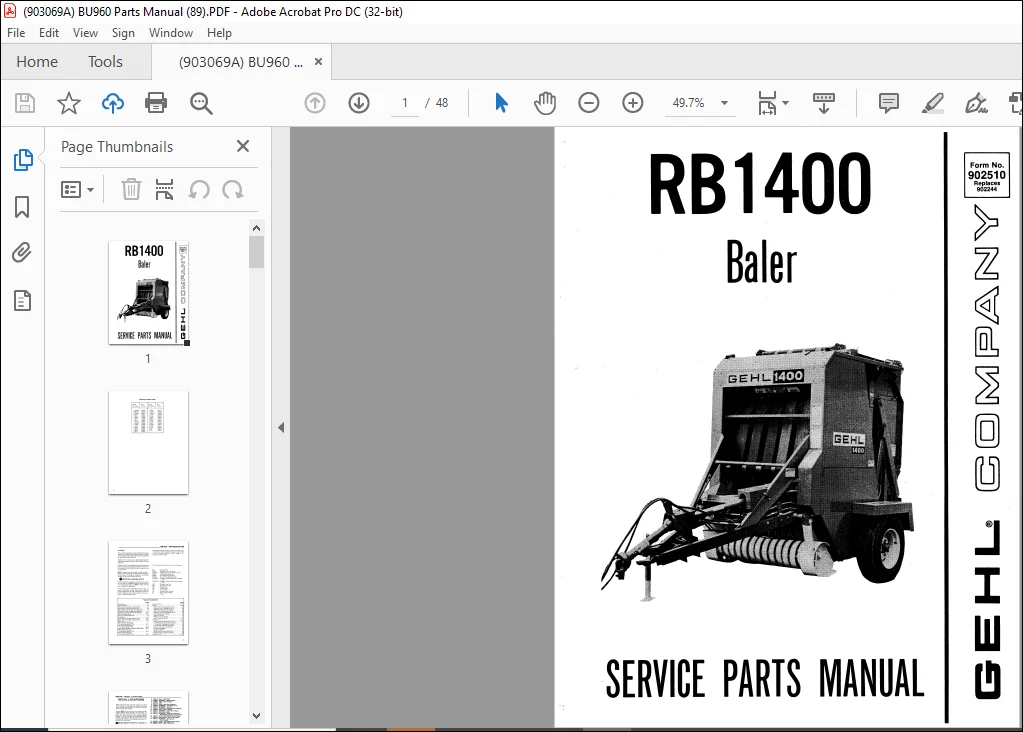

IMAGES PREVIEW OF THE MANUAL:
