Gehl RB1500 Baler Service Parts Manual(902586A) – PDF DOWNLOAD

Description

Gehl RB1500 Baler Service Parts Manual(902586A) – PDF DOWNLOAD

FILE DETAILS:

Gehl RB1500 Baler Service Parts Manual(902586A) – PDF DOWNLOAD

Language : English
Pages :32
Downloadable : Yes
File Type : PDF
Size:3.27 mb

DESCRIPTION:

Gehl RB1500 Baler Service Parts Manual(902586A) – PDF DOWNLOAD

Mr. Dealer:

When ordering service parts, specify the correct part number, full description, quantity required, the unit model number and serial number. The model number and serial number for this unit are on a decal located on the Main Frame below the right Quickswitch Yoke. “Right” and “Left” are determined from a position standing behind the unit and facing toward the direction of travel. From this position the Drive Chains are on the “Left” side. GEHL Company reserves the right to make changes or improvements in the design 0r construction of any part of the unit without incurring the obligation to install such changes on any unit previously deliver-ed.

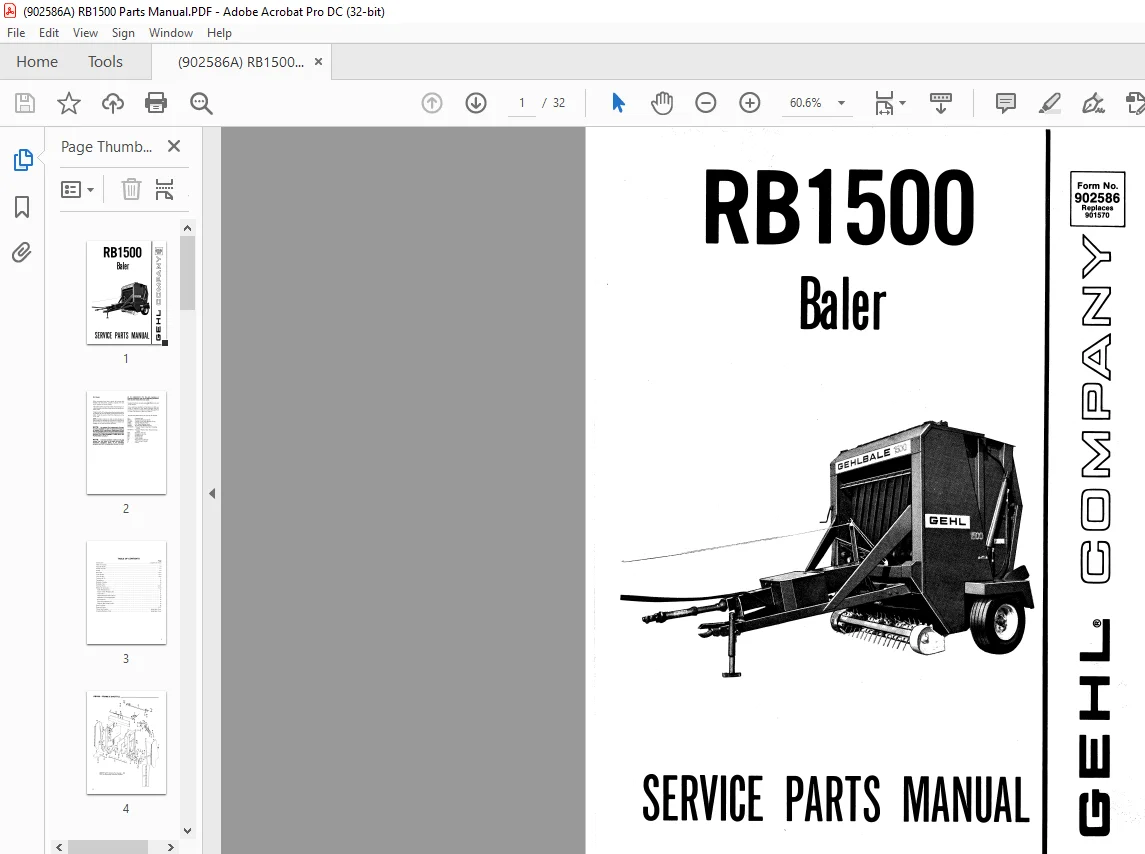

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Gehl RB1500 Baler Service Parts Manual(902586A) – PDF DOWNLOAD

1·ntroduction Inside Front Cover
Table of Contents I
Frame & Shuttle 2-5
PTO & Drawbar 6-7
Pickup , 8-9
Rear Gate 10 :1 I
Upper Rollers 12-13
Lower Rollers 14-15
Twinebox & Tie 17
Transmission 18
Hydraulic Cylinder 19
Hydraulic Valve 19
Universal Drives 20-21
Options & Accessories 21-23
Stalk Hold-down Kit , 2
Electric Twine Wrapping Kit 21
Control Box 21
Manual Hydraulic Shut Off Kit 23
Hydraulic Twine Wrapping Kit ‘ 23
Re-Lacing Kit 23
Slow-down Sprocket Kit · 23
Platform Belt Lacing Pin Kit 23
Decal Locations 24
Numerical Index ~ 25-27
Torque Specifications Inside Back Cover
Attaching Hardware Table Inside Back Cover
