Gehl RS5-19 Eaton Steer Motor Series 10 Service Manual 913306 – PDF DOWNLOAD

Description

Gehl RS5-19 Eaton Steer Motor Series 10 Service Manual 913306 – PDF DOWNLOAD

DESCRIPTION:

Gehl RS5-19 Eaton Steer Motor Series 10 Service Manual 913306 – PDF DOWNLOAD

Introduction

• This manual provides service information for Char-Lynn® Series 10 Steering Control Units
• Step by step instructions for complete disassembly, inspection and reassembly of the control unit are given. The following recommendations should be followed to insu re successful repairs.
• Most repairs require the removal of the control unit from the vehicle.
• Cleanliness is extremely important. • Clean the port areas 2 thoroughly before disconnecting the hydraulic lines.
• Plug the control unit ports and cover open hydraulic lines immediately after they have been disconnected.
• Drain the oil and clean the exterior of the control unit before making repairs.
• Wash all metal parts in clean solvent.
• Use filtered, moisturefree compressed air to dry the parts. Do not wipe them dry with paper towels or cloth – lint in a hydraulic system will cause damage.
• Always use new seals when reassembling hydraulic control units.
• Lubricate new rubber seals with a petroleum jelly before installation.
• Torque all bolts over gasketed joints, then repeat the torquing sequence to make up for gasket compression. After all repairs are complete it is essential to verify the accuracy of control unit repairs on an authorized test stand. EATON

TABLE OF CONTENTS:

Gehl RS5-19 Eaton Steer Motor Series 10 Service Manual 913306 – PDF DOWNLOAD

Introduction
ID Tag 2
Tools 3
Parts
Assembly Drawing 4
List 5
Disassembly 6-8
Assembly 9-16
Seal Installation 9-10

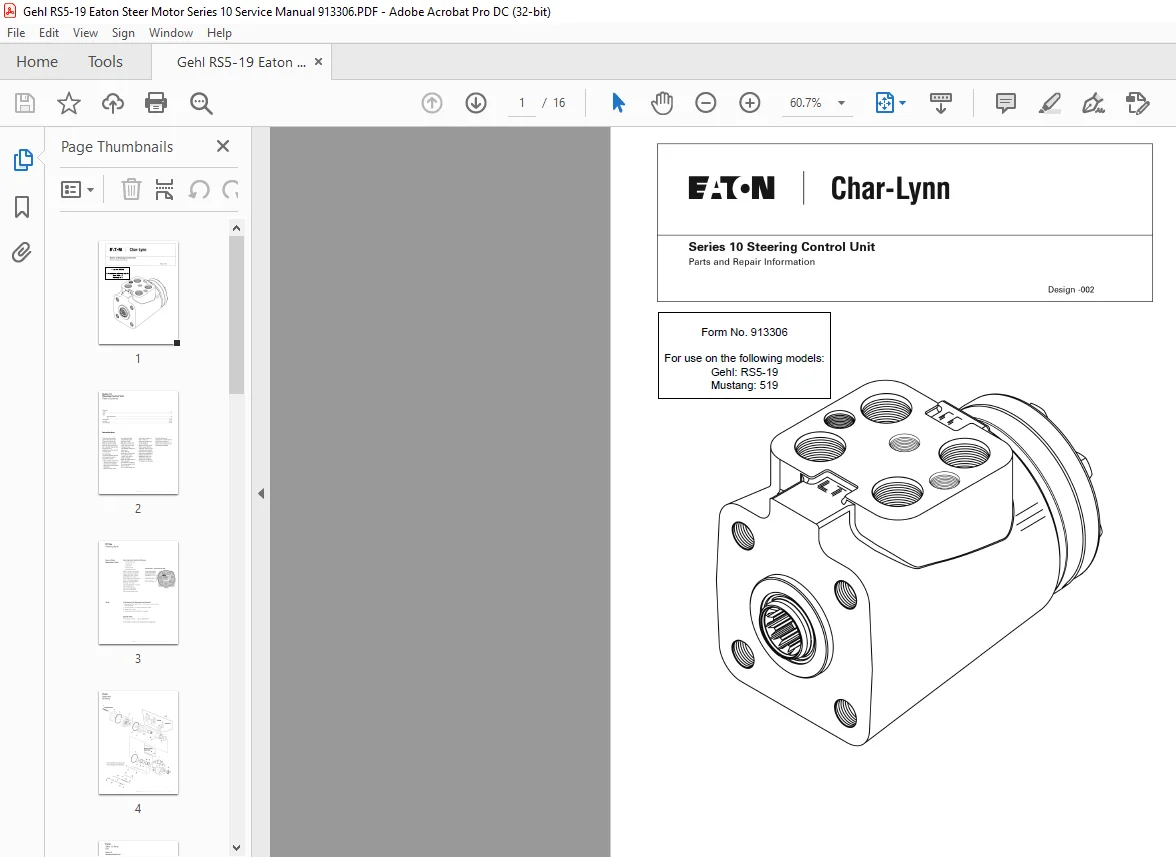

IMAGES PREVIEW OF THE MANUAL:

PLEASE NOTE:

• This is the same manual used by the DEALERSHIPS to SERVICE your vehicle.
• The manual can be all yours – Once payment is complete, you will be taken to the download page from where you can download the manual. All in 2-5 minutes time!!
• Need any other service / repair / parts manual, please feel free to contact us at heydownloadss @gmail.com . We may surprise you with a nice offer
