Gehl SL5635 & SL6635 Skid Loaders Deutz F 4M1011F Engine Parts Manual 907764 – PDF DOWNLOAD

Description

Gehl SL5635 & SL6635 Skid Loaders Deutz F 4M1011F Engine Parts Manual 907764 – PDF DOWNLOAD

FILE DETAILS:

Gehl SL5635 & SL6635 Skid Loaders Deutz F 4M1011F Engine Parts Manual 907764 – PDF DOWNLOAD

Language : English
Pages : 66
Downloadable : Yes
File Type : PDF
Size: 4 MB

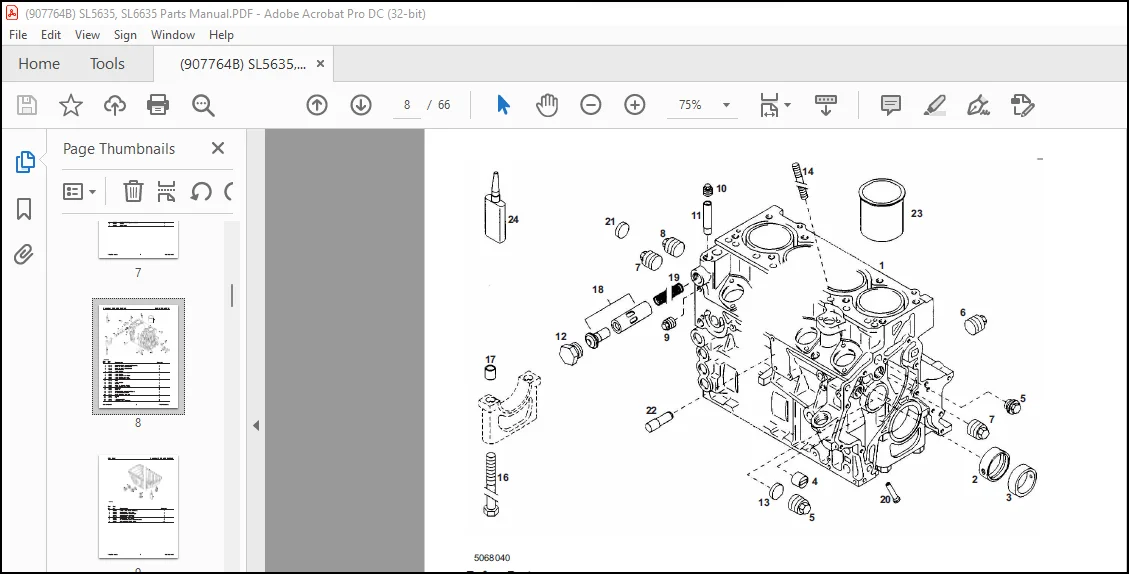

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Gehl SL5635 & SL6635 Skid Loaders Deutz F 4M1011F Engine Parts Manual 907764 – PDF DOWNLOAD

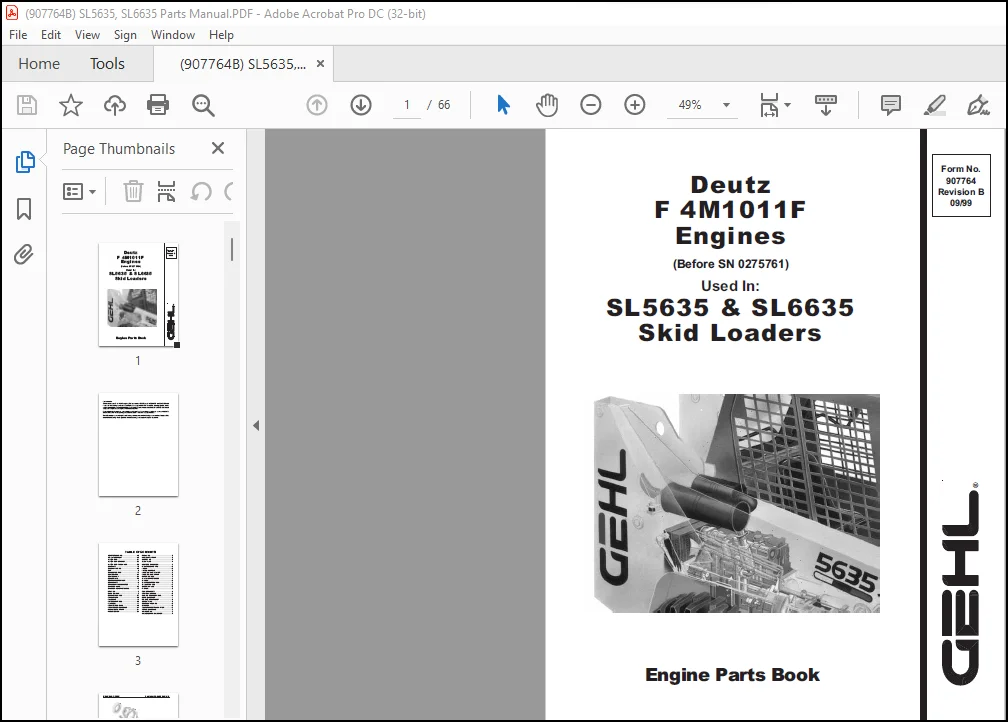

Introduction:

• This manual covers F 4M 1011F engines (Gehl part number 130321) used in SL5635SX and SL5635DX skid
  loaders. When ordering service parts, specify the correct part number, full description, quantity required, and the
  engine model number and serial number (located on a plate on the valve mechanical cover). NOTE: This manual
  only covers engines before engine serial number 0275761.
• Items shown that do not have a part number are shown for reference purposes only and are not available for
  purchase. Part numbers may change. Your Gehl dealer will have the latest part number.
  Gehl®Company reserves the right to make changes or improvements in the design or construction of any part of the
  unit without incurring the obligation to install such changes on any previously delivered units.

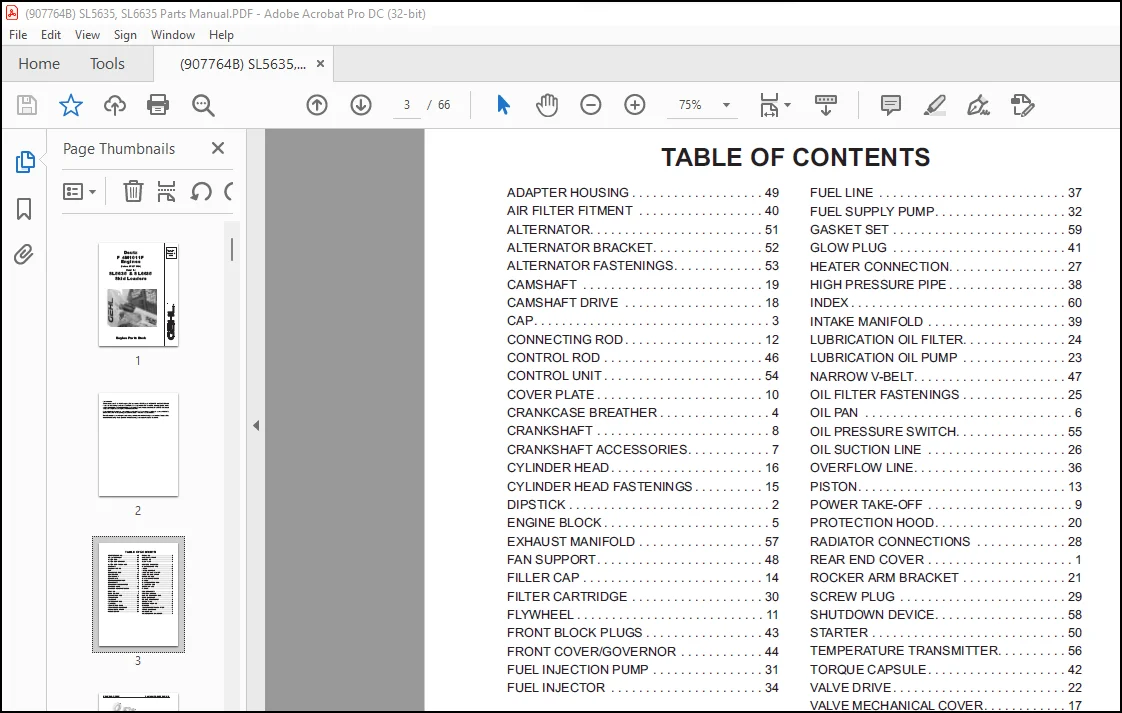

TABLE OF CONTENTS:

Gehl SL5635 & SL6635 Skid Loaders Deutz F 4M1011F Engine Parts Manual 907764 – PDF DOWNLOAD

ADAPTER HOUSING . . . . . . . . . . . . . . . . . . . 49
AIR FILTER FITMENT . . . . . . . . . . . . . . . . . . 40
ALTERNATOR. . . . . . . . . . . . . . . . . . . . . . . . . 51
ALTERNATOR BRACKET. . . . . . . . . . . . . . . . 52
ALTERNATOR FASTENINGS. . . . . . . . . . . . . 53
CAMSHAFT . . . . . . . . . . . . . . . . . . . . . . . . . . 19
CAMSHAFT DRIVE . . . . . . . . . . . . . . . . . . . . 18
CAP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
CONNECTING ROD. . . . . . . . . . . . . . . . . . . . 12
CONTROL ROD . . . . . . . . . . . . . . . . . . . . . . . 46
CONTROL UNIT . . . . . . . . . . . . . . . . . . . . . . . 54
COVER PLATE . . . . . . . . . . . . . . . . . . . . . . . . 10
CRANKCASE BREATHER . . . . . . . . . . . . . . . . 4
CRANKSHAFT . . . . . . . . . . . . . . . . . . . . . . . . . 8
CRANKSHAFT ACCESSORIES. . . . . . . . . . . . 7
CYLINDER HEAD. . . . . . . . . . . . . . . . . . . . . . 16
CYLINDER HEAD FASTENINGS . . . . . . . . . . 15
DIPSTICK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
ENGINE BLOCK . . . . . . . . . . . . . . . . . . . . . . . . 5
EXHAUST MANIFOLD . . . . . . . . . . . . . . . . . . 57
FAN SUPPORT. . . . . . . . . . . . . . . . . . . . . . . . 48
FILLER CAP . . . . . . . . . . . . . . . . . . . . . . . . . . 14
FILTER CARTRIDGE . . . . . . . . . . . . . . . . . . . 30
FLYWHEEL . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
FRONT BLOCK PLUGS . . . . . . . . . . . . . . . . . 43
FRONT COVER/GOVERNOR . . . . . . . . . . . . 44
FUEL INJECTION PUMP . . . . . . . . . . . . . . . . 31
FUEL INJECTOR . . . . . . . . . . . . . . . . . . . . . . 34
FUEL LINE . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
FUEL SUPPLY PUMP. . . . . . . . . . . . . . . . . . . 32
GASKET SET . . . . . . . . . . . . . . . . . . . . . . . . . 59
GLOW PLUG . . . . . . . . . . . . . . . . . . . . . . . . . 41
HEATER CONNECTION. . . . . . . . . . . . . . . . . 27
HIGH PRESSURE PIPE . . . . . . . . . . . . . . . . . 38
INDEX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
INTAKE MANIFOLD . . . . . . . . . . . . . . . . . . . . 39
LUBRICATION OIL FILTER. . . . . . . . . . . . . . . 24
LUBRICATION OIL PUMP . . . . . . . . . . . . . . . 23
NARROW V-BELT. . . . . . . . . . . . . . . . . . . . . . 47
OIL FILTER FASTENINGS . . . . . . . . . . . . . . . 25
OIL PAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
OIL PRESSURE SWITCH. . . . . . . . . . . . . . . . 55
OIL SUCTION LINE . . . . . . . . . . . . . . . . . . . . 26
OVERFLOW LINE. . . . . . . . . . . . . . . . . . . . . . 36
PISTON. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
POWER TAKE-OFF . . . . . . . . . . . . . . . . . . . . . 9
PROTECTION HOOD. . . . . . . . . . . . . . . . . . . 20
RADIATOR CONNECTIONS . . . . . . . . . . . . . 28
REAR END COVER . . . . . . . . . . . . . . . . . . . . . 1
ROCKER ARM BRACKET . . . . . . . . . . . . . . . 21
SCREW PLUG . . . . . . . . . . . . . . . . . . . . . . . . 29
SHUTDOWN DEVICE. . . . . . . . . . . . . . . . . . . 58
STARTER . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
TEMPERATURE TRANSMITTER. . . . . . . . . . 56
TORQUE CAPSULE. . . . . . . . . . . . . . . . . . . . 42
VALVE DRIVE . . . . . . . . . . . . . . . . . . . . . . . . . 22
VALVE MECHANICAL COVER. . . . . . . . . . . . 17
