Gehl SL5635 & SL6635 Skid Loaders Deutz F4M 1011F & BF4M 1011F Parts Manual – PDF DOWNLOAD

Description

Gehl SL5635 & SL6635 Skid Loaders Deutz F4M 1011F & BF4M 1011F Parts Manual – PDF DOWNLOAD

DESCRIPTION:

Gehl SL5635 & SL6635 Skid Loaders Deutz F4M 1011F & BF4M 1011F Parts Manual – PDF DOWNLOAD

Deutz
F4M 1011F
(SN 0275761 & Later)
&
BF4M 1011F
(SN 0262361 & Later)
Engines
Used In:
SL5635 & SL6635
Skid Loaders
Form No.
907828

Introduction :

• This manual covers F4M 1011F engines with serial number 0275761 and later, and BF4M 1011F engines with serial number 0262361 and later. The F4M 1011F (standard) engine is used in SL5635SX, SL5635DX and SL5635SX Series II skid loaders. The BF4M 1011F (turbo) engine is used in SL5635SXT, SL5635DXT, SL6635SXT, SL6635DXT, SL5635SXT Series II, SL5635DXT Series II, SL6635SXT Series II and SL6635DXT Series II skid loaders.
• When ordering service parts, specify the correct part number, full description, quantity required, and the engine model number and serial number (located on a plate on the valve mechanical cover). Items shown that do not have a part number are shown for reference purposes only and are not available for purchase. Gehl®Company reserves the right to make changes or improvements in the design or construction of any part of the unit without incurring the obligation to install such changes on any previously delivered units.

TABLE OF CONTENTS:

Gehl SL5635 & SL6635 Skid Loaders Deutz F4M 1011F & BF4M 1011F Parts Manual – PDF DOWNLOAD

ADAPTER HOUSING 54
AIR FILTER FITMENT 44
ALTERNATOR BRACKET 57
ALTERNATOR FASTENINGS 58
ALTERNATOR 56
BUFFER SPRING 47
CAMSHAFT DRIVE 19
CAMSHAFT 20
CAP 2
CONNECTING ROD 13
CONTROL ROD 51
CONTROL UNIT 60
COOLING AIR BAFFLE 59
COVER PLATE 11
CRANKCASE BREATHER 5
CRANKSHAFT ACCESSORIES 8
CRANKSHAFT 9
CYLINDER HEAD FASTENINGS 16
CYLINDER HEAD 17
DIPSTICK&DIPSTICK GUIDE 3
ENGINE BLOCK 6
EXHAUSTMANIFOLD 63
FAN SUPPORT 53
FILLER CAP 15
FILTER CARTRIDGE 33
FLYWHEEL 12
FRONT BLOCK PLUGS 48
FRONT COVER/GOVERNOR 49
FRONT COVER PLUG 66
FUEL INJECTION PUMP 34
FUEL INJECTOR 35
FUEL LINE 39
FUEL SUPPLY PUMP 37
GASKET SET 67
GLOWPLUG 45
HEATER CONNECTION 30
HIGH PRESSURE PIPE 40
INDEX 69
INTAKE MANIFOLD 41
LUBRICATION OIL FILTER 25
LUBRICATION OIL LINE 28
LUBRICATION OIL PUMP 24
OIL FILTER FASTENINGS 26
OIL PAN 7
OIL PRESSURE SWITCH 61
OILRETURN LINE 29
OIL SUCTION LINE 27
OVERFLOW LINE 38
PISTON 14
POWER TAKE-OFF 10
PROTECTION HOOD 21
RADIATOR CONNECTIONS 31
REAR END COVER 1
ROCKER ARM BRACKET 22
SCREW PLUG 32
SHUTDOWN DEVICE 65
STARTER 55
TEMPERATURE TRANSMITTER 62
TORQUE CAPSULE 46
TURBOCHARGER 43
VALVE DRIVE 23
VALVE MECHANICAL COVER 18
V-BELT 52

GEHL SL5635 & SL6635 SKID LOADERS DEUTZ F4M 1011F & BF4M 1011F PARTS MANUAL – PDF DOWNLOAD:

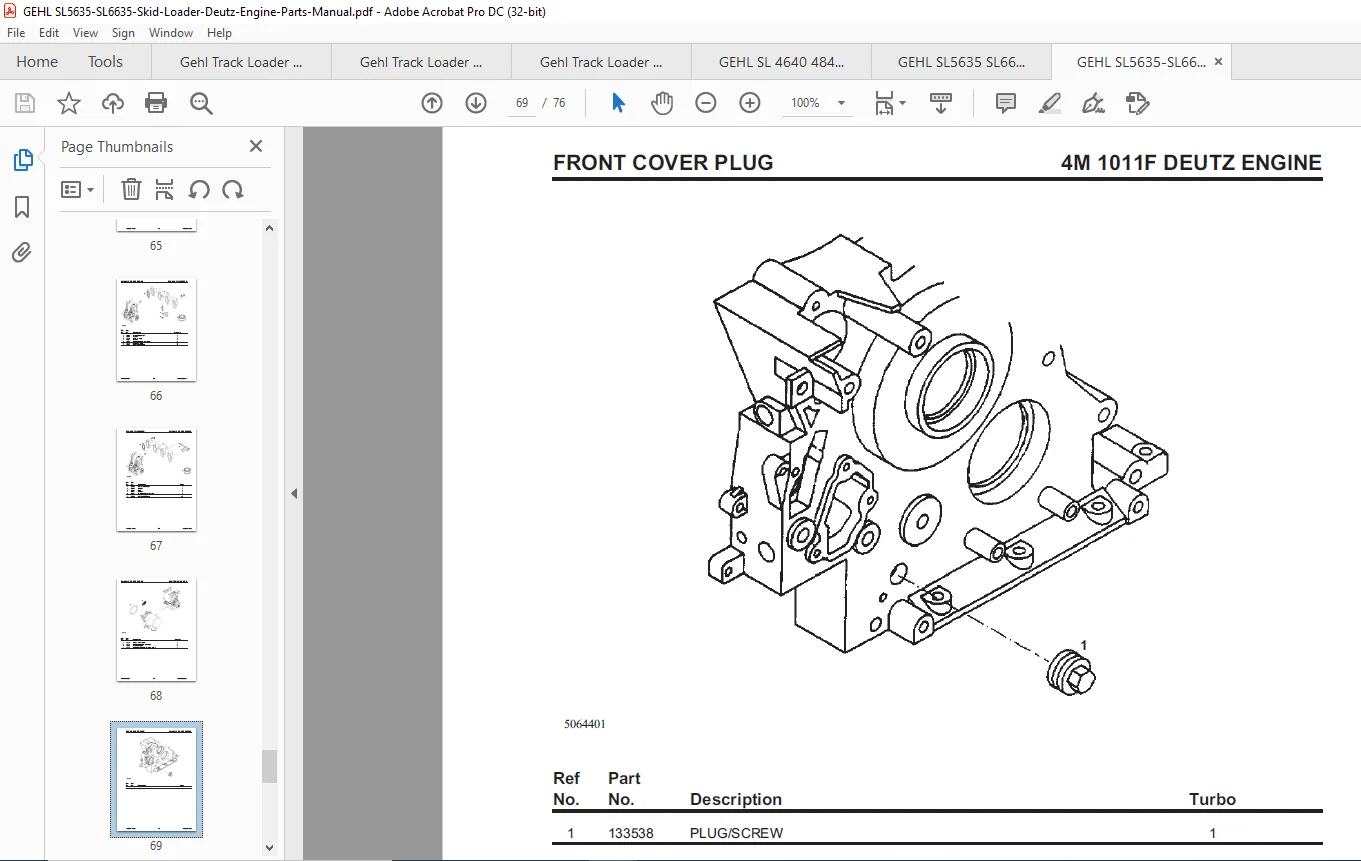

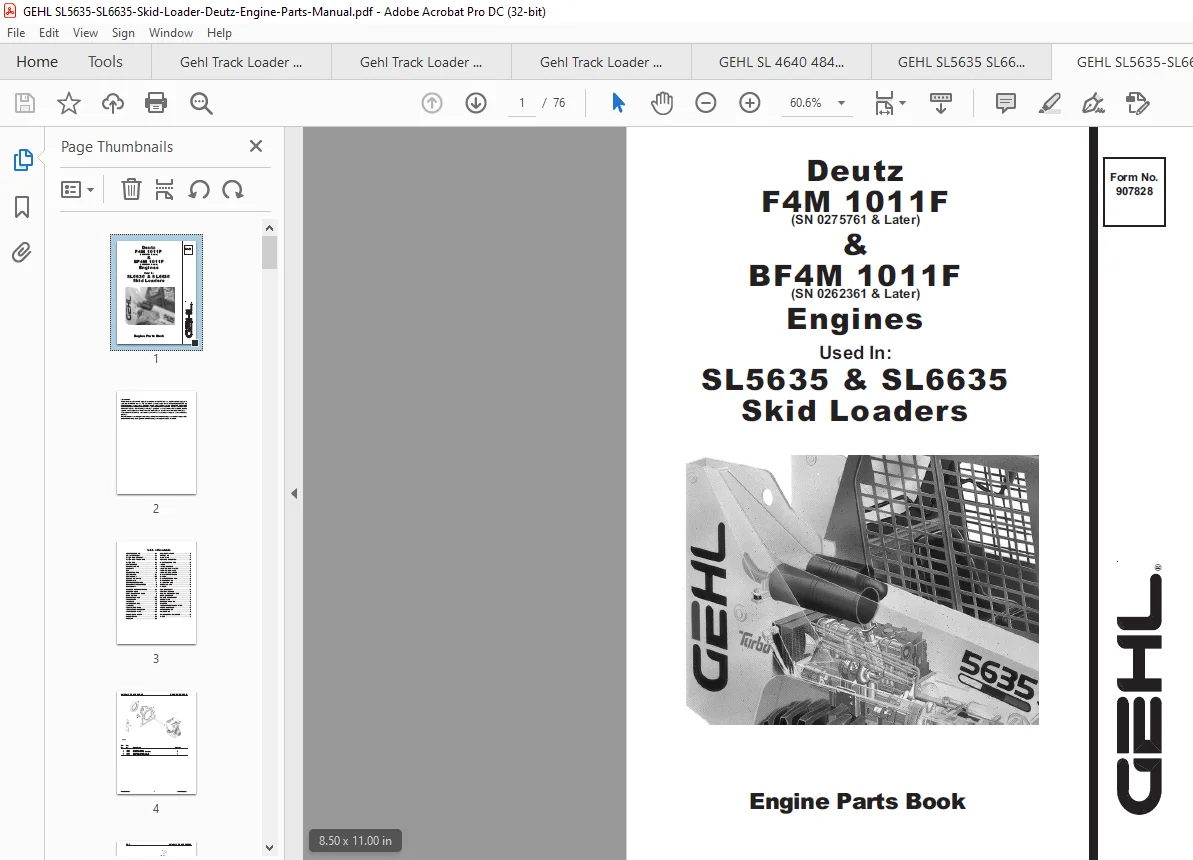

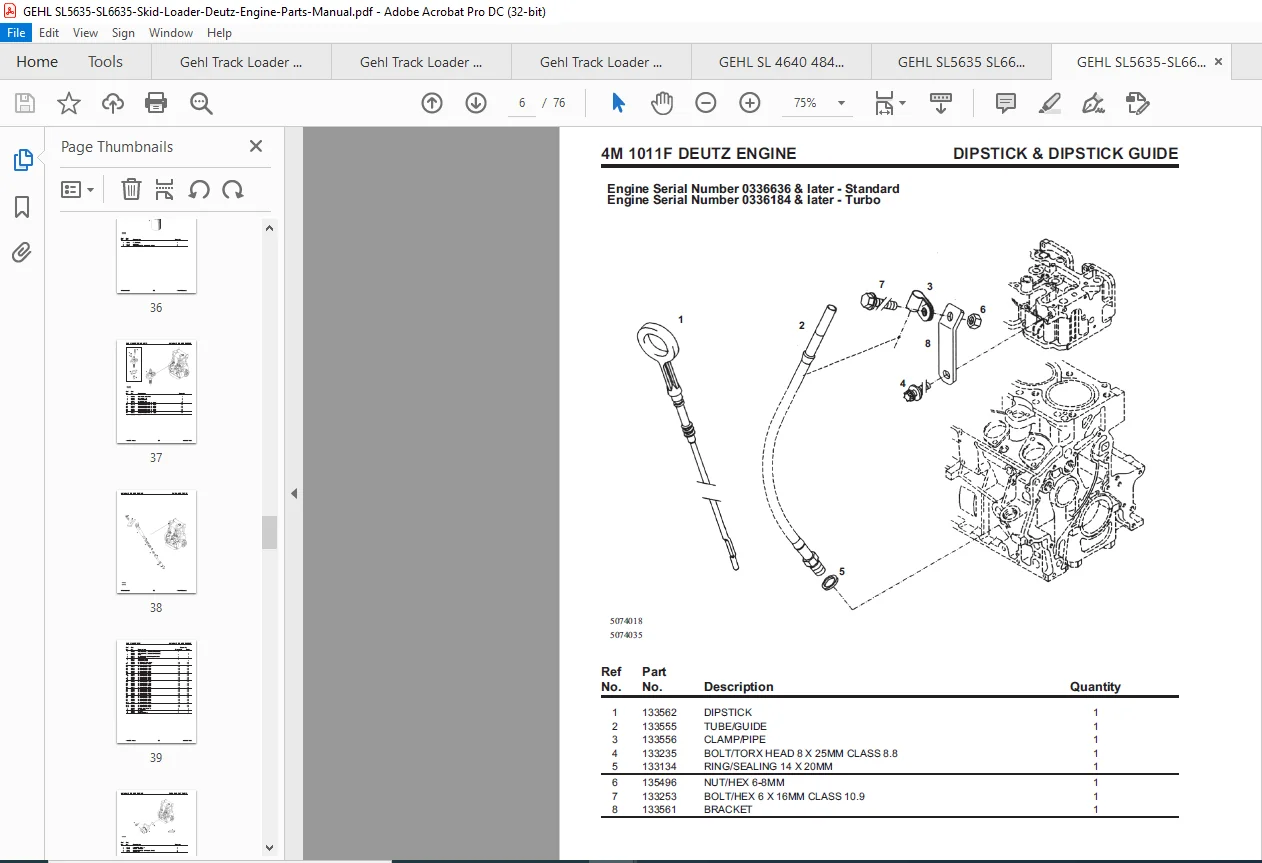

IMAGES PREVIEW OF THE MANUAL:
