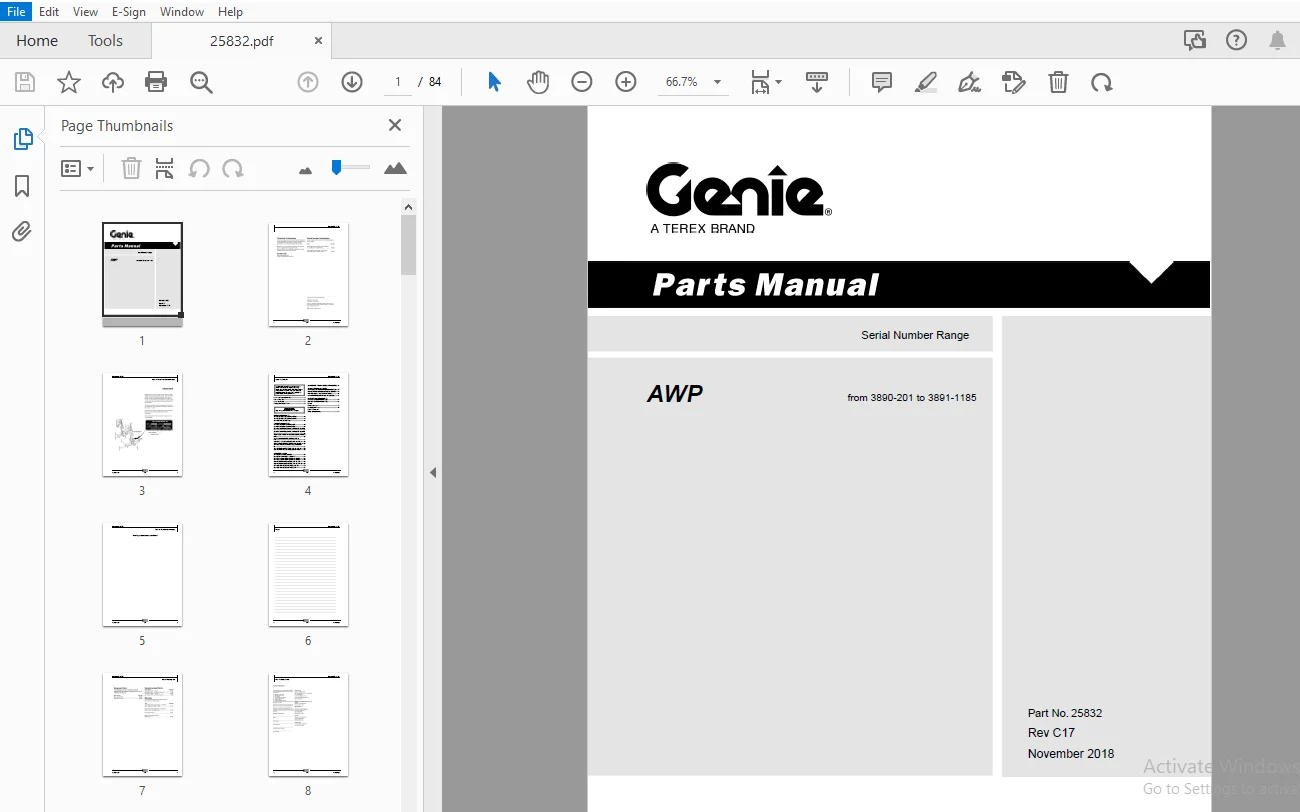

Genie AWP Parts Manual 25832 – PDF DOWNLOAD

Description

Genie AWP Parts Manual 25832 – PDF DOWNLOAD

Language : English
Pages : 84
Downloadable : Yes
File Type : PDF

Table Of Contents:

Genie AWP Parts Manual 25832 – PDF DOWNLOAD

How to Read Your Serial Number3
Parts Stocking List7
How to Order Parts8
Click on any page number to view the figure
100 BASE COMPONENTS

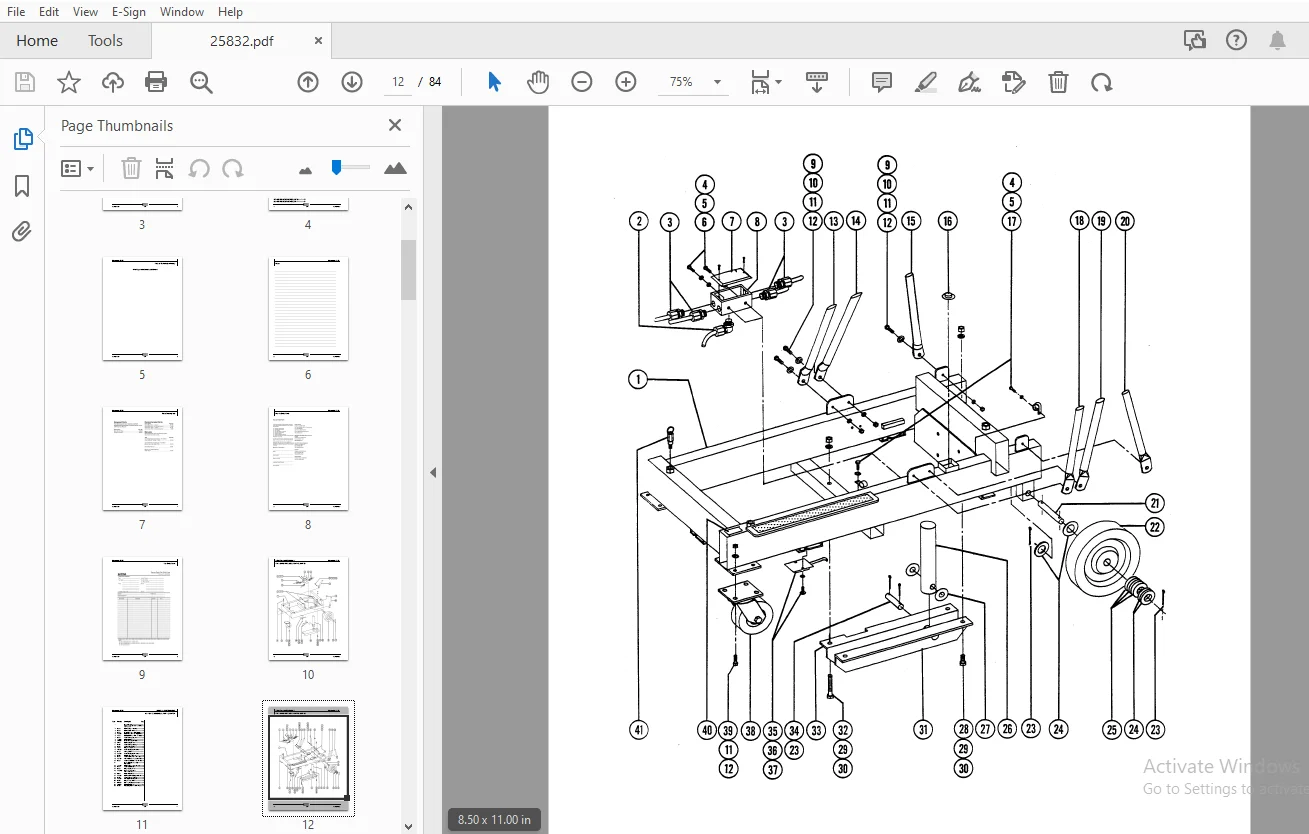

1011 BASE ASSEMBLY, AWP-19, AWP-2410
1021 BASE ASSEMBLY, AWP-30, AWP-3612
1031 OUTRIGGER ASSEMBLY14
200 MAST COMPONENTS
2011 MAST ASSEMBLY, AWP-19, VIEW 116
2012 MAST ASSEMBLY, AWP-19, VIEW 218
2021 MAST ASSEMBLY, AWP-24, AWP-30, AWP-36, VIEW
120
2022 MAST ASSEMBLY, AWP-24, AWP-30, AWP-36, VIEW
222
2031 DESCENT SEQUENCING CABLES AND MAST COVER
PLATE26
2041 LOADING BUMPER ASSEMBLY, AWP-19,
AWP-2428
2051 MAST BATTERY SUPPORT, AWP-19, AWP-2430
2061 LOADING WHEEL ASSEMBLY, AWP-19, AWP-2432
2071 NO 1 MAST ATTACHED PARTS, AWP-30 AND
3634
2081 TILT-BACK INSTALLATION, AWP-30, AWP-3636
2091 TILT-BACK SHOCK ABSORBER ASSEMBLY38
300 POWER GROUPS
3011 BATTERY PACK ASSEMBLY40
3021 BATTERY CHARGER ASSEMBLY42
3031 DC GROUND CONTROL BOX ASSEMBLY44
3041 AC GROUND CONTROL BOX ASSEMBLY46
3051 HYDRAULIC INSTALLATION, AWP-19, AWP-2448
3061 HYDRAULIC INSTALLATION, AWP-30, AWP-3650
3071 CONTROL CABLE ASSEMBLY, AWP-1952
3081 CONTROL CABLE ASSEMBLY, AWP-2454
3091 CONTROL CABLE ASSEMBLY, AWP-30, AWP-3656
400 PLATFORM COMPONENTS
4011 STANDARD ALUMINUM PLATFORM ASSEMBLY58
4021 NARROW ALUMINUM PLATFORM ASSEMBLY60
4031 FIBERGLASS PLATFORM ASSEMBLY62
4041 PLATFORM CONTROL BOX, AC AND DC64
500 HYDRAULIC COMPONENTS
5011 DC POWER UNIT ASSEMBLY66
5021 AC POWER UNIT ASSEMBLY68
Indices
Part Number Index70
Part Description Index72
Cross References
Fittings Cross Reference76
