Genie Lift Truck S-100HD S-120HD Parts Manual 1256212 – PDF DOWNLOAD
$32.95
The Genie Lift Truck S-100HD S-120HD Parts Manual 1256212 in PDF format provides comprehensive guidance for maintenance, repair, and replacement of parts for these specific models. It includes detailed diagrams, part numbers, and instructions, aiding technicians and operators in efficiently servicing the Genie Lift Trucks S-100HD and S-120HD.
Instant PDF Download
Available immediately
Save to Your Device
Download & keep forever
Antivirus Scanned
100% virus-free
Trusted Worldwide
175,000+ customers
Description
Genie Lift Truck S-100HD S-120HD Parts Manual 1256212 – PDF DOWNLOAD
The Genie Lift Truck S-100HD S-120HD Parts Manual 1256212 in PDF format provides comprehensive guidance for maintenance, repair, and replacement of parts for these specific models. It includes detailed diagrams, part numbers, and instructions, aiding technicians and operators in efficiently servicing the Genie Lift Trucks S-100HD and S-120HD.
FILE DETAILS:
Genie Lift Truck S-100HD S-120HD Parts Manual 1256212 – PDF DOWNLOAD
Language : English
Pages : 435
Downloadable : Yes
File Type : PDF

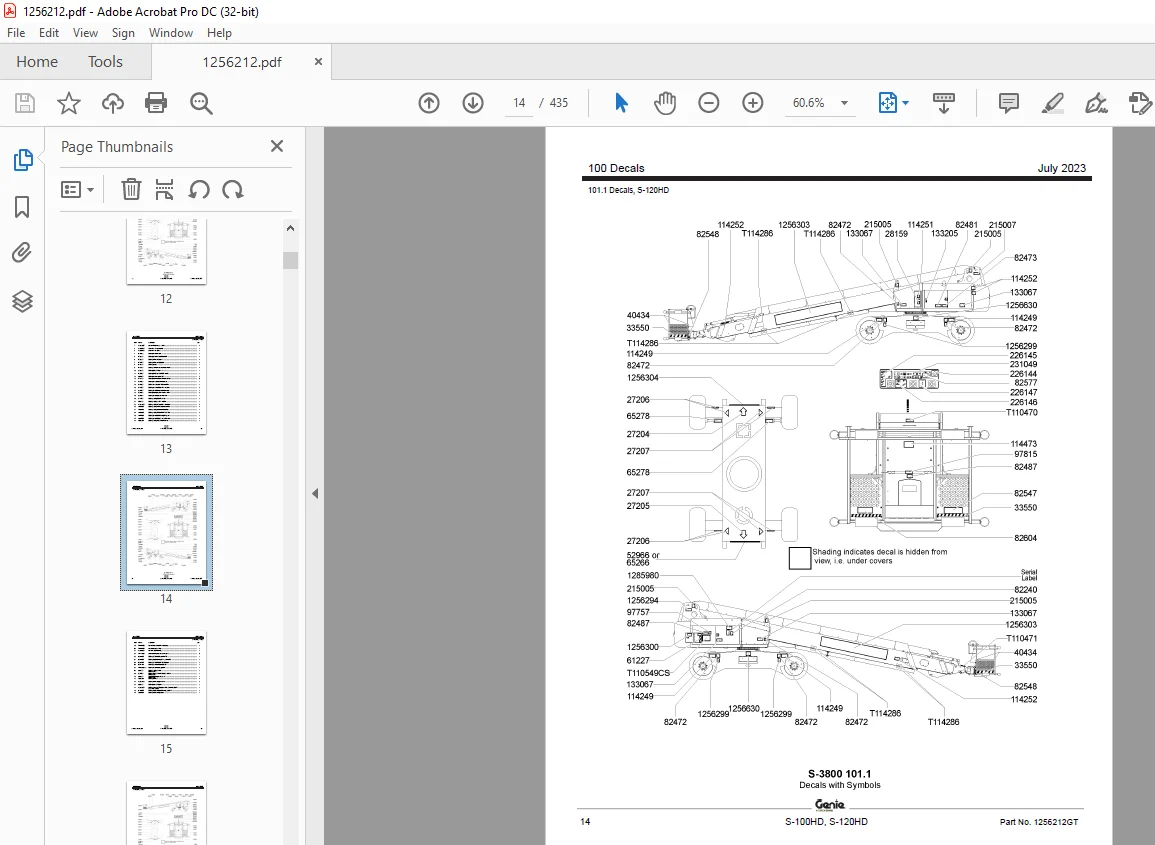

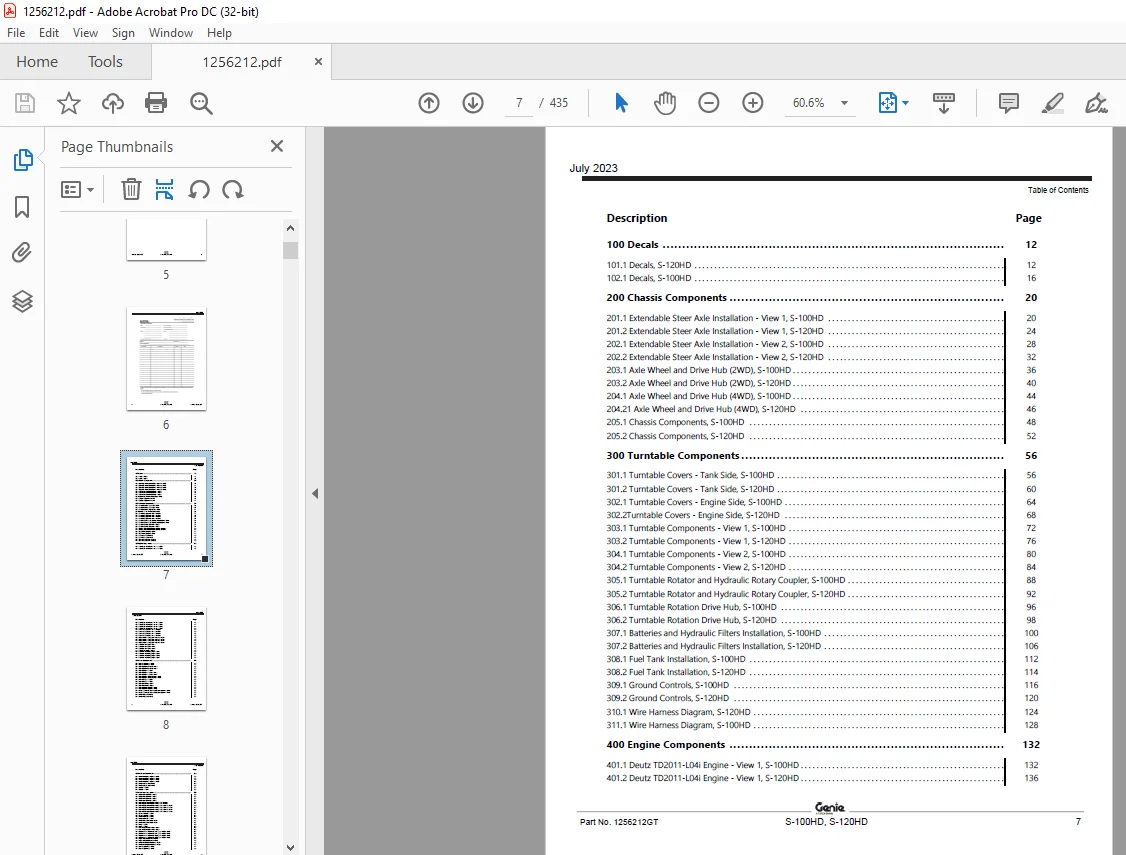

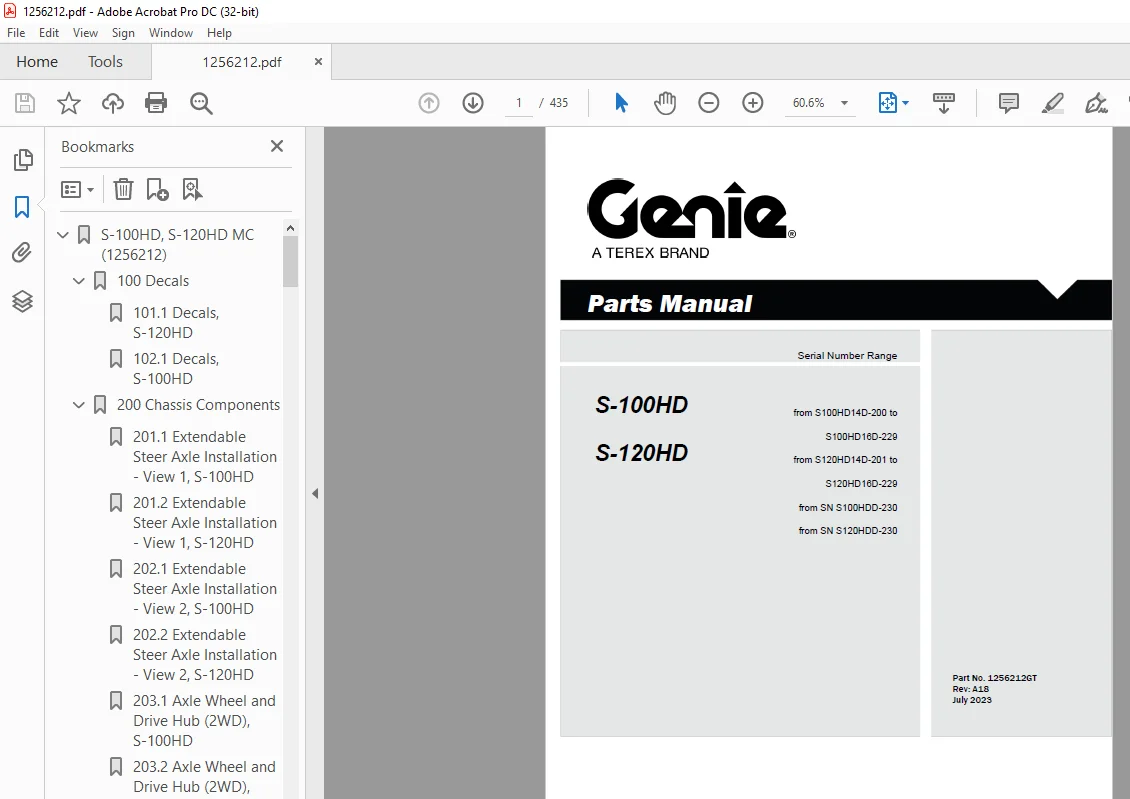

IMAGES PREVIEW OF THE MANUAL:
DESCRIPTION:
Genie Lift Truck S-100HD S-120HD Parts Manual 1256212 – PDF DOWNLOAD
How to Order Parts
Please be prepared with the following information when ordering replacement parts for your Terex or Genie product.
- Machine model number
- Machine serial number
- Part number
- Part description and quantity
- Purchase order number
- “Ship to” address
- Desired method of shipment
- Name and telephone number of the authorized distributor in your area
Use the Service Parts Fax Order Form on the next page and fax your order to our Parts Department.
If you don’t know the name of your authorized distributor, or if your area is not currently serviced by an authorized distributor, please call Terex or Genie Industries.
TABLE OF CONTENTS:
Genie Lift Truck S-100HD S-120HD Parts Manual 1256212 – PDF DOWNLOAD
S-100HD, S-120HD MC (1256212).................................................. 0 100 Decals................................................................. 12 101.1 Decals, S-120HD.................................................. 12 102.1 Decals, S-100HD.................................................. 16 200 Chassis Components..................................................... 20 201.1 Extendable Steer Axle Installation - View 1, S-100HD............. 20 201.2 Extendable Steer Axle Installation - View 1, S-120HD............. 24 202.1 Extendable Steer Axle Installation - View 2, S-100HD............. 28 202.2 Extendable Steer Axle Installation - View 2, S-120HD............. 32 203.1 Axle Wheel and Drive Hub (2WD), S-100HD.......................... 36 203.2 Axle Wheel and Drive Hub (2WD), S-120HD.......................... 40 204.1 Axle Wheel and Drive Hub (4WD), S-100HD.......................... 44 204.21 Axle Wheel and Drive Hub (4WD), S-120HD......................... 46 205.1 Chassis Components, S-100HD...................................... 48 205.2 Chassis Components, S-120HD...................................... 52 300 Turntable Components................................................... 56 301.1 Turntable Covers - Tank Side, S-100HD............................ 56 301.2 Turntable Covers - Tank Side, S-120HD............................ 60 302.1 Turntable Covers - Engine Side, S-100HD.......................... 64 302.2Turntable Covers - Engine Side, S-120HD........................... 68 303.1 Turntable Components - View 1, S-100HD........................... 72 303.2 Turntable Components - View 1, S-120HD........................... 76 304.1 Turntable Components - View 2, S-100HD........................... 80 304.2 Turntable Components - View 2, S-120HD........................... 84 305.1 Turntable Rotator and Hydraulic Rotary Coupler, S-100HD.......... 88 305.2 Turntable Rotator and Hydraulic Rotary Coupler, S-120HD.......... 92 306.1 Turntable Rotation Drive Hub, S-100HD............................ 96 306.2 Turntable Rotation Drive Hub, S-120HD............................ 98 307.1 Batteries and Hydraulic Filters Installation, S-100HD............100 307.2 Batteries and Hydraulic Filters Installation, S-120HD............106 308.1 Fuel Tank Installation, S-100HD..................................112 308.2 Fuel Tank Installation, S-120HD..................................114 309.1 Ground Controls, S-100HD.........................................116 309.2 Ground Controls, S-120HD.........................................120 310.1 Wire Harness Diagram, S-120HD....................................124 311.1 Wire Harness Diagram, S-100HD....................................128 400 Engine Components......................................................132 401.1 Deutz TD2011-L04i Engine - View 1, S-100HD.......................132 401.2 Deutz TD2011-L04i Engine - View 1, S-120HD.......................136 402.1 Deutz TD2011-L04i Engine - View 2, S-100HD.......................140 402.2 Deutz TD2011-L04i Engine - View 2, S-120HD.......................144 403.1 Deutz TD2011-L04i Engine - View 3, S-100HD.......................148 403.2 Deutz TD2011-L04i Engine - View 3, S-120HD.......................152 404.1 Cummins B3.3T Engine - View 1, S-100HD...........................156 404.2 Cummins B3.3T Engine - View 1, S-120HD...........................160 405.1 Cummins B3.3T Engine - View 2, S-100HD...........................164 405.2 Cummins B3.3T Engine - View 2, S-120HD...........................170 406.1 Engine Attached Components - View 1, S-100HD.....................176 406.2 Engine Attached Components - View 1, S-120HD.....................178 407.1 Engine Attached Components - View 2, S-100HD.....................180 407.2 Engine Attached Components - View 2, S-120HD.....................182 408.1 Deutz TD 2.9L4 Engine - View 1...................................184 409.1 Deutz TD 2.9L4 Engine - View 2...................................188 410.1 Deutz TD 2.9L4 Engine - View 3...................................192 411.1 Deutz TD2.9L4 Engine - View 4....................................196 412.1 Deutz TD 2.9L CHINA Ⅲ Engine - View 1............................198 413.1 Deutz TD 2.9L CHINA Ⅲ Engine - View 2............................202 414.1 Deutz TD 2.9L CHINA Ⅲ Engine - View 3............................206 415.1 Deutz TD 2.9L CHINA Ⅲ Engine - View 4............................210 500 Boom Components........................................................212 501.1 Boom Components, S-120HD.........................................212 502.1 Boom Components, S-100HD.........................................214 503.1 Boom Tube Zero, S-120HD - View 1.................................216 504.1 Boom Tube Zero, S-120HD - View 2.................................220 505.1 Boom Tube One, S-120HD...........................................226 506.1 Boom Tube One, S-100HD - View 1..................................230 507.1 Boom Tube One, S-100HD - View 2..................................234 508.1 Boom Tube One - Limit Switches, S-100HD..........................238 508.2 Boom Tube One - Limit Switches, S-120HD..........................242 509.1 Boom Tube Two, S-100HD...........................................246 509.2 Boom Tube Two, S-120HD...........................................250 510.1 Boom Tube Three, S-100HD.........................................254 510.2 Boom Tube Three, S-120HD.........................................258 511.1 Boom Wipers Installation, S-100HD................................262 511.2 Boom Wipers Installation, S-120HD................................266 512.1 Primary Extension Cylinder and Cables Installation, S-100HD......270 512.2 Primary Extension Cylinder and Cables Installation, S-120HD......276 513.1 Platform Rotator, S-100HD........................................282 513.2 Platform Rotator, S-120HD........................................286 600 Platform Components....................................................290 601.1 Platform Installation - View 1, S-100HD..........................290 601.2 Platform Installation - View 1, S-120HD..........................294 602.1 Platform Installation - View 2, S-100HD..........................298 602.2 Platform Installation - View 2, S-120HD..........................302 603.1 Platform Control Box, S-100HD....................................306 603.2 Platform Control Box, S-120HD....................................310 604.1 Joysticks, S-100HD...............................................314 604.2 Joysticks, S-120HD...............................................316 700 Hydraulic Components...................................................318 701.1 Traction Manifold, 2WD, S-100HD..................................318 701.2 Traction Manifold, 2WD, S-120HD..................................320 702.1 Traction Manifold, 4WD, S-100HD..................................322 702.2 Traction Manifold, 4WD, S-120HD..................................326 703.1 Steer and Axle Extend/Retract Manifold, 2WS, S-100HD.............330 703.2 Steer and Axle Extend/Retract Manifold, 2WS, S-120HD.............334 704.1 Steer and Axle Extend/Retract Manifold, 4WS - View 1, S-100HD....338 704.2 Steer and Axle Extend/Retract Manifold, 4WS - View 1, S-120HD....342 705.1 Steer and Axle Extend/Retract Manifold, 4WS - View 2, S-100HD....346 705.2 Steer and Axle Extend/Retract Manifold, 4WS - View 2, S-120HD....350 706.1 Function Manifold, S-120HD.......................................354 707.1 Function Manifold, S-100HD.......................................360 708.1 Platform Manifold, S-100HD.......................................366 708.2 Platform Manifold, S-120HD.......................................370 709.1 Platform Rotate Manifold, S-100HD................................374 709.2 Platform Rotate Manifold, S-120HD................................376 710.1 Pumps, S-100HD...................................................378 710.2 Pumps, S-120HD...................................................380 711.1 Drive and Steer System, 2WD, S-100HD.............................382 711.2 Drive and Steer System, 2WD, S-120HD.............................384 712.1 Hydraulic Hoses and Fittings - Drive System, 4WD, S-100HD........386 712.2 Hydraulic Hoses and Fittings - Drive System, 4WD, S-120HD........390 713.1 Hydraulic Hoses and Fittings - Steer System, 4WD, S-100HD........394 713.2 Hydraulic Hoses and Fittings - Steer System, 4WD, S-120HD........396 714.1 Engine and Hydraulic Tank, S-100HD...............................398 714.2 Engine and Hydraulic Tank, S-120HD...............................404 715.1 Platform Leveling and Rotation, S-100HD..........................410 715.2 Platform Leveling and Rotation, S-120HD..........................412 716.1 Boom Components, S-120HD.........................................414 717.1 Boom Components, S-100HD.........................................418 800 Accessories............................................................420 801.1 Contact Alarm Option.............................................420 TOC Bookmark...................................................................422
