Genie Scissors Lift GS-1530 GS-1532 GS-1930 GS-1932 Parts Manual PDF

Description

Genie Scissors Lift GS-1530 GS-1532 GS-1930 GS-1932 Parts Manual  – PDF DOWNLOAD

The Genie Scissors Lift GS-1530, GS-1532, GS-1930, GS-1932 Parts Manual is an essential PDF guide for maintaining and repairing these models, facilitating smooth operations.

FILE DETAILS:

Genie Scissors Lift GS-1530 GS-1532 GS-1930 GS-1932 Parts Manual  – PDF DOWNLOAD

Language : English
Pages : 242
Downloadable : Yes
File Type : PDF

DESCRIPTION

Genie Scissors Lift GS-1530 GS-1532 GS-1930 GS-1932 Parts Manual  – PDF DOWNLOAD

How to Order Parts

Please be prepared with the following information when ordering replacement parts for your Terex or Genie product.

• Machine model number
• Machine serial number
• Part number
• Part description and quantity
• Purchase order number
• “Ship to” address
• Desired method of shipment
•  Name and telephone number of the
  authorized distributor in your area
• Use the Service Parts Fax Order Form on the next page and fax your order to our Parts Department.
• If you don’t know the name of your authorized distributor, or if your area is not currently serviced by an authorized distributor, please call Terex or Genie Industries.

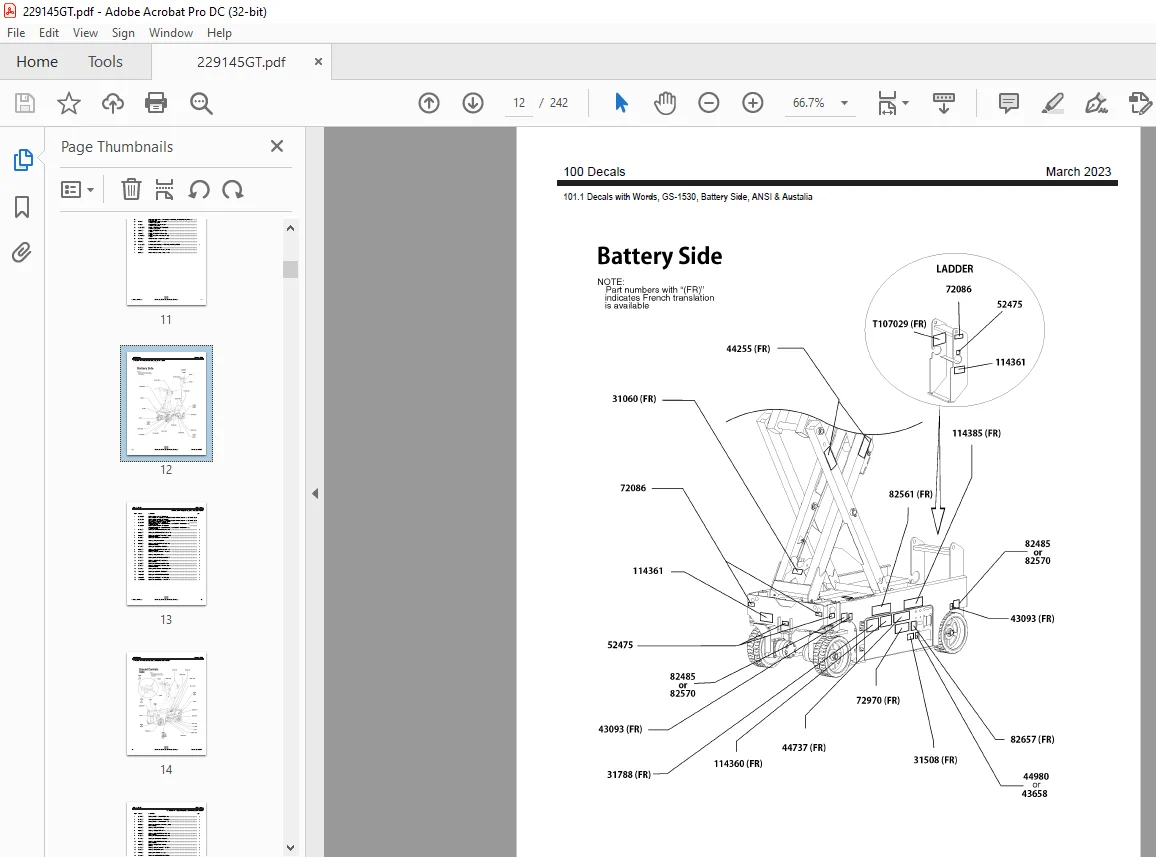

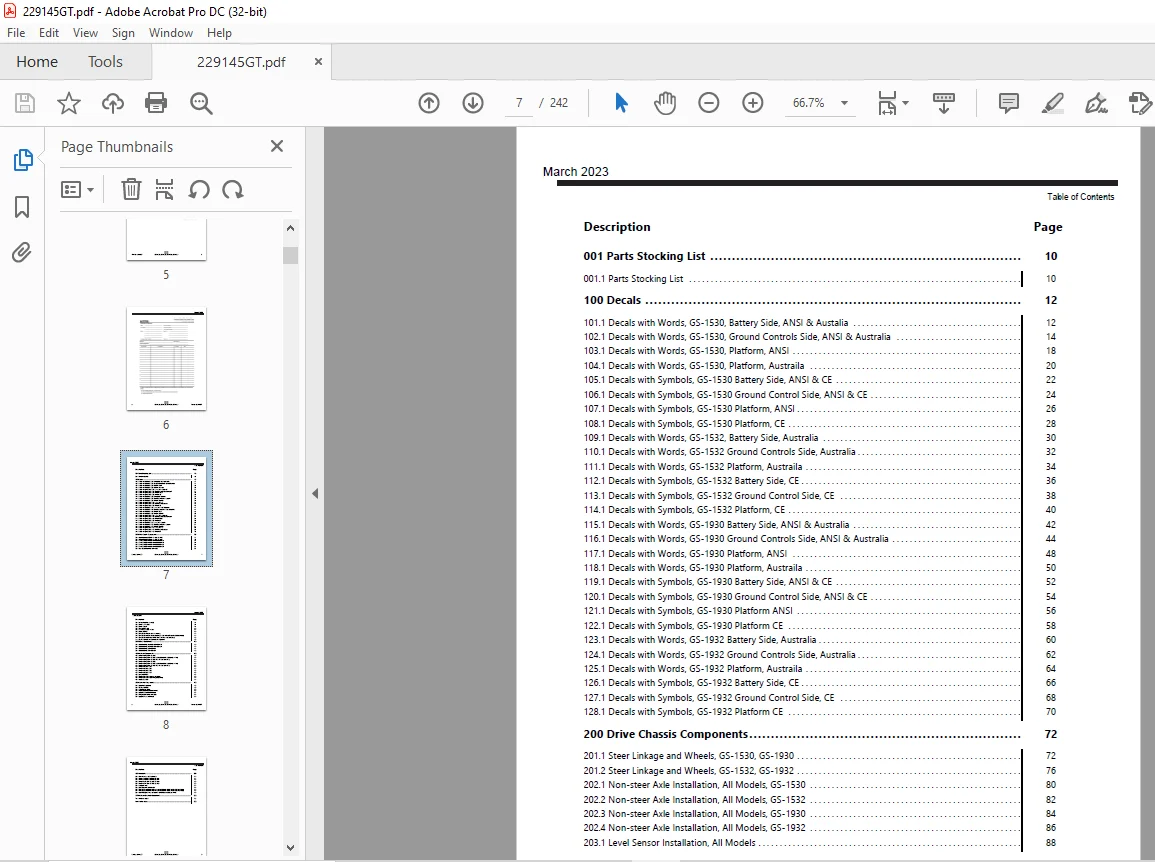

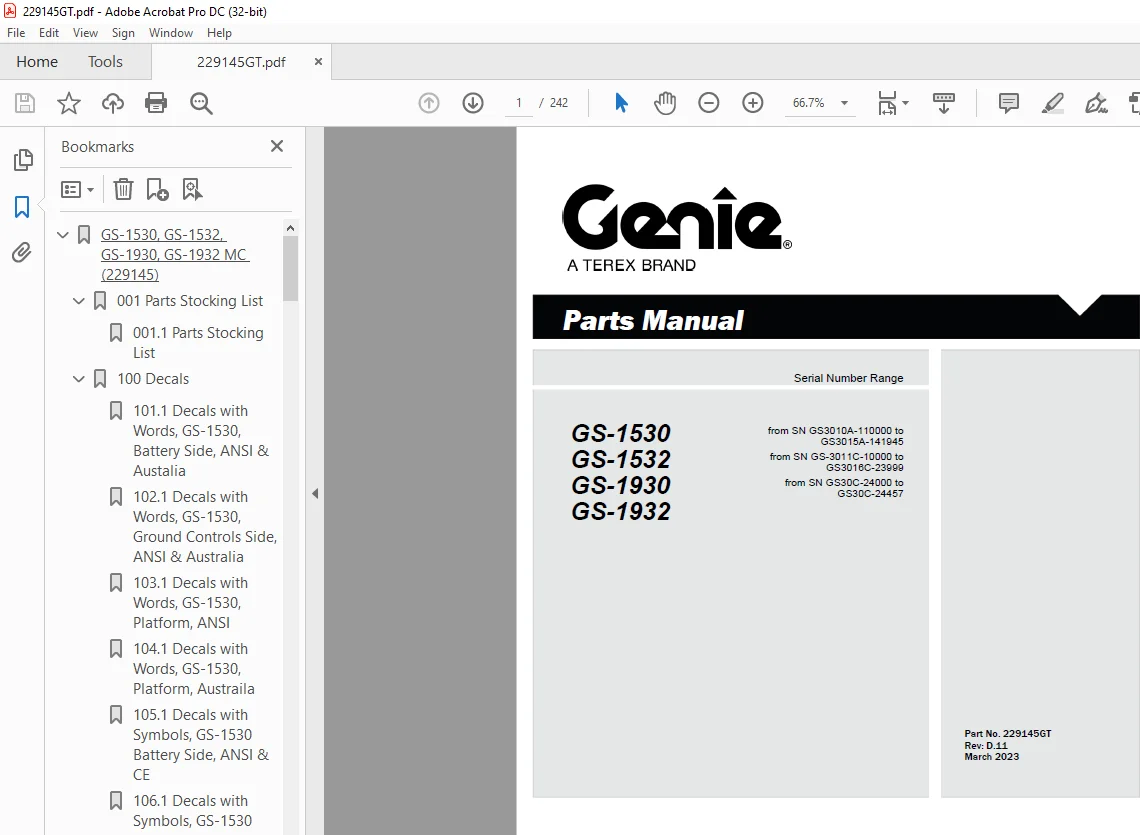

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Genie Scissors Lift GS-1530 GS-1532 GS-1930 GS-1932 Parts Manual  – PDF DOWNLOAD

GS-1530, GS-1532, GS-1930, GS-1932 MC (229145) 0
001 Parts Stocking List 10
0011 Parts Stocking List 10
100 Decals 12
1011 Decals with Words, GS-1530, Battery Side, ANSI & Austalia 12
1021 Decals with Words, GS-1530, Ground Controls Side, ANSI & Australia 14
1031 Decals with Words, GS-1530, Platform, ANSI 18
1041 Decals with Words, GS-1530, Platform, Austraila 20
1051 Decals with Symbols, GS-1530 Battery Side, ANSI & CE 22
1061 Decals with Symbols, GS-1530 Ground Control Side, ANSI & CE 24
1071 Decals with Symbols, GS-1530 Platform, ANSI 26
1081 Decals with Symbols, GS-1530 Platform, CE 28
1091 Decals with Words, GS-1532, Battery Side, Australia 30
1101 Decals with Words, GS-1532 Ground Controls Side, Australia 32
1111 Decals with Words, GS-1532 Platform, Austraila 34
1121 Decals with Symbols, GS-1532 Battery Side, CE 36
1131 Decals with Symbols, GS-1532 Ground Control Side, CE 38
1141 Decals with Symbols, GS-1532 Platform, CE 40
1151 Decals with Words, GS-1930 Battery Side, ANSI & Australia 42
1161 Decals with Words, GS-1930 Ground Controls Side, ANSI & Australia 44
1171 Decals with Words, GS-1930 Platform, ANSI 48
1181 Decals with Words, GS-1930 Platform, Austraila 50
1191 Decals with Symbols, GS-1930 Battery Side, ANSI & CE 52
1201 Decals with Symbols, GS-1930 Ground Control Side, ANSI & CE 54
1211 Decals with Symbols, GS-1930 Platform ANSI 56
1221 Decals with Symbols, GS-1930 Platform CE 58
1231 Decals with Words, GS-1932 Battery Side, Australia 60
1241 Decals with Words, GS-1932 Ground Controls Side, Australia 62
1251 Decals with Words, GS-1932 Platform, Austraila 64
1261 Decals with Symbols, GS-1932 Battery Side, CE 66
1271 Decals with Symbols, GS-1932 Ground Control Side, CE 68
1281 Decals with Symbols, GS-1932 Platform CE 70
200 Drive Chassis Components 72
2011 Steer Linkage and Wheels, GS-1530, GS-1930 72
2012 Steer Linkage and Wheels, GS-1532, GS-1932 76
2021 Non-steer Axle Installation, All Models, GS-1530 80
2022 Non-steer Axle Installation, All Models, GS-1532 82
2023 Non-steer Axle Installation, All Models, GS-1930 84
2024 Non-steer Axle Installation, All Models, GS-1932 86
2031 Level Sensor Installation, All Models 88
2041 Pothole Protection Assembly 90
2051 Battery Pack Module 94
2061 Battery Charger 98
2071 Power Unit Module100
2081 Ground Controls, All Models104
2091 Electrical Wiring108
2101 Power Cables (models without contactor)112
2102 Power Cables (models with contactor to SN GS3014A-136972 and to GS3015C-18038)114
2103 Power Cables (from SN GS3014A-136973 and from GS3015C-18039)116
2111 Function Manifold and Accumulator Components118
300 Scissor Components120
3011 Scissor Assembly Installation, GS-1530/1532120
3012 Scissor Assembly Installation, GS-1930/1932122
3021 Scissor Assembly, GS-1530/1532124
3031 Scissor Assembly, GS-1930/1932128
400 Platform Components132
4011 Platform Components, GS-1530132
4021 Platform Components, GS-1532 (to SN GS3016C-22616, GS3015A-141945)138
4022 Platform Components, GS-1532 (from SN GS3016C-22617)144
4031 Platform Components, GS-1930150
4041 Platform Components, GS-1932 (to SN GS3016C-22616, GS3015A-141945)156
4042 Platform Components, GS-1932 (from SN GS3016C-22617)162
4051 Platform Gates, GS-1530168
4052 Platform Gates, GS-1532172
4053 Platform Gates, GS-1930176
4054 Platform Gates, GS-1932180
4061 Power to Platform184
4071 Platform Controls, 6 Button (2 Speed Lift)188
4081 Platform Controls, 4 Button (Proportional Lift)192
4091 Joystick Controller194
500 Hydraulic Components196
5011 Hydraulic Components196
5021 Function Manifold198
5031 Check Valve Manifold200
5041 Brake Release Hand Pump Manifold202
5051 Hydraulic Power Unit, All Models204
5061 Lift Cylinder Assembly, All Models206
5071 Hydraulic Hoses and Fittings208
600 Accessories212
6011 Alarm, Horn and Flashing Beacons212
6021 Air Line to Platform, GS-1530, GS-1532214
6022 Air Line to Platform, GS-1930, GS-1932216
6031 Platform Work Light, GS-1530, GS-1532218
6032 Platform Work Light, GS-1930, GS-1932220
6041 Voltage Inverter222
6051 Padded Auxiliary Rail, GS-1930224
6061 Lift Guard Contact Alarm, View-1 (from SN GS3014A-135000 and SN GS3014C-17000)226
6071 Lift Guard Contact Alarm, View-2 (from SN GS3014A-135000 and SN GS3014C-17000)228
6081 Telematics Option (from SN GS3014A-134509 and SN GS3015C-17993)230
700 Platform Overload Components232
7011 Platform Overload232
Part Number Index236
